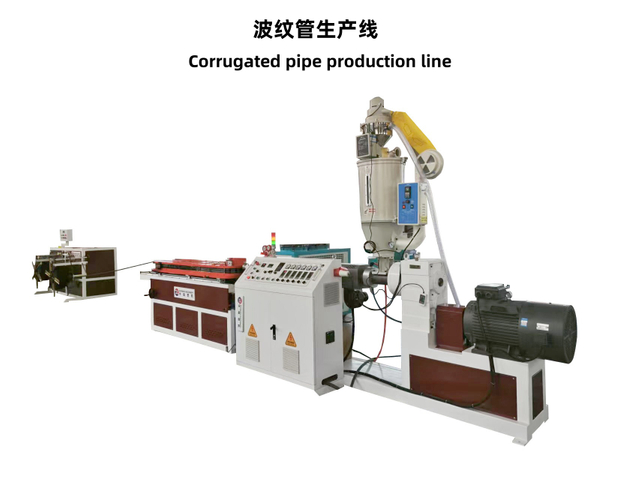

PP / PE corrugated pipe production line is a fully automatic, single-screw extrusion system engineered for the continuous manufacture of single-wall or double-wall corrugated pipes from 16 mm up to 1200 mm in diameter. The line processes virgin or recycled polypropylene (PP) and high-density or low-density polyethylene (HDPE / LDPE) into lightweight yet high-strength pipes that are widely used for cable protection (electric, telecom, fiber-optic), storm-water drainage, agricultural irrigation, building ventilation and automotive conduit.
Core Components
Vacuum Loader & Drying Hopper – automatic material feeding and moisture removal.
High-torque Single-screw Extruder – 30:1 or 33:1 L/D barrier screw with grooved feed zone guarantees homogeneous melt and ≥ 95 % plasticization even with high CaCO₃ filler.
Co-extruder (optional) – for colored stripes or adhesion-modified inner layer.
Die Head – spiral or basket style; quick-change tooling for OD 16–75 mm, 50–250 mm, 200–600 mm or 500–1200 mm ranges.

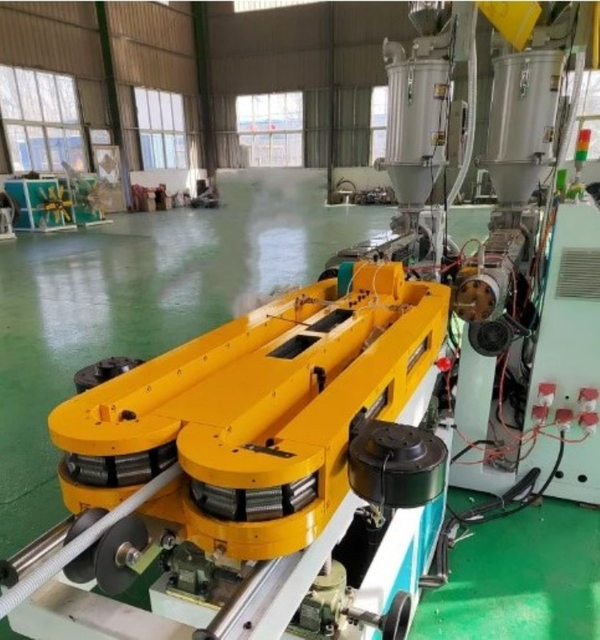

Corrugator – precision vacuum calibrating blocks in aluminum alloy or high-strength resin; servo-driven, open-close design for fast size changeover.
Cooling Tank – spray and immersion sections ensure rapid shape fixation.
Haul-off – caterpillar or belt type with synchronized speed to corrugator, ±0.5 % tolerance.
Cutter – planetary or chipless saw with PLC length control (±2 mm).
Automatic Coiler or Stacker – torque-controlled for neat packaging.

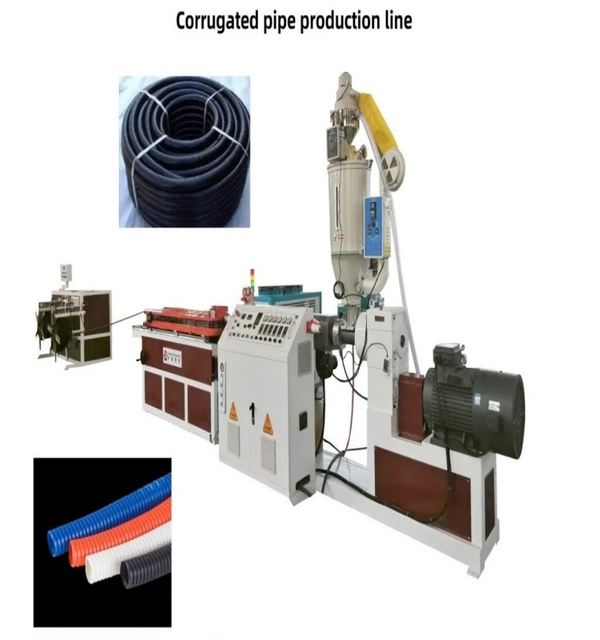

Normal speed single wall corrugated pipe machine
This production line can be used to produce corrugated pipes of PP/PE/PVC/EVA/PA continuously.
Plastic single wall corrugated pipes have features of high temperature resistance,corosion and abrasion resistance,high intensity and good flexibility,etc.They are widely used in fields of auto wire harness,electric thread-passing pipes,circuit of machine tool,protective of lamps and lantern wires,tubes of air conditioner and washing machine etc.
| Normal speed single wall corrugated pipe machine |
| Model | Pipe diameter | Extruder model | Motor powder | Production speed | Mold pairs | Vacuum pump(Optional) |
| 14 | 5-14mm | SJ45/30 | 11KW | 6-8m/min | 42 |
|
| 32 | 10-32mm | SJ-50/33 | 15KW | 5-12m/min | 50 | 1.5kw |
| 50 | 16-50mm | SJ-65/33 | 30KW | 3-10m/min | 50 | 2.2kw |
| 63 | 16-63mm | SJ-65/33 | 30KW | 3-10m/min | 50 | 2.2kw |
| 110 | 32-110mm | SJ-75/33 | 37KW | 3-6m/min | 72 | 5.5kw |
High speed single wall corrugated pipe making machine
High speed single wall corrugated pipe making machine can produce PP/PE/PVC/EVA/PA material single wall corrugated pipe continuously.
We designed new technology,replace the traditional chain forming machine.The appearance and preceision of single wall corrugated pipe have improved greatly.
The production line is driven by gears,and the mould runs in the track.
It is equipped with an automatic lubrication system and a closed forced water cooling system to achieve high-speed production.
| High speed single wall corrugated pipe machine |
| Model | Pipe diameter | Extruder model | Motor power | Production speed | Mold pairs | Vacuum pump(Optional) |
| 14 | 4.5-13mm | 45/28 | 11kw | 12-20m/min | 63 | 1.5kw |
| 50 | 10-50mm | 65/30 | 30kw | 10-24m/min | 72 | 2.2kw |
High-Performance Bellows Production Line Overview
Investing in a high-performance Bellows Production Line is essential for manufacturers. It helps scale the output of flexible, durable, and high-quality corrugated piping. At Qingdao Zhongrui Plastic Machinery Co., Ltd., we specialize in engineering advanced extrusion machinery. We serve as your dedicated equipment supplier rather than a provider of end-user pipes. Our state-of-the-art machinery extrudes premium plastic bellows using thermoplastic materials like PE, PP, and PVC. By integrating cutting-edge automation and precision temperature controls, an automated bellows production line ensures stable, high-capacity output. This output is perfectly tailored for demanding industrial manufacturing environments.
Our Bellows Production Line Extrusion Machines
We offer a comprehensive range of bellows manufacturing equipment. Our machines are tailored to meet diverse industrial requirements. Whether your facility requires high-speed output for small-diameter conduits or robust machinery for heavy-duty infrastructure, we can help. Our extrusion machines deliver exceptional reliability, precision, and energy efficiency.
Single-Wall Bellows Production Line
Our machinery for producing single-wall plastic bellows is engineered for maximum efficiency. It supports high-speed continuous operation. This equipment is ideal for manufacturing smaller diameter pipes. These pipes require high flexibility and rapid production cycles. By utilizing a specialized PP threading bellows production line, manufacturers achieve excellent wall thickness uniformity. It also provides superior cooling efficiency, ensuring a flawless final product.
Double-Wall Corrugated Pipe Production Line
For heavy-duty applications, our double-wall corrugated pipe equipment represents the industry standard. This machinery produces pipes with high ring stiffness on the outside. It also creates a perfectly smooth inner wall for optimal fluid flow. The dual-extrusion process is highly automated. This allows for the seamless bonding of inner and outer layers. It maintains strict dimensional accuracy across large production runs.
| Machine Type | Key Characteristics | Common Materials | Primary Output Applications |
| Single-Wall Extrusion Line | High-speed output, excellent flexibility, rapid cooling | PE, PP, PVC, PA | Electrical conduits, automotive wiring, medical tubing |
| Double-Wall Extrusion Line | High ring stiffness, smooth inner wall, dual-extrusion | PE, PP, PVC | Agricultural drainage, municipal sewage, heavy infrastructure |
Industry Applications for Our Bellows Production Line
The versatility of our extrusion machinery allows manufacturers to serve lucrative end-use markets. By configuring the equipment to specific material and structural requirements, you can produce specialized piping. This meets the needs of multiple demanding industries.
Cable Protection & Electrical Conduits
Electrical and telecommunications infrastructure relies heavily on durable, flame-retardant conduits. These protect sensitive wiring. Our machinery configurations are optimized for processing PVC and PE. This creates flexible, crush-resistant cable protection. Utilizing a high-speed corrugated pipe extrusion line ensures manufacturers meet high-volume demands. You can supply the construction and telecom sectors efficiently.
Automotive Corrugated Pipes
The automotive industry requires highly specialized plastic bellows. These are used for wiring harnesses and fluid transport systems. Our production lines are tailored to manufacture heat-resistant and durable corrugated pipes. These highly flexible pipes withstand harsh thermal and chemical environments. This ensures long-lasting performance and safety in modern vehicles.
Agricultural Drainage Systems
Large-scale agricultural irrigation and drainage require robust piping solutions. These pipes must handle high volumes of water and soil pressure. Our equipment produces large-diameter, perforated double-wall pipes. These are essential for effective water management. Investing in a corrugated pipe production line for drainage allows manufacturers to supply the agricultural sector. You can deliver high-stiffness pipes that resist environmental degradation.
Medical Tubing Solutions
For the healthcare sector, precision and hygiene are paramount. Our advanced extrusion capabilities allow for the production of clean, flexible bellows. These can be food-grade or medical-grade. The machinery ensures strict adherence to sanitary standards. It provides the precise dimensional control needed for sensitive medical tubing.
Why Choose Qingdao Zhongrui for Your Bellows Production Line?
As a professional manufacturer of high-performance plastic pipe production lines, Qingdao Zhongrui Plastic Machinery Co., Ltd. is a trusted partner. We combine deep technical expertise with a steadfast commitment to customer success.
Patented R&D & Custom Engineering
Our experienced R&D team is backed by multiple patents. This allows us to stay at the forefront of extrusion technology. We do not just sell standard machines. We provide customized technical solutions engineered to match your specific production requirements. This ensures you get the exact equipment needed for your facility constraints.
7*24 Hours Global After-Sales Support
We understand that machine uptime is critical to your profitability. That is why our highly skilled technical team provides 7*24 hours of excellent after-sales service. From remote troubleshooting to on-site support, we ensure minimal downtime for your operations.
Decades of Export Experience & Strategic Location
We are located in Qingdao Jiaozhou City, a major plastic machinery industrial base. This provides us with a robust supply chain and logistical advantages. With decades-long internationalization experience, we successfully export our machinery globally. Our equipment complies with rigorous international manufacturing and safety standards.
How to Choose the Right Bellows Production Line
Selecting the correct machinery is vital for optimizing your manufacturing efficiency. When evaluating a new bellows production line, buyers should consider several key factors. This ensures the equipment aligns with operational goals. At Qingdao Zhongrui, we offer reasonable pricing that delivers exceptional value.
| Selection Factor | Key Considerations | Impact on Production |
| Target Pipe Diameter | Minimum and maximum diameters needed | Dictates extruder size, motor power, and mold specifications |
| Raw Material Compatibility | Processing PE, PP, PVC, or PA | Requires optimized screw and barrel design |
| Production Capacity | Facility output targets | Prevents bottlenecks and ensures smooth order fulfillment |
| Automation Level | Winding, cutting, and stacking systems | Reduces labor costs and improves product consistency |
Frequently Asked Questions About Bellows Production Lines
What materials can your plastic bellows production line process?
Our extrusion machinery is highly versatile. It can process a variety of plastics, including PE, PP, PVC, and PA. We customize the screw and barrel design based on your specific material requirements. This ensures optimal melting and extrusion.
Do you provide installation and technical training for the extrusion machines?
Yes, we offer comprehensive technical support. This includes on-site installation guidance and operator training. Our 7*24 hours after-sales service team is always available. We assist you in getting your production line running smoothly.
Can the corrugated pipe extrusion machine be customized for specific pipe diameters?
Absolutely. Our experienced R&D team provides customized solutions. We ensure the machinery meets your exact specifications. This includes precise pipe diameter, wall thickness, and production speed.
Are your production lines suitable for international manufacturing facilities?
Yes, we have decades of experience exporting our high-performance plastic extrusion machinery. Our equipment is designed to meet international quality and safety standards. This makes it ideal for manufacturing facilities worldwide.
Request a Customized Extrusion Solution Today
Ready to upgrade your manufacturing capabilities with reliable, high-speed extrusion technology? As a premier Bellows Production Line manufacturer, Qingdao Zhongrui Plastic Machinery Co., Ltd. is dedicated to your success. We provide the exact equipment you need to scale your business. Contact our professional sales team today for a detailed quote. We are ready to discuss custom engineering requirements for your next extrusion project.
