Plastic Profile Production Line

Plastic Profile Production Line

A plastic profile production line is a continuous extrusion system that converts thermoplastic raw materials (most commonly PVC, but also PE, PP, WPC or other compounds) into long, constant-cross-section profiles used in construction, furniture, automotive trim, appliance housings and many other industries . The process is called profile extrusion and, compared with injection moulding or machining, offers high productivity, low unit cost and almost unlimited profile length.

Typical workflow

1. Material preparation

  PVC powder or pellets (often pre-mixed with CaCO₃, stabilisers, impact modifiers, colourants, wood-fibre in the case of WPC, etc.) are fed into a high-speed heating/cooling mixer to obtain a homogeneous, dry blend .

2. Extrusion

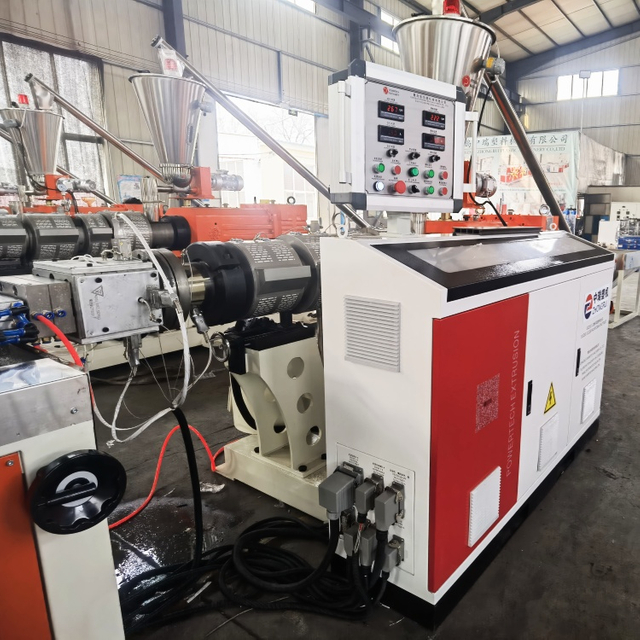

  The blend is charged into the hopper of a conical twin-screw extruder (for rigid PVC) or a single-/parallel-twin-screw machine (for PE/PP). Inside the barrel the material is melted, compressed and degassed before being forced through a specially designed die that gives the melt its final shape .

3. Calibration & cooling

  Immediately after leaving the die, the hot profile enters a vacuum calibration table where it is drawn against precision brass calibrators by vacuum pumps while simultaneously being cooled by a powerful water circuit. Correct sizing and rapid heat removal are critical for tight tolerances and minimal warpage .

4. Haul-off

  A caterpillar-type haul-off unit grips the cooled profile with rubber pads or belts and pulls it at a precisely controlled, synchronised speed. Constant tension prevents stretching or buckling and guarantees uniform wall-thickness .

5. Cutting & finishing

  A flying cut-off saw or guillotine travelling at line speed cuts the profile to length. Cut ends are then brushed, chamfered or milled if required. A protective film can be applied on-line before stacking .

6. Stacking & packaging

  Finished pieces are conveyed to an automatic stacker, bundled and strapped for shipment or downstream fabrication (drilling, welding, lamination, etc.).

Standard line configuration

• Conical twin-screw extruder (e.g. SJZ-55/110 up to SJZ-92/188)

• High-quality die head, calibrator and cooling tank (length 4–11.5 m)

• Frequency-controlled haul-off (2-, 4- or 6-belt caterpillar)

• Servo-driven travelling saw with dust collection

• PLC/SCADA control system (Siemens/Schneider/ABB)

• Optional add-ons: ink-jet printer, embossing station, hot-stamp foiler, co-extrusion layer, laser marking, 4-side wrapping line .

Key advantages

• High output (180–500 kg h⁻¹ on high-speed models)

• Excellent dimensional accuracy (±0.1 mm)

• Modular design allows quick change-over between different profiles by swapping dies and calibrators

• CE/ISO certified components, low energy consumption, 12-month warranty and worldwide service support .

Typical products

PVC window & door frames, sills, skirting boards, cable trunking, decorative trim, WPC decking, garden fencing, automotive sealing strips, refrigerator gaskets and many customer-specific profiles .

High-Performance Plastic Profile Production Lines

Investing in a reliable plastic profile production line is essential for manufacturing high-quality PVC and composite profiles efficiently. Qingdao Zhongrui Plastic Machinery Co., Ltd. is a premier manufacturer and supplier of high-performance extrusion equipment. We are strategically located in Qingdao Jiaozhou City, a recognized plastic machinery industrial base in northern China. Our team provides robust extrusion solutions designed for the rigorous demands of global B2B buyers. Our commitment to engineering excellence ensures every system delivers optimal stability, precision, and long-term value for your facility.

Types of Plastic Profile Production Lines We Offer

To help buyers find the exact machinery for their manufacturing needs, we categorize our profile extrusion solutions by material compatibility. Each system is engineered to maximize output while maintaining strict quality control.

PVC Profile Extrusion Lines

Our advanced PVC profile production line is specifically engineered for both rigid and flexible applications. These systems are optimized for high output capacity, exceptional energy efficiency, and continuous operational stability. Whether you produce window frames, door panels, or industrial shapes, our machinery ensures uniform melting and precise shaping.

Wood Plastic Composite (WPC) Profile Production Lines

For manufacturers focused on eco-friendly construction materials, our WPC profile production lines offer the perfect solution. These machines easily process PE, PP, and PVC materials mixed with wood fibers. The specialized screw design ensures thorough compounding of wood powder and plastic. This results in durable, weather-resistant composite profiles for outdoor decking and cladding.

Advanced Equipment Composition & Extrusion Process

We provide turnkey extrusion solutions that integrate top-tier machine components. A standard plastic profile production line from Zhongrui features several synchronized units working seamlessly together. The process begins with our high-quality single or double screw extruders. These units provide consistent plasticization and stable melt pressure.

Following the initial extrusion, the profile enters a precision vacuum calibration table. This stage ensures rapid cooling and exact dimensional sizing. Finally, heavy-duty haul-off units and automated cutters pull and size the finished profiles. This prevents deformation and guarantees a flawless end product ready for the market.

Technical Specifications & Model Parameters

To satisfy the technical requirements of B2B procurement teams, we offer various extruder models tailored to different production scales. Below is a general overview of our technical parameters for profile extrusion:

Supported Materials and End-Product Applications

The versatility of our plastic profile production line equipment allows manufacturers to adapt to changing market demands. Our machinery supports a wide variety of raw materials, including PE, PP, PVC, and WPC. This material flexibility enables the production of numerous end-products across the construction, decoration, and industrial sectors.

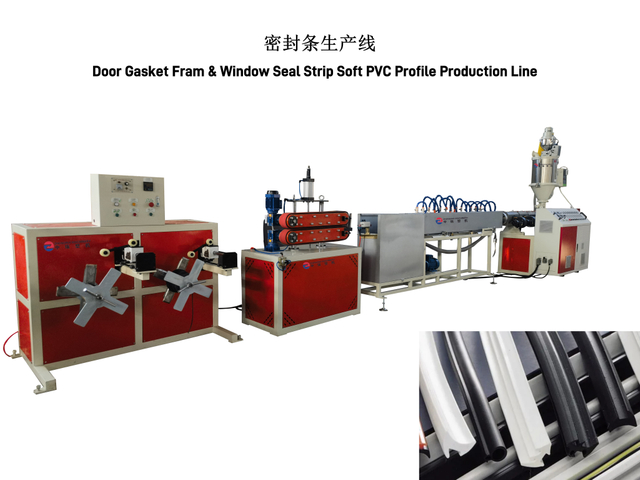

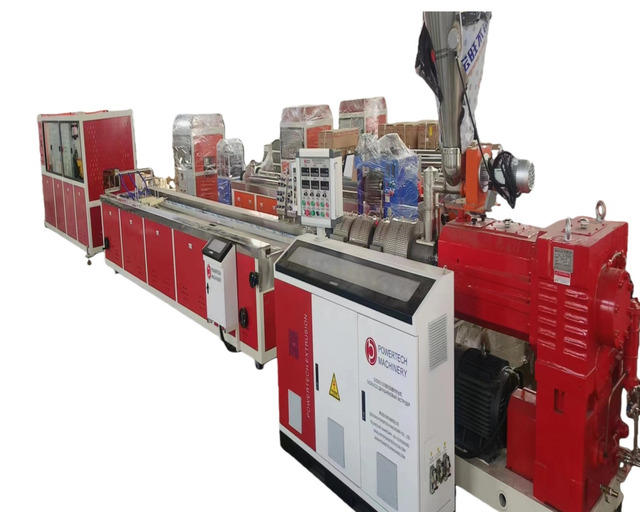

Common applications include PVC window and door profiles, ceiling panels, and structural supports. For outdoor landscaping, our systems create WPC decking, fencing, and cladding. We also support decorative elements like UV plates and PVC imitation marble sheets. Additionally, manufacturers can produce custom industrial shapes, including those made on a specialized PVC sealing strip production line.

Customized Plastic Profile Extrusion Solutions

Leveraging an experienced R&D team backed by multiple patents, Zhongrui excels in delivering fully customized machinery. We understand that standard machines may not fit every unique project. Therefore, we offer tailored mold designs, specialized screw configurations, and dedicated technical support. This ensures we meet your specific production goals.

Whether you need a unique architectural shape or a specialized water stop board production line, we can help. Our engineering team works closely with you from concept to commissioning. This guarantees optimal manufacturing performance and product quality.

Global After-Sales Service & Trade Support

We understand that machine downtime is a significant concern for B2B buyers. To address this, Zhongrui provides a highly skilled technical team dedicated to offering 7*24 hours after-sales service. With decades of internationalization experience, we have successfully exported our machinery to global markets, including Morocco and North Africa.

We pride ourselves on offering reasonable pricing that delivers exceptional value without compromising quality. As a trusted plastic profile production line manufacturer, we are ready to support your factory's growth and operational efficiency. Contact us today to request a quote and discuss your specific extrusion machinery requirements.

Frequently Asked Questions (FAQ)

What materials can your plastic profile production lines process?
Our extrusion machinery is highly versatile and designed to process a wide range of materials. This includes PVC, PE, PP, and Wood Plastic Composites (WPC).

Can you customize the extrusion line for specific profile shapes?
Yes, our experienced R&D team holds multiple patents and specializes in customized solutions. We can tailor the extruder configuration and molds to match your exact profile designs and output requirements.

Do you provide international installation and after-sales support?
Absolutely. We offer a 7*24 hours global after-sales service team to assist with technical support and troubleshooting. We have decades of successful export experience to regions like North Africa and Morocco.

Where is your manufacturing facility located?
Our manufacturing operations are based in Qingdao Jiaozhou City, northern China. This area is a highly recognized industrial base for plastic machinery, ensuring top-tier manufacturing standards.
