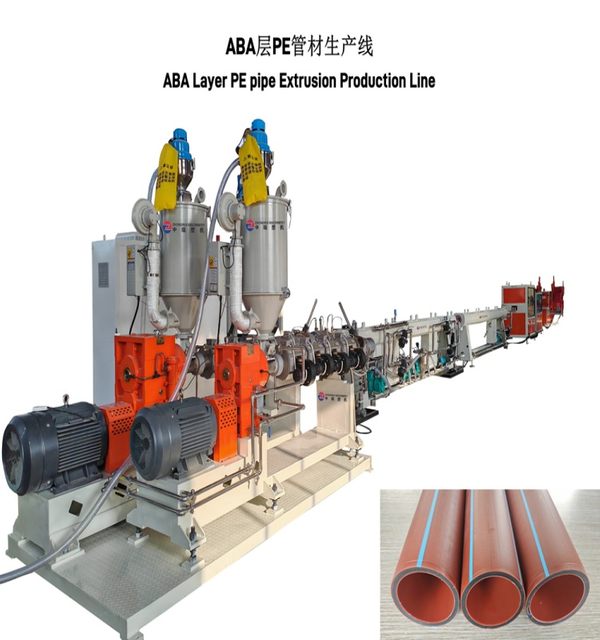

PE/PPR Pipe Production Line

Main Technical Parameters

1. Vacuum loader & hopper dryer
2. Single-screw high-speed extruder (barrier-screw, 38 L/D)
3. Spiral or basket die head (multi-layer option)
4. Vacuum calibration & spray cooling tanks
5. Servo-controlled multi-belt haul-off (up to 30 m/min for Ø20 mm)
6. Chip-free planetary cutter / saw cutter
7. Automatic tipping stacker or coiler
8. PLC + HMI (Siemens platform) – recipe memory, remote diagnostics

• High-torque, high-speed AC motor + ABB/Siemens VFD – 25 % energy saving vs. traditional DC lines
• 38 L/D barrier-screw with mixing section for excellent melt homogeneity and low melt temperature (< 200 °C)
• Spiral or basket die with chrome-plated flow channels; quick-clamp design reduces colour change-over time to < 15 min
• Servo-driven haul-off with closed-loop encoder—speed accuracy ± 0.1 %, preventing ovality
• Chip-free planetary cutter for pipes ≤ 250 mm; planetary saw for 250-1600 mm, ensuring square, burr-free ends
• Optional gravimetric dosing & ultrasonic wall-thickness control—scrap rate < 1 %
• Remote diagnostic gateway (4G/Wi-Fi) allows 24/7 support and predictive maintenance alerts
• CE, ISO9001, ISO14001, GB/T 13663, EN 12201, ASTM F2389 compliant

The line meets CE, ISO and GB/T standards and is ready for quick delivery in standard models; custom solutions for diameters up to 2000 mm are available on request

Overview of High-Capacity PE/PPR Pipe Production Lines

Investing in a high-performance PE/PPR Pipe Production Line is essential for modern manufacturers. It helps meet the growing global demand for durable plastic piping. As a core offering from Qingdao Zhongrui Plastic Machinery Co., Ltd., this advanced extrusion equipment delivers high-speed efficiency. We engineered it to manufacture random copolymer polypropylene (PPR) and polyethylene (PE, HDPE, LDPE) pipes. Our machinery ensures stable product quality and energy-saving operations. This allows facilities to maximize output while minimizing operational costs. Whether you produce pipes for industrial fluid transport or residential plumbing, this plastic pipe production line delivers exceptional reliability.

Core Machine Components & Production Flow of the PE/PPR Pipe Production Line

Understanding the production flow of our PE/PPR pipe production line helps buyers appreciate our engineering excellence. The extrusion process seamlessly integrates advanced mechanical and electrical components. These systems work together to transform raw plastic granules into high-quality finished pipes. By combining robust construction with intelligent automation, our equipment guarantees a smooth manufacturing cycle. This continuous operation minimizes downtime and reduces material waste.

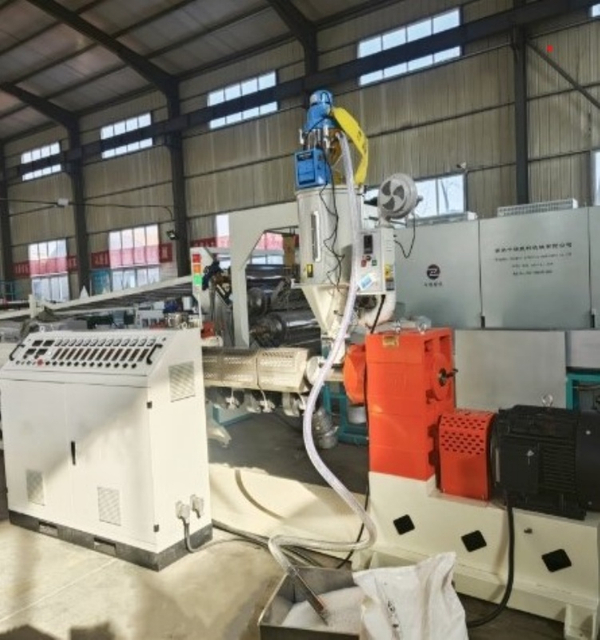

Raw Material Feeding & High-Speed Extruder

The manufacturing process begins with an automatic vacuum feeding system. This ensures a consistent and contamination-free supply of raw materials. At the heart of the system is our high-speed SJ series single screw extruder. We specifically optimized this unit for PE and PPR melting. To guarantee reliable operation under heavy industrial use, we integrate world-famous brand components. These include high-torque Siemens motors and precise ABB frequency converters. We also use advanced PLC control systems to provide operators with real-time monitoring and seamless control.

Precision Die Head & Vacuum Calibration Tank

Once the plastic is thoroughly melted and homogenized, it passes through a precision-engineered die head. This critical component shapes the molten polymer into a uniform pipe structure. It ensures consistent wall thickness and structural integrity. Immediately following the die head, the newly formed pipe enters a SUS304 stainless steel vacuum calibration tank. This tank utilizes a highly efficient water cooling and vacuum sizing mechanism. It rapidly cools the plastic to lock in exact pipe diameters and prevent deformation.

Haul-Off Machine, Cutting & Stacking

To maintain a continuous production speed, the line utilizes a heavy-duty multi-caterpillar haul-off machine. We customize the number of caterpillars based on the pipe diameter. This ensures stable pulling without slipping or damaging the pipe surface. Next, an automated dust-free or planetary cutting system slices the continuous pipe into specified lengths. This delivers smooth, clean edges without requiring secondary processing. Finally, an automated stacking unit efficiently collects and organizes the finished pipes.

Technical Specifications for PE/PPR Extruders

To help buyers select the right equipment, we provide a comprehensive breakdown of our machine capabilities. The following table outlines the standard technical specifications for our PE/HDPE/PPR pipe production line models. Please note that we can fully customize exact parameters based on your specific output requirements.

Diverse Applications of PE and PPR Pipes

The versatility of our PE/PPR pipe production line allows manufacturers to serve a wide array of industries. By adjusting the die head and processing parameters, this extrusion equipment produces pipes tailored for specific requirements. For instance, high-density polyethylene (HDPE) pipes offer leak-free performance in municipal water distribution networks. Flexible, UV-resistant PE pipes are ideal for modern farming and drip irrigation systems.

Additionally, PE gas pipes meet strict safety standards for secure underground gas transportation. For industrial wastewater management, these pipes provide excellent resistance to chemical corrosion. Furthermore, PPR pipes remain the global standard for hot and cold indoor residential plumbing due to their heat resistance and hygienic properties. You can also adapt the system for specialized uses, such as a PE-RT underfloor heating pipe production line.

Why Choose Zhongrui Extrusion Machinery?

When investing in heavy industrial machinery, partnering with a reliable manufacturer is crucial. Qingdao Zhongrui Plastic Machinery Co., Ltd. stands out in the global market through our commitment to quality and innovation. Located in Qingdao Jiaozhou City, a major plastic machinery industrial base, we leverage regional supply chain advantages. This allows us to deliver highly cost-effective solutions to our clients.

Our experienced R&D team holds multiple research and development patents. This ensures our machines feature the latest advancements in extrusion technology. Over our decades-long internationalization journey, we have established robust export markets worldwide. We have earned the trust of countless manufacturers across the globe. We pride ourselves on offering reasonable pricing that provides exceptional value. We achieve this without ever compromising on machine quality, durability, or performance.

Customization, Technical Support & Global Service

As a leading plastic extrusion machinery manufacturer, we understand that every facility has unique operational demands. That is why we offer comprehensive customization services. We can tailor your PE/PPR pipe production line to your exact factory needs. This includes adjusting specific output capacities and designing specialized footprint layouts.

Beyond the initial sale, our highly skilled technical team is dedicated to your long-term success. We provide excellent 7/24 after-sales service for all our clients. This support includes overseas installation guidance, operator training, and lifetime technical assistance. If you are ready to upgrade your manufacturing capabilities with an energy-saving PE pipe line, contact us today. As a trusted PE/PPR Pipe Production Line manufacturer, we are ready to provide a detailed quote and discuss your specific requirements.

Frequently Asked Questions (FAQ)

What materials can this pipe extrusion line process?

Our production lines are highly versatile and can efficiently process PE, HDPE, LDPE, and PPR materials. This allows you to manufacture a wide variety of pipes on a single, adaptable system.

Do you offer customized PE/PPR pipe manufacturing machines?

Yes, our experienced R&D team provides fully customized extrusion solutions. We tailor the machinery specifications, including pipe diameter ranges and output capacities, to meet your exact production requirements.

Are international brand components used in your extrusion lines?

Absolutely. To ensure high efficiency and stable product quality, we utilize world-famous brands in our machinery. These include Siemens motors, ABB frequency converters, and advanced PLC control systems.

What kind of after-sales support does Zhongrui provide?

We offer a 7/24 excellent after-sales service team dedicated to your success. Our support includes technical assistance, overseas installation guidance, and lifetime maintenance for all our plastic extrusion machinery.
