We provide PVC imitation marble slab production lines for manufacturers seeking cost-effective, lightweight alternatives to natural stone. Our lines combine high-definition print rollers, multi-layer co-extrusion and surface finishing units that reproduce marble veining, gloss and depth while delivering panels with excellent impact resistance and water resistance. I collaborate with clients to choose the right decorative layer, UV protection and backing formulations for interior or exterior applications.
How is a PVC Imitation Marble Slab Production Line configured?
A complete line includes resin blending, co-extrusion heads for decorative and core layers, chill rollers for dimensional stability and finishing modules for gloss and scratch resistance. We emphasize pigment dispersion, precise print registration and lamination techniques to achieve realistic marble patterns without pattern shift. Our engineering ensures minimal thermal stress and consistent thickness across wide slabs.
These slabs are popular for wall cladding, furniture façades and exhibition booths where weight reduction and installation speed matter. We support color matching, sample production and long-term supply plans; for pricing, sample requests or capacity planning, please Contact us. You can also review product specs on our listing to determine the best fit for your market.
![微信图片_20250523110031]()

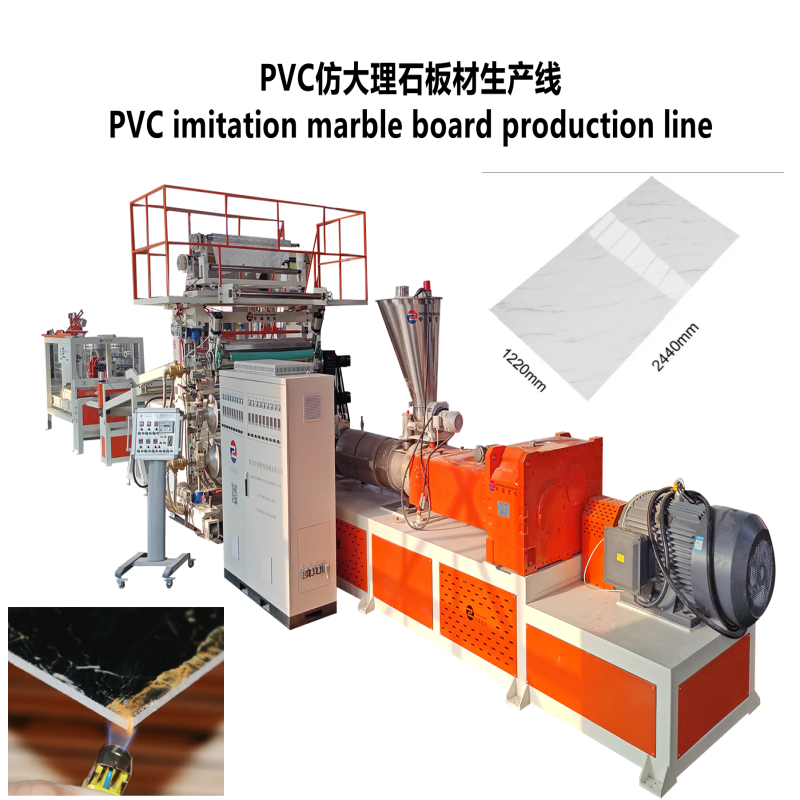

PVC Imitation Marble sheet/plate Production Line:
| PVC raw materials Loading and Mixing system |
| 1. Spiral Loader or Vacuum auto Loader | 1 set |
| 2. High speed Heating Cooling Mixer unit | 1 set |
| PVC marble sheet Extrusion Line |
| 1. Spring Loader or Spiral Loader | 1 set |
| 2. SJZ80/156 Conical double screw Extruder | 1 set |
| 3. Mold/Die head Set | 1 set |
| 4. Three-roller Calander with Marble film unit | 1 set |
| 5. Temperature controller of three rollers | 1 set |
| 6. Cooling frame with side cutting | 1 set |
| 7. Haul off unit | 1 set |
| 8. Cutting unit | 1 set |
| 9. Stacker | 1 set |
| Sheet/Plate Recycling machines |
| 1. Sheet Crusher/Grinder | 1 set |
| 2. PVC Pulverizer/Miller | 1 set |
| Model | Unit | 1220 |
| Suitable material |
| PVC |
| Max .width of product | mm | 1220 |
| Thickness of product | mm | 2--5 |
| Extruder capacity | Kg/h | 380 |
| Installed capacity(approx) | kw | 168 |
| Dimension (L*W*H)(approx) | m | 21*4*3.5 |
| Total weight(approx) | t | 17 |
Application
This production line uses PVC (which can be mixed with recycled or new materials) as the main raw material. Through processes such as extrusion, calendering, UV curing and heat transfer printing, it continuously produces decorative panels/sheets with surfaces featuring natural marble, carpet texture, stone texture or three-dimensional patterns. They are widely used for wall, ceiling and floor decoration in hospitals, schools, office buildings, shopping malls, supermarkets and public transportation places
