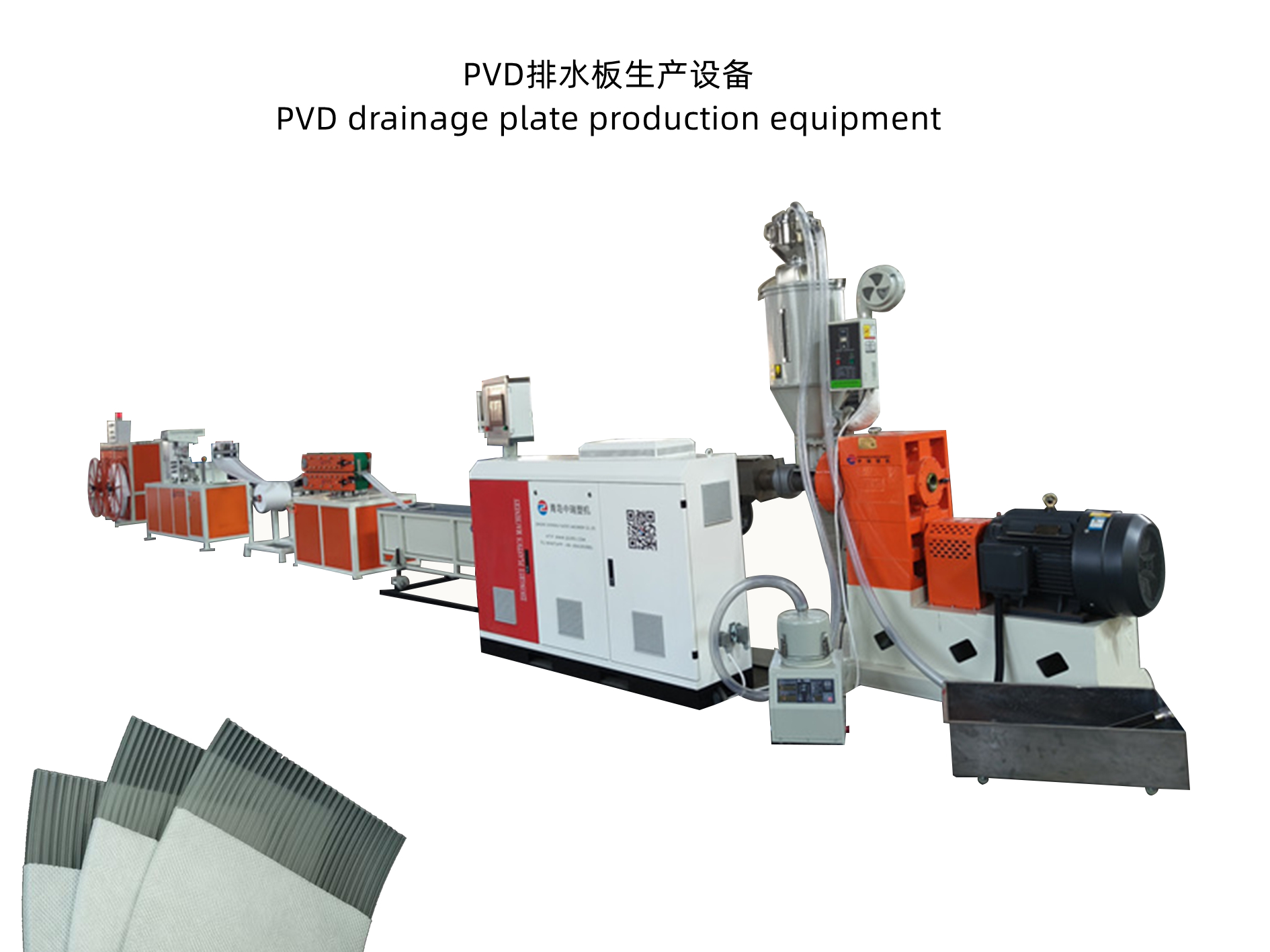

Drainage Board Production Line

Product application

Drainage boards (also known as concave-convex drainage boards or plastic seepage drainage boards) are plastic sheet materials with protrusions or grooves on one side. The gaps formed between the protrusions can quickly drain the seeping water in construction, municipal, transportation and other projects, preventing water accumulation and foundation settlement It is widely used in roof gardens, underground garage roof slabs, tunnels, subways, landfill sites, highway subgrades and other occasions.

List of core equipment

Raw Materials and Structure

Common raw materials: HDPE, LLDPE, MDPE, PVC particles (both new materials and qualified recycled materials are acceptable).

Typical structure: The core board is a plastic board with regular drainage channels. A layer of non-woven fabric filter membrane is laminated on the upper surface or both sides, which not only retains soil but also ensures smooth water flow.

Main process flow

Raw material drying → melting and plasticizing by single-screw extruder

Sheet extrusion die head → Three-roll calendering/vacuum forming (forming protrusions or drainage channels)

Online hot melt or roller composite non-woven fabric filter membrane

Cooling and shaping → Traction → Edge cutting → online thickness measurement → automatic cutting/winding → packaging and storage

The entire production line can achieve continuous production with an effective width of 1 to 3 meters, a thickness of 0.2 to 4 mm, and a production capacity of 200 to 800 kg/h.

Technical features

One-step molding combined with online lamination reduces secondary processing and ensures high efficiency.

The height and shape of the protrusion can be quickly adjusted by replacing the forming roller.

Optional functions include two-color co-extrusion, embossing, punching, and automatic roll changing.

The product is weather-resistant, acid and alkali resistant, and resistant to plant root penetration, with a service life of ≥100 years

High-Performance HDPE Dimple Drainage Board Production Line Overview

Investing in a high-performance Drainage Board Production Line is essential for manufacturers. It helps meet the growing global demand for construction and landscaping materials. This turnkey manufacturing solution efficiently produces high-quality waterproof and storage drainage boards. By utilizing advanced plastic extrusion technology, our equipment ensures exceptional operational stability. It also delivers high output rates and remarkable energy efficiency. Whether supplying materials for commercial roofing or civil engineering projects, this system delivers. It provides the reliability and precision required to stay competitive today.

Core Advantages of Our Drainage Board Making Machines

To satisfy the rigorous demands of engineers, our drainage board making machines offer cutting-edge mechanical benefits. These extrusion systems are designed to maximize yield. They also maintain strict quality control over every square meter of board produced.

Specialized Dimple Forming Technology

The core of our equipment lies in its specialized extruder and roller design. This setup guarantees precise and uniform dimple shapes. This meticulous forming process is critical for optimal water storage and drainage performance. It allows the final boards to withstand heavy soil and concrete loads.

High-Capacity & Stable Extrusion

Manufacturers require equipment that can keep up with demanding schedules. Our high-capacity drainage board production line maintains continuous, high-volume extrusion. It achieves this without compromising structural integrity or impact resistance. The system also ensures consistent thickness, guaranteeing a uniform HDPE product from start to finish.

Cost-Effective & Energy Efficient

We believe in offering reasonable pricing that provides exceptional value. Our machinery combines energy-saving motors with advanced heating systems. This significantly reduces long-term operational costs. It makes our equipment a highly cost-effective investment for your manufacturing facility.

Technical Parameters & Specifications

Understanding the technical capabilities of your extrusion equipment is vital. It helps B2B buyers plan facility layouts and production targets. Below is a structured overview of the standard technical parameters for our drainage board manufacturing equipment.

Applications of Waterproof & Storage Drainage Boards

The true value of investing in a premium plastic extrusion system lies in final product versatility. The dimple boards manufactured by our equipment serve critical roles across multiple industries. In modern construction, they are essential for roof greening projects, providing efficient water retention for plant life. For subterranean systems, these boards offer reliable basement waterproofing to prevent moisture buildup and structural damage. Furthermore, they are widely applied in tunnel drainage systems and retaining walls. These infrastructure projects demand high compressive strength and long-term durability underground. Finally, urban landscaping initiatives utilize these boards for sustainable water management and flood prevention.

Why Choose Qingdao Zhongrui for Your Extrusion Equipment?

Selecting the right machinery partner is just as important as the equipment itself. Qingdao Zhongrui Plastic Machinery Co., Ltd. stands out in the industry. We maintain an unwavering commitment to innovation, reliability, and comprehensive customer support.

Experienced R&D Team & Patented Technology

Our machinery is backed by a highly skilled technical team and multiple industry patents. This dedication to research and development ensures cutting-edge design. Every machine delivers reliable, long-lasting performance in demanding factory environments.

7*24 Hours Global After-Sales Service

We understand that minimizing downtime is crucial for your profitability. That is why we provide a dedicated 7*24 hours after-sales service team. We offer round-the-clock technical assistance, spare parts support, and troubleshooting to clients worldwide.

Decades of International Export Experience

With decades of internationalization experience, we have a proven track record of successful global exports. Our team provides reliable support throughout the entire process. We assist with international shipping, customs clearance, on-site installation, and cross-border trade.

Customized Solutions & Technical Support

Every manufacturing facility has unique operational requirements. As a professional manufacturer, Qingdao Zhongrui provides tailored production line configurations. We base these on your specific capacity needs, budget constraints, and local market requirements. Whether you need a standard setup or a highly specialized system, our engineering team can help. Contact us today to discuss your project requirements. We will provide a customized quote for your new drainage board production line.

Frequently Asked Questions (FAQ)

Purchasing industrial extrusion equipment is a significant investment. Below, we address common concerns from B2B buyers regarding our manufacturing solutions.

What materials can be processed by this drainage board making machine?

The system is primarily optimized for HDPE (High-Density Polyethylene). This material offers excellent waterproofing capabilities, flexibility, and long-term durability. However, our engineering team can customize the screw and barrel design. This allows the machine to accommodate other specific plastic materials upon request.

Can the production line manufacture different dimple sizes?

Yes, the machine is equipped with interchangeable forming rollers. You can simply switch the molds during production changeovers. This allows you to easily produce drainage boards with various dimple heights and geometric patterns. It ensures you can meet different project specifications and client demands.

Do you provide overseas installation and operator training?

Absolutely. Our highly skilled professional technical team travels globally to provide on-site installation. We also handle complete machine commissioning and comprehensive training for your factory operators. This ensures your team can run the equipment safely and efficiently from day one.

How do I choose the right machine model for my business?

Selection depends heavily on your target board width, required thickness, and desired hourly output capacity. We recommend contacting our 24/7 support team with your specific production requirements. Our experts will then provide a customized technical solution. You will also receive a detailed quotation tailored to your business goals.
