Sandwich Packaging Belt Production Line

Sandwich Packaging Belt Production Line

The Sandwich Packaging Belt Production Line is a highly efficient and automated system designed to produce packaging belts for various applications. This production line is widely used in industries that require robust and reliable packaging materials, such as logistics, manufacturing, and retail.

Composition of the Production Line

The production line consists of several key components, each playing a crucial role in the manufacturing process. These components include:

- Extruder: This is the main machine responsible for melting and extruding the polypropylene (PP) material into a belt shape.

- Cooling Water Tank: After extrusion, the belt passes through a cooling water tank to solidify and stabilize its shape.

- Heating Oven: The belt is then heated in an oven to enhance its properties and prepare it for further processing.

- Traction Machine: This machine pulls the belt through the production line, ensuring consistent movement.

- Shaping Water Tank: Another water tank is used to shape and cool the belt further.

- Winding Machine: Finally, the finished belt is wound onto reels for storage and transportation.

Working Principle

The production process begins with polypropylene particles being fed into the extruder. These particles are heated and melted, then extruded into a belt shape. The belt is cooled in the water tank, heated in the oven, and stretched to enhance its strength and flexibility. The belt can also be printed, embossed, or dyed during this process to meet specific requirements. The final product is a high-quality packaging belt that is moisture-resistant, corrosion-resistant, and has excellent tensile strength.

Technical Parameters

- Width: The production line can produce belts with widths ranging from 6mm to 32mm and 50mm to 100mm.

- Linear Speed: The maximum linear speed of the production line is 120 meters per minute.

- Energy Consumption: The total energy consumption of the production line is 40kW.

- Output: The production capacity is between 100kg/h and 200kg/h.

Performance Characteristics

- Moisture Resistance: The packaging belt is not afraid of moisture and has low water absorption, ensuring it remains strong even when wet.

- High Strength: The belt has a small elongation rate and can maintain its tensile force for an extended period, making it suitable for long-distance transportation.

- Flexibility: Unlike steel belts, the sandwich packaging belt is flexible and safe to handle, reducing the risk of injury.

Sandwich Co-Extrusion PET/PP Packaging Belt Production Lines

A high-performance Sandwich Packaging Belt Production Line is specialized plastic extrusion machinery. It is engineered for manufacturing heavy-duty PET and PP strapping bands. Unlike industrial conveyor belts, this advanced equipment utilizes multi-layer co-extrusion technology. It produces high-tensile plastic straps used in global packaging and logistics. As a professional manufacturer, Qingdao Zhongrui Plastic Machinery Co., Ltd. delivers robust and efficient extrusion solutions. Our highly automated systems are designed to meet the rigorous demands of modern packaging applications.

How Sandwich (A-B-A Layer) Co-Extrusion Technology Works

In plastic extrusion, the term "sandwich" refers to an innovative multi-layer co-extrusion process. It is typically structured as an A-B-A layer configuration. This technology allows manufacturers to strategically distribute raw materials. It optimizes both production cost and strap performance. By utilizing a high precision sandwich strapping line, facilities can process up to 100% recycled materials. You can use recycled PET flakes or PP granules in the thick core layer (Layer B). Meanwhile, virgin or premium-grade materials are extruded on the outer surfaces (Layers A). This A-B-A sandwich structure provides several critical manufacturing advantages:

• Cost Efficiency: It drastically reduces raw material expenses by maximizing recycled plastics in the core layer.
• Premium Finish: The virgin outer layers ensure exceptional surface smoothness, a glossy appearance, and excellent weldability.
• Structural Integrity: The strap maintains high tensile strength, low elongation, and split resistance for heavy-duty use.

Featured Sandwich Packaging Belt Production Lines

Our comprehensive range of packaging straps production lines is engineered to maximize factory output. They easily accommodate various raw material inputs. Whether processing polypropylene (PP) or polyethylene terephthalate (PET), our machinery ensures consistent dimensional stability. It also guarantees superior mechanical properties across every production run.

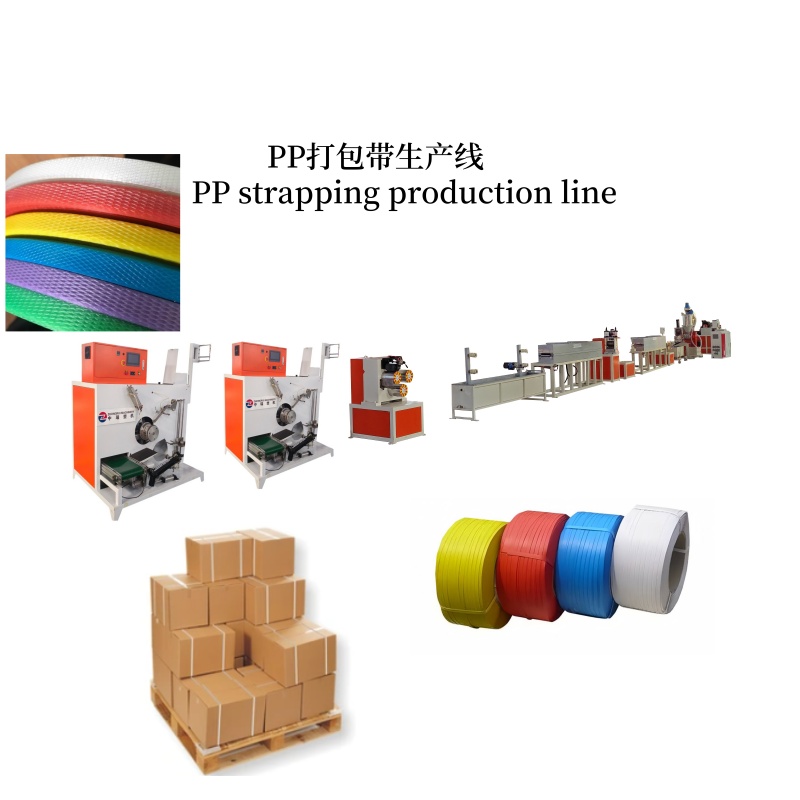

High-Capacity PP Packaging Belt One Output Two Production Line

This high-capacity system represents a major leap in extrusion efficiency. It utilizes an advanced "One Output Two" die head technology. The machine extrudes two separate PP strapping bands simultaneously from a single system. This dual-strap extrusion method effectively doubles daily production output. It also optimizes valuable factory floor space and improves overall energy efficiency.

PET Sandwich Packaging Belt Extrusion Line

Designed specifically for heavy-duty packaging applications, this extrusion line excels in processing 100% recycled bottle flakes. The system features robust dehumidifying, drying, and crystallization units. These components prevent material degradation during the melting process. The resulting PET straps offer superior tensile strength and low elongation. They serve as an ideal, cost-effective replacement for traditional steel strapping.

Technical Specifications of the Sandwich Packaging Belt Production Line

When evaluating extrusion equipment, technical specifications dictate industrial capability and heavy-duty performance. Our machinery is built with precision-engineered components and automated control systems. This ensures continuous, stable operation even under demanding factory conditions.

Why Choose Qingdao Zhongrui for Plastic Extrusion Machinery?

Investing in a Sandwich Packaging Belt Production Line requires a reliable manufacturing partner. Qingdao Zhongrui Plastic Machinery Co., Ltd. stands out through a commitment to engineering excellence. Our experienced R&D team is backed by multiple research and development patents. This ensures our machinery remains at the forefront of modern extrusion technology.

We maintain a highly skilled professional technical team dedicated to continuous innovation. Furthermore, we offer reasonable pricing that delivers exceptional value. We never compromise on component quality or machine durability. With proven international export experience, we successfully deliver and install high-performance extrusion lines worldwide.

Custom Solutions & 7*24 Global Technical Support

Every manufacturing facility has unique operational requirements. Therefore, we offer fully customized production line configurations. From specialized co-extrusion die heads to tailored cooling and stretching units, we have you covered. Our engineering team designs solutions that perfectly match your capacity goals and material inputs.

Beyond the initial sale, Qingdao Zhongrui provides comprehensive global technical support. Our 7*24 hours excellent after-sales service team is always on standby. We assist with installation guidance, operator training, and troubleshooting. As a professional manufacturer, we are ready to help you scale your packaging operations. Contact us today to discuss your specific requirements for a custom Sandwich Packaging Belt Production Line.

Frequently Asked Questions

To help you better understand our extrusion technology, we have compiled answers to common questions. These cover the core functions of our strapping band machinery.

• What is a Sandwich Packaging Belt Production Line in plastic extrusion?
  In plastic machinery, a "sandwich" production line refers to a multi-layer co-extrusion machine. It typically uses an A-B-A layer configuration to manufacture PET or PP plastic strapping bands. It is not related to food processing or conveyor belt systems.
• Can I use recycled materials in the sandwich co-extrusion process?
  Yes, our A-B-A co-extrusion technology allows you to use up to 100% recycled materials. You can process recycled PET flakes or PP granules in the core layer. This significantly reduces raw material costs while maintaining excellent surface quality and tensile strength.
• What is the advantage of the "One Output Two" production line?
  The "One Output Two" design extrudes two separate strapping bands simultaneously from a single die head. This high-capacity setup doubles your production output. It also saves valuable factory space and maximizes energy efficiency.
• Do you provide installation and after-sales support internationally?
  Absolutely. Qingdao Zhongrui has proven international export experience and provides global technical support. We offer customized installation guidance for every client. Additionally, we maintain a 7*24 hours excellent after-sales service team to ensure smooth operations.
