The PP (Polypropylene) Strapping Production Line is a highly efficient and advanced manufacturing system designed to produce high-quality polypropylene strapping bands used for packaging and securing various products during transportation and storage.
Main Components and Process
1. Raw Material Preparation:
- The primary raw material used is polypropylene resin, which is often in the form of small pellets or granules. Additives such as colorants, UV inhibitors, or stabilizers may be added to enhance the properties of the strapping.
2. Extrusion:
- The polypropylene resin is fed into an extruder, where it is heated to temperatures between 200-250°C (392-482°F) and melted. The molten material is then forced through a die to form a continuous sheet.
3. Stretching and Cooling:
- The extruded sheet is stretched to align the polymer chains and improve tensile strength. After stretching, the material is cooled in water baths to solidify it.
4. Slitting and Embossing:
- The cooled sheet is slit into individual straps of the desired width. The straps are then embossed with a textured pattern to enhance grip and prevent slipping.
5. Coiling and Packaging:
- The finished straps are coiled into large rolls for easy handling and transportation. These rolls are then packaged and shipped to customers.
Features and Advantages
- High Production Efficiency: The production line can achieve high output rates, with some models capable of producing up to 800 kg/hr. The production speed can reach up to 210 m/min.
- Quality Control: The entire production process is controlled via a PLC system, ensuring consistent quality. In-line quality control systems are used to monitor the strapping bands.
- Flexibility: The production line can produce straps of various widths (4-32 mm) and thicknesses (0.5-2.5 mm) to meet different market requirements. It can also switch between producing PP and PET straps with minimal setup time.
- Energy Efficiency: The use of frequency conversion motor drives and automatic intelligent temperature control systems helps save energy.
- Recyclability: The production line can utilize 100% recycled PP material, contributing to environmental sustainability.
Applications
PP strapping is widely used in various industries, including waste paper, steel pipes, steel coils, and medical supplies. It is a popular choice for its strength, flexibility, and cost-effectiveness.
| Material | Extruder | Width(mm) | Strap quantity | Output (kg/h) |
| PP | Φ65 | 5-19 | 2 | 80 |
| PP | Φ75 | 5-19 | 2 | 100 |
| PP | Φ90 | 5-19 | 4 | 180 |
| PP | Φ120 | 5-19 | 4-8 | 300 |
| PET | Φ75 | 9-19 | 2 | 150 |
| PET | Φ90 | 9-19 | 2 | 200 |
| PET | Φ100 | 9-25 | 4 | 300 |
| PET | Φ110 | 9-25 | 4 | 350 |
| PET | Φ120 | 9-32 | 4-8 | 500 |
High-Performance PP Strapping Production Line Overview
Investing in a high-performance PP Strapping Production Line is essential for packaging manufacturers looking to scale operations efficiently. Qingdao Zhongrui Plastic Machinery Co., Ltd. is a professional manufacturer of plastic extrusion machinery. We deliver turnkey, high-output solutions for global markets. Our advanced polypropylene strapping plants are engineered to meet the rigorous demands of the modern packaging industry. By combining innovative extrusion technology with robust construction, we provide equipment that ensures consistent strap quality. You can expect excellent tensile strength and reliable continuous operation.
Our PP Packaging Belt Extrusion Machines
We offer a comprehensive range of PP packaging belt extrusion machines designed to maximize scalability. Whether upgrading an existing facility or establishing a new base, our equipment delivers superior performance. It easily adapts to your specific operational demands.
One-Output-Two High-Capacity PP Strapping Machine
Our flagship one-output-two high-capacity PP strapping machine is engineered to revolutionize your workflow. By extruding two straps simultaneously, this system effectively doubles production efficiency. It maintains stable quality and consistent tension across every roll. This makes it a highly cost-effective solution for large-scale manufacturing. It significantly reduces energy consumption and labor costs per meter produced.
Customized Polypropylene Strapping Plants
Every manufacturing facility has unique requirements. Therefore, we provide fully customized packaging straps production line solutions tailored to client needs. We offer single-strap extruders for specialized applications and advanced multi-strap configurations for high-volume output. Our engineering team ensures complete flexibility for different production scales and factory layouts.
Core Advantages of Zhongrui's Extrusion Technology
Choosing the right machinery partner is critical for long-term success. Zhongrui differentiates itself through a commitment to continuous innovation. We offer unwavering post-sale reliability to ensure your extrusion operations run smoothly year after year.
R&D Patented Extrusion Technology
Our equipment is backed by an experienced R&D team holding multiple patents in plastic extrusion technology. This deep technical expertise allows us to design highly efficient machinery. We push the boundaries of precision to establish our industry authority. This builds immense trust with our global clientele.
High Productivity & Energy Efficiency
Efficiency is at the heart of our designs. Our high-capacity computerized PP strapping line features advanced automation systems. It includes centralized PLC touchscreen controls and energy-efficient drive systems. These components work in harmony to ensure high-speed production. They drastically reduce operational costs and material waste while meeting your custom specifications.
24/7 After-Sales Support & Global Reach
Excellent machinery must be paired with exceptional support. Zhongrui provides a 24/7 after-sales service team comprised of highly skilled technical professionals. We have an established international presence with successful exports to markets like North Africa. We reassure B2B buyers that expert assistance and troubleshooting are always available.
Technical Specifications of the PP Strapping Production Line

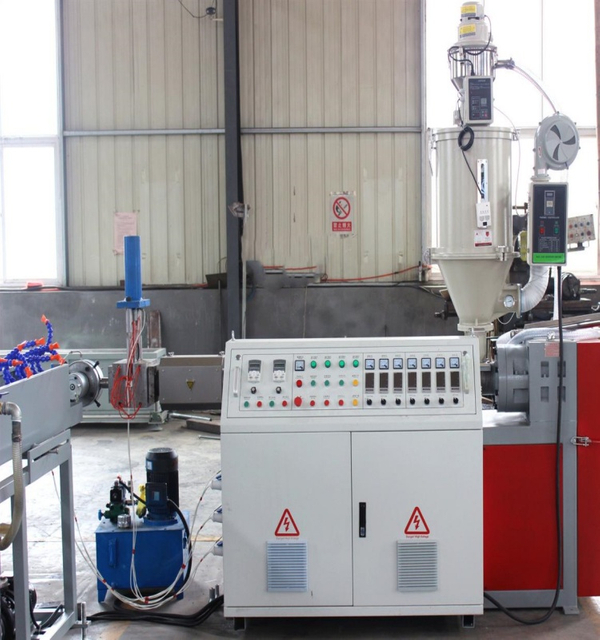

To satisfy the rigorous demands of B2B buyers, our extrusion lines are built with premium components. They adhere to strict international safety standards. We utilize high-quality single and double screw plastic extruders. These are paired with precision PLC-controlled take-up winders to guarantee optimal strap formation. Because capacities vary based on configuration, please contact our technical team for exact metrics.
| Component / Feature | Specification Details |
| Extruder Type | High-efficiency single and double screw plastic extruders |
| Control System | Centralized PLC touchscreen automation for precise monitoring |
| Winding Unit | Precision PLC-controlled take-up winders for consistent tension |
| Output Configuration | Single, One-Output-Two, or custom multi-strap setups available |
| Safety Compliance | Manufactured to meet rigorous international industrial safety standards |
Applications of PP Packing Band Machinery
The straps produced by our PP packing band machinery are highly versatile. They are designed to meet the rigorous standards of the modern packaging industry. These straps are perfectly suited for light and medium-duty applications. They provide secure bundling for carton boxes, newspapers, and comprehensive logistics packaging. Thanks to the precise extrusion process, the straps feature excellent tensile strength and low camber. This ensures they perform flawlessly across fully automatic and semi-automatic packing machines.
How to Choose the Right PP Strapping Plant
Selecting the ideal PP strapping plant requires a careful evaluation of your current production needs. As a leading manufacturer located in Qingdao Jiaozhou City, we offer reasonable pricing. Our equipment provides exceptional value without compromising on quality. Consider the following key factors when making your selection:
| Selection Factor | Evaluation Criteria |
| Output Capacity | Determine target volume (kg/hr) to choose between single-line or one-output-two setups. |
| Strap Dimensions | Ensure the machinery accommodates the specific width and thickness ranges required. |
| Automation Level | Evaluate labor costs to choose between standard controls and PLC automation. |
| Budget and ROI | Balance initial investment with long-term energy savings and production efficiency. |
Frequently Asked Questions (FAQ)
What is the main advantage of the one-output-two PP strapping production line?
The one-output-two configuration significantly increases capacity by extruding two straps simultaneously. This maximizes output and energy efficiency while reducing overall manufacturing costs.
Can your PP packaging belt extruder produce straps for fully automatic packing machines?
Yes, our extrusion lines are designed to produce high-quality, dimensionally stable PP straps. They feature consistent tension and low camber, making them perfectly suited for automatic packing machines.
Do you provide international installation and after-sales support?
Absolutely. We have a dedicated 24/7 after-sales service team and a strong international presence. We provide comprehensive technical support, installation guidance, and customized solutions globally.
Is the polypropylene strapping plant customizable to our specific output requirements?
Yes, our experienced R&D team holds multiple patents and specializes in customized extrusion solutions. We can tailor the machine's configuration, screw design, and automation level to meet your exact goals.
Contact Us for Your Extrusion Needs
Ready to upgrade your packaging manufacturing capabilities? As a professional PP Strapping Production Line manufacturer, Qingdao Zhongrui Plastic Machinery Co., Ltd. is committed to delivering equipment that drives your business forward. Contact us today to discuss your specific requirements. Request a detailed quote and discover how our customized extrusion solutions can optimize your production efficiency.
