We deliver PVC profile production lines for doors, window frames, cable ducts and decorative trim, focusing on surface finish, structural strength and tight corner fit. Our modular lines combine screw extrusion, vacuum sizing, precision cooling and inline welding systems for window profile fabrication. I work with clients to select profile cross sections, reinforcement options and surface foiling to meet architectural and functional requirements.
How to choose a PVC-Profile Production Line?
Selecting the correct profile line depends on profile complexity, required reinforcement (steel or composite), and finishing needs such as foiling or embossing. We recommend extruder screw designs matched to the PVC compound, appropriate vacuum calibrators and robust haul-off systems to maintain profile geometry under continuous operation. Our lines include automated cutting and corner-welding solutions for complete window and door assembly integration.
These production lines support both residential and commercial building material manufacturers and can be supplied with options for multi-color foiling or co-extrusion layers. For detailed technical specs and customization options, review our product overview or Contact us to set up a technical consultation.

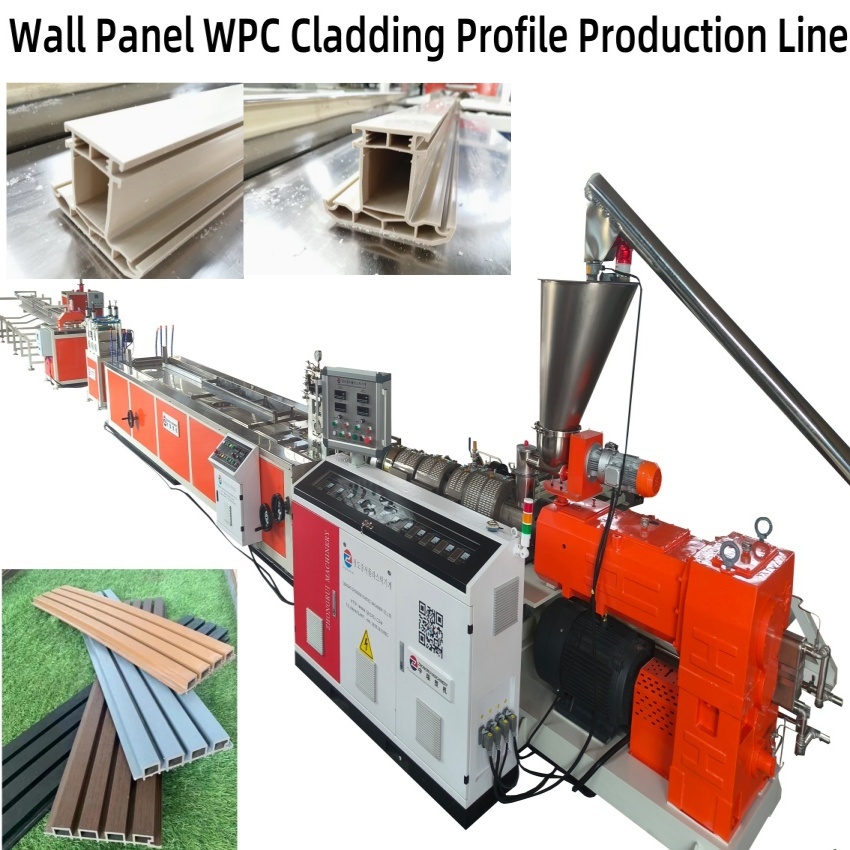

![2_副本_副本]( "2_副本_副本")
Plastic profile Production Line Features
1. This PVC profile extrusion Production Line is mainly used to produce PVC window & door profiles, PVC trunking profiles, PVC ceiling profiles, PVC panel, PVC board and so on.
2. The WPC door frame making machine can be used to produce different size of WPC door frame and lines by changing the moulds.
3. The raw materials are PVC,wood powder and additives.
4. This line consists of a screw feeder, a SJSZ80/156 conical twin-screw extruder, a T-die, a vacuum setting table, a haul-off machine, a cutting machine and a stacker.
PVC/WPC profile production line Technical data:
| Model | YF180 | YF240 | YF300 | YF600 |
| Max product width(mm) | 180 | 240 | 300 | 600 |
| Exreuder model | SJZ55/110 | SJZ65/132 | SJZ65/132 | SJZ80/156 |
| Extruder power(kw) | 22 | 30/37 | 37 | 55 |
| Cooling water(m3/h) | 5 | 7 | 7 | 10 |
| Gas consumption(m3/min) | 0.2 | 0.3 | 0.3 | 0.4 |
Equipment list of High Quality PVC profile Production Line
| Compulsory devices |
| 1 | Material charge | 1 set |
| 2 | Single/Conical twin screw extruder/ | 1 set |
| 3 | Extrusion die head | 16-400m |
| 4 | calibrating and cooling table | 1 set or several sets |
| 5 | caterpillars hauling off machine | 1 set |
| 6 | Saw cutting machine | 1 set |
| 7 | stacker-6000mm length or colier | 1 set |
| 8 | Electrical cabinet(Omron, RKC etc) | 1 set |
| 9 | Spare parts | 1 set |
| Optional Devices |
|
| 1 | High speed hot and cold mixer | 1 set |
| 2 | Crusher | 1 set |
| 3 | Industrial water chiller | 1 set |
| 4 | Air compressor | 1 set |
| 5 | Thermocontroller for die head | 1 set |
If you need this machine,pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP.
1. Could you tell me what is the material? PVC/ WPC? Are there additional additives added to the ingredients?
2. Could you tell me the width and thickness of the board? Or could you send me some pictures about it
3. If you want to produce board, pls tell me the number of the layers.
4. Do you have requirement to the capacity?
5. The default voltage of our machines is 380V, 50Hz, 3 phrase. If there is different in your factory, pls tell me.
High-Performance PVC Profile Production Line
Investing in high-quality extrusion equipment is essential for manufacturing durable plastic profiles efficiently. Qingdao Zhongrui Plastic Machinery Co., Ltd. is a professional Chinese manufacturer dedicated to delivering reliable machinery. Our advanced equipment produces a wide variety of PVC and WPC profiles with exceptional stability. By combining robust construction with innovative technology, we provide the perfect foundation for your manufacturing success. Whether you are upgrading your facility or starting a new project, our plastic profile production line delivers consistent, high-yield results.
Key Advantages of Our PVC Profile Machinery
When evaluating extrusion equipment, our machinery ensures you achieve maximum operational efficiency. We integrate energy-saving technology and high automation into every machine. This guarantees stable output rates and significantly reduces overall power consumption during continuous runs. Backed by our experienced R&D team, these systems feature cutting-edge innovations designed for modern manufacturing demands. Most importantly, our commitment to reasonable pricing offers exceptional value. You gain a competitive edge without compromising on machine quality or longevity.
Core Components of the PVC Profile Extrusion Process
Understanding the core components of our extrusion systems helps build technical trust in our machinery. Each stage is meticulously engineered to transform raw materials into flawless finished products. We invite clients to view high-quality videos of our equipment running in our factory.
Conical Twin Screw Extruder
The heart of the system is the conical twin screw extruder. We specifically designed this unit for processing PVC powder or granules. This specialized screw design ensures optimal plasticization and uniform melting. These factors are critical for maintaining the structural integrity and surface quality of the final profile.

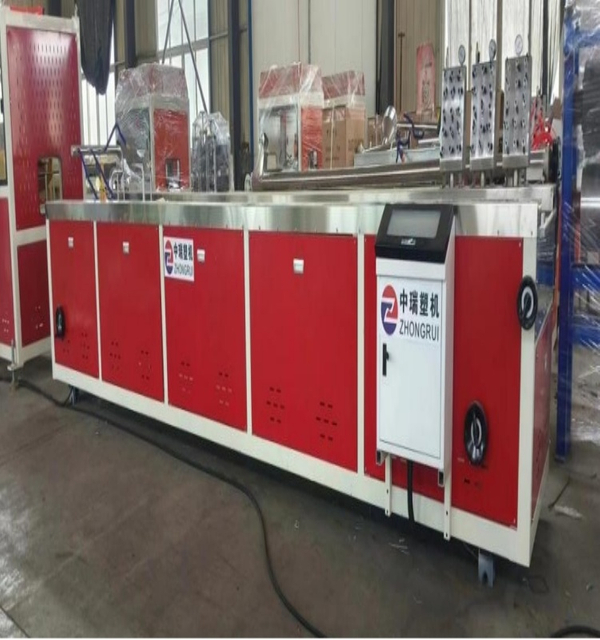

Vacuum Calibration & Cooling Table
Following extrusion, the profile enters the vacuum calibration and cooling table. This unit utilizes precise temperature control and strong vacuum systems. It rapidly cools and shapes the extruded material. This step is vital for ensuring the exact shape, smooth surface finish, and long-term dimensional stability.
Haul-off and Cutting Unit
The final stage involves the haul-off and cutting unit. A robust caterpillar haul-off machine provides steady, uniform pulling power without deforming the profile. Synchronized with the extrusion speed, the automatic cutter ensures clean, precise cuts. We offer both saw and chipless configurations to ready your profiles for immediate packaging.
Technical Parameters of PVC Profile Machinery
To satisfy the technical requirements of B2B buyers, we provide transparent data regarding our machinery capabilities. The following table outlines the standard technical parameters of our equipment. This data will help you select the right model for your specific production capacity and dimension needs.
| Machine Model | Screw Diameter (mm) | Main Motor Power (kW) | Max Extrusion Capacity (kg/h) | Profile Width/Dimensions (mm) |
| SJZ-51/105 | 51/105 | 22 | 120-150 | Up to 200 |
| SJZ-65/132 | 65/132 | 37 | 250-300 | Up to 400 |
| SJZ-80/156 | 80/156 | 55 | 350-400 | Up to 600 |
| SJZ-92/188 | 92/188 | 110 | 700-800 | Up to 800 |
Wide Applications of PVC Profiles

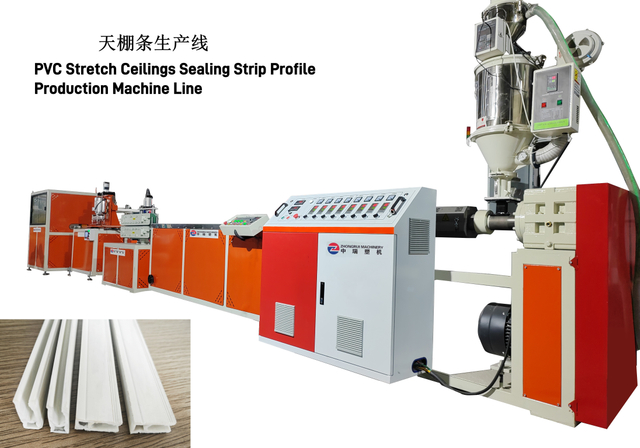

The versatility of our extrusion equipment allows manufacturers to serve diverse industries with high-quality end-products. You can efficiently manufacture window and door frames, durable cable trunking, and versatile WPC profiles. Additionally, our systems easily adapt to produce interior decorative elements. For instance, you can configure the equipment as a PVC ceiling panel production line. Alternatively, it can operate as a high-yield PVC wall panel line. This flexibility helps you meet the growing global demand for modern construction materials.
Why Choose Zhongrui as Your Extrusion Machine Manufacturer?
Selecting the right partner for your manufacturing facility is a critical decision. Qingdao Zhongrui distinguishes itself through a commitment to quality, innovation, and customer support. These values make us a trusted extrusion machine manufacturer for clients worldwide.
Customized PVC Profile Extrusion Solutions
Our highly skilled professional technical team provides tailored extrusion solutions. We base these designs on your specific profile requirements and factory layout. Backed by multiple R&D patents, we continuously innovate our machinery. This ensures you receive the most advanced and reliable production technology available.
7*24 Hours Global After-Sales Service
We understand that continuous operation is vital for your profitability. With an established international presence, we reassure our global buyers with a dedicated 7*24 hours after-sales service team. From initial installation guidance to ongoing technical support and spare parts supply, we ensure your equipment runs smoothly year after year.
Frequently Asked Questions (FAQ)
What types of profiles can this production line manufacture?
Our machinery can manufacture a wide range of products. This includes window and door profiles, ceiling panels, wall cladding, and WPC profiles. We can also customize the molds based on your specific requirements.
Can you customize the PVC profile extrusion line for my factory?
Yes, Qingdao Zhongrui specializes in providing customized extrusion solutions. Our experienced R&D team will design the machine layout and technical specifications. We ensure the equipment matches your exact capacity and space needs.
What kind of after-sales support do you provide?
We offer a comprehensive 7*24 hours after-sales service. This includes online technical support, installation guidance, and machine debugging. We also maintain a reliable supply of spare parts for our international clients.
Why is your PVC profile machine considered highly cost-effective?
We combine advanced, patented R&D technology with efficient manufacturing processes to keep costs reasonable. This approach allows us to offer high-quality, durable extrusion machinery at a highly competitive price point.
Contact Us for Your Extrusion Needs
Are you ready to upgrade your manufacturing capabilities with reliable and efficient equipment? As a professional PVC profile production line manufacturer, Qingdao Zhongrui is fully equipped to help you achieve your goals. Contact us today to request a quote and discuss your specific requirements. Discover how our customized extrusion solutions can drive your business forward.
