Best Temperature Settings for PVC Pipe Production Lines

Polyvinyl Chloride (PVC) presents a strict manufacturing reality on the factory floor. It possesses an exceptionally narrow processing window between optimal plasticization and catastrophic thermal degradation. Imprecise temperature control directly causes high scrap rates, compromised mechanical strength, dimensional instability, and accelerated wear on extrusion machinery. Operating outside the ideal thermal band destroys polymer chains and ruins production runs. We need a systematic framework for establishing baseline temperature profiles, managing shear heat, and evaluating the thermal control capabilities of modern extrusion equipment. By understanding the exact thermal dynamics inside the barrel, operators can ensure high-yield, defect-free production. This guide breaks down the exact parameters required to stabilize your extrusion process, manage internal friction, and keep your line running efficiently without burning material or wearing out screws prematurely.

• Zone-Specific Baselines: Optimal extrusion requires a graduated temperature profile, typically ranging from 150°C at the vacuum/venting port to an actual extrudate melt temperature of 180–190°C at the die head.

• Shear Heat Dominance: In PVC processing, mechanical friction (shear) generated by the screw often contributes more heat than external barrel heaters, making active cooling systems critical.

• Formulation Dependencies: Temperature settings must be dynamically adjusted based on the specific PVC compound (UPVC vs. CPVC), the volume of fillers (e.g., calcium carbonate), and the end-use application (pressure vs. non-pressure).

• Equipment Evaluation: When upgrading machinery, prioritize advanced PID (Proportional-Integral-Derivative) controllers and dual-action heating/cooling barrel zones over raw throughput metrics.

The Physics of PVC Extrusion: Why Thermal Management Dictates Quality

Define the goal of your extrusion process clearly before turning on the heaters. You want to achieve 60-70% gelation before the material reaches the die. Gelation refers to the physical fusion of PVC particles into a continuous three-dimensional network. Hitting this exact percentage ensures maximum mechanical strength without breaking the delicate polymer chains. Over-gelation leads to brittleness and impact failure in the field. Under-gelation results in poor impact resistance and weak, flaky pipe walls that fail burst tests.

External heating from barrel bands only tells half the story. Internal friction generated by screw rotation creates massive shear heat. As the screw forces the highly viscous PVC compound forward, the material rubs against the barrel walls and the screw flights. This mechanical friction often surpasses external heaters in energy contribution. Operators frequently observe barrel heaters turning off completely during steady-state production because shear heat alone sustains the melt temperature. If you do not account for this internal friction, the material will rapidly overheat.

Thermal degradation remains a constant threat in this high-friction environment. When temperatures exceed 200°C for prolonged periods, PVC breaks down chemically. The polymer chain undergoes dehydrochlorination. It releases highly corrosive hydrochloric acid (HCl) gas. This gas immediately attacks the polished steel surfaces of the screw and die tooling, causing severe pitting and rust. It also ruins the physical properties of the extruded pipe, turning it yellow, brown, or black. Managing residence time—the duration the plastic spends inside the heated barrel—is just as critical as managing the absolute temperature setpoints.

Operators on the floor must monitor the physical signs of the melt. You can often smell the acrid odor of HCl gas before visible burning appears on the pipe surface. Once degradation starts, it acts as an autocatalyst. The burned material generates more heat and degrades the surrounding material faster. Stopping this reaction requires immediate intervention, usually by dropping screw RPM to reduce shear friction and maximizing barrel cooling.

Baseline Temperature Profiles for a Standard PVC Pipe Production Line

Establishing a reliable baseline is mandatory for any PVC pipe production line. You need a graduated approach across different zones to transition the raw powder into a homogeneous melt without scorching it. Every machine behaves differently, but the fundamental physics of melting PVC dictate a specific thermal curve.

Feed Zone (140°C – 160°C)

The primary objective involves pre-heating the resin. You must prevent premature melting on the screw, known as bridging. If the feed zone runs too hot, the PVC powder sticks to the screw root. This blocks incoming material and starves the extruder. A controlled, moderate heat ensures the powder remains free-flowing as it enters the flights. Proper feed zone temperatures also help drive off surface moisture before the material compresses. Operators should monitor the feed throat cooling jacket to ensure heat does not creep back into the hopper.

Compression Zone (160°C – 175°C)

Here, the melting process initiates. The screw root diameter increases, reducing the flight depth and compressing the powder or pellets. This mechanical compression eliminates trapped air pockets and forces the particles into tight contact, accelerating heat transfer. The external heaters support this phase, but shear heat begins to dominate. Operators must monitor this zone closely to ensure the transition from solid powder to a viscous melt happens smoothly without sudden temperature spikes. If the compression zone runs too cold, unmelted particles will carry forward, creating weak spots in the pipe.

Metering & Vacuum Zone (150°C – 170°C)

You must maintain steady viscosity while extracting volatiles. Moisture and trapped gases must escape to prevent bubbles in the final pipe wall. Industry standards dictate maintaining gelled PVC at approximately 150°C at the vacuum port. This specific temperature keeps the melt porous enough to release gases but cool enough to prevent degradation during the venting phase. If the temperature drops too low, the vacuum pump will pull raw, ungelled powder up into the venting stack, clogging the system and halting production.

Die Head & Tooling (180°C – 190°C)

This zone ensures optimal flow dynamics. It creates a smooth, glossy exterior surface finish. The die shapes the melt into its final tubular form. Note the critical distinction between the tooling setpoint and the actual extrudate temperature. The metal die might be set to 185°C, but the friction of the melt passing through the narrow die lips can push the actual plastic temperature higher. Accurate thermocouple placement in the die head is mandatory to read the true melt temperature. A cold die will cause surface tearing, while a hot die will cause the pipe to sag before it hits the sizing tank.

Standard Temperature Profile and Zone Objectives

Adjusting Parameters for Specialized Conduit Manufacturing

Standard profiles change based on formulation variables. High-filler formulations used in a standard PVC conduit production line require modified temperature curves. Manufacturers add high volumes of calcium carbonate to reduce material costs and increase pipe stiffness. High calcium carbonate levels increase the thermal conductivity of the melt. They also drastically increase internal friction. Operators must lower barrel temperature setpoints to compensate for this aggressive shear heat and prevent rapid tool wear.

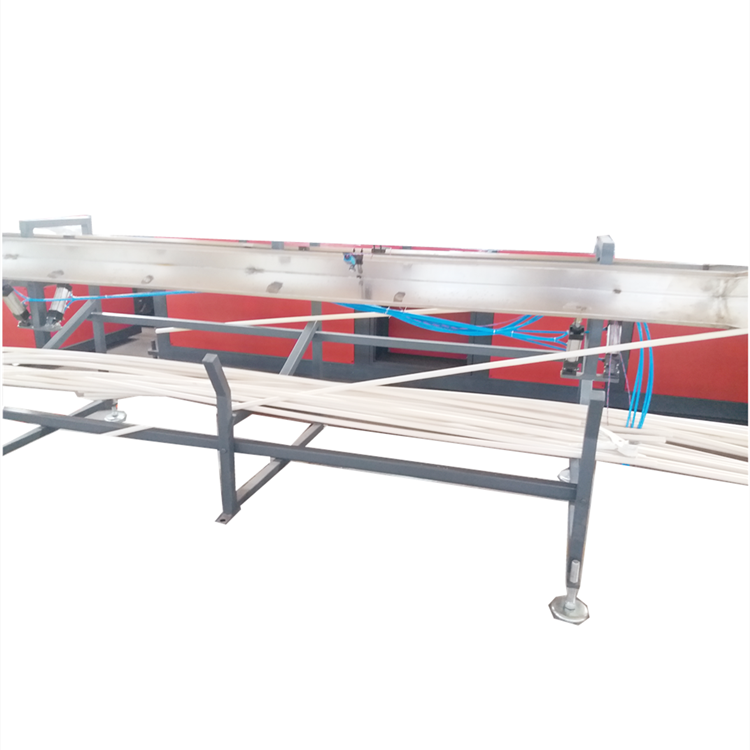

Operating a PVC electrical conduit pipe extrusion line demands specific thermal processing. The final product must meet strict impact resistance and crush-test standards to protect electrical wiring. If the extrusion temperature runs too high, the conduit loses its impact modifiers' effectiveness and becomes brittle. It will shatter during installation or cold-weather bending. The thermal profile must protect these specific chemical additives.

Non-pressurized conduit allows for different filler ratios and thermal profiles compared to pressure pipes. Pressure applications, such as municipal water mains, must strictly avoid thermal degradation to maintain burst strength. Pressure pipe formulations use less filler and require highly stable, precise temperature control to ensure the polymer chains remain intact and fully fused. Any thermal degradation in a pressure pipe creates a catastrophic weak point.

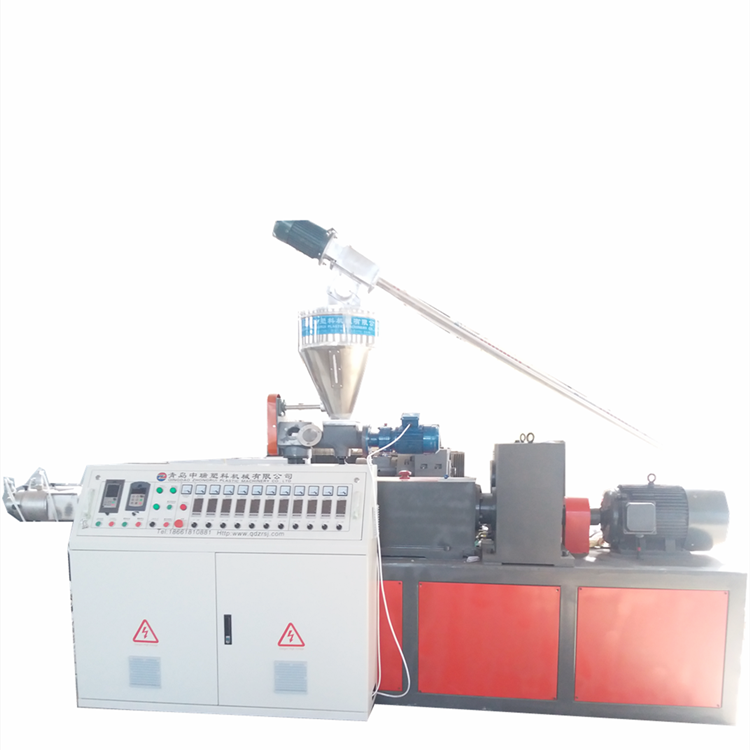

Equipment geometry also dictates heat profiles. Conical twin-screw extruders handle UPVC powder differently than single-screw extruders. Twin screws operate with a positive displacement mechanism. They push the material forward regardless of viscosity. This generates different shear profiles, requiring lower external heat inputs. Single-screw extruders rely entirely on friction against the barrel wall to move material forward, demanding different heating and cooling strategies to maintain throughput.

Follow these steps when adjusting parameters for high-filler conduit runs:

1. Reduce the compression zone setpoints by 3°C to 5°C to offset the increased friction generated by the calcium carbonate.

2. Increase the feed zone temperature slightly to ensure the heavier powder blend pre-heats adequately before entering the compression flights.

3. Monitor the main motor amperage closely; high filler loads increase torque, which directly translates to higher shear heat in the metering zone.

4. Adjust the die lip heaters to maintain surface gloss, as heavily filled compounds tend to produce a matte or rough finish if the die is too cold.

5. Increase the vacuum pump capacity, as high-filler blends often contain more trapped moisture that must be extracted to prevent wall porosity.

Evaluating Thermal Control Systems in a PVC Pipe Extrusion Machine

Upgrading your PVC pipe extrusion machine requires evaluating its thermal control systems. Standard relay-based temperature controls fall short in modern manufacturing. They operate on simple on/off logic, causing massive temperature swings. Modern PLC-driven PID (Proportional-Integral-Derivative) control systems offer precise, predictive adjustments. They calculate the rate of temperature change and apply exact heating or cooling inputs to hold the setpoint within a single degree.

Thermocouple depth and placement matter significantly. Deep-seated thermocouples penetrate closer to the inner barrel wall. They read actual melt temperatures much better. Shallow sensors only measure the outer barrel metal temperature, creating a dangerous disconnect between the control panel and the actual plastic conditions. Upgrading to deep-seated sensors provides operators with true visibility into the extrusion process. If your panel says 170°C but the melt is actually 195°C, you will burn material without understanding why.

Active cooling mechanisms prevent shear-induced overheating. Forced-air blower cooling handles standard profiles well. Fans mounted over finned barrel heaters push ambient air across the metal to extract heat. Closed-loop oil or water cooling on the extruder barrel offers superior heat extraction for high-shear applications. Liquid cooling removes heat exponentially faster than air, providing critical safety margins when running highly viscous UPVC compounds at high speeds.

Modern lines integrate melt pressure transducers with temperature sensors. This integration automatically adjusts screw speed to prevent shear-induced overheating. If the pressure spikes, it indicates the melt is too cold and viscous. If the temperature spikes, the system can automatically reduce screw RPM to lower the shear friction, protecting the material from degradation. This closed-loop feedback prevents operator error and reduces scrap rates.

Cooling System Comparison

Troubleshooting Common Temperature-Related Production Defects

Improper temperatures manifest as visible physical defects on the extrusion line. Quick identification and mitigation save raw material and prevent catastrophic equipment failure. Operators must rely on visual cues from the extrudate to diagnose internal thermal imbalances. Understanding the relationship between surface defects and specific barrel zones allows for rapid adjustments.

When a defect appears, operators should not make massive temperature swings across all zones. Adjustments should be isolated to the specific zone causing the issue, and changes should be made in increments of 2°C to 3°C. Wait at least 15 minutes after a change to allow the heavy steel barrel to stabilize and the new melt profile to reach the die head.

Common PVC Extrusion Defects and Temperature Mitigations

If you experience a sudden, uncontrollable temperature spike in the metering zone, execute the following emergency steps:

1. Immediately reduce the main extruder motor speed by 20% to cut the shear friction generating the excess heat.

2. Verify that the cooling blowers or water pumps for that specific zone are actively running and not blocked by dust or scale.

3. Check the melt pressure gauge; a severe spike indicates a blockage in the screen pack or die, which forces the screw to overwork and generate massive heat.

4. If the temperature continues to climb past 200°C, prepare to purge the barrel with a commercial purging compound to push the degrading PVC out before it carbonizes on the screw.

Clarifying the Data: Extrusion Temperatures vs. Operating Temperatures

Avoid procurement confusion by distinguishing manufacturing parameters from end-user specifications. Engineers often mix these numbers up during project planning. You must communicate clearly about what temperature refers to the factory floor versus the installation site. Mixing up these metrics leads to catastrophic failures in the field or impossible demands on the manufacturing floor.

Manufacturing heat ranges from 150°C to 190°C. This is the massive thermal energy required to plasticize, fuse, and form the rigid polymer inside the extruder barrel. The machinery must sustain these temperatures to keep the material flowing through the complex die tooling. These temperatures only exist inside the controlled environment of the extrusion facility. The pipe is immediately quenched in chilled water tanks to freeze this shape.

The maximum allowable operating temperature sits much lower at 140°F (60°C). This represents the physical limit of the finished, cooled PVC pipe in field applications. When installed in buildings or underground, the pipe cannot exceed this threshold. Pressurized systems operating above 73°F require strict pressure de-rating curves. As the ambient or fluid temperature rises toward 140°F, the pipe's ability to hold internal pressure drops significantly. Non-pressurized systems, like gravity drainage or electrical conduit, have slightly more leniency up to the 140°F threshold because they do not face internal bursting forces.

Thermoforming and bending require temperatures between 170°F and 220°F. This is the optimal ductile range for post-production bending, belling, or fabricating PVC pipe heaters. Contractors use heating blankets or hot boxes to reach this window. These parameters allow you to heat and bend the pipe without scorching the surface or damaging the structural integrity. Exceeding 220°F during field bending will cause the pipe to blister, discolor, and lose its mechanical strength entirely.

Conclusion

Take the following actions to stabilize your production and eliminate temperature-related defects:

• Conduct a comprehensive thermal audit of all current extrusion lines to identify heat fluctuations, dead zones, and failing heater bands.

• Calibrate all barrel and die thermocouples quarterly to ensure accurate extrudate melt readings match the control panel displays.

• Run controlled material trials with documented temperature adjustments when onboarding new PVC compounds or high-filler recipes.

• Inspect and clean barrel cooling fans, heat exchangers, and water lines monthly to maintain optimal cooling efficiency and prevent shear-heat runaway.

• Upgrade legacy relay-based control panels to modern PID systems to tighten temperature tolerances across all barrel zones.

FAQ

Q: What should be the die temperature during UPVC pipe processing?

A: The extrudate temperature should range between 180°C and 190°C at the die. This ensures optimal flow dynamics and a smooth surface finish. You must strictly avoid exceeding 200°C, as this triggers rapid thermal degradation and releases corrosive hydrochloric acid gas.

Q: Why is barrel cooling just as important as heating in a PVC pipe extrusion machine?

A: Mechanical shear friction generated by the rotating screw creates massive internal heat. This friction often causes the melt temperature to overshoot the external heater set points. Active barrel cooling systems are mandatory to extract this excess heat and prevent the PVC compound from burning.

Q: What is the temperature of gelled PVC at the vacuum port?

A: Industry standards dictate that gelled PVC should measure approximately 150°C at the vacuum venting port. This specific temperature allows for the effective extraction of moisture and volatile gases without degrading the polymer melt before it reaches the die.

Q: How do temperature settings differ for a PVC conduit production line versus pressure pipe?

A: Non-pressurized conduit contains higher levels of calcium carbonate filler. This increases thermal conductivity and shear friction, requiring lower external heat profiles to prevent tool wear. Pressure pipes use less filler and demand stricter, highly stable thermal control to maintain maximum burst strength.

Q: What is the maximum operating temperature for finished PVC pipe?

A: The maximum field operating limit for finished PVC pipe is 140°F (60°C). This is drastically lower than the 180°C+ temperatures used during manufacturing. Pressurized piping systems operating above 73°F also require strict pressure de-rating to maintain structural safety.

Q: What temperature is required to bend or heat-form PVC pipe post-production?

A: Post-production ductile manipulation, such as belling or bending, requires heating the PVC pipe to a range of 170°F to 220°F. This optimal ductile window allows safe reshaping without scorching the surface or compromising the material's structural integrity.
