How Can Inline Monitoring Improve Packaging Strap Consistency?

End-of-line load failures, product damage, and rework frequently trace back to microscopic variances in strapping tension and seal integrity. Batch testing and manual quality assurance fall short in high-speed operations. By the time you identify a defective strap at the end of the line, hundreds of units may have already been compromised. This delay leads to excessive material waste, introduces severe safety hazards on the floor, and bottlenecks your overall throughput. We must shift to a preventative, real-time diagnostic approach. Inline monitoring provides this capability. Instead of simply pushing machine speed higher, operations must focus on maximizing yield, repeatability, and safety. Continuous data acquisition makes this possible. Process correlation allows you to pinpoint exactly when and why a strap fails. You can fix the root cause before the pallet ever leaves the facility.

• Inline monitoring shifts quality control from reactive batch testing to proactive, real-time defect prevention, directly reducing rework and material waste.

• Advanced monitoring correlates process parameters—such as cycle time consistency and machine speed—with defect rates to optimize strap placement.

• Different strapping materials (PET, PP, fiber) require specific sensor types—ranging from thermal imaging for seals to optical sensors for camber and width consistency.

• Data derived from inline systems is critical for standardizing operator training and eliminating manual guesswork on the packaging floor.

• Retrofitting existing equipment carries integration risks; evaluating PLC compatibility and environmental factors (dust, vibration) is critical before capital investment.

The Cost of Inconsistency in Packaging Straps

Tension Variance and Seal Failures

The physics of strap failure dictate that inconsistent tension ruins load stability. Under-tensioning allows products to shift during transit. When a forklift moves a loosely strapped pallet, dynamic forces cause the load to slide. Over-tensioning creates the opposite problem. Excessive force deforms the product packaging. It often causes the strap to snap under its own stress. You must apply the exact right amount of force for the specific load profile.

Seal failures present another massive vulnerability. Friction welds and heat seals rely on precise conditions. Fluctuating temperatures during the sealing cycle compromise the joint. If the heating blade drops even a few degrees, the polymer chains fail to fuse properly. Pressure inconsistencies during the strapping cycle also weaken the weld. A visually perfect seal might hold only a fraction of its rated break strength if the internal weld is brittle.

Common root causes for these seal failures include:

1. Heating blade temperature drops below the polymer melt point due to rapid cycling.

2. Friction weld plates accumulate melted resin residue, reducing surface contact area.

3. Anvil pressure fluctuates due to pneumatic air supply drops in the plant.

4. Strap misalignment in the sealing head causes partial edge welds.

Material Waste and Rework Metrics

Rework carries heavy hidden costs. Labor hours spent manually re-strapping pallets drain your operational resources. Secondary packaging waste increases rapidly when you have to discard damaged edge protectors and stretch wrap. Shipping schedules face inevitable delays. Trucks wait at the dock while your team fixes broken loads.

Inconsistent packaging straps wreak havoc on automated warehousing systems. Automated Storage and Retrieval Systems (AS/RS) rely on strict dimensional tolerances. Loose straps dangle from pallets. They trigger optical sensor faults across the conveyor network. A single trailing strap can cause system-wide jams. Clearing these jams requires shutting down the line, locking out the equipment, and sending a technician into the racking structure. This downtime costs thousands in lost throughput per hour.

Safety Hazards and Ergonomic Risks

Inconsistent strapping poses severe physical dangers to your workforce. Snapped bands act like whips. They create immediate laceration hazards for anyone standing nearby. Load shifts endanger forklift operators navigating tight warehouse aisles. A collapsing pallet can cause catastrophic injuries and massive product loss.

Frequent manual interventions also increase ergonomic strain. Operators constantly bend, pull, and twist to fix ill-fitting equipment. They use heavy manual hand tools to clear jams and re-strap loads. This repetitive motion leads to musculoskeletal injuries. It slows down overall line productivity and increases worker fatigue.

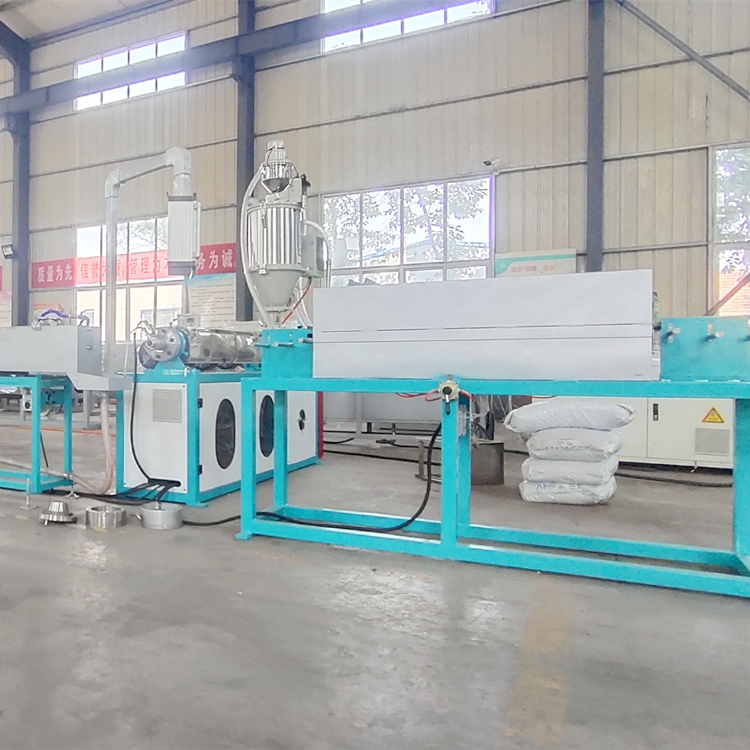

How Inline Monitoring Systems Function on the Packaging Belt Production Line

Real-Time Tension Control and Feedback Loops

Open-loop tension control systems rely entirely on preset values. You dial in a tension setting, and the machine applies it blindly. Open-loop systems cannot adapt to real-time changes in package dimensions or material elasticity. Closed-loop systems provide dynamic, continuous control. They monitor the actual force being applied in real-time on the packaging belt production line.

Load cells and tension transducers sit directly in the strap path. They continuously measure the applied force during the pulling cycle. These sensors send immediate feedback to the machine controller. The controller automatically adjusts the servo motors to maintain exact specifications. If a package yields slightly under pressure, the closed-loop system instantly compensates. It ensures the final tension matches your exact requirements.

Optical and Vision Inspection Systems

High-speed machine vision plays a major role in quality assurance. Cameras verify repeatable strap placement across every single cycle. They check edge integrity and width consistency. They perform these checks without slowing down the line. Strobe lighting freezes the motion of the strap, allowing the software to analyze crisp images at high speeds.

Laser profiling takes inspection a step further. Lasers project a line across the strap surface. Cameras read the deformation of this laser line to detect surface defects. They spot splitting, fraying, or improper seating in the strapping channel. These vision systems correlate machine speed with defect rates. They identify the exact throughput threshold where placement accuracy begins to degrade. You learn exactly how fast you can run before quality drops.

Thermal and Acoustic Monitoring for Seal Integrity

Infrared sensors monitor the exact temperature of the heating blade. They track the heat generated by friction welds in real-time. If the temperature falls outside the acceptable window, the system flags the deviation immediately. It catches the error before a weak seal is fully formed. This prevents compromised pallets from moving downstream.

Acoustic emission monitoring offers another layer of verification. This technology analyzes sound wave signatures during the sealing process. When polymers melt and fuse, they emit specific high-frequency acoustic profiles. If the weld is brittle or contains micro-cracks, the acoustic signature changes. The monitoring system detects these structural flaws instantly based on the sound profile.

Material-Specific Monitoring Requirements

PET Strapping Production Line Considerations

Polyethylene Terephthalate (PET) offers high tensile strength. It features minimal elongation properties, making it ideal for heavy, rigid loads. However, a PET strapping production line requires highly specific monitoring parameters. The manufacturing process relies on exact drawing ratios to align the polymer chains.

Inline systems must track this molecular orientation carefully. They must monitor cooling rates in the water bath. If PET cools too quickly or too slowly, it becomes brittle. It loses its ability to retain tension over time. Sensors track the dimensional stability of the strap as it exits the extruder. They ensure the material will perform reliably under heavy warehouse loads.

PP Strapping Production Line Considerations

Polypropylene (PP) presents a completely different set of challenges. PP is highly susceptible to camber, which is a lateral curvature of the strap. It also suffers from splitting and excessive elongation under load. A PP strapping production line demands rigorous visual inspection.

Vision systems must be calibrated to detect micro-tears. They monitor dimensional instability during the extrusion and embossing phases. If the embossing rollers apply uneven pressure, the strap will curve. A curved strap jams the automated strapping heads downstream. Inline monitoring catches this camber early, allowing operators to adjust roller pressure before producing miles of defective material.

Fiber and Sandwich Packaging Belt Production Line Nuances

Composite materials introduce unique complexities. A fiber packaging belt production line bonds continuous fiberglass or polyester filaments with hot melt adhesives. Monitoring systems here must detect broken filaments. They must track uneven resin distribution across the web. If the adhesive fails to coat the fibers evenly, the strap will shred under tension.

Multi-layer products require specialized quality assurance. A sandwich packaging belt production line extrudes a core material surrounded by outer layers. You must ensure these layers bond perfectly. Ultrasonic sensors or delamination detectors monitor the internal structure. They verify that the core and outer layers fuse completely, preventing the strap from peeling apart during application.

Evaluating Inline Monitoring Solutions: Features to Outcomes

Data Granularity vs. Actionability

High-frequency data is useless if operators cannot understand it. Software dashboards must translate massive data streams into clear, actionable insights. They should display localized fault codes rather than overwhelming the screen with raw sensor readouts. If a load cell detects a tension drop, the screen should tell the operator exactly which strapping head failed.

Customizable tolerance thresholds are absolutely necessary. You must differentiate between acceptable variance and critical defects. A minor fluctuation in seal temperature might not compromise the load. A major drop will. The system must allow engineers to set these thresholds based on the specific product being packaged. This prevents the system from stopping the line for harmless anomalies.

Operator Training and Technique Standardization

Historical data reveals human-error trends. Real-time alerts pinpoint exactly when an operator sets up the equipment incorrectly. You can identify ill-fitting equipment setups quickly. If third-shift operators consistently experience higher defect rates, the data will show it.

Monitoring dashboards serve as an excellent training tool. They help employees understand the direct impact of proper strapping techniques. When an operator sees the tension graph drop because they fed the strap incorrectly, they learn instantly. This feedback loop standardizes techniques across all shifts. It directly improves overall line efficiency and reduces manual guesswork.

Integration with Existing PLCs and ERPs

Syncing inline monitoring tools with legacy strapping heads requires robust communication protocols. You must evaluate IO-Link, PROFINET, or EtherNet/IP capabilities. These protocols connect sensor data directly to your plant-wide ERP systems. They allow management to track material usage and defect rates globally.

Assess the feasibility of closed-loop adjustments versus passive alerts. Passive systems only sound an alarm when a defect occurs. The operator must still walk over and fix the machine. Closed-loop systems communicate directly with the PLC. They adjust servo speeds and heater temperatures automatically. Closed-loop integration requires more engineering upfront but delivers significantly higher operational uptime.

Scalability Across Multiple Lines

Scaling monitoring from a single machine to an entire facility requires careful architectural planning. You must decide between cloud computing and edge computing. Edge computing processes data directly at the machine. It offers ultra-low latency for instant machine adjustments. Cloud computing aggregates data over months. It excels at long-term trend analysis and predictive maintenance.

Evaluate vendor support for multi-site standardization. If you operate five facilities, you need a centralized reporting structure. The software must allow corporate engineers to push tolerance updates to all machines simultaneously. Standardizing the architecture prevents isolated data silos and simplifies maintenance training.

ROI and Trade-Offs: Is Inline Monitoring Worth the Investment?

Looking Beyond Speed: Capital Expenditure vs. Defect Reduction

Calculating a realistic return requires looking at the entire operational picture. Compare the upfront cost of sensors, software licenses, and integration labor against your annualized savings. Track the reduction in scrapped materials. Calculate the labor costs saved by eliminating manual rework. Factor in the reduction of customer chargebacks due to damaged shipments.

Maximizing packaging returns requires looking beyond raw machine speed. Running a machine at 60 straps per minute is useless if 10% of those straps fail. Focus on consistent tension. Demand proper seal quality. Eliminate safety hazards. These factors drive true profitability.

You must also address the trade-off between upgrading and replacing equipment. Retrofitting legacy equipment offers a lower barrier to entry. However, buying a fully new, natively monitored strapping machine often provides better long-term reliability.

Maintenance and Calibration Overhead

Precision monitoring equipment carries ongoing ownership costs. You cannot install these sensors and forget about them. Regular sensor calibration remains an absolute necessity. Load cells drift over time. Thermal cameras require periodic lens cleaning and recalibration to maintain accuracy.

Software updates require IT attention. You must patch security vulnerabilities and update dashboard features. You may also need specialized maintenance personnel. Standard mechanics might struggle to troubleshoot a faulty IO-Link master block. Investing in workforce training ensures your maintenance team can keep the monitoring systems running smoothly.

Implementation Risks and Mitigation Strategies

Sensor Degradation in Harsh Environments

Environmental risks threaten system accuracy daily. Packaging environments are notoriously harsh. Corrugated dust is highly abrasive and carries static charges. It coats optical lenses and blinds vision systems. Ambient temperature fluctuations skew thermal camera readings. Heavy machine vibration disrupts load cell accuracy.

You must deploy strict mitigation tactics. Specify IP67-rated enclosures for all sensitive electronics. Implement continuous air-purge systems over optical lenses to blow away corrugated dust. Utilize heavy-duty vibration-dampening mounts to isolate load cells from machine harmonics. Protecting the hardware ensures the data remains reliable.

Operator Training and Alert Fatigue

The human element dictates the success of any monitoring system. If a system generates too many false positives, alert fatigue sets in. Operators will simply bypass the alarms. They will mute the sirens and ignore the dashboard warnings entirely. This defeats the entire purpose of the investment.

Outline a phased implementation strategy to prevent this. Start with data collection only. Run the system in shadow mode for the first 30 days. Establish accurate baselines. Correlate cycle times with actual physical defects. Adjust your tolerance thresholds based on this real-world data. Only enable automated line stops once you have eliminated false positives completely.

Conclusion

• Conduct a comprehensive 30-day audit of all current strap-related failures, reworks, and safety incidents on your floor to establish a baseline defect rate.

• Consult with integration specialists to thoroughly assess PLC compatibility and network architecture on your existing lines before purchasing sensor hardware.

• Run a shadow-mode trial with rented or pilot sensors to establish baseline defect rates and calibrate tolerance thresholds before committing to full automation.

• Standardize your operator training programs based on the specific fault data gathered during the initial trial phase to eliminate manual guesswork.

FAQ

Q: What is the difference between inline monitoring and end-of-line inspection for packaging straps?

A: Inline monitoring analyzes tension, seal integrity, and placement in real-time during the actual strapping cycle. It prevents defects before they occur. End-of-line inspection only identifies failures after the product is fully packaged. This reactive approach leads to higher rework costs, delayed shipping, and excessive material waste.

Q: How does inline monitoring correlate machine speed with strap defect rates?

A: Sensors track throughput speeds alongside generated fault codes. Software dashboards analyze this combined data to pinpoint the exact operating speed where tension variance or seal failures begin to spike. This precise correlation allows operators to optimize machine speed without sacrificing load security or seal quality.

Q: Can inline monitoring systems be retrofitted onto an existing packaging belt production line?

A: Yes, retrofitting is entirely possible. However, it requires careful evaluation of existing PLC compatibility and communication protocols like IO-Link or PROFINET. Environmental factors like corrugated dust and machine vibration must also be addressed with specialized mounts and enclosures to ensure retrofitted sensors function accurately.

Q: How do vision systems detect faults in a PET strapping production line?

A: High-speed machine vision and laser profiling scan the strap as it moves through the line. They verify edge integrity, width consistency, and proper seating in the channel. These systems detect micro-tears, splitting, or dimensional instability instantly without slowing down the primary extrusion or strapping process.

Q: What are the most common causes of false positives in strapping tension monitoring?

A: False positives usually stem from environmental interference. Corrugated dust settling on optical lenses, heavy machine vibration skewing load cell readings, and improperly configured tolerance thresholds are the main culprits. Using IP67-rated enclosures, vibration dampeners, and air-purge systems helps mitigate these specific issues effectively.

Q: How does inline monitoring improve the friction weld quality on a PP strapping production line?

A: Infrared sensors continuously monitor the temperature of the heating blade or the friction weld itself. If the temperature drops or spikes outside the acceptable tolerance range, the system flags the deviation instantly. This real-time feedback prevents weak, brittle seals from forming during the strapping cycle.

Q: What specific sensors are required for a sandwich packaging belt production line?

A: Multi-layer composite straps require ultrasonic sensors or specialized delamination detectors. These sensors monitor the internal structure of the strap to verify that the core material and outer layers fuse completely. This prevents the strap from peeling apart or shredding under heavy tension during application.
