How Does a Drainage Board Line Form Dimpled Sheets?

The rising demand for commercial waterproofing and retaining wall protection has made manufacturing high-compressive-strength dimpled membranes a lucrative, yet technically demanding, sector. Construction projects worldwide increasingly rely on these robust barriers. They need them to manage subterranean water flow effectively and prevent structural water damage. Producing these membranes efficiently requires precise synchronization. Operators must balance polymer extrusion against vacuum thermoforming perfectly. Substandard equipment frequently causes uneven sheet thickness. It also leads to weak dimples and excessive material waste. Manufacturers face a constant battle. They must balance high machine speed against the structural integrity of the final product. This guide breaks down the mechanical process of a modern drainage board production line. We detail exactly how flat polymer transforms into a highly structural dimpled sheet. You will also discover strict evaluation criteria. We provide these details to help you purchase industrial-grade extrusion machinery confidently.

Key Takeaways

• The formation of dimples relies on a specialized vacuum forming roller working in tandem with a flat T-die extrusion system.
• High-quality HDPE drainage board equipment maintains uniform wall thickness inside the dimple, which is critical for the final product's crush resistance.
• Integrating inline geotextile lamination allows manufacturers to produce composite drainage boards in a single continuous process, maximizing production ROI.
• When evaluating a customizable drainage board production line, buyers must prioritize cooling efficiency and mold-changeover speed to ensure scalable, bottleneck-free output.

The Mechanics of a Plastic Drainage Sheet Extrusion Machine

Polymer granules begin their journey in the automated feeding section. Most operations utilize High-Density Polyethylene (HDPE) because it offers exceptional underground durability. A volumetric or gravimetric hopper drops these granules down into a highly engineered single-screw extruder. Inside this heated barrel, a rotating screw shears and melts the raw polymer. Precise Length to Diameter (L/D) ratios matter immensely during this phase. An optimal L/D ratio, often around 33:1 for HDPE, ensures uniform melting across the entire batch. Modern extruders deploy specific shear control profiles. These profiles prevent the plastic from degrading under excessive frictional heat.

Next, the molten polymer moves forward into the flat T-die. Heavy-duty melt pumps force this thick, viscous liquid through the internal manifold. The die spreads the polymer outward, forming a continuous, uniform flat plastic sheet. Flow distribution must remain perfectly balanced. Any pressure variation inside the die cavity creates weak spots. Operators adjust the metal lips of the die to shape the final thickness profile.

Then comes the transition zone. This critical stage lasts only a few micro-seconds. The hot, pliable sheet exits the die lips. It must make immediate contact with the forming unit before ambient air cools it down. Heat loss during this tiny physical gap ruins the entire thermoforming process. Operators calibrate this gap distance down to the millimeter. This strict synchronization highlights why investing in a specialized drainage board and plastic sheet production line remains essential. Standard flat sheet extruders simply cannot manage this rapid thermal transition accurately.

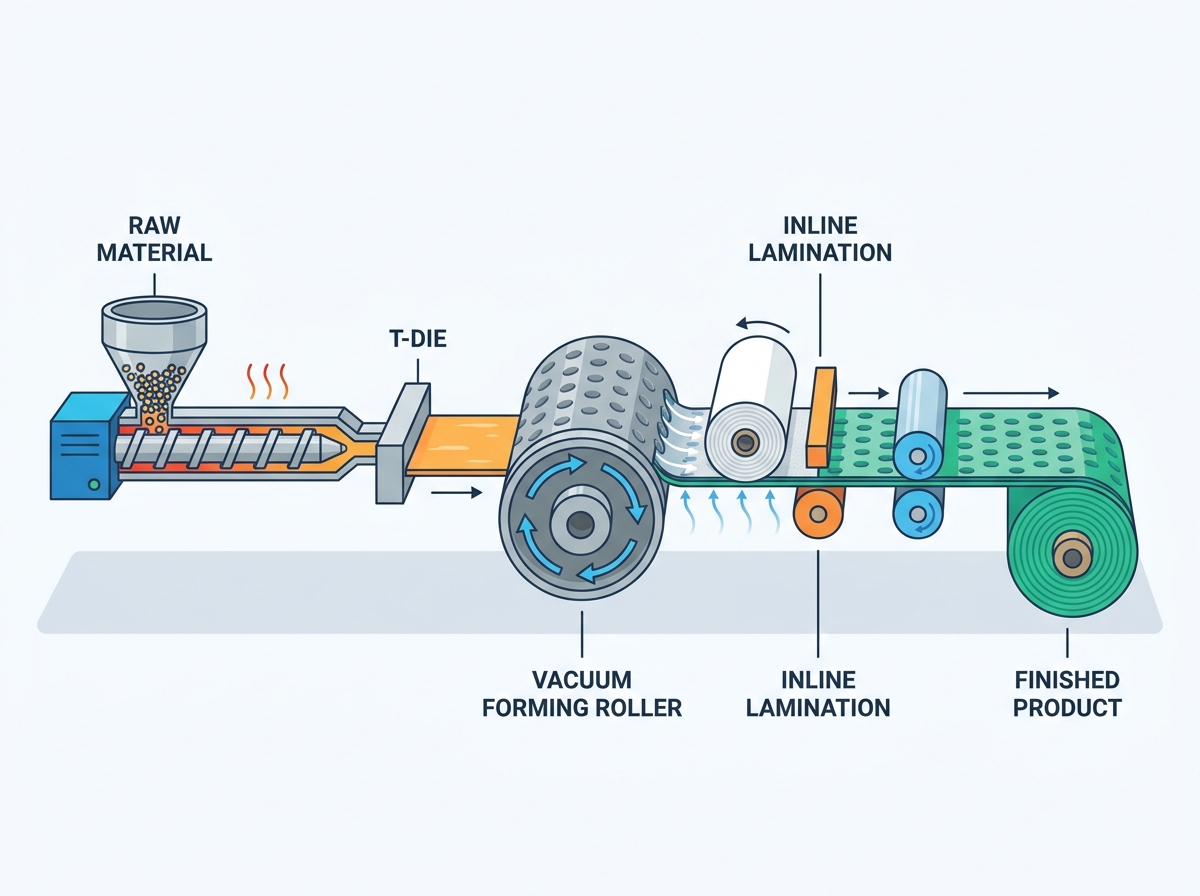

Core Technology: How the Vacuum Forming Roller Creates Dimples

The exact moment of thermoforming defines overall product quality. The hot plastic sheet travels over a specialized cylindrical metal roller. Machinists cover this entire roller surface in precisely engineered cavities. These recessed cavities dictate the final dimple pattern, spacing, and height.

Internal vacuum systems apply massive negative pressure the instant the sheet touches the roller. Powerful pumps pull the pliable polymer down deep into the cavities. This rapid suction instantly forms the dimple profile. Standard profiles typically include 8mm, 10mm, or 20mm heights depending on the construction application. The vacuum force must remain completely uniform across the entire roller width. Uneven suction leaves some dimples partially formed. Partially formed dimples inevitably collapse under heavy soil loads later.

Simultaneous cooling locks the new geometric shape into place. The forming roller contains a complex network of internal water channels. Cold water rushes through these inner channels continuously. This drops the polymer temperature rapidly upon initial contact. Rapid temperature drops freeze the molecular structure instantly. Quick chilling prevents the newly formed dimples from collapsing inward. It also stops them from shrinking as the sheet moves further down the line. Advanced HDPE drainage board equipment utilizes heavy-duty rotary joints. These joints maximize chilled water flow without leaking under high line pressure.

Material Processing Capabilities and Melt Control

Equipment flexibility often determines long-term production profitability. You must evaluate how efficiently the machinery handles 100% virgin HDPE versus recycled regrind materials. Virgin HDPE flows predictably and melts very evenly. Recycled materials introduce significant variables. Regrind plastics often contain mixed molecular weights and trace contaminants.

Consistent Melt Flow Index (MFI) management prevents dangerous surging. Surging happens when internal extruder pressure fluctuates wildly. Pressure spikes push too much material through the die lip. Sudden pressure drops starve the die completely. Both scenarios ruin the final product dimensions. The extruder barrel must maintain absolute pressure stability. Consistent pressure ensures the final drainage board delivers identical compressive strength across its entire width.

Filtration systems play a vital role in maintaining this stability. You cannot run recycled plastics successfully without robust filtration. Hydraulic screen changers filter out unmelted particles, paper labels, and metal impurities. They push fresh mesh screens into the hot melt stream automatically. This exchange happens without stopping the main extrusion process. Clean polymer guarantees strong, blowout-proof dimple walls.

Material Handling Comparison Chart

The following chart illustrates the behavioral differences between various polymer grades during the extrusion process.

Evaluating a Customizable Drainage Board Production Line

Modern manufacturers demand extreme flexibility from their factory machinery. Modular mold design remains a top priority for agile operations. Operators need the ability to swap forming rollers quickly between shifts. A highly customizable drainage board production line utilizes quick-release bearing housings and automated lifting hoists. This setup allows operators to switch dimple heights and patterns easily. Minimal machine downtime keeps daily output targets securely on track.

Inline lamination adds immense commercial value to the final product. Many buyers want composite capabilities straight off the line. Look for integrated thermal bonding stations. Certain advanced machines use dedicated hot-melt adhesive application systems. These systems attach non-woven geotextile fabrics directly to the top of the dimpled side. This bonding happens right before the final cooling stage. The residual heat from the extrusion process helps weld the fabric to the plastic permanently.

You must weigh physical throughput against energy consumption carefully. Manufacturers measure output in kilograms per hour (kg/hr). They measure power usage in kilowatts (kW). Higher motor kW does not always equal better efficiency. An outdated screw design wastes massive amounts of electrical energy. It generates excessive shear heat unnecessarily. You want high kg/hr output derived from the lowest possible kW rating. Modern direct-drive AC motors achieve this power balance perfectly.

Automation defines the end-of-line process. Look closely at the accumulator bracket and automated winding systems. Accumulators store excess cooling sheet temporarily in a vertical loop. This storage buffer allows the automated winder to cut and roll the finished sheet seamlessly. The main extrusion process never stops during roll changes. Continuous running prevents material degradation inside the hot die.

Implementation Risks & Production Bottlenecks to Avoid

Even the best factories encounter frustrating production bottlenecks. Thinning at the dimple apex is the most common manufacturing flaw in this industry. The top of the dimple bears the heaviest soil loads when buried. If the vacuum draw is too slow, the plastic stretches too much during formation. If the sheet temperature is incorrectly calibrated, it yields unevenly. The apex becomes paper-thin. These substandard boards fail construction load-bearing tests immediately.

Cooling system overload presents another serious operational risk. Insufficient chiller capacity ruins high-speed production runs. It leaves residual heat inside the metal forming rolls. The soft plastic begins sticking to the molds, causing tearing. Sometimes the sheet looks fine exiting the line but warps later during warehouse storage. Your factory water chiller must exceed the maximum thermal output of the extruder.

Die lip build-up, commonly known as die drool, disrupts long continuous runs. Degraded polymer slowly accumulates on the metal die lips over several hours. This sticky residue creates drag, forming deep streaks down the final sheet. High-quality die steel prevents this adhesion. Highly polished lips are non-negotiable for long-term reliability.

Common Troubleshooting Steps

1. Check Vacuum Gauges: Ensure negative pressure reaches the specified bar rating uniformly across the entire forming manifold.
2. Measure Water Temperatures: Verify the chilling water entering the roller stays strictly below 15°C under full machine load.
3. Inspect Die Heaters: Identify dead heating zones causing localized polymer freezing and sudden thickness variations.
4. Calibrate the Gap: Adjust the physical distance between the T-die and the forming roller to eliminate convective heat loss in the transition zone.

Shortlisting Equipment and Next Steps for Manufacturers

Defining clear success criteria prevents costly purchasing mistakes. Buyers should demand detailed sample runs before signing contracts. Request physical samples of the highest dimple profile available on that specific machine. Cut these samples open and measure the apex wall thickness using digital calipers. You must also demand detailed technical specifications of the forming roller's internal cooling channels. Look for spiral baffle cooling designs. They provide the most turbulent and effective water flow for rapid chilling.

Factory layout assumptions often trip up new machinery buyers. You must account for the physical length of the entire assembled machine. The ambient cooling bracket takes up considerable linear space. The inline lamination framework and automated winding stations extend the footprint even further. Do not underestimate the required floor space. Cramped factory layouts make routine maintenance almost impossible.

Your most actionable next step involves detailed site planning. We recommend requesting a customized line layout drawing from the machinery manufacturer. Calculate your required daily throughput based on an ROI calculation using localized resin costs and targeted output capacities. Then, select a plastic drainage sheet extrusion machine that offers a 20% capacity buffer above your baseline requirement. This buffer ensures you never run the equipment at absolute maximum stress continuously.

Conclusion

The viability of a drainage board manufacturing operation hinges on the precision of the vacuum forming roller and the stability of the extrusion process. Mastering melt temperatures, vacuum pressure, and rapid cooling cycles guarantees a structural product that contractors trust. Investing in advanced plastic drainage sheet extrusion machines reduces material waste and ensures the final product meets strict construction grading standards. Operators who prioritize modularity and inline lamination position themselves perfectly for market expansion. We encourage you to consult with an extrusion machinery specialist to spec out a production line tailored exactly to your target capacity and product dimensions.

FAQ

Q: Can one production line manufacture different dimple heights?

A: Yes, by exchanging the vacuum forming roller. However, the line must be designed with an adjustable die gap and sufficient cooling capacity to handle thicker/higher dimple profiles.

Q: What is the typical output capacity of a standard drainage board production line?

A: Depending on the screw diameter and motor size, industrial lines typically range from 300 kg/hr to over 800 kg/hr.

Q: Does the equipment require a separate machine to attach the geotextile filter fabric?

A: No. Modern, well-designed equipment incorporates an inline laminating station that heat-welds or glues the geotextile to the dimpled sheet before the final winding process.
