How Does Multi-Strand Extrusion Increase Packaging Strap Capacity?

Manufacturing facilities face compounding pressure to scale output and reduce unit costs without linearly expanding their operational footprint or energy consumption. Legacy single-strand extrusion systems—or inefficient sheet extrusion and slitting methods—create inherent throughput bottlenecks. These limit the ability to meet high-volume demands, resulting in inefficient floor space utilization, higher per-unit energy costs, and compromised edge quality. Upgrading to multi-strand extrusion technology allows manufacturers to produce multiple packaging straps simultaneously through a single die. This fundamentally shifts the capacity ceiling, improves strap integrity, and alters the return on investment equation for modern packaging operations. Plant managers can now bypass the physical limitations of older machinery, achieving higher daily tonnage while maintaining strict dimensional tolerances across every coil produced.

• Exponential Throughput: Multi-strand extrusion (e.g., 4-strap or 6-strap configurations) multiplies production capacity while utilizing a single primary extruder, drastically reducing the cost per meter of strap.

• Material Versatility: Advanced multi-opening die technologies can be calibrated for both high-speed PP and high-tensile PET, maintaining strict dimensional tolerances across all simultaneous strands.

• Enhanced Physical Properties: Simultaneous processing ensures uniform polymer chain alignment during the stretching and annealing phases, yielding consistent tensile strength, superior edge integrity, and optimal elongation recovery across all extruded straps.

• CapEx vs. OpEx Efficiency: While the initial capital expenditure for a multi-strand line is higher, the consolidation of heating, stretching, and winding processes significantly lowers long-term operational and energy expenses.

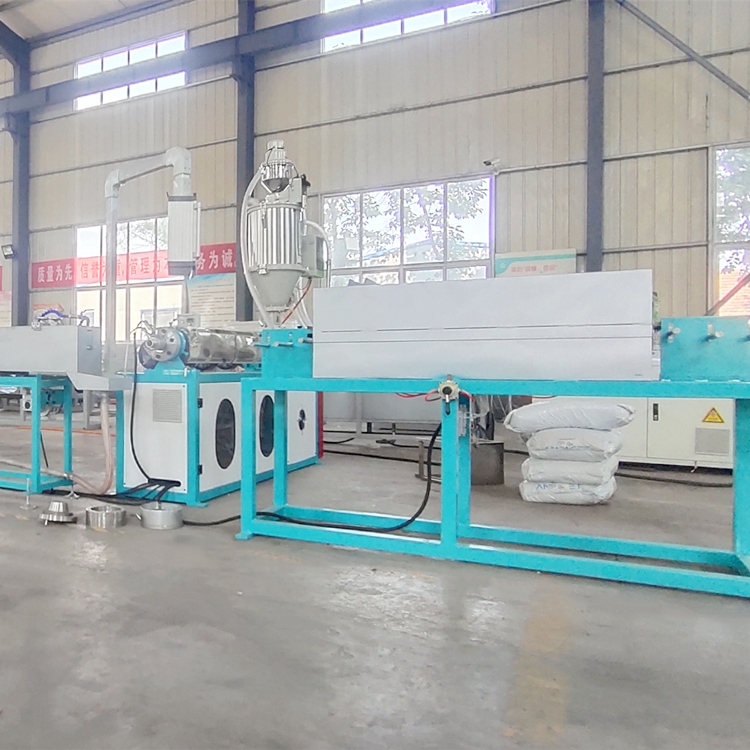

The Mechanics of Multi-Strand Extrusion for Packaging Straps

To justify equipment upgrades, plant managers must verify that increased speed does not compromise the dimensional stability, maximum load capacity, or tensile strength of the final product. Scaling up production volume is only viable if the physical properties of the extruded product meet strict industry standards. We evaluate these mechanics by looking at the entire extrusion process from the die head to the final winder, analyzing how simultaneous processing affects the polymer at a molecular level.

From Multi-Opening Die to Annealing

The transition from single-channel dies to engineered multi-opening dies represents a major technological leap in polymer processing. These advanced dies distribute melt pressure evenly across the entire face of the tooling. They individually extrude straps rather than forming a wide sheet that requires subsequent slitting. We see a stark contrast when comparing multi-strand extrusion against legacy sheet slitting methods. Individual die openings preserve edge integrity perfectly. They prevent the micro-tears that often lead to strap failure under tension during transport. When you slit a solid sheet, the blades create microscopic fractures along the strap edge. Under heavy load, these fractures propagate, snapping the band. Multi-strand dies eliminate this failure point entirely.

The synchronized continuous process involves several critical stages operating in unison. It begins with simultaneous extrusion from the die head directly into a rapid water quenching bath. We typically maintain this water bath between 40°C and 50°C to rapidly cool the polymer skin while keeping the core pliable. High-velocity air knives then strip the residual water off the strands before they enter the first stretching oven. Next comes multi-stage heating and synchronized stretching through a series of motorized rollers. Shared heating ovens and stretching godets process multiple strands at once. This ensures a uniform thermal history for every strap on the line. Consistent thermal treatment prevents variations in shrinkage and flexibility across the different strands.

Polymer Chain Alignment and Tensile Strength

The physics of the stretching phase dictate the final product quality and performance. Mechanical drawing aligns polymer chains along the length of the plastic material. Before stretching, the polymer molecules resemble a tangled web. As the godet rollers pull the material through the heating ovens at specific draw ratios—often between 1:4 and 1:6—these molecules straighten and align parallel to the strap's length. This molecular alignment exponentially increases the tensile strength of the finished product. The speed differential between the slow godet and the fast godet determines this draw ratio, which must be precisely calibrated based on the specific polymer blend being processed.

Multi-strand lines maintain precise tension control across all strands simultaneously. This guarantees high maximum load capacity and high-efficiency weld properties when used in automated strapping machines. If one strand experiences a drop in tension, the entire batch suffers. Modern lines use load cells and variable frequency drives to adjust roller speeds in milliseconds, keeping tension uniform. Elongation and recovery metrics are equally important for securing heavy loads. Materials vary in their capacity to elongate and recover after tension is applied. Achieving the industry standard of approximately 70% elongation recovery for polyester ensures the strap remains tight around loads that settle or shift during transit. Proper annealing locks in this polymer orientation, relieving internal stresses generated during the rapid stretching phase.

Capacity Multipliers: Evaluating Throughput vs. Footprint

Assessing how multi-strand configurations impact overall facility logistics is vital for operational planning. We must evaluate output metrics alongside physical space constraints and utility requirements. High-capacity lines change how a factory floor operates, shifting the bottleneck from the extruder to the packaging and warehousing stages.

Floor Space Utilization and Energy Efficiency

Compare the footprint of four independent single-strand machines versus one high-speed 4-strap line. The single multi-strand machine occupies significantly less floor space while delivering the same or greater output. This consolidation frees up valuable square footage for warehousing, raw material storage, or additional secondary processes. Efficient space utilization directly impacts the overall production capacity of a given facility. You can effectively quadruple your output without pouring new concrete or expanding your building footprint.

The energy consumption ratio also heavily favors multi-strand setups. Shared drives, centralized heating elements, and consolidated cooling systems are highly efficient. They drastically reduce kilowatt-hours per ton of extruded material. Running one large main extruder motor consumes less power than running four smaller motors independently. The thermal efficiency of a single large annealing oven also surpasses multiple smaller units, as there is less surface area losing heat to the ambient factory environment. Furthermore, a single chilled water loop servicing one large quenching bath requires less pumping energy than routing water to four separate, smaller baths.

Waste Reduction and Material Recovery

Avoiding the sheet-slitting process inherently reduces massive edge-trim waste. Individual extrusion means the strap edges are formed precisely in the die, not cut later with blades. Modern extrusion plants integrate any remaining edge-trim recycling directly into the process. Scrap recovery feeds back into the multi-strand loop to enhance production capacity. This closed-loop system minimizes virgin material loss. We typically see scrap rates drop from 8% on slitting lines to under 2% on dedicated multi-strand setups.

• In-line grinders capture any startup scrap and immediately process it back into uniform flake.

• Automated dosing units blend this recovered material with virgin pellets at a precise, continuous ratio.

• Melt filters remove any degraded particles before the polymer reaches the die head, ensuring the recycled content does not compromise tensile strength.

Managing a single multi-strand line also reduces start-up and changeover waste. You generate far less scrap dialing in one machine compared to tuning multiple separate lines. When operators adjust temperatures or line speeds, they stabilize all strands simultaneously. This efficiency reduces the volume of off-spec material produced during shift changes or product transitions.

Material-Specific Configurations in a Packaging Belt Production Line

Different polymers and strap architectures require specific screw designs, die geometries, and cooling parameters. A modern packaging belt production line must adapt to these unique material demands to maintain high output rates. You cannot run different resins through the same barrel profile and expect optimal results.

Optimizing a PP Strapping Production Line for High-Speed Output

Polypropylene (PP) possesses unique rheology making it highly suitable for rapid, multi-strand extrusion. The melt flows easily, allowing for high throughput rates without excessive pressure buildup. A dedicated PP strapping production line maximizes this potential through specialized screw profiles. These profiles ensure thorough melting and mixing at high RPMs. We typically specify a length-to-diameter (L/D) ratio of 30:1 or 33:1 for PP to ensure a homogenous melt without degrading the polymer. The compression ratio of the screw is also tailored to handle the specific bulk density of PP pellets.

Winding speeds must match the aggressive extrusion output of polypropylene. High-speed, automated dual-position winders are an absolute necessity for these setups. They keep pace with 4-strap or 6-strap PP output without causing line bottlenecks. Automated changeovers allow the line to run continuously, maximizing the daily tonnage produced. When the line runs at 150 meters per minute, manual roll changes are impossible. The automated winder cuts the strap and transfers it to an empty core in a fraction of a second, utilizing a specialized traverse mechanism to ensure a flat, stable coil.

Scaling a PET Strapping Production Line for Heavy-Duty Applications

Polyethylene Terephthalate (PET) requires specific drying and crystallization prior to extrusion. Moisture must be removed from flakes or pellets to prevent hydrolytic degradation inside the extruder barrel. A robust PET strapping production line handles these precise thermal requirements with advanced dehumidifying dryers. Proper drying is non-negotiable for maintaining molecular weight. We require a dew point of -40°C in the drying hopper to ensure the moisture content drops below 50 parts per million before the material enters the feed throat.

Maintaining intrinsic viscosity (IV) across multiple heavy-duty PET strands is critical. High IV ensures high break strength and the targeted 70% elongation recovery. The extruder screw must be designed for low shear to prevent excessive IV drop during the melting phase. Precise temperature control in the die head prevents localized overheating that could degrade the polymer. If the IV drops too low, the strap becomes brittle and will snap upon impact during shipping. We monitor the melt temperature constantly, keeping it strictly within the 260°C to 280°C range to preserve the polymer's structural integrity.

Specialized Applications: Fiber and Sandwich Packaging Belt Production Lines

Integrating multi-strand technology into a fiber packaging belt production line requires careful mechanical synchronization. Continuous yarn feeding must align perfectly with polymer coating processes. Tension control on the fiber creels is critical to ensure the core yarns do not break or bunch up as they enter the crosshead die. The polymer must encapsulate the fiber core completely, providing weather resistance while relying on the internal yarns for tensile strength. The die design here is highly specialized, featuring individual guide pins that center the fiber bundle within the polymer melt stream.

Co-extrusion adds another layer of mechanical complexity to the process. A sandwich packaging belt production line uses multi-strand dies to handle multi-layer melt flows. This creates specialized composite straps with unique surface and core properties. For example, a stiff core can be surrounded by a high-friction outer layer to improve welding performance. We use an A/B/A layer configuration where the core (B) provides the rigidity, and the outer layers (A) provide the necessary surface texture for the strapping machine's feed wheels. This requires two or more extruders feeding into a single, complex co-extrusion block before the melt reaches the multi-opening die.

Evaluating Equipment: Features-to-Outcomes Framework

Translating technical machine specifications into measurable production advantages helps guide purchasing decisions. Plant managers must look beyond basic output numbers and evaluate the specific engineering features that guarantee reliable, continuous operation.

Die Head Precision and Melt Distribution

The primary feature to look for is CNC-machined, rheologically optimized melt channels. The outcome is the complete elimination of gauge variation between inner and outer strands. This prevents weak spots and ensures consistent strap width and thickness across the entire production run. Consistent dimensions are mandatory for trouble-free operation in high-speed automated strapping machines. If a strap is even a fraction of a millimeter too wide, it will jam the feed track of the packaging equipment, causing severe operational delays.

Advanced Stretching and Thermal Management

Look for zoned infrared or hot air annealing ovens with independent temperature controls. This feature locks in polymer orientation and minimizes post-extrusion shrinkage. It guarantees reliable performance and prevents the strap from warping or splitting after it cools. Precise thermal management ensures the strap maintains its physical properties during long-term warehouse storage. We typically apply a relaxation ratio of 3% to 5% in the annealing oven to relieve internal stress without sacrificing the tensile strength gained during the stretching phase.

Automation, Winding Speeds, and Weld Efficiency

Key features include PLC-controlled tension regulation, automatic roll changeovers, and synchronized embossing rollers. These outcomes reduce operator intervention and prevent costly line stoppages. They ensure the strap maintains precise surface embossing required for high-efficiency friction welding and high maximum load security. The knurling pattern on the embossing rollers must be cut to an exact depth—usually 15% to 20% of the strap's total thickness—to provide grip without compromising the cross-sectional strength of the band.

Implementation Realities and Adoption Risks

Transparently addressing the challenges of operating high-capacity multi-strand systems is necessary for long-term success. Upgrading equipment introduces new operational variables that require proactive management and specialized training.

Managing Extruder Pressure and Temperature Consistency

Melt pressure drops at the outer edges of a multi-opening die present a significant risk. This can cause dimensional inconsistencies across the strands, leading to rejected material. To mitigate this, specify equipment with high-precision melt pumps, often called gear pumps. Continuous screen changers also stabilize pressure and filter impurities without halting production. These components ensure a steady, uniform flow of polymer to every die opening. We monitor pressure transducers constantly; a fluctuation of even 5 bar can indicate a clogged screen or a feeding issue that requires immediate attention.

Operator Training and Maintenance Complexity

Threading multiple strands during startup is mechanically complex. Recovering from a single-strand break can lead to significant downtime if operators are untrained. Mitigate this by investing in lines with automated threading assists and comprehensive PLC diagnostics. Mandate rigorous vendor-led technical training for all shift operators. Proper training ensures operators can quickly identify and resolve tension issues before they cause a line stoppage.

1. Calibrate the die head temperature zones weekly to prevent localized polymer degradation.

2. Inspect the embossing rollers for wear every 500 hours of operation to ensure consistent surface texture.

3. Verify the alignment of the stretching godets monthly to prevent uneven tension across the strands.

4. Clean the water quenching bath filters daily to maintain optimal cooling flow rates.

5. Test the automated winder cutting mechanisms during every scheduled shutdown.

Conceptual Trade-offs: Initial CapEx vs. Long-Term Unit Cost

Multi-strand lines require higher upfront capital and more robust infrastructure, like upgraded power drops and high-capacity chilled water loops. You must analyze the financial threshold carefully before committing to an installation. Calculate the break-even point based on monthly tonnage requirements and expected labor reduction. Over time, the lower unit cost justifies the initial expenditure for high-volume producers. For example, a facility producing 200 tons per month will recover the premium paid for a 4-strap line much faster than a plant running only 50 tons, simply due to the massive reduction in labor and energy required per coil.

Conclusion

1. Audit existing facility power drops and chilled water loop capacities to ensure they can support a multi-strand extrusion system.

2. Calculate your current per-meter production cost to establish a baseline for return on investment modeling.

3. Request technical proposals from vendors that explicitly include die pressure variance data and energy consumption guarantees.

4. Schedule a trial run with a manufacturer using your specific polymer blend to verify elongation recovery and tensile strength metrics.

FAQ

Q: How does multi-strand extrusion affect the tensile strength of packaging straps?

A: When properly calibrated, multi-strand extrusion maintains identical or superior tensile strength compared to single-strand methods. The shared stretching godets ensure uniform polymer chain alignment across all strands simultaneously. Individual die openings prevent the edge micro-tears common in sheet-slitting methods, resulting in a stronger final product.

Q: Can a single packaging belt production line process both PET and PP?

A: While some modular lines exist, processing both materials on one machine is highly inefficient. PET and PP require vastly different screw designs, drying processes, and cooling temperatures. Dedicated lines are recommended for optimal capacity, consistent quality, and reduced changeover downtime.

Q: What is the standard elongation recovery for PET straps produced on these lines?

A: High-quality PET strapping production lines are engineered to achieve an elongation recovery of approximately 70%. This specific recovery rate ensures the strap remains tight around heavy loads that settle, shift, or compress during transit.

Q: How do multi-opening dies prevent dimensional variations between strands?

A: Advanced dies utilize internal melt pumps and complex flow-channel geometries. This ensures the polymer melt reaches every opening at the exact same pressure and temperature. It prevents gauge variations across the width of the die and ensures consistent high-efficiency welds.

Q: What is the main operational risk of a 4-strap PP strapping production line?

A: The primary risk is operator error during startup or when recovering from a single-strand break. Threading multiple strands requires skill and precision. Investing in automated threading assists and comprehensive training minimizes this downtime risk.

Q: Do multi-strand lines consume more energy than single-strand setups?

A: They consume more total power but significantly less energy per ton of extruded material. Shared drives, centralized heating elements, and consolidated cooling systems make them highly efficient compared to running multiple independent machines.
