How Does Vacuum Sizing Improve PU Pipe Quality?

Extruding flexible, high-melt-flow materials like polyurethane presents immediate physical challenges on the factory floor. The polymer exits the die head in a highly unstable, molten state. If you fail to support the material properly during the initial cooling phase, it quickly loses structural integrity. Gravity pulls the melt downward, while internal heat keeps the core soft. This physical instability leads to severe operational problems. Manufacturers frequently face high scrap rates, inconsistent wall thickness, and compromised roundness. These defects prevent the final product from meeting strict industrial tolerance standards. When pipes fail dimensional checks, material waste increases and production schedules fall behind. You cannot rely on ambient cooling or basic water baths to hold the shape of a flexible elastomer. To solve this problem, operators rely on vacuum sizing. This process serves as the primary intervention point in a modern extrusion setup. It stabilizes the polymer melt immediately after it leaves the die. By applying controlled negative pressure, the system guarantees consistent mechanical properties and exact dimensions before the plastic fully solidifies.

• Vacuum sizing directly dictates the outer diameter (OD) accuracy and roundness of a PU pipe by utilizing negative pressure to hold the molten polymer against a calibration sleeve during initial cooling.
• Integrating precise vacuum controls reduces internal residual stresses, leading to uniform crystallinity and preventing post-extrusion warpage.
• Optimized vacuum calibration, including hybrid techniques like free extrusion with vacuum assist, allows for higher line speeds without sacrificing structural integrity, directly improving overall equipment effectiveness (OEE).
• Proper sizing sleeve design, vacuum tank configuration, and correctly sized vacuum suction piping are critical for balancing friction reduction, steady mass flow, and adequate cooling capacity.

The Mechanics of Vacuum Sizing in a PU Pipe Production Line

The most vulnerable point in any PU pipe production line is the short gap between the extrusion die head and the cooling tank. Polyurethane possesses a specific melt strength that requires immediate physical stabilization. As the hot plastic enters the open air, it experiences die swell. The material expands slightly before gravity begins to pull it downward. Without immediate support, the pipe will collapse into an oval shape or sag, ruining the concentricity. Extrusion operators must manage this transition zone with extreme precision. The distance between the die face and the calibrator directly impacts the drawdown ratio. If the gap is too long, the melt sags. If the gap is too short, the water from the cooling tank can splash onto the hot die face, causing premature freezing and surface defects on the polymer.

Traditional free extrusion relies on internal air pressure to hold the pipe open while it passes through a water bath. This method often fails with flexible polyurethane because the internal pressure can easily stretch the soft walls, causing blowouts or uneven expansion. Vacuum-assisted sizing flips this dynamic. Instead of pushing the pipe outward from the inside, negative pressure pulls the pipe outward against a rigid sizing sleeve. A specialized hybrid technique, known as free extrusion with vacuum assist, combines slight internal air support with external vacuum calibration. This hybrid approach allows operators to attain higher line speeds while maintaining strict dimensional control over the flexible tubing.

The calibration process follows a precise mechanical sequence on the factory floor:

1. The molten tube exits the die and enters a highly polished sizing sleeve mounted at the front of the vacuum tank.
2. A liquid ring vacuum pump evacuates the air inside the sealed tank chamber, creating a controlled negative pressure environment.
3. Because the inside of the extruded pipe remains at atmospheric pressure, the pressure differential forces the soft outer wall of the polymer against the inner surface of the sleeve.
4. Simultaneously, a thin water film or high-pressure spray coats the sleeve and the pipe, initiating rapid cooling.
5. The outer skin of the plastic freezes instantly, locking in the exact shape and outer diameter before the pipe moves into the secondary cooling zones.

Key Quality Improvements Achieved Through Vacuum Calibration

Dimensional Accuracy and Strict OD Control

Vacuum sizing ensures the extruded product maintains perfect roundness and concentricity. By forcing the polymer against a precision-machined calibrator, the system eliminates the ovality that naturally occurs when soft plastics cool on rollers or in open water baths. The rigid sleeve acts as an absolute physical boundary for the expanding melt. Operators monitor this using inline laser micrometers that provide real-time feedback on the outer diameter.

Maintaining a steady vacuum pressure eliminates micro-variations in the outer diameter. Pressure fluctuations allow the pipe to pull away from the sleeve momentarily, creating localized shrinking. A stable vacuum holds the material firmly in place until the outer skin freezes. This level of strict OD control is especially necessary for microbore tubing and high-pressure pneumatic applications. In these applications, even a fraction of a millimeter of variance prevents the pipe from fitting into push-to-connect fittings, rendering the entire batch useless.

Uniform Wall Thickness and Material Distribution

Gravity constantly acts on the molten polymer as it exits the die. Without vacuum support, the material sags downward, a phenomenon known as drawdown. This sagging causes the bottom wall of the pipe to become thicker than the top wall. Consistent vacuum application counteracts gravity by pulling the material evenly across the entire 360-degree circumference of the sizing sleeve. Ultrasonic wall thickness scanners mounted downstream verify this uniformity, allowing operators to adjust die centering bolts if necessary.

Uniform cooling under vacuum promotes even wall thickness. When the pipe contacts the chilled sizing sleeve evenly, heat transfers out of the plastic at a uniform rate. This prevents the formation of thin, weak points along the pipe wall. In industrial environments, these weak points serve as primary failure zones. They often lead to burst failures when the pipe operates under fluid or air pressure in the field. A consistent wall thickness guarantees the pressure rating of the tubing remains reliable across its entire length.

Reduction of Internal Stresses and Warpage

The thermal dynamics of polymer extrusion dictate the final mechanical properties of the product. When plastic cools unevenly, the molecular chains lock into place at different rates. This creates internal residual stress. Controlled vacuum sizing allows the polymer chains to cool in a highly uniform state. The constant contact with the sizing sleeve ensures the thermal gradient from the outside skin to the inner core remains consistent across the entire circumference.

This uniformity in crystallinity directly prevents long-term warpage. Pipes extruded with high internal stress will eventually bow or bend as those stresses slowly release over time. By managing the cooling profile through vacuum calibration, you generate a more structurally sound product. The resulting PU pipe exhibits improved mechanical flexibility, superior kink resistance, and higher fatigue resistance during continuous flexing applications.

Evaluating Vacuum Sizing Equipment for Your Plastic Pipe Production Line

Vacuum Tank Design and Cooling Efficiency

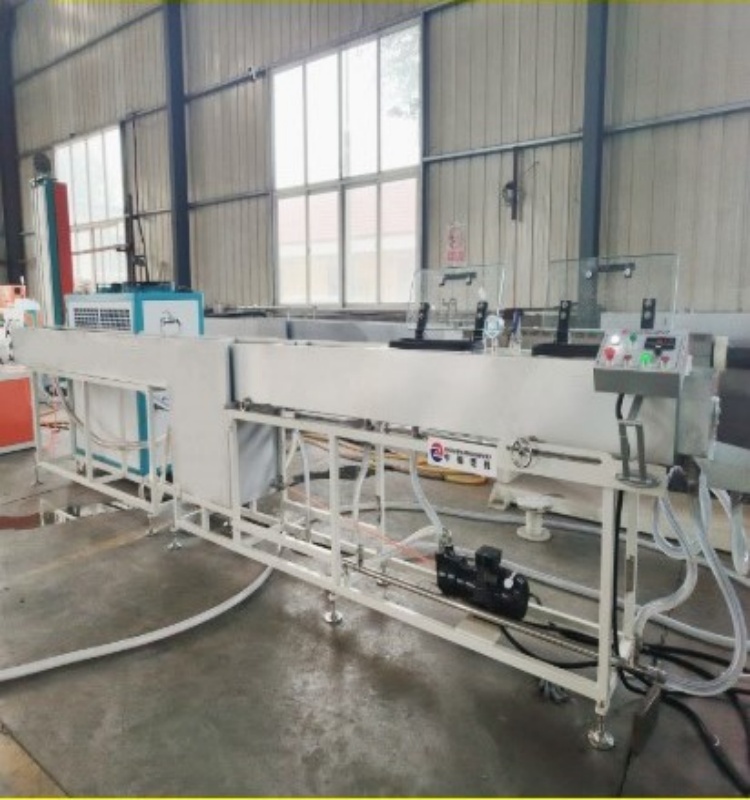

When upgrading a plastic pipe production line, you must assess the structural integrity of the vacuum tank. Heavy-gauge stainless steel construction prevents the tank walls from flexing under high vacuum loads. Flexing causes volume changes inside the chamber, which immediately translates into pressure fluctuations at the sizing sleeve. Dual-chamber designs isolate the primary calibration zone from the secondary cooling zone, allowing for more precise control over the initial freezing process.

Look for tanks that offer independent control over vacuum pressure, water temperature, and water flow rates. You must balance the cooling speed with the surface finish quality. If the water is too cold or hits the pipe too aggressively, the plastic shrinks violently, pulling away from the vacuum sleeve and causing dimensional collapse. Independent controls allow operators to fine-tune the thermal transfer rate.

Vacuum Pump Piping and Suction Line Infrastructure

The engineering of the vacuum system's internal suction piping dictates the stability of the entire calibration process. The pumps can only perform as well as the piping allows. Proper pipe sizing for the vacuum pumps is mandatory to maintain a consistent pressure differential. Factory floors often suffer from poorly designed manifolds that choke the airflow and overwork the pumps.

Using a larger diameter suction pipe slows the flow rate and reduces friction losses within the pneumatic system. This ensures a steady, uniform mass flow of air out of the chamber. If the suction pipes are too narrow, the air velocity increases, creating turbulence and pressure drops. These disruptions at the calibration sleeve cause the polymer to momentarily detach from the metal, creating ripples or diameter variations in the final product.

Sizing Sleeve (Calibrator) Specifications

The sizing sleeve acts as the direct interface between the machinery and the molten polymer. You must compare materials and designs to match your specific polyurethane grade. Common materials include brass and stainless steel, while designs range from slotted sleeves to microporous metal cylinders. The sleeve must provide an optimal water ring or lubrication layer. This layer minimizes physical friction while maximizing the vacuum's grip on the polymer surface. If the friction is too high, the haul-off unit will stretch the hot pipe, thinning the walls.

Control Systems and Automation Integration

Manual vacuum valves rely on operator intuition and require constant adjustment as water temperatures and ambient conditions shift throughout the day. Closed-loop control systems for vacuum pumps eliminate this guesswork. They utilize electronic pressure transducers mounted directly inside the vacuum chamber to monitor the exact pressure differential.

Automated systems dynamically adjust the pump speed via variable frequency drives (VFDs) to maintain a precise setpoint. If a minor leak occurs at the tank seal, the VFD instantly speeds up the pump to compensate. This real-time adjustment compensates for minor process variations and optimizes energy demand, as the pump only consumes the exact amount of power required to hold the vacuum.

Operational Trade-offs and Implementation Risks

Line Speed vs. Cooling Capacity

Pushing line speeds too high introduces significant production risks. If the extrusion speed outpaces the cooling capacity of the vacuum tank, the outer skin of the pipe will freeze, but the inner core will remain molten. When the pipe exits the sizing sleeve and enters the secondary cooling bath, the residual internal heat will remelt the outer skin, leading to immediate deformation and loss of roundness.

To mitigate this risk, you must properly size the length of the vacuum tank based on the maximum expected line speed and the wall thickness of the pipe. Utilizing multi-stage cooling zones allows you to apply intense, vacuum-assisted cooling at the front end, followed by extended immersion cooling to ensure the core of the pipe is fully solidified before it reaches the haul-off caterpillar.

Vacuum Velocity, Friction Losses, and Surface Defects

Adjusting the vacuum flow velocity requires a careful balancing act. Higher vacuum flow velocity improves material grip, pulling the polymer tightly against the calibrator for perfect OD control. However, it also increases friction and energy demand. Excessive pressure causes the soft PU material to drag heavily against the sizing sleeve.

This dragging creates a stick-slip phenomenon. The pipe sticks to the metal, stretches slightly under the pull of the haul-off unit, and then snaps loose. This leaves horizontal surface chatter marks or deep scoring on the outside of the pipe. Implementing advanced water-lubricated sizing sleeves mitigates this issue. Operators must fine-tune vacuum levels to a lower velocity that reduces friction while maintaining strict shape retention.

Maintenance of Vacuum Seals and Pumps

Vacuum sizing systems operate in harsh, wet environments. Leaks in the tank seals, degraded lid gaskets, or failing vacuum pump impellers will cause immediate pressure disruptions. A sudden drop in vacuum pressure instantly results in out-of-spec piping, as the polymer collapses away from the sizing sleeve.

Establishing a strict preventative maintenance schedule is mandatory. Maintenance teams must execute the following tasks:

• Routinely inspect water ring vacuum pumps for calcium scale buildup, which reduces pump efficiency and causes cavitation.
• Clean the inline water filters daily to ensure the sizing sleeve receives adequate lubrication without clogging the micro-pores.
• Replace the neoprene tank gaskets annually to maintain an airtight seal along the lid.
• Check the alignment of the sizing sleeve relative to the die head to prevent uneven wear on the brass or steel components.

ROI and Production Efficiency in a Polyurethane Pipe Extrusion Line

Scrap Reduction and Material Yield

Investing in advanced vacuum sizing directly impacts the financial performance of a polyurethane pipe extrusion line. By stabilizing the pipe immediately upon startup, operators drastically reduce the amount of scrap generated before the line reaches a steady state. Furthermore, eliminating dimensional rejects during steady-state production keeps good material out of the grinder.

Tighter tolerances allow manufacturers to optimize their resin yield. If your dimensional variance is high, you must run the extruder at a higher RPM to ensure the thinnest part of the pipe wall still meets the minimum specification. This wastes expensive polyurethane resin by making the rest of the pipe unnecessarily thick. Vacuum sizing tightens the tolerance window, allowing you to run closer to the minimum wall thickness specification and saving substantial raw material costs over a year of continuous production.

Minimizing Lead Times and Downtime

The inherent simplicity and stability of an automated vacuum sizing process generates less waste and requires less operator intervention. Once the VFDs and closed-loop sensors lock into the setpoint, the line runs autonomously. Operators spend less time manually tweaking valves and more time preparing for the next production run.

Reliable equipment significantly shortens lead times for changeovers between different pipe sizes. Modern vacuum tanks feature quick-release mounts for sizing sleeves and automated water level controls. This allows technicians to swap out tooling, re-seal the chamber, and pull a stable vacuum in minutes rather than hours, keeping the extrusion line running profitably.

Vacuum sizing stands as a mandatory requirement for producing industrial-grade polyurethane piping. Without precise negative pressure holding the molten elastomer in place, achieving the rigorous dimensional and mechanical standards required by modern pneumatic and fluid transfer applications remains impossible. Proper calibration ensures perfect roundness, uniform wall thickness, and the elimination of internal stresses.

When evaluating new equipment, technical buyers must prioritize systems designed for stability. Look for a production line that offers closed-loop vacuum control, robust multi-chamber stainless steel cooling tanks, properly sized suction infrastructure, and low-friction calibration sleeves. These features directly dictate the final quality of your extruded products.

Take the following steps to improve your extrusion operations:

• Audit your current scrap rates and dimensional variance data to identify losses caused by poor cooling or ovality.
• Inspect your existing vacuum tank suction piping to ensure large-diameter hoses are used to minimize friction losses and maintain steady mass flow.
• Consult with an extrusion equipment specialist to evaluate upgrading your manual sizing tanks to automated, closed-loop VFD systems.
• Test different sizing sleeve materials, such as microporous stainless steel, to reduce surface chatter marks on flexible PU grades.

FAQ

Q: What is the ideal vacuum pressure for sizing PU pipes?

A: The ideal vacuum pressure depends entirely on the pipe diameter, wall thickness, and the specific PU grade being extruded. Generally, flexible polyurethane requires a precise, low-level vacuum. This provides enough negative pressure to hold the shape without causing excessive friction against the sizing sleeve.

Q: How does vacuum sizing differ from pressure sizing in extrusion?

A: Pressure sizing pushes the molten pipe outward against the sizing sleeve using internal air pressure injected through the die head. Vacuum sizing pulls the pipe outward by evacuating the air in a sealed tank surrounding the sleeve. Vacuum sizing is generally more stable for flexible elastomers.

Q: Why is the sizing of the vacuum pump's suction pipes important in a production line?

A: Properly sized suction piping prevents pressure disruptions and reduces friction losses within the pneumatic system. Larger diameter pipes ensure a steady uniform mass flow, keeping the operating pressure high enough to support the required vacuum at the calibration sleeve without turbulence.

Q: Can vacuum sizing improve the surface finish of a PU pipe?

A: Yes. A properly lubricated sizing sleeve operating under a stable vacuum prevents the pipe from dragging or sticking. This eliminates the stick-slip phenomenon, preventing chatter marks and creating a consistently smooth outer surface on the final product.

Q: Why is my PU pipe losing roundness after exiting the vacuum tank?

A: This typically occurs due to insufficient cooling time or inadequate tank length. If the line speed is too high, the outer skin freezes but the core remains molten. The residual internal heat remelts the skin after it leaves the tank, causing the pipe to deform.

Q: How do I choose the right sizing sleeve for a polyurethane pipe extrusion line?

A: You must select materials that offer high thermal conductivity and low friction. Brass and stainless steel are common. Look for specific slot or hole patterns designed for flexible elastomers, which allow for optimal water ring lubrication to prevent the soft PU from sticking.
