How Does a PU Pipe Production Line Maintain Diameter Accuracy?

In pneumatic control, fluid transfer, and robotics, the operational integrity of a PU pipe relies entirely on its dimensional tolerances. Even micro-variations in outer diameter can cause catastrophic fitting blowouts or system leaks. Maintaining consistent diameter and wall thickness in highly flexible polyurethane is notoriously difficult due to the material's elasticity, melt viscosity, and thermal sensitivity. Inconsistent diameter directly translates to high scrap rates, margin erosion, and rejected batches.

Achieving strict dimensional accuracy requires a synchronized approach across the entire extrusion process. Mechanical precision must align perfectly with thermal control and real-time data processing. This guide evaluates the mechanical, thermal, and automated control systems required to stabilize outer diameter and wall thickness. You will gain a clear technical framework for evaluating equipment capabilities and optimizing your manufacturing floor.

Key Takeaways

• Precision Dosing is the Foundation: Gravimetric control systems are non-negotiable for stabilizing melt flow and preventing mass variation before the polymer even reaches the die.
• Vacuum Calibration Dictates Final OD: The vacuum sizing tank is the primary mechanical determinant of outer diameter, requiring precise pressure and water flow controls to ensure a perfectly round shape and prevent ovality in flexible PU.
• Closed-Loop Feedback is Mandatory: Modern lines rely on inline laser or ultrasonic measurement systems that automatically adjust haul-off speed and extruder RPM in real-time to correct micro-deviations.
• Thermal Management Prevents Shrinkage: Because polyurethane remains tacky and flexible post-extrusion, multi-stage, temperature-controlled cooling is critical to lock in dimensions and prevent downstream deformation.

The Cost of Dimensional Variance in PU Pipe Manufacturing

Impact on End-Use Application and Compliance

Polyurethane tubing frequently integrates into push-to-connect (PTC) fittings used in industrial pneumatics. These fittings demand exceptionally tight tolerances, often requiring an outer diameter variance of no more than +0.05mm to -0.10mm. If the outer diameter falls below the minimum specification, the fitting's internal O-ring cannot form a proper seal. This leads to slow pressure leaks that degrade system efficiency or sudden blowouts under load. Conversely, if the diameter exceeds the maximum tolerance, operators cannot physically insert the tube into the fitting collet without damaging the pipe surface or breaking the internal retaining teeth.

Wall thickness variations introduce another layer of failure risk. Uneven walls compromise the burst pressure rating of the tubing. According to standard hoop stress calculations, a thin spot acts as a stress concentrator where ruptures initiate during pressure spikes. Specific pressure class certifications require uniform wall thickness to guarantee safety margins across the entire length of the spool. Furthermore, wall thickness directly dictates the flexibility and bend radius of the final product. Tubing with inconsistent walls will kink prematurely when routed through tight robotic arms, cable tracks, or compact machinery enclosures, leading to flow restrictions and mechanical failure.

Production Inefficiencies and Margin Erosion

Operators often run their extrusion lines on the heavy side of the tolerance band to avoid producing thin spots that fail quality control. This practice, known as material give-away, consumes excess raw polyurethane resin. Running a standard 8mm pipe just 0.1mm oversize adds significant weight over a 100,000-meter production run. Polyurethane is a premium engineering polymer, and wasting it to compensate for poor machine control severely erodes profit margins. Intentional over-extrusion is an unsustainable manufacturing strategy that inflates material costs unnecessarily.

Operating a standard plastic pipe production line without automated dimensional controls results in high scrap rates. Floor technicians must manually measure the tubing with calipers, adjust the line speed, and wait for the changes to take effect downstream. During this delay, the machine continues producing out-of-spec scrap. Frequent line stoppages for manual calibration further reduce overall equipment effectiveness (OEE). Advanced measurement systems deliver rapid returns on investment by virtually eliminating wasted resin and maximizing continuous, in-spec production time.

Core Systems Controlling Diameter in a PU Pipe Production Line

Gravimetric Extrusion Control and Material Dosing

Consistent diameter begins before the resin melts. Traditional volumetric feeders dispense material based on the physical volume of the screw flights. This method fails to account for variations in bulk density, regrind ratios, or pellet geometry. As bulk density shifts, the actual mass of plastic entering the extruder fluctuates. This mass variation inevitably causes surging at the die head, resulting in diameter instability and uneven wall thickness.

Gravimetric feeding solves this by measuring material by weight using the loss-in-weight principle. Load cells continuously monitor the mass of the resin entering the feed throat. The control system synchronizes this mass throughput with the extruder screw speed. If the bulk density drops, the system automatically increases the feed rate to maintain a constant mass flow. The gravimetric control sequence operates through specific automated steps:

1. High-precision load cells measure the exact weight of the polyurethane resin in the weighing hopper.
2. The central controller calculates the actual mass flow rate per minute based on the weight loss over time.
3. The system compares the actual mass flow rate to the programmed target setpoint.
4. The controller adjusts the dosing screw speed instantly to correct any deviation.
5. The main extruder RPM synchronizes with the mass flow data to maintain a perfectly constant output volume.

Look for dosing systems capable of maintaining +/- 0.5% accuracy. This precision ensures a perfectly consistent melt volume enters the die head, establishing the foundation for strict outer diameter control.

Melt Pressure, Filtration, and Extruder Die Stability

Once the polyurethane melts, maintaining constant pressure is mandatory. Impurities or unmelted particles in the polymer flow create micro-pressure spikes as they pass through the die. Continuous screen changers filter out these contaminants without interrupting the melt flow. Clean, homogeneous melt flows smoothly, preventing the sudden pressure variations that cause diameter fluctuations.

Barrier screws and melt pumps (gear pumps) further stabilize the process. A barrier screw separates the solid bed from the melt pool, ensuring complete plasticization. A melt pump acts as a positive displacement device between the extruder and the die. Its intermeshing gears isolate the die from upstream pressure surges caused by screw rotation, delivering a perfectly constant volume of melt regardless of extruder RPM variations. Inside the die head, the design dictates how the melt is distributed. Uniform distribution guarantees a consistent initial wall thickness before the pipe enters the calibration stage.

Vacuum Calibration Tanks: The Primary Sizing Mechanism

The hot, extruded polyurethane exits the die and immediately enters the sizing sleeve (calibrator) mounted inside the vacuum tank. This is the primary mechanical determinant of the outer diameter. Vacuum pressure inside the tank pulls the flexible melt outward against the precisely machined walls of the calibrator. Simultaneously, an initial water spray freezes the outer skin of the polymer, locking in the exact outer diameter and ensuring concentricity. Vacuum pressure must be tightly regulated, typically between -0.02 to -0.06 MPa, depending on the pipe diameter and wall thickness.

Processing polyurethane presents a unique implementation risk: the material is highly tacky when hot. It tends to stick to the inner walls of the calibrator, causing surface defects known as chatter marks. These marks ruin the surface finish and compromise the outer diameter. Specialized calibrator designs mitigate this risk. Water-lubricated slotted sleeves introduce a micro-film of water between the polymer and the metal. This film acts as a lubricant, allowing the tacky PU to slide smoothly through the sizing sleeve while still being pulled outward by the vacuum. Brass calibrators are often preferred over stainless steel for polyurethane due to their superior heat transfer properties and lower friction coefficients.

Haul-Off Speed and Draw Balance

The final diameter depends heavily on the draw balance—the relationship between the extruder output pushing the melt and the haul-off unit pulling the pipe. The draw-down ratio must remain perfectly stable. If the haul-off pulls too fast, the pipe stretches, reducing the outer diameter and thinning the walls. If it pulls too slowly, the material bunches up, increasing the diameter and causing internal stress.

A high-quality PU pipe production line demands servo-driven haul-off units. Standard AC motors exhibit micro-fluctuations in speed, especially under varying loads. These minor speed variations instantly alter the pipe diameter. Servo motors provide zero-fluctuation speed control, ensuring the pull rate remains absolutely constant. Caterpillar belts with specialized contoured pads, often made of soft silicone or profiled rubber, grip the flexible tubing firmly without crushing it. This maintains consistent traction throughout the production run without deforming the freshly extruded pipe.

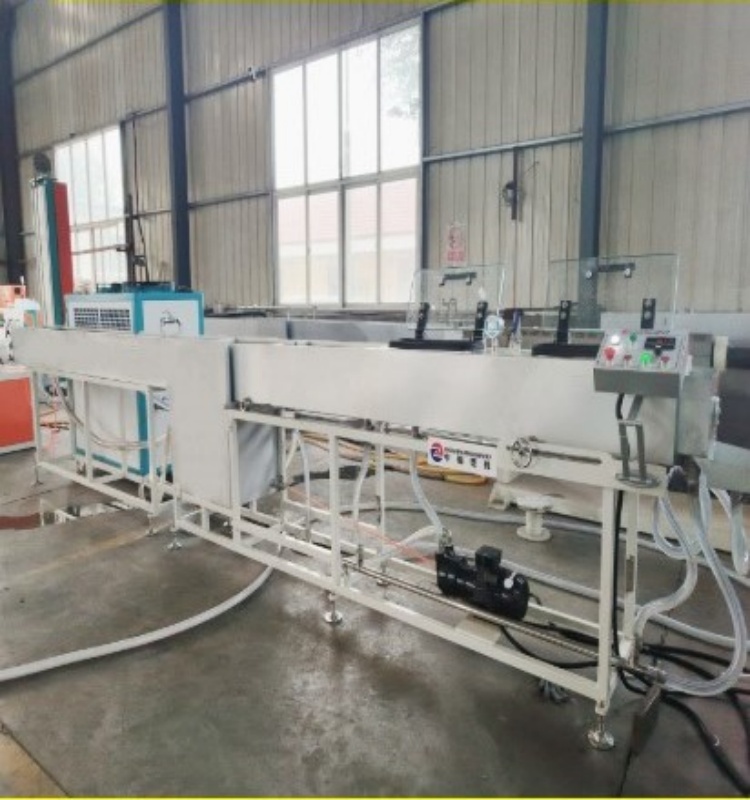

Thermal Management: Cooling's Role in Polyurethane Pipe Extrusion Lines

Water Temperature Consistency and Flow Rates

Polyurethane requires highly controlled cooling gradients. Shocking the hot polymer with freezing water causes rapid, uneven shrinkage. This leads to internal voids, high residual stress, and severe ovality. Multi-zone cooling tanks solve this by gradually reducing the water temperature. The first zone utilizes warmer water (e.g., 15-18°C) to slowly set the dimensions, while subsequent zones progressively lower the temperature (e.g., 10-12°C) to cool the pipe through to its core.

Maintaining exact water temperatures requires robust infrastructure. High-capacity chillers and heat exchangers must integrate into the cooling loop. These systems continuously monitor and adjust the water temperature, compensating for the massive heat load transferred from the extruded plastic. Furthermore, the water flow inside the tanks must be turbulent rather than laminar. Turbulent flow breaks the thermal boundary layer that forms on the surface of the pipe, maximizing heat transfer efficiency. Regardless of ambient factory conditions or seasonal temperature shifts, the cooling water must remain at the precise setpoint to guarantee consistent shrinkage rates and stable final dimensions.

Preventing Ovality and Deformation in Flexible Resins

The inherent flexibility of polyurethane makes it highly susceptible to deformation during the cooling phase. Until the polymer cools completely through its cross-section, it remains soft. If the pipe lacks proper support in the cooling trough, it will flatten under its own weight, resulting in ovality. Similarly, if the haul-off unit applies pressure before the pipe is fully rigidified, the caterpillar belts will crush the tubing out of round.

Mitigating this requires optimized mechanical support within the water tanks. Specialized half-moon support rollers cradle the tubing, preventing gravity-induced flattening. The spacing of these rollers must be adjustable to accommodate different pipe diameters and prevent sagging. Furthermore, the total length of the cooling troughs must match the line speed and the wall thickness of the product. The pipe must spend sufficient time submerged in the cooling zones to ensure it is completely rigid before it encounters the mechanical stress of the haul-off unit or the coiler.

Inline Measurement and Closed-Loop Feedback Systems

Laser and Ultrasonic OD Measurement Technologies

Relying on manual caliper measurements is obsolete. Modern extrusion relies on continuous inline scanning. Multi-axis laser micrometers project intersecting laser beams across the pipe as it exits the cooling tank. These sensors capture thousands of data points per second, instantly calculating the exact outer diameter and detecting any ovality. A 3-axis laser micrometer is vastly superior to a 2-axis model because it can identify complex out-of-round conditions that a simpler sensor would miss.

While lasers measure the outside, ultrasonic sensors measure the inside. Ultrasonic transducers emit high-frequency sound waves that bounce off the inner and outer walls of the tubing. By measuring the time delay of these echoes, the system calculates the exact wall thickness and concentricity. Strategic placement of these sensors is vital. Typically, a laser micrometer sits immediately after the first vacuum tank for early detection, while a combined laser/ultrasonic unit sits at the end of the cooling line for final quality verification.

Automated Adjustments and Line Synchronization

Data collection only provides value if the machine acts on it. Closed-loop systems connect the measurement devices directly to the central Programmable Logic Controller (PLC). When the laser micrometer detects an OD shift drifting toward the tolerance limit, it sends an immediate signal to the PLC. The PLC then executes automated corrective actions using a tuned PID (Proportional-Integral-Derivative) control loop without any human intervention.

For rapid, short-term corrections, the PLC adjusts the haul-off speed. If the pipe is running slightly large, the haul-off speeds up by a fraction of a percent to draw the diameter back down. For long-term mass output corrections, the PLC adjusts the extruder RPM or the gravimetric feeder rate. This closed-loop synchronization eliminates the need for manual operator intervention. It removes human error, prevents the production of scrap during adjustment delays, and ensures continuous, documented compliance with strict dimensional specifications.

Evaluating and Specifying a Polyurethane Pipe Extrusion Line

Key Specifications to Demand from Manufacturers

When sourcing a polyurethane pipe extrusion line, vague promises of high precision are insufficient. You must demand specific technical integrations. Require full servo-motor integration on all critical drives, particularly the extruder and the haul-off. Mandate advanced PLC/HMI capabilities from recognized industrial automation leaders like Siemens or Allen-Bradley. Ensure the gravimetric dosing system integrates directly into the main line control rather than operating as a standalone unit.

Evaluate the metallurgy of the screw and barrel. Polyurethane can be abrasive, especially if processing regrind or filled compounds. Lower wear components, such as bimetallic barrels and fully hardened, nitrided screws, are mandatory. Mechanical degradation over time directly causes melt pressure inconsistencies and OD drift. Require documented proof of tolerance capabilities during the Factory Acceptance Test (FAT). Demand a guaranteed +/- 0.05mm OD tolerance based on your specific diameter range and pressure class, verified by a continuous run of at least four hours.

Implementation Risks and Mitigation Strategies

Deploying advanced extrusion technology introduces specific operational risks. The primary risk is an operator skill gap. Managing complex closed-loop systems, interpreting ultrasonic wall thickness data, and tuning PID control loops require specialized knowledge. Mitigate this by prioritizing vendors who offer comprehensive on-site training. Look for intuitive HMI interfaces that visualize the process data clearly, and ensure the vendor provides robust remote diagnostic support to assist your team during the initial ramp-up phase.

Environmental variables present another significant risk. Factory humidity and temperature fluctuations severely affect polyurethane resin prior to extrusion. PU is highly hygroscopic; it absorbs moisture from the air rapidly. Moisture in the resin causes bubbling, viscosity changes, and catastrophic diameter instability. Ensure your line specification includes proper resin moving, drying, and dehumidification equipment upstream of the extruder. A high-performance desiccant dryer equipped with a dew point monitor is mandatory to maintain the resin's moisture content below the manufacturer's strict limits, typically requiring a dew point of -40°C.

Conclusion

1. Define your exact production parameters, including required diameter ranges, wall thicknesses, pressure classes, and target line speeds.
2. Audit your current factory environment to ensure you have the necessary chilled water capacity and stable electrical infrastructure to support precision equipment.
3. Request detailed technical data sheets from shortlisted machinery providers, focusing specifically on their gravimetric, vacuum calibration, and closed-loop measurement capabilities.
4. Arrange for a comprehensive material trial or Factory Acceptance Test (FAT) using your specific polyurethane resin grade to verify tolerance claims before finalizing any purchase.

FAQ

Q: How does a vacuum calibration tank control plastic pipe diameter?

A: It uses negative air pressure to pull the molten polymer against a precisely machined metal sizing sleeve while simultaneously cooling it with water to freeze the outer dimensions and ensure a perfectly round shape.

Q: What causes ovality in PU pipe extrusion?

A: Ovality is typically caused by insufficient cooling before the haul-off unit, excessive haul-off pressure, or uneven water temperature distribution in the cooling tanks.

Q: Why is gravimetric dosing important for a plastic pipe production line?

A: It measures material by weight rather than volume, compensating for variations in resin bulk density and ensuring a perfectly consistent mass of plastic enters the extruder, stabilizing final dimensions.

Q: How do closed-loop measurement systems work in pipe extrusion?

A: Inline laser or ultrasonic sensors continuously measure the pipe's diameter. If dimensions drift from the setpoint, the system automatically adjusts the haul-off speed or extruder RPM to correct the error in real-time.

Q: What is the typical diameter tolerance for high-quality PU pipe?

A: For demanding applications like pneumatics, high-quality extrusion lines should consistently maintain outer diameter tolerances of +/- 0.05mm to +/- 0.1mm depending on the pipe size and pressure class.
