How to Operate a Plastic Sheet Extrusion Line?

Operating commercial-scale extrusion equipment requires balancing complex thermodynamic variables on the factory floor. Minor deviations in melt temperature, screw speed, or roll pressure directly result in material degradation, gauge variations, and costly scrap. Plant managers and process engineers face the dual challenge of achieving rapid steady-state operations while evaluating new equipment that can handle diverse polymers without extensive downtime, manual calibration, or excessive raw material waste. You need machinery that runs reliably shift after shift. Understanding the precise mechanics of extrusion operation—from material handling and die configuration to downstream auxiliary integration—is necessary not only for daily production but for establishing the technical success criteria required when evaluating and shortlisting a new plastic sheet extrusion line. We will break down the exact mechanical parameters and operational sequences you need to master.

Key Takeaways

• Precision Control is Non-Negotiable: A well-run plastic sheet extrusion line relies on the tight, automated control of melt temperature and screw speed across every barrel zone to prevent polymer degradation and ensure a homogenous melt.

• Die and Roll Stack Configuration Dictate Quality: Selecting the correct die architecture (e.g., coat hanger vs. T-die) and managing roll pressure are the primary drivers of molecular alignment, optical clarity, and gauge consistency.

• Material Specificity Requires Customization: Processing parameters vary drastically by polymer; a PVC sheet extrusion line requires distinct shear and corrosion management compared to the stringent drying and optical demands of a PMMA sheet extrusion line.

• Auxiliary Integration Drives ROI: Continuous downstream processing—including automated thickness gauging, cutting, and inline granulating—significantly reduces labor costs and improves overall equipment effectiveness (OEE).

Core Architecture of a Plastic Sheet Extrusion Line

Extruder Barrel, Screws, and Heating Zones

The extrusion process begins with mechanical energy generation. Turning screws and strategically arranged barrel heaters convert raw plastic pellets into a homogenous melt. The extruder barrel houses the screw and features multiple discrete heating zones. Cast aluminum or ceramic heater bands wrap around the heavy steel barrel. These zones gradually increase the temperature of the polymer as it travels forward. The screw itself divides into three primary sections. The feed zone conveys solid pellets from the throat. The transition zone compresses and melts the material. The metering zone pumps the uniform melt toward the die at a consistent pressure.

Length to Diameter (L/D) ratios heavily impact residence time, shear heating, and melt quality. A higher L/D ratio, such as 33:1, provides a longer flight path for the polymer. This extended path increases the residence time inside the heated barrel. Longer residence times allow for more thorough mixing and uniform melting, which benefits complex blends or heavily pigmented resins. However, excessive L/D ratios risk thermal degradation for heat-sensitive polymers. Operators must match the L/D ratio to the specific resin requirements to avoid burning the material before it reaches the die.

Output requirements and material compounding needs dictate the choice between single-screw and twin-screw configurations. Single-screw extruders offer reliable, cost-effective processing for standard melting applications. They rely on friction against the barrel wall to move material forward. Twin-screw extruders feature two intermeshing screws. They provide superior mixing, precise shear control, and positive displacement pumping. Twin-screw setups excel at compounding heavily filled materials or processing moisture-sensitive resins without extensive pre-drying. Factory floors often deploy twin-screw systems when running high percentages of regrind or mineral fillers.

Melt Filtration and Gear Pumps (Pressure Stabilization)

Polymer melts often contain impurities, un-melted particles, or degraded carbon specks. Continuous screen changers filter out these contaminants before they reach the die. They force the melt through a series of woven wire mesh screens, typically ranging from 40 to 120 mesh depending on the required clarity. Processing regrind materials makes robust filtration absolutely necessary. Continuous screen changers allow operators to swap dirty screens hydraulically without stopping the extrusion line. This prevents costly downtime and maintains steady-state operations across multiple shifts.

Pressure fluctuations at the die cause immediate gauge variations in the final sheet. Integrating a melt pump, or gear pump, between the extruder and the die eliminates surging. The gear pump acts as a positive displacement device. It isolates the die from pressure variations originating in the extruder barrel. The pump stabilizes head pressure and ensures a consistent volumetric flow rate to the die. This stabilization allows the extruder to operate at lower pressures, reducing shear stress and melt temperature. Operators monitor the suction pressure entering the pump and the discharge pressure exiting it to maintain a perfectly balanced flow.

Die Types and Fluid Dynamics

The extrusion die shapes the cylindrical polymer melt into a flat, continuous sheet. Operators primarily use three sheet extrusion die types: T-die, Fishtail die, and Coat hanger die. Each design manages fluid dynamics differently to achieve uniform flow across the entire width. The internal manifold geometry dictates how the plastic spreads. Poor manifold design leads to edge starvation or heavy centers, requiring constant manual adjustment by the operator.

Coat hanger dies remain the industry standard for high-quality sheet production. They distribute polymer melt evenly to maintain consistent flow velocity. The internal manifold resembles a coat hanger shape. This geometry ensures the polymer traveling to the edges covers the same distance as the polymer traveling down the center. This balanced flow minimizes edge-to-center gauge variations and prevents dead spots where material could degrade. Advanced coat hanger dies feature flexible lips adjusted by a series of push-pull thermal bolts.

Selecting die architecture depends heavily on polymer viscosity and target sheet width. High-viscosity polymers require robust die bodies bolted together with high-tensile steel to withstand extreme internal pressures. Wider sheets demand sophisticated coat hanger manifolds with adjustable restrictor bars. These bars allow operators to mechanically choke the flow in specific areas, fine-tuning the profile across the entire die width before the plastic even reaches the final lip gap.

Die Architecture Comparison

The Roll Stack and Molecular Compression

The roll stack, typically a three-roll calendar, receives the molten sheet directly from the die. The physics of plastic behavior in the roll stack dictate the final product quality. Roll pressure squeezes the plastic as it enters the nip point. Hydraulic or pneumatic cylinders apply massive force to the roll journals. This pressure causes molecules to compress and flow as the plastic passes between the rolls. The squeezing action dictates the final sheet thickness and imparts the surface finish from the rolls onto the plastic.

Independent temperature control for each roll prevents warping and surface defects. Heating and cooling fluid circulation inside the rolls manages the cooling gradient of the sheet. Water or specialized thermal oil circulates through internal spiral baffles just beneath the roll surface. The top, middle, and bottom rolls operate at different temperatures to cool the sheet gradually. Improper cooling gradients cause internal stresses to lock into the polymer matrix. These locked-in stresses eventually cause the finished sheet to warp or bow after cutting. Precise temperature management ensures the sheet lays flat on the pallet.

Standard Operating Procedures: Pre-Start to Steady-State

Material Handling and Resin Drying Protocols

Pre-conditioning raw materials prevents severe processing defects on the line. Hygroscopic polymers, such as PET, PC, and ABS, absorb moisture directly from the atmosphere. Operators must use desiccant dryers to achieve specific, low dew points before feeding these resins into the extruder. The drying hopper circulates hot, dry air through the pellet bed to extract internal moisture. For example, PET requires drying at 160°C for four to six hours to reach a moisture content below 50 parts per million.

Improper drying leads to immediate moisture-induced defects. Trapped water turns into steam inside the heated extruder barrel. This steam creates voids, splay marks, and bubbles in the final sheet. Beyond visual defects, moisture causes hydrolysis during melting. Hydrolysis breaks down polymer chains, resulting in a severe loss of mechanical properties and impact strength in the finished product. A brittle sheet will fail during secondary thermoforming or end-use application.

Pre-Start Calibration and Purging Protocols

Rigorous pre-start checks prevent equipment damage and ensure operator safety. Technicians must verify all heater bands are functioning correctly using thermal imaging or amp meters. They must calibrate melt pressure transducers and thermocouples before introducing any resin. Starting an extruder with cold zones causes catastrophic screw damage or snaps the drive shaft. The barrel and die must soak at the operating temperature for a designated period, often two to four hours for large equipment, to ensure uniform heat distribution through the heavy steel components.

Purging procedures remove residual polymers from previous runs. Operators run a high-viscosity, thermally stable purging compound through the system. This compound scrubs the screw flights and die manifold. Effective purging prevents cross-contamination between different resin colors or types. It also removes degraded material that causes carbon buildup or die lip scoring. Operators push the purge material through until the extrudate runs completely clear and free of specks.

Start-Up Sequence and Melt Temperature Control

The start-up sequence requires methodical execution to avoid pressure spikes. Operators follow a strict order of operations to bring the line up to speed safely.

1. Verify all safety guards are in place and emergency stops are functional.

2. Confirm the heat soak timer has expired and all zones are at the setpoint.

3. Start the main drive motor at a very low RPM.

4. Open the feed throat slide gate to introduce resin to the screw.

5. Monitor the melt pressure at the screen changer and die inlet.

6. Gradually increase screw speed in small increments while watching motor load amps.

7. Engage the gear pump once a steady flow of melt reaches the suction side.

8. Thread the molten web through the roll stack nip points.

Achieving the target melt temperature requires balancing external heating and internal friction. The relationship between screw speed, shear heating, and external barrel heating dictates melt quality. As screw RPM increases, the mechanical friction generates significant internal heat. Operators often need to lower the external barrel heater setpoints or engage barrel cooling fans to compensate for this shear heating. Failing to balance these heat sources degrades the polymer and reduces sheet strength.

Achieving Steady-State and Troubleshooting Defects

Steady-state defines the optimal operating condition of an extrusion line. It means the system maintains constant head pressure, a stable motor load, and uniform die gap flow. Once steady-state is achieved, operators engage the downstream auxiliary equipment to pull, cool, and cut the sheet. The line runs continuously, and operators shift their focus to quality control and minor profile adjustments.

Operators rely on a structured troubleshooting framework for common operational defects. Die lines appear as continuous scratches along the machine direction. Resolving die lines requires carefully cleaning the die lip with a brass scraper to remove oxidized polymer buildup. Melt fracture, often called "sharkskin," presents as a rough, matte surface finish. Mitigating melt fracture involves adjusting the melt temperature or reducing shear stress by slowing the line speed. Correcting sheet warping requires tuning the roll stack cooling gradients to relieve internal stresses.

Common Extrusion Defects and Solutions

Material-Specific Operational Configurations

Operating a PMMA Sheet Extrusion Line

Processing Polymethyl Methacrylate (acrylic) demands extreme precision on the factory floor. PMMA applications require flawless optical clarity, high weatherability, and scratch resistance. A PMMA sheet extrusion line operates under stringent environmental controls. The extrusion and roll stack areas often require cleanroom-style enclosures to prevent airborne dust from contaminating the highly transparent sheet. Even microscopic dust particles create visible defects in illuminated signage or optical displays.

The roll stack configuration is highly specialized for PMMA. The system requires high-polish, mirror-finish chrome rolls to impart a glass-like surface to the acrylic. Precise cooling rates are mandatory. PMMA cools slowly, and uneven cooling causes optical distortion and birefringence. Operators must monitor the fluid circulation temperatures in the rolls meticulously to maintain the required optical properties. The top roll might run at 90°C, the middle at 85°C, and the bottom at 80°C to ensure a perfectly flat, stress-free sheet.

Operating a PVC Sheet Extrusion Line

Polyvinyl Chloride presents unique thermodynamic challenges during processing. PVC exhibits high shear sensitivity and severe thermal instability. It degrades rapidly if exposed to high temperatures or prolonged residence times. A PVC sheet extrusion line requires specialized processing equipment to handle these characteristics safely without causing a factory shutdown.

Operators typically utilize conical twin-screw extruders for PVC processing. These extruders provide gentle, low-shear melting and positive material conveying. The equipment must feature chrome-plated or specialized alloy barrels and screws. These coatings resist the corrosive outgassing of hydrochloric acid that occurs during PVC processing. Operators enforce strict temperature limits, rarely exceeding 195°C, and utilize specialized PVC stabilizer formulations to prevent catastrophic degradation inside the barrel. Internal screw cooling using thermal oil prevents the material from burning on the screw flights.

Operating a PP Hollow Sheet Extrusion Line

Polypropylene corrugated or hollow sheets require a completely different downstream architecture. A PP hollow sheet extrusion line does not use a traditional three-roll calendar. Instead, the melt exits a specialized die featuring internal pins that form the hollow flutes. This geometry creates a lightweight, high-strength board used extensively in packaging and construction.

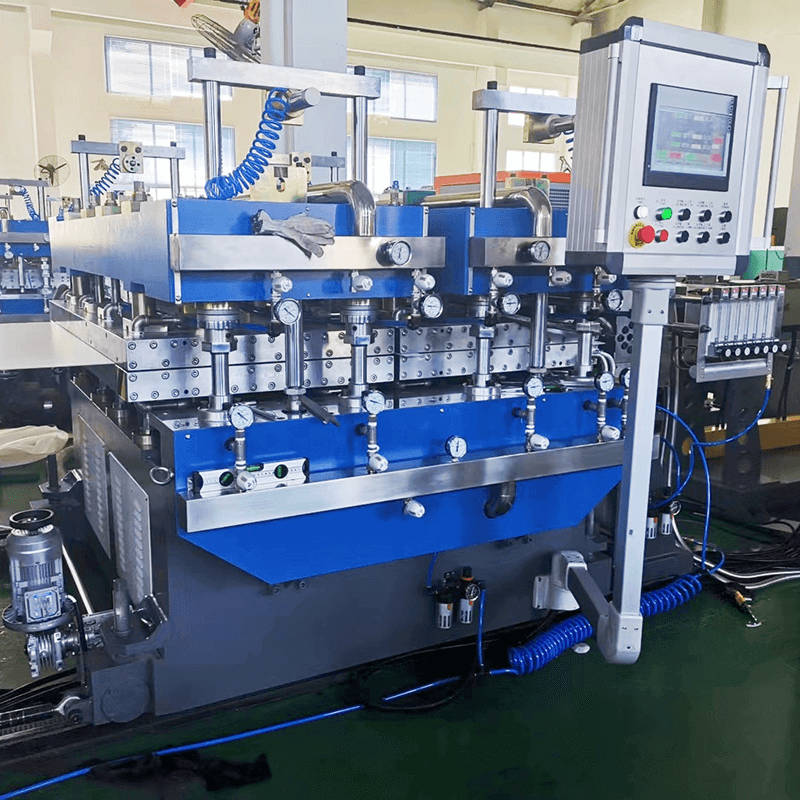

The molten profile immediately enters a vacuum calibration block. This block uses vacuum force to pull the soft plastic against chilled metal surfaces. The vacuum sizing unit freezes the outer skins in place while maintaining the internal flute structure. Targeted cooling air and water flows are necessary to maintain structural integrity. Operators adjust the vacuum pressure and cooling water flow to ensure uniform thickness across all hollow flutes and prevent the sheet from collapsing. Precise control of the haul-off speed ensures the flutes remain perfectly square.

Auxiliary Integration and Downstream Processing

Automated Thickness Gauging

Maintaining gauge consistency across a wide sheet requires constant monitoring. Modern extrusion lines integrate automated thickness gauging systems immediately after the roll stack. These systems utilize beta-ray or x-ray sensors mounted on a traversing frame. The sensor scans back and forth across the moving web, measuring the thickness profile in real-time without physically touching the plastic.

The gauging system feeds data back to the central control panel. Advanced setups feature automatic thermal die bolts. When the scanner detects a thick or thin band, the control system adjusts the corresponding thermal bolt on the die. Applying heat expands the bolt, closing the die gap slightly to thin the sheet. Removing heat contracts the bolt, opening the gap. This closed-loop control minimizes manual intervention, reduces gauge variation, and significantly lowers scrap rates during long production runs.

Cooling Conveyors and Edge Trimming

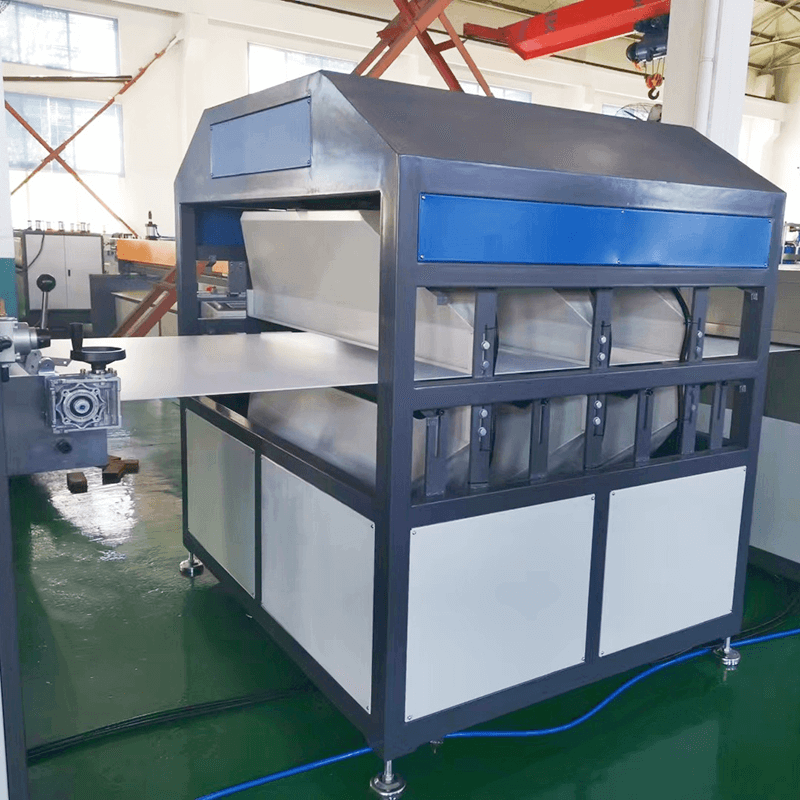

After leaving the primary roll stack, the sheet travels down a cooling conveyor. This section allows the polymer to cool slowly in ambient air, further relieving internal stresses. The conveyor utilizes non-marking rubber rollers or anodized aluminum idlers to support the sheet without damaging the surface finish. The length of the cooling conveyor depends on the sheet thickness and the specific heat capacity of the polymer.

The edges of an extruded sheet are typically thicker and irregular due to neck-in at the die. Edge trimming stations utilize rotary blades or fixed razor knives to slit the rough edges off the continuous web. This process establishes the final net width of the product. The trimmed edges do not go to waste. Inline granulators immediately chop the edge trim into small flakes. A vacuum system transports these flakes directly back to the extruder hopper, maximizing material utilization and reducing raw material costs.

Cutting, Coiling, and Stacking

The final stage of the extrusion line handles the continuous flow of finished product. Thin gauge sheets often wind into large rolls using automated coiling stations. These stations feature dual-turret winders that switch rolls automatically without stopping the line. Tension control systems ensure the rolls wind tightly without stretching the warm plastic.

Thick gauge sheets require inline cutting systems. Guillotine shears or traversing circular saws cut the continuous web into specific lengths. The cutting action must synchronize with the line speed to ensure square cuts. Automated stacking units then collect the cut sheets. Vacuum suction cups or pneumatic drop tables stack the heavy sheets onto pallets, preparing them for immediate shipment or secondary thermoforming processes. Static eliminators mounted above the stacker prevent the sheets from clinging together, making them easier to handle downstream.

Conclusion

Implement these action-oriented steps to optimize your production floor:

• Audit your current resin drying protocols to ensure hygroscopic materials consistently hit exact dew points prior to processing.

• Calibrate your melt pumps and continuous screen changers to eliminate head pressure surging and stabilize volumetric flow.

• Inspect die lips and roll stack surfaces weekly to prevent gauge variations, optical defects, and surface scoring.

• Implement automated thickness gauging with closed-loop thermal die control to reduce manual measurement errors and minimize scrap rates.

• Tune roll stack cooling gradients for each specific polymer to prevent internal stress buildup and eliminate post-cut sheet warping.

FAQ

Q: What causes die lines in plastic sheet extrusion?

A: Die lines result from contamination, oxidized polymer, or degraded material stuck on the die lip. These obstructions scratch the melt as it exits the die. Regular purging and careful brass-scraper cleaning of the die lip resolve this issue.

Q: How does L/D ratio affect the extrusion process?

A: The Length to Diameter ratio determines the residence time and the amount of shear heating inside the barrel. A higher L/D ratio provides more thorough mixing and melting, making it ideal for complex polymer blends and high-output applications.

Q: Why use a gear pump in sheet extrusion?

A: A gear pump stabilizes head pressure and eliminates surging originating from the extruder screw. It acts as a positive displacement device, ensuring a consistent, pulse-free volumetric flow rate into the die for precise gauge control.

Q: What is melt fracture or sharkskin?

A: Melt fracture appears as a rough, matte surface finish on the extruded sheet. It occurs when shear stress at the die wall exceeds the polymer's critical limit. Increasing the die temperature or reducing the output speed mitigates this defect.

Q: How do you prevent extruded sheets from warping?

A: Warping happens due to uneven internal cooling stresses locking into the polymer matrix. Tuning the independent temperature control and cooling gradients across the three-roll calendar prevents these stresses and keeps the sheet flat.

Q: What makes PVC extrusion different from other polymers?

A: PVC is highly shear-sensitive and thermally unstable. It requires specialized conical twin-screw extruders for low-shear melting and corrosion-resistant barrels to prevent degradation and manage acidic outgassing safely.
