Key Process Controls for Smooth PU and TPU Pipe Surfaces

Extruding thermoplastic polyurethane (TPU) and standard polyurethane (PU) presents unique rheological challenges. Achieving a flawless surface finish requires tighter process windows than standard commodity plastics. Surface defects such as melt fracture, sharkskin, pitting, or dullness directly compromise the mechanical integrity, clarity, and fluid-flow dynamics of the final product. These imperfections lead to high scrap rates and rejected batches in strict medical, pneumatic, or industrial applications. Unlike molded TPU parts that you can post-process and smooth using chemical solvents like isopropyl alcohol (IPA) or tetrahydrofuran (THF), continuous extrusion relies entirely on strict mechanical and thermal process controls to achieve a flawless finish. Resolving these defects requires a systematic approach to process control, from raw material selection to downstream calibration and inline testing. This guide details the technical parameters required to optimize surface finish and outlines what to evaluate when upgrading or configuring a PU pipe production line.

• Moisture is the primary enemy: TPU is highly hygroscopic; failing to dry resin to a moisture content below 0.02% guarantees surface bubbles and a rough finish.

• Material chemistry dictates processing: Polyether and polyester TPU grades require different handling protocols to prevent hydrolysis and surface degradation.

• Thermal profiling dictates gloss: Elevated die head temperatures improve surface brightness, but must be strictly balanced against the risk of polymer degradation.

• Tooling depends on durometer: Soft TPU grades (under 55D) require "free" extrusion with vacuum sizing rather than traditional friction-inducing sizing rings.

• Equipment dictates consistency: Achieving repeatable surface quality at scale requires a polyurethane pipe extrusion line equipped with closed-loop thermal controls, synchronized haul-off speeds, and inline quality monitoring.

The Mechanics of Surface Defects in PU and TPU Extrusion

Defining the Baseline for Acceptable Surface Finish

Establishing a baseline for acceptable surface quality requires defining specific success criteria based on the end-use application. Medical catheters demand absolute visual clarity and exceptionally low surface roughness to prevent bacterial adhesion and ensure biocompatibility. You measure this using Ra values, typically aiming for less than 0.4 micrometers. Pneumatic hoses require a smooth internal bore to optimize fluid-flow dynamics and minimize pressure drops across long distances. Industrial tubing relies on a consistent outer diameter and uniform gloss to ensure reliable fitting connections and prevent leakages under high pressure. Setting these parameters early determines the required precision of your extrusion equipment and inline monitoring systems. You must quantify these metrics using surface profilometers and optical clarity standards rather than relying on subjective visual inspections from operators on the floor.

Identifying Common Defect Signatures

Surface defects in elastomer extrusion manifest in distinct physical patterns. Recognizing these signatures allows operators to trace the physical flaw back to its root mechanical or thermal cause immediately, reducing scrap generation.

• Melt Fracture and Sharkskin: These defects appear as a regular, repeating pattern of ridges or severe surface roughness perpendicular to the flow direction. They occur when the polymer melt exceeds its critical shear stress at the die wall. The material undergoes a slip-stick phenomenon, rapidly alternating between adhering to the metal surface and slipping forward under pressure.

• Pitting and Voids: Small craters, bubbles, or internal voids indicate trapped moisture or volatile off-gassing. When water turns to steam within the extruder barrel, it expands rapidly upon exiting the die, rupturing the polymer surface and leaving microscopic craters.

• Dullness and Matte Streaks: A lack of surface gloss often points to premature cooling immediately after the die exit. It can also result from incorrect die temperatures or poor dispersion of color masterbatches. The polymer chains freeze before they can relax into a smooth, continuous layer.

• Die Lines: Continuous longitudinal scratches or lines running the length of the tubing indicate contamination, degraded polymer buildup (die drool), or physical damage to the die land.

Rheological Realities of Polyurethane Melts

Polyurethane elastomers exhibit highly shear-sensitive behavior. Their melt viscosity remains exceptionally high at standard processing temperatures. This characteristic significantly narrows the acceptable processing window compared to standard olefins like polyethylene or polypropylene. Applying excessive shear force through aggressive screw designs or restrictive die geometries rapidly increases melt temperature through internal friction. This localized overheating degrades the polymer backbone, reducing molecular weight and destroying physical properties. Operators must balance the need for adequate mixing against the risk of shear-induced degradation. Maintaining a homogeneous melt without exceeding thermal thresholds dictates every aspect of the extrusion process, from screw RPM to screen pack selection.

Pre-Processing: Material Selection, Preparation, and Moisture Control

Material Grade Selection: Polyether vs. Polyester

Thermoplastic polyurethanes fall into two primary chemical categories: polyether and polyester. Selecting the correct base chemistry directly impacts processing parameters and final surface clarity. Polyether TPU offers superior hydrolysis resistance and remains flexible at low temperatures. It is generally easier to process because its moisture management requirements, while strict, are slightly more forgiving during short atmospheric exposures. Polyester TPU provides higher mechanical strength, excellent oil resistance, and superior abrasion resistance. However, polyester grades are highly susceptible to moisture-induced degradation. Water molecules actively attack the ester linkages at high temperatures, cleaving the polymer chains and causing catastrophic drops in physical properties. This chemical breakdown immediately manifests as surface splay, brittleness, and structural weakening.

Implementation Realities and Drying Protocols

Regardless of the specific grade, all polyurethane elastomers are inherently hygroscopic. They actively absorb moisture from ambient air. Failing to remove this moisture before processing guarantees surface defects. Standard hot-air dryers cannot achieve the necessary dryness. You must utilize desiccant drying systems capable of maintaining a dew point of -40°C or lower. The target moisture content for TPU resin must drop below 0.02% prior to entering the feed throat. Achieving this requires drying the pellets at temperatures between 90°C and 110°C for three to four hours. Over-drying can cause pellets to stick together or degrade, while under-drying leads to immediate hydrolysis in the barrel. The relationship between residual moisture and melt integrity is absolute. Even a slight elevation in moisture content will ruin the surface finish of the extruded product.

1. Verify the desiccant bed is fully regenerated and the dryer displays a dew point of at least -40°C.

2. Set the drying hopper temperature based on the specific TPU grade (typically 95°C for soft grades, 105°C for rigid grades).

3. Allow a minimum residence time of 3 to 4 hours before initiating the extrusion sequence.

4. Test the moisture content using an offline moisture analyzer to confirm it sits below the 0.02% threshold.

5. Monitor the return air temperature to ensure the material is absorbing heat uniformly throughout the hopper bed.

Handling Risks and Conveying Systems

Exposing perfectly dried resin to ambient plant air undoes hours of preparation. TPU pellets can absorb unacceptable levels of moisture within 15 to 30 minutes of exposure, especially in humid environments. Transferring material manually from a dryer to the extruder hopper introduces massive quality control risks. To maintain material integrity, production lines must employ closed-loop vacuum conveying systems. These systems transport the dried resin directly from the desiccant dryer to the feed throat using dry air. Hopper loaders should feature dry-air blanketing to prevent ambient moisture from infiltrating the material column. Eliminating atmospheric exposure guarantees that the polymer enters the barrel in optimal condition, preventing sudden spikes in surface pitting during a production run.

Extruder Configuration and Thermal Profiling

Barrel Temperature Zones and Melting Strategies

Mapping the ideal temperature profile across the extruder barrel requires understanding TPU melting behavior. Unlike crystalline polymers that melt sharply, TPU softens gradually. Applying a standard forward temperature profile often causes premature melting in the feed zone. This leads to material bridging, inconsistent feeding, and surging at the die. To prevent this, operators frequently employ a flat or reverse temperature profile. A reverse profile maintains slightly higher temperatures in the rear zones to initiate melting quickly, then drops the temperature in the metering zone to rely on shear heating. This approach prevents thermal degradation while ensuring a homogeneous melt. Gradual shear heating via precise screw design impacts melt quality more significantly than external barrel heaters.

Die Head Temperature Optimization

The temperature of the die head plays a critical role in determining the final surface gloss of the extruded tubing. Elevating die head temperatures lowers the viscosity of the polymer skin layer as it exits the tooling. This allows the polymer chains to relax and flow together seamlessly, creating a smooth, bright surface finish. However, this tactic carries significant implementation risks. You must identify the precise threshold where elevated temperatures transition from improving gloss to causing thermal degradation. Exceeding this limit results in polymer drool, discoloration, and a loss of melt strength. The material may sag upon exiting the die, making dimensional control impossible. Operators must adjust die temperatures in micro-increments of 2°C to 3°C, monitoring the surface finish continuously until reaching the optimal balance.

Screw Design Considerations

Processing shear-sensitive elastomers requires specific screw geometries. Standard polyolefin screws generate excessive shear, leading to localized overheating and material degradation. A plastic pipe production line configured for TPU typically utilizes screws with a length-to-diameter (L/D) ratio between 24:1 and 30:1. Barrier flight designs prove highly effective for TPU processing. These designs separate the melted polymer from the solid bed, preventing un-melted particles from passing through the metering zone and causing surface lumps. The compression ratio should remain relatively low, typically between 2.0:1 and 2.5:1, to minimize shear stress. Deep flight depths in the metering section help maintain a gentle pumping action, ensuring a stable output without excessive heat generation.

Tooling, Sizing, and Calibration Strategies

Die and Mandrel Design Dynamics

Tooling geometry directly dictates the outer diameter and surface quality of the extruded pipe. The die and mandrel must feature perfectly streamlined flow channels. Any dead spots or sharp transitions will cause material stagnation, leading to degraded polymer breaking loose and creating surface blemishes. The tooling surfaces require high-level polishing to minimize friction and shear stress at the polymer-metal interface. Furthermore, calculating the correct draw-down ratio (DDR) is essential. The DDR represents the ratio between the cross-sectional area of the die opening and the cross-sectional area of the final tubing. TPU generally requires a moderate DDR to align the polymer chains without inducing excessive internal stress. High draw-down ratios increase the risk of melt fracture and surface tearing.

Sizing Rings vs. Free Extrusion

Selecting the appropriate sizing method depends entirely on the material's Shore hardness. This technical framework separates rigid polymers from soft elastomers. Traditional sizing rings utilize physical contact and friction to calibrate the outer diameter. While effective for rigid PVC or high-density polyethylene, these rings cause severe surface drag when processing soft TPU.

• The Hardness Threshold: Materials softer than 50-55D cannot withstand the friction of a standard sizing ring. The tacky nature of hot TPU causes it to stick to the metal, creating chatter marks, surface tearing, and dimensional instability.

• Free Extrusion Method: For these soft grades, operators must utilize "free" extrusion combined with vacuum sizing. The polymer melt exits the die and enters a vacuum chamber filled with cooling water. The negative pressure inside the chamber pulls the tubing outward against a thin film of water, maintaining the outer diameter without direct physical contact.

• Surface Preservation: This frictionless calibration method preserves a pristine, glossy surface finish. It allows the polymer skin to cool and solidify without mechanical interference.

• Air Injection: In free extrusion, maintaining precise internal air pressure through the mandrel prevents the tubing from collapsing before the vacuum chamber can stabilize the outer diameter.

Downstream Cooling and Haul-Off Synchronization

Cooling Dynamics and Polymer Crystallinity

The rate at which the extruded tubing cools dictates its final crystallinity and surface appearance. Immediate quenching in ice-cold water shocks the polymer. This rapid temperature drop freezes internal stresses into the material structure, leading to shrinkage, warping, and a dull surface finish. The outer skin solidifies instantly while the core remains molten, creating differential shrinkage rates that distort the pipe geometry. Managing the cooling curve requires a controlled, gradual reduction in temperature to allow the polymer chains to orient naturally.

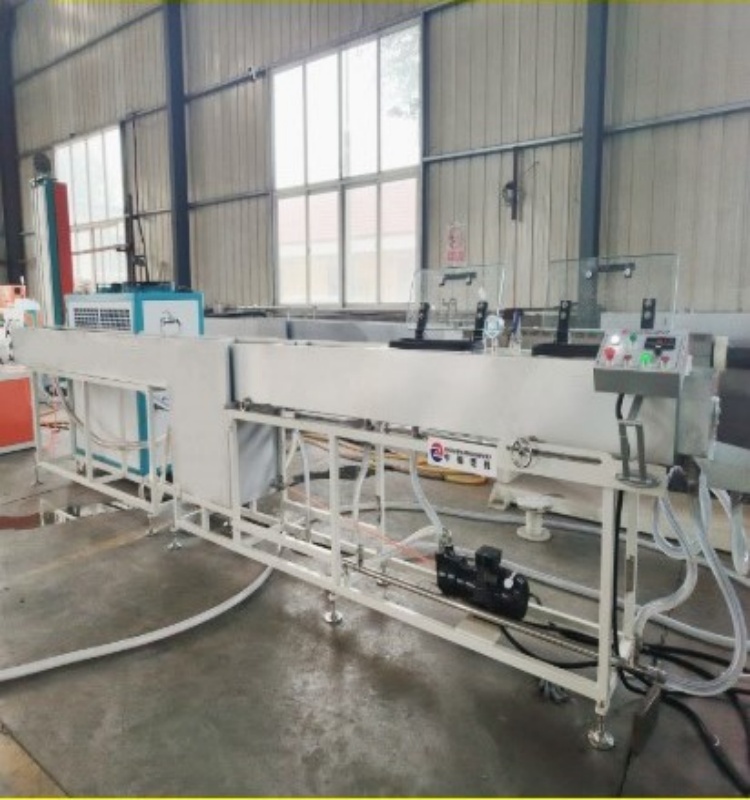

Water Bath Temperature Profiling

To prevent thermal shock, the cooling process must utilize a multi-zone water bath system. The initial cooling zone, located immediately after the die or vacuum tank, should contain warm water (typically 30°C to 45°C). This allows the polymer chains to relax and the surface to set smoothly, locking in the gloss achieved at the die head. Subsequent zones gradually reduce the water temperature, ending with a chilled bath (10°C to 15°C) to solidify the tubing completely before it reaches the haul-off unit. This stepped cooling approach eliminates internal stress, ensures dimensional stability, and maximizes surface gloss across the entire production run.

Haul-Off Speed and Tension Control

The haul-off unit pulls the extruded tubing through the cooling tanks at a constant rate. Synchronization between the extruder output and the haul-off speed is non-negotiable. Processing highly elastic materials like PU pipe requires ultra-precise, servo-driven haul-off belts. Standard AC motors often exhibit micro-fluctuations in speed. These tiny variations cause rhythmic tension changes along the extrusion line. In soft elastomers, this fluctuating tension manifests as "chatter marks"—a series of rhythmic surface ripples or thickness variations. Servo-driven caterpillars provide absolute speed consistency, eliminating tension spikes and ensuring a perfectly smooth, uniform profile. Operators must also ensure the contact pressure of the haul-off belts is distributed evenly to prevent crushing or ovalizing the warm tubing.

Inline Quality Control and Defect Monitoring

Automated Surface Inspection Systems

Relying on manual visual inspection leads to massive material waste. By the time an operator notices a surface defect, hundreds of meters of scrap may have already been produced. Modern extrusion lines integrate automated surface inspection systems to monitor quality continuously. These systems utilize high-resolution optical sensors and high-speed cameras positioned immediately after the cooling tanks. They scan the entire circumference of the tubing, detecting micro-pitting, dull streaks, melt fracture, or embedded contamination in real-time. The software analyzes the visual data against pre-set quality thresholds. If a defect signature appears, the system triggers an immediate alarm, allowing operators to adjust thermal profiles or haul-off speeds before producing large volumes of rejected material.

Dimensional Verification and Closed-Loop Control

Maintaining a flawless surface finish means nothing if the tubing fails dimensional specifications. Inline laser micrometers continuously monitor the outer diameter, inner diameter, and wall thickness. These non-contact sensors measure the tubing from multiple axes, ensuring perfect concentricity. Advanced systems integrate this dimensional data directly into the central PLC. If the outer diameter begins to drift, the PLC automatically adjusts the vacuum pressure in the sizing tank or fine-tunes the haul-off speed. This closed-loop synchronization ensures that vacuum sizing, extruder output, and line speed remain perfectly balanced without manual intervention. Continuous verification guarantees that every meter of tubing meets strict industrial or medical tolerances.

Evaluating a PU Pipe Production Line for Surface Quality

Essential Equipment Capabilities

When auditing existing equipment or procuring a new line, specific capabilities determine the final product quality. A standard pipe line cannot process shear-sensitive elastomers effectively. You must look for features engineered specifically for polyurethane.

• Gravimetric Dosing: Volumetric feeders lack the precision required for stable melt pressure. Closed-loop gravimetric dosing systems weigh the material continuously, adjusting the feed rate to maintain absolute output consistency. This prevents surging and pressure drops at the die.

• Advanced PLC Systems: Real-time control requires a centralized PLC capable of monitoring thermal zones, melt pressure, and inline quality sensors simultaneously. The system must offer high-speed data logging and precise PID temperature control.

• Specialized Vacuum Tanks: Precision vacuum sizing tanks must feature micro-adjustable negative pressure controls. They need specialized water flow dynamics to support elastomeric tubing without inducing drag or surface friction.

• Melt Pressure Transducers: High-accuracy transducers located before and after the screen pack allow operators to monitor screen blinding and prevent sudden shear spikes that degrade the polymer.

Conceptual Trade-offs: Throughput vs. Quality

Manufacturers often face a direct trade-off between throughput speed (kg/hr) and surface finish quality. Pushing an older extrusion line beyond its designed shear limits guarantees surface degradation. Increasing screw RPM to boost output generates excessive shear heat, triggering melt fracture and thermal breakdown. Achieving high throughput with flawless surface quality requires investing in a purpose-built polyurethane pipe extrusion line designed with optimized L/D ratios, extended cooling capacities, and advanced tooling. You cannot force a standard polyolefin line to produce premium TPU tubing simply by increasing the line speed.

Retrofit vs. Replace Framework

Deciding whether to upgrade specific components or invest in a new line requires a systematic evaluation. If the primary issue involves dimensional instability, retrofitting the line with inline laser measurement and a servo-driven haul-off may resolve the problem. If surface defects stem from poor melt homogeneity, upgrading to a barrier flight screw and a highly polished die head provides a cost-effective solution. However, if the existing extruder lacks precise thermal control, features an inadequate L/D ratio, and utilizes outdated sizing methods, retrofitting becomes inefficient. In such cases, replacing the entire system with modernized equipment ensures repeatable quality and reduces long-term scrap rates.

Conclusion

• Audit your current drying equipment to verify it consistently maintains a -40°C dew point and achieves a moisture content below 0.02%.

• Inspect die tooling for flow channel dead spots and ensure surfaces are polished to minimize shear stress.

• Implement inline laser micrometers and optical sensors to detect surface anomalies and dimensional drift in real-time.

• Evaluate your sizing methodology and transition to vacuum sizing without friction rings for materials softer than 55D.

• Consult with an extrusion line manufacturer to run material trials on a modernized line to benchmark potential quality improvements.

FAQ

Q: Why is my extruded PU pipe coming out with a dull, matte finish?

A: A dull finish usually results from premature cooling immediately after the die exit or low die head temperatures. It can also indicate excessive residual moisture causing micro-pitting. Elevating the die temperature slightly and using a warm water bath in the first cooling zone allows the polymer skin to relax and form a glossy surface.

Q: Can I use standard sizing rings for all TPU tubing?

A: No. Standard sizing rings cause excessive friction and surface drag on soft elastomers. For TPU materials with a Shore hardness below 55D, you must use a free extrusion method combined with vacuum sizing. This maintains the outer diameter using negative pressure and a water film, preventing physical contact and surface tearing.

Q: How dry does TPU resin need to be before extrusion?

A: TPU resin must be dried to a moisture content strictly below 0.02% before processing. This requires a desiccant drying system capable of maintaining a dew point of -40°C. Polyester TPU grades are particularly sensitive to moisture and will undergo rapid hydrolysis, causing surface bubbles and severe loss of mechanical strength if improperly dried.

Q: What causes sharkskin or melt fracture on polyurethane pipe?

A: Sharkskin and melt fracture occur when the polymer melt exceeds its critical shear stress at the die wall. The material undergoes a slip-stick phenomenon, tearing the surface. This is typically caused by processing at temperatures that are too low, using a highly restrictive die geometry, or pushing the extrusion throughput beyond the material's rheological limits.

Q: How does die temperature affect TPU surface clarity?

A: Higher die temperatures lower the viscosity of the outer polymer layer, allowing it to smooth out and increase visual clarity and gloss. However, if the temperature exceeds the material's thermal threshold, the TPU will degrade, leading to discoloration, loss of melt strength, and dimensional instability. Adjustments must be made in precise micro-increments.

Q: Why are chatter marks appearing on the extruded tubing?

A: Chatter marks are rhythmic surface ripples caused by micro-fluctuations in line tension. In highly elastic materials like PU, inconsistent haul-off speeds stretch and relax the tubing unevenly. Upgrading to ultra-precise, servo-driven haul-off belts eliminates these tension spikes, ensuring a smooth profile and consistent outer diameter.
