PU Pipe Line Configuration for Flexible Tube Manufacturing

Manufacturing high-quality flexible tubing requires balancing high-speed throughput with zero-tolerance dimensional accuracy. Industrial systems rely heavily on dynamic routing, pneumatic automation, and precision instrumentation. These applications demand hoses that withstand millions of flexing cycles without kinking or losing structural integrity. Polyurethane (PU/TPU) is highly sensitive to moisture and shear stress. Generic extrusion setups frequently cause material degradation, inconsistent wall thickness, and high scrap rates.

To achieve scalable flexible tube manufacturing from raw granules to finished coils, plant engineers must specify equipment tailored to polyurethane's specific rheological properties. Standard machinery cannot handle the thermal sensitivity and viscosity variations inherent to elastomers. This guide breaks down the configuration stages, evaluation criteria, and risk mitigation strategies for a modern production setup. You will learn how to optimize screw designs, implement aggressive moisture control, and utilize closed-loop monitoring to ensure your output meets the exact specifications required by advanced pneumatic and fluid transfer applications.

Key Takeaways

• Material Handling is Critical: PU is highly hygroscopic; integrating advanced desiccant drying systems is non-negotiable to prevent hydrolysis and surface defects during the granule-to-melt phase.
• Screw Design Dictates Quality: Standard plastic extrusion screws cause excessive shear in TPU/PU. Specialized barrier screws with optimized L/D ratios are required for melt homogeneity.
• Precision Calibration Determines Yield: High-speed production relies on multi-stage vacuum calibration and closed-loop laser measurement to maintain tight tolerances for push-to-connect pneumatic fittings.
• Configuration Flexibility Drives ROI: Lines equipped for rapid tooling changes between diverse structures—such as single-layer, double-layer, and reinforced PU tubing—offer the highest operational versatility.

Success Criteria for PU Pipe Manufacturing

Dimensional Stability and Wall Thickness Control

Defining the acceptable tolerance limits for outer diameter (OD) and inner diameter (ID) is the first step in flexible tube manufacturing. Pneumatic systems rely heavily on push-to-connect fittings. If the tubing OD fluctuates by even a fraction of a millimeter, the fitting will fail to seal properly, leading to air leaks and system pressure drops. You must configure the extrusion equipment to hold tolerances as tight as ±0.05mm. This requires absolute synchronization between extruder output and haul-off speed.

Wall thickness concentricity is equally important. An eccentric tube with uneven walls will burst prematurely under pressure and exhibit unpredictable bending behavior in dynamic applications. To maintain strict dimensional stability, operators must follow a precise sequence during line startup:

1. Verify the vacuum tank pressure stabilizes at the designated setpoint before introducing the polymer melt.
2. Calibrate the multi-axis laser micrometer using a certified gauge pin matching the target OD.
3. Engage the closed-loop feedback system on the PLC to link the laser micrometer data directly to the haul-off servo drive.
4. Monitor the ultrasonic wall thickness sensor to ensure the melt flow distributes evenly around the die mandrel.

Application-Specific Performance & Dynamic Routing

Engineering the extrusion process directly influences the final product's flex-fatigue resistance. Tubing used in robotics and automated machinery must continuously follow moving machine parts inside drag chains. The manufacturing parameters determine the bend radius, kink resistance, and elasticity of the final product. Processing PU at incorrect temperatures or with excessive shear stress degrades the polymer chains. This degradation drastically reduces the tubing's lifespan in dynamic routing applications.

You must ensure the melt temperature remains strictly within the resin manufacturer's specified window to preserve the elastomer's mechanical properties. When configuring a polyurethane pipe extrusion line, engineers must select heating bands and cooling fans that provide rapid, precise temperature adjustments across all barrel zones. Overheating the melt by just a few degrees can initiate cross-linking, resulting in hard spots within the flexible tube that eventually cause fatigue failure.

Compliance and Material Standards

Establishing baseline production requirements is necessary to meet specific industry certifications. Different sectors demand different material approvals. For potable water applications, the tubing must achieve WRAS or NSF approval. Food processing environments require strict FDA compliance, meaning the extrusion line must be free of contamination risks and utilize food-grade lubricants on all exposed moving parts.

Industrial pneumatics must adhere to ISO 14743 standards for burst pressure and dimensional accuracy. Your equipment configuration must support the processing of specialized, certified masterbatches without cross-contamination between production runs. Using highly polished, chrome-plated die components prevents material hang-up and allows for rapid purging when switching between industrial-grade and medical-grade polyurethane resins.

Core Components of a Polyurethane Pipe Extrusion Line

Raw Material Handling and Drying Systems

Polyurethane is extremely hygroscopic. It absorbs moisture from the ambient air rapidly. Processing wet PU granules leads to hydrolysis within the extruder barrel. This chemical reaction breaks down the polymer chains, resulting in a brittle final product with visible surface bubbles and poor mechanical strength. You must reduce the raw TPU/PU granule moisture content below 0.02% prior to extrusion.

Advanced systems utilize desiccant beds to supply dry air at a dew point of -40°C directly into the drying hopper. The material must reside in the hopper for three to four hours to ensure complete moisture removal from the core of the pellet. Furthermore, automated gravimetric dosing systems are required for precise masterbatch and additive blending. These systems weigh the materials continuously, ensuring a perfectly consistent color and additive ratio regardless of bulk density variations.

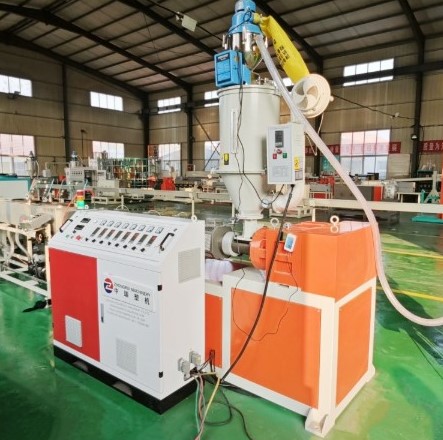

The Extruder: Screw Design and L/D Ratios

The heart of any PU pipe production line is the extruder screw. Evaluating screw geometries designed specifically for shear-sensitive elastomers prevents polymer chain degradation. Standard polyolefin screws generate too much frictional heat, which burns the PU melt. Specialized barrier screws separate the solid bed from the melt pool, providing gentle plasticization and excellent melt homogeneity without excessive shear.

Optimal Length-to-Diameter (L/D) ratios typically range from 28:1 to 30:1. This length ensures sufficient residence time for the material to melt uniformly while maintaining consistent melt temperature and pressure at the die head. The compression ratio for PU processing generally sits between 2.5:1 and 3:1. Using a bimetallic barrel paired with a fully hardened screw extends the lifespan of the plasticizing unit, especially when processing abrasive flame-retardant compounds.

Die Head and Tooling Configurations

The die head shapes the molten polymer into a tube. Selecting between spiral mandrel and spider die head designs depends on the application. Spiral mandrel dies are generally preferred for PU because they eliminate weld lines, ensuring uniform burst pressure around the entire circumference of the tube. Spider dies can leave weak points where the polymer flow splits and recombines.

Configuring co-extrusion setups allows you to accommodate diverse structures. You can produce single-layer tubing for standard pneumatics, double-layer tubing for specialized fluid transfer, or integrate braided reinforcement for high-pressure applications. The tooling must be machined with specific Drawdown Ratios (DDR) and Draw Ratio Balances (DRB) optimized for polyurethane's melt strength.

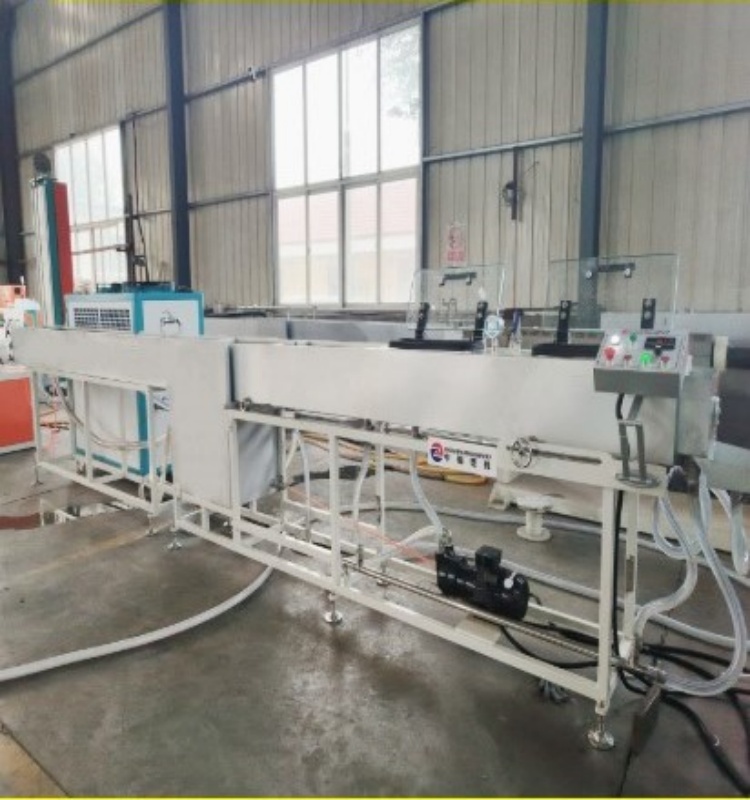

Vacuum Calibration and Cooling Tanks

Once the molten tube exits the die, it must be sized and cooled immediately. Sizing the vacuum sizing sleeve correctly accounts for PU's specific shrinkage rates, which differ significantly from rigid plastics. The vacuum tank pulls the soft tube against the precisely machined inner wall of the sizing sleeve, setting the outer diameter. Multi-zone temperature control in the water cooling baths prevents internal stress, ovality, and surface blemishes.

The cooling process must be gradual. The primary vacuum tank typically uses warm water (around 25°C to 30°C) to gently set the skin, while secondary cooling tanks use chilled water (10°C to 15°C) to extract the remaining heat from the core of the tube wall. Shock-cooling a PU pipe by plunging it directly into ice-cold water locks in residual stresses, causing the tube to warp or shrink unpredictably after it is coiled.

Haul-off (Tractor) Units and Cutting/Winding Systems

The haul-off unit pulls the tubing through the cooling tanks. Selecting servo-driven, multi-belt haul-off units prevents tube deformation. PU is soft and easily crushed. The haul-off belts must feature a contoured, high-friction surface—often made of specialized nitrile rubber or silicone—that grips the tube securely without applying excessive radial pressure. Servo motors provide the precise speed control necessary to maintain dimensional stability.

Tension-controlled dual-station winders ensure neat coiling. Flexible PU pipe stretches easily if pulled too hard during winding. Dancer arms with sensitive potentiometers provide feedback to the winder motors, ensuring the tubing is coiled with zero tension. Traverse winding guides must be synchronized with the line speed to lay the tubing perfectly side-by-side on the spool, preventing tangles during end-user deployment.

Evaluating Production Line Configurations

Throughput Capacity vs. Line Speed

When specifying machinery, you must assess the realistic output in kilograms per hour against the maximum line speed in meters per minute. Pushing a plastic pipe production line to its absolute maximum speed often compromises the dimensional stability required for automation components. The cooling capacity of the water tanks usually limits the maximum speed.

If the tube is not fully cooled before reaching the haul-off, it will deform under the pressure of the belts. You must calculate the required residence time in the cooling baths based on the tube's wall thickness and the specific heat capacity of the polyurethane grade being processed. Adding extended secondary cooling flumes is a practical way to increase line speed without sacrificing product roundness.

Automation and In-Line Quality Control

Modern manufacturing requires continuous quality assurance. Integration of multi-axis laser micrometers allows for real-time OD measurement. These devices scan the tubing continuously as it exits the cooling tank. Closed-loop feedback systems take this data and automatically adjust the haul-off speed or extruder RPM based on any dimensional drift. If the OD becomes too large, the haul-off speeds up slightly to draw the tube down.

Ultrasonic flaw detection measures internal wall integrity, concentricity, and layer adhesion in double-layer structures without touching the product. These automated systems eliminate the need for manual micrometer checks and drastically reduce scrap rates. Data logging capabilities within the PLC allow plant managers to track dimensional trends over entire production shifts, providing traceability for strict quality audits.

Energy Efficiency and Footprint Requirements

Factory floor space and utility consumption dictate facility layout planning. Evaluating the power consumption of heating zones, vacuum pumps, and chillers helps optimize the electrical infrastructure. Extruders with insulated barrels and highly efficient AC motors consume significantly less power. Vacuum tanks equipped with variable frequency drives (VFDs) on the pumps only use the exact amount of energy required to maintain the set vacuum level.

You must plan the total factory floor space required for the line layout. Flexible tubing lines can be quite long due to the extensive cooling tanks required for high-speed production. Ensure your facility has adequate linear space and sufficient clearance for raw material handling equipment, chiller units, and finished coil storage.

Operational Flexibility and Maintenance

Tooling Changeover Times and Production Flexibility

Manufacturing environments rarely run a single product size continuously. Operational flexibility depends heavily on how quickly operators can switch between different tube diameters, colors, or structural layers. Quick-change die heads significantly reduce downtime. These systems utilize precision-machined centering rings that eliminate the need for manual die adjustments during startup.

Automated recipe management within the PLC interface allows operators to load pre-configured temperature profiles, haul-off speeds, and vacuum settings instantly. This digital recall capability prevents trial-and-error adjustments when moving from a single-layer pneumatic tube to a specialized reinforced hose. Standardizing tooling components across multiple lines also reduces the inventory of spare sizing sleeves and die pins.

Maintenance Requirements and Spare Parts Availability

Consistent production relies on proactive maintenance. Assessing the durability of wear components such as screws, barrels, and sizing sleeves prevents unexpected breakdowns. Polyurethane can be abrasive, especially if processing flame-retardant or heavily pigmented masterbatches. Utilizing bimetallic barrels and fully hardened screws extends the lifespan of the plasticizing unit.

You must evaluate the vendor's service level agreement for replacement parts and technical support. Ensure the manufacturer maintains a robust inventory of critical spares, including heater bands, thermocouples, and haul-off belts, to prevent extended production interruptions. Implementing a predictive maintenance schedule for vacuum pump seals and water pump impellers keeps the calibration tanks running at peak efficiency.

Implementation Risks and Mitigation Strategies

Material Degradation and Moisture Contamination

The most common cause of failure in polyurethane processing is moisture. The risk involves bubbles forming within the tube wall, a poor surface finish, and a complete loss of mechanical properties due to wet resin. Mitigation requires implementing strict dew-point monitoring on the desiccant dryer. You should utilize closed-loop material conveying systems. These systems transport the dried granules from the dryer to the extruder hopper using dry air or vacuum, preventing any re-absorption of ambient moisture during transit.

Calibration Instability at High Speeds

When pushing line speeds to maximum capacity, calibration instability becomes a significant risk. This manifests as tube pulsation, surging, or ovality. The primary cause is fluctuating vacuum levels or turbulent water flow inside the sizing tank. Mitigation involves utilizing variable frequency drives on the vacuum pumps to maintain a perfectly stable vacuum pressure. Precision water flow controls and specialized spray nozzles in the primary calibration tank ensure uniform cooling around the entire circumference of the tube, preventing localized shrinkage that causes ovality.

Operator Training and System Integration

Advanced extrusion lines are complex systems. The risk of suboptimal machine settings leading to high scrap rates during startup is substantial. Operators unfamiliar with the specific rheology of PU may attempt to process it like polyethylene, resulting in immediate material degradation. Mitigation requires mandating comprehensive vendor-led training on the specific PLC interface. You must establish standardized operating procedures (SOPs) tailored exclusively for processing elastomers. This includes strict protocols for purging the barrel with low-MFI high-density polyethylene (HDPE) during shutdowns to prevent cross-linking and carbonization of the residual polyurethane.

To further reduce implementation risks, plant engineers should maintain a strict troubleshooting matrix on the factory floor. This matrix should map common defects directly to machine adjustments:

Conclusion

Successful flexible tube manufacturing hinges on specialized screw design, aggressive moisture control, and closed-loop dimensional monitoring. A generic extrusion setup will consistently fail to meet the strict tolerances and flex-fatigue requirements necessary for modern pneumatic automation and dynamic routing. By prioritizing precision calibration and automated quality control, manufacturers can achieve high-speed throughput without sacrificing product integrity.

• Audit your existing cooling tank lengths to determine if high-speed PU processing is viable on your current floor plan.
• Specify exact outer diameter tolerances and required material certifications before requesting equipment proposals.
• Upgrade raw material handling systems to include closed-loop desiccant drying with continuous dew-point monitoring.
• Mandate physical trial runs using your specific polyurethane resin grades during the factory acceptance test.

FAQ

Q: What is the ideal L/D ratio for a polyurethane pipe extrusion line?

A: The optimal Length-to-Diameter (L/D) ratio for processing polyurethane typically ranges from 28:1 to 30:1. This length provides sufficient residence time for gentle plasticization and uniform melting without subjecting the shear-sensitive elastomer to excessive frictional heat.

Q: How do you control moisture in PU pipe manufacturing?

A: Moisture is controlled using advanced desiccant drying systems. These dryers supply air at a -40°C dew point to reduce the raw PU granule moisture content below 0.02%. Closed-loop pneumatic conveying systems then transport the dried material to the hopper to prevent re-absorption.

Q: Can a standard plastic pipe production line run both PU and PE tubing?

A: While possible, it is highly discouraged without changing the screw and tooling. Standard PE screws generate too much shear for PU, causing material degradation. PU also requires specialized vacuum sizing sleeves and tension-free winding systems that standard PE lines lack.

Q: What are the primary applications for tubing produced on a PU pipe production line?

A: PU tubing is primarily used in pneumatic automation, dynamic routing for robotics, precision instrumentation, and fluid transfer. Its high flex-fatigue resistance makes it ideal for applications where the tubing must continuously bend and move alongside machinery.

Q: What are the space requirements for a standard PU pipe production line?

A: Space requirements vary based on line speed and cooling needs. A high-speed line requires extensive water cooling baths to prevent tube deformation. Facilities typically need a linear footprint of 15 to 25 meters, plus clearance for material handling and coil storage.

Q: How is dimensional accuracy maintained in flexible tube manufacturing for instrumentation?

A: Accuracy is maintained using closed-loop automation. Multi-axis laser micrometers continuously measure the tube's outer diameter as it exits the cooling tank. The system automatically adjusts the servo-driven haul-off speed or extruder RPM to correct any dimensional drift in real-time.
