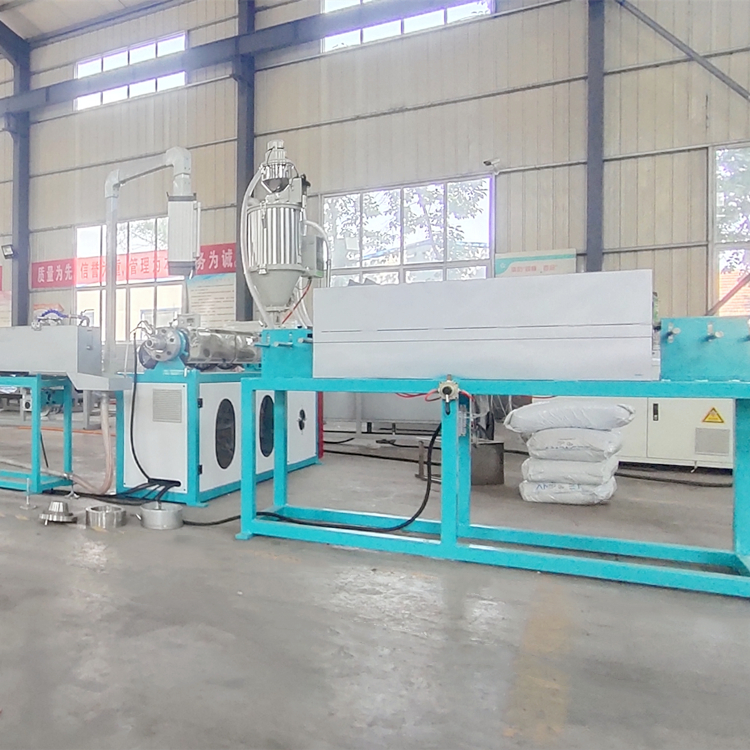

Packaging Straps Line Automation for High-Volume Production

High-volume manufacturing environments cannot tolerate bottlenecks. As end-of-line packaging automation accelerates, the demand for dimensionally perfect, high-tensile packaging straps has exposed the limitations of legacy, semi-automated strap manufacturing. Scaling strap production requires strict camber and tensile tolerances. Modern fully automatic strapping machines require flawless consumables to operate at peak efficiency without disproportionately increasing labor costs or energy consumption. Poor strap quality directly leads to downstream shipping damage, increased customer returns, and severe safety hazards in warehousing operations. To achieve profitable high-yield manufacturing, plant engineers and procurement teams must evaluate automated production lines based on material-specific extrusion capabilities, continuous winding technologies, and overall equipment effectiveness. Upgrading outdated extrusion infrastructure solves these core business problems directly.

• Automating a packaging belt production line requires aligning extrusion and stretching parameters with the specific thermal and mechanical properties of the target material (PET, PP, or composites).

• High-yield automation relies heavily on closed-loop quality control systems to ensure the straps are straight, uniformly embossed, and compatible with the feed mechanisms of end-user automated equipment.

• Capital expenditure (CapEx) for fully automated lines is offset by reductions in material waste, lower energy consumption per meter, and decreased operator intervention during winding and changeovers.

• Producing premium-grade straps directly supports end-users in mitigating product damage during transit, ensuring seamless six-sided carton wrapping, and minimizing customer returns.

Defining Success Criteria for Packaging Straps Manufacturing

Establish the baseline metrics for high-volume production. Plant managers must focus on meters-per-minute throughput versus tensile consistency and weldability. High-speed output means nothing if the strap splits during tensioning. Consistent tensile strength ensures the strap holds heavy loads securely. You must balance line speed with molecular orientation limits. Pushing an extruder too fast degrades the polymer chain alignment. This results in brittle straps that fail under dynamic loads.

Automated strap manufacturing must prioritize dimensional stability. Width, thickness, and camber dictate performance. High-volume end-users rely on fully automatic strapping machines. These machines secure consistent package sizes rapidly. Deviations in strap dimensions cause jamming in feed tracks. Jams lead to rejected batches and lost contracts. A strap with excessive camber will not shoot straight through an arch machine. It curves and misses the catch plate entirely.

Consistent strap production minimizes the risk of seal failures. Transit vibrations test friction welds aggressively. Weak welds snap under pressure. Preventing these failures reduces shipping damage. It directly lowers customer returns for the end-user. Quality control at the extrusion stage prevents catastrophic load shifts on pallets. Forklift operators rely on strap integrity to move heavy loads safely across warehouse floors.

Define acceptable ratios for operator-to-machine headcount. Target specific scrap reduction percentages when upgrading. Moving from manual to automated lines should drop scrap rates significantly. Automated screen changers and melt pumps stabilize the flow. This reduces startup waste. One operator should comfortably manage multiple automated lines. They monitor programmable logic controller screens instead of manually splicing rolls.

1. Dimensional Tolerance: Maintain width and thickness variations below ±0.05mm to prevent arch jams.

2. Camber Control: Keep curvature under 15mm per 2 meters of strap length for accurate feeding.

3. Tensile Strength: Achieve specific break strengths based on strap cross-section and polymer type.

4. Joint Efficiency: Ensure friction welds retain at least 80% of the strap's original break strength.

5. Scrap Rate: Reduce startup and changeover waste to below 2% of total resin throughput.

Evaluating Core Technologies: Material-Specific Production Lines

Break down the architectural differences in automation equipment. The strap material dictates the machine design. Applications vary from lightweight cartons to heavy timber. Understanding these differences prevents costly procurement mistakes.

PET Strapping Production Line Architecture

Processing 100% recycled PET flakes requires robust material handling systems. A PET strapping production line demands automated crystallization and dehumidification systems. Moisture destroys intrinsic viscosity during extrusion. Wet flakes cause the melt to undergo hydrolysis. This ruins tensile strength completely. Automated dryers maintain precise dew points around -40°C to protect the polymer integrity. You need a minimum intrinsic viscosity of 0.75 dl/g to produce heavy-duty straps.

Multi-stage stretching ovens build the physical properties. The stretching process aligns the PET molecules. This orientation gives the strap its rigid, steel-like characteristics. Embossing rollers add texture immediately after the stretching phase. The texture improves friction welding. It also helps the strapping machine tension wheels grip the strap. High tensile strength is required for heavy-duty load containment. Palletizing bricks or lumber demands maximum break strength.

PP Strapping Production Line Architecture

Polypropylene behaves differently than polyester. A PP strapping production line utilizes high-speed extrusion setups. These lines produce lightweight, high-elongation straps. PP straps are ideal for high-speed carton sealing. They stretch and recover, keeping bundles tight during transit. The screw design for PP features a different compression ratio to handle the lower melting point and higher melt flow index.

Automated cooling trough configurations impact line speed directly. Water temperature control dictates the crystalline structure of the PP. Rapid cooling prevents shrinkage. It locks in the molecular orientation achieved during stretching. The surface friction must meet strict standards. Tensioning wheels on fully automatic strapping machines require a specific slip coefficient. Too smooth, and the wheels slip. Too rough, and the strap sheds dust into the machine gears, causing maintenance nightmares.

Specialized Lines: Fiber and Sandwich Configurations

Standard polymers do not cover every packaging need. Specialized configurations handle unique industrial applications where standard extruded plastics fail.

Outline the automation requirements for a fiber packaging belt production line. This process involves gluing, coating, and tensioning polyester fiber yarns. The result is high-strength cord strapping. It resists splitting when cut and handles sharp edges better than solid plastic. The automation controls the resin bath consistency. It ensures even coating across all parallel yarns. Tension control during the curing phase is critical. Uneven tension causes the final strap to curl, making it impossible to feed through manual tensioners.

Detail the requirements for a sandwich packaging belt production line. Co-extrusion or lamination automation combines different polymer layers. You balance core tensile strength with optimal surface weldability. The core provides the raw break strength using high-tenacity materials. The outer layers melt quickly for friction-seal machines. Automated die heads manage the layer thickness ratios perfectly. This prevents delamination during the tensioning cycle.

Critical Evaluation Dimensions for High-Volume Equipment

Map specific machine features to production outcomes. Understand how these features affect end-user strapping machine mechanics. Procurement decisions must rely on technical specifications rather than surface-level claims.

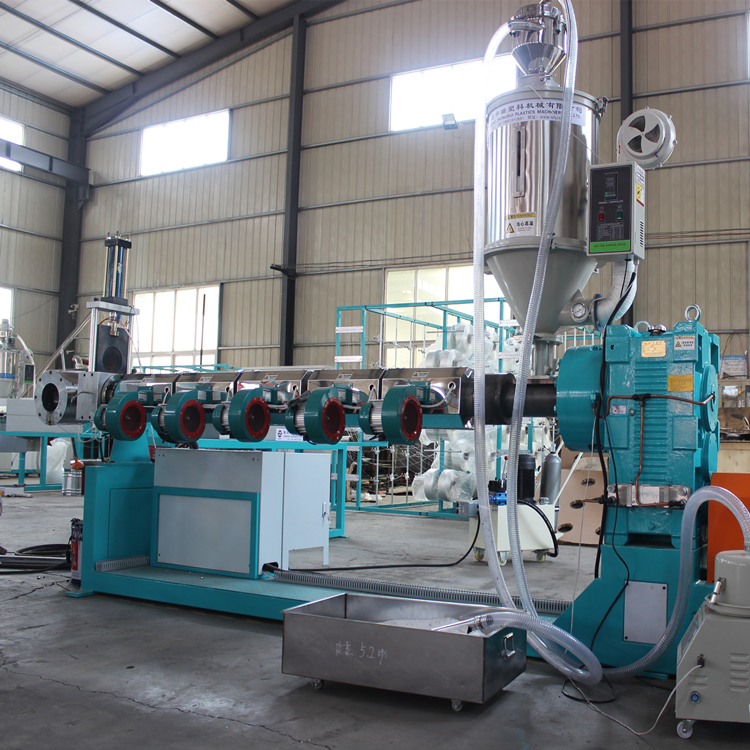

Extrusion Precision and Melt Pumping

Evaluate the role of automated melt pumps. Continuous screen changers maintain uniform melt pressure. Pressure fluctuations cause thickness variations. A strap that is too thick jams the strapping machine. A strap that is too thin snaps under tension. Melt pumps provide a consistent volumetric flow to the die. This translates directly to consistent strap thickness. It drastically reduces material waste during production runs. Gear pumps isolate the die from pressure surges originating in the extruder barrel.

Screen changers filter out impurities from recycled flakes. Automated backflush versions swap filters without stopping the extruder. This maintains the thermal profile of the melt. Stopping the line to change a screen creates hundreds of meters of scrap. Continuous operation is non-negotiable for high-volume profitability. The hydraulic accumulators on these screen changers ensure the shift happens in milliseconds.

Automated Winding and Accumulation Scalability

Analyze the transition from manual spooling to fully automated dual-station winders. Manual winding requires the line to slow down during roll changes. This causes variations in strap cooling and stretching. Automated accumulators prevent line stoppage during roll changeovers. They store the extruded strap temporarily using dancer arms. The tension remains constant throughout the accumulation cycle.

The winder cuts and transfers the strap to a new paper core automatically. This ensures continuous high-volume flow. It produces perfectly tensioned coils. These coils unspool flawlessly in end-user facilities without tangling. Tangled coils shut down automated packaging lines instantly. Investing in premium winding technology protects your brand reputation. Servo-driven traverse guides ensure the strap lays flat across the entire width of the core.

Quality Control and Inline Monitoring

Assess the integration of inline laser micrometers. Automated tension controllers detect and correct dimensional anomalies in real-time. They do this without operator input. If the width deviates, the laser detects it instantly. The control system adjusts the line speed or extruder RPM to compensate immediately. This closed-loop feedback eliminates the need for manual caliper checks.

Automated surface inspection ensures the strap's embossing pattern is uniform. Embossing is critical for the gripping components of downstream strapping machines. If the pattern is too shallow, the machine cannot pull the strap tight. Cameras scan the strap surface continuously. They flag defects before the strap reaches the winder. This prevents defective coils from shipping to customers. You can integrate these vision systems directly into the main PLC.

Overall Value and Conceptual Trade-Offs

Examine the trade-offs between initial capital expenditure and long-term operational expenditures. Investing in a high-end packaging belt production line requires significant upfront capital. However, the operational savings accumulate quickly. Cheap machinery often hides massive hidden costs in scrap rates and downtime. You pay for the machine either upfront in CapEx or daily in OpEx.

Discuss the physical limits of line speed before molecular orientation degrades. Emphasize that the highest speed machine does not always yield the highest quality strap. Seamless, six-sided carton wrapping requires flawless strap geometry. Pushing production speeds beyond the cooling capacity ruins the camber. A perfectly straight strap at 120 meters per minute is better than a curved strap at 150 meters per minute. Quality always supersedes raw speed in automated packaging environments.

Evaluate the energy efficiency of servo-driven motors. Compare insulated stretching ovens against traditional AC drives and open-air heating. Servo motors draw power only when needed. Insulated ovens trap heat, reducing the electrical load on the heating elements. Calculate the impact on the cost-per-meter of produced strap. Energy is a massive variable cost in extrusion. Efficient lines protect profit margins against fluctuating utility rates.

Highlight how investing in premium equipment reduces labor across the supply chain. It reduces labor at the extrusion facility through automation. It also reduces labor at the end-user's facility. High-quality straps eliminate machine jams. They prevent manual re-strapping. Operators spend time loading new coils instead of clearing tangled plastic from feed tracks.

Implementation Realities and Adoption Risks

Address the practical challenges of installing and commissioning high-volume automated lines. Upgrading infrastructure requires careful planning. Rushing the installation process guarantees startup failures.

Facility Requirements and Layout Constraints

Detail the necessary floor space. Extrusion lines are long. Stretching ovens and cooling troughs require significant linear footage. A standard line easily exceeds 30 meters in length. Ceiling height is critical for cooling towers and material silos. Heavy-duty electrical infrastructure is required to support multi-extruder setups. You need dedicated transformers to handle the load.

Ensure the factory power grid can handle the startup surge of large extruder motors. Voltage drops during startup can damage sensitive electronics. Water chilling systems also demand dedicated plumbing and space. Proper drainage is necessary to handle overflow from the cooling troughs. Map out the entire footprint before finalizing the equipment purchase. Consider material flow paths for raw resin and finished pallets.

Operator Training and Maintenance Protocols

Highlight the shift in labor requirements. Moving from manual handling to digital management changes the skill set needed. Operators must understand polymer behavior and digital controls. Preventative maintenance of precision dies and rollers becomes paramount. You need technicians, not just laborers.

Scratched rollers ruin the strap surface. Clogged dies cause uneven flow. Establish strict cleaning schedules for the extrusion dies. Train maintenance teams to calibrate laser micrometers accurately. A miscalibrated sensor will force the machine to produce out-of-spec straps continuously. Invest heavily in vendor-led training programs. Document every maintenance procedure in standard operating protocols.

Mitigating Downtime During Commissioning

Provide a framework for phased installation. Factory acceptance testing ensures the machine performs at the vendor's site. Site acceptance testing verifies performance after installation. Run extensive material trials during factory testing. Do not ship the machine until it meets dimensional tolerances. Test your exact resin blends, not just prime virgin material.

Phased installation prevents extended production blackouts during the equipment upgrade. Keep legacy lines running while commissioning the new automated line. Transition production volume gradually. This buffer protects your supply chain if the new line experiences startup glitches. Assign a dedicated project manager to oversee the integration.

1. Request specific overall equipment effectiveness data and energy consumption guarantees in initial vendor proposals.

2. Demand documented material tolerance capabilities for width, thickness, and camber.

3. Schedule pilot material trials using your specific polymer blends or recycled flakes.

4. Audit your facility's electrical and cooling capacities before finalizing equipment layouts.

FAQ

Q: What is the standard output capacity of a fully automated PET strapping production line?

A: Output capacity depends heavily on extruder screw diameter and line configuration. Standard high-volume lines typically produce between 150 to 400 kilograms per hour. This translates to line speeds ranging from 100 to 150 meters per minute, depending on the strap dimensions and the number of straps extruded simultaneously.

Q: How does a PP strapping production line differ from a PET line?

A: PP lines operate at lower extrusion temperatures and do not require the intensive crystallization and dehumidification systems necessary for PET. PP straps require specific cooling trough lengths to manage shrinkage. Additionally, the stretching ratios in the ovens differ, as PP has higher natural elongation compared to rigid PET molecules.

Q: How does strap quality from a packaging belt production line impact fully automatic strapping machines?

A: Dimensional consistency is critical. Uniform width and thickness prevent the strap from jamming in the machine's feed tracks. A straight strap without camber ensures it shoots accurately around the arch. Consistent surface embossing guarantees the tensioning wheels grip properly, ensuring reliable friction seals and maintaining high-volume throughput.

Q: What causes camber (curvature) in packaging straps during production?

A: Camber is primarily caused by uneven cooling in the water troughs or improper tension distribution in the stretching ovens. If one side of the strap cools faster than the other, the polymer shrinks unevenly, creating a curve. Automated tension controls and precise water flow management mitigate this issue.

Q: Can a single packaging belt production line run both PP and PET materials?

A: While technically possible with extensive modifications, it is highly inefficient. PP and PET require different screw designs, heating profiles, and drying processes. Switching materials requires massive purging, leading to downtime and waste. Dedicated lines for each material are strongly recommended for high-volume manufacturing efficiency.

Q: What are the maintenance requirements for a fiber packaging belt production line?

A: Maintenance focuses heavily on the glue and coating applicators. Resin buildup must be cleaned regularly to ensure even coating. Tensioner calibration is critical to prevent yarn breakage. Operators must also monitor yarn guides for wear, as grooved guides can fray the polyester fibers before they enter the resin bath.

Q: How do automated winders reduce scrap in strap manufacturing?

A: Automated winders use accumulators to store extruded strap temporarily during a roll changeover. This allows the extrusion line to continue running at a constant speed. Manual changes require slowing or stopping the line, which alters the strap's thermal profile and creates out-of-spec scrap that must be discarded.
