Plastic Profile Production Line WPC Decking Setup Guide

Introduction

Setting up a WPC decking line involves more than choosing an extruder. Every production stage affects product quality and efficiency.A well-configured Plastic Profile Production Line helps manufacturers produce consistent decking profiles. This guide covers equipment selection, setup procedures, quality control, and maintenance for reliable production.

What Should Manufacturers Plan Before Setting Up a WPC Decking Line?

Define the Decking Product and Its Technical Requirements

The first step is to define the finished decking product. Manufacturers should determine its width, thickness, length, cross-sectional shape, surface texture, and intended installation method. These details influence the extrusion die, calibration system, cooling arrangement, haul-off unit, and cutting equipment. A solid decking profile may require a different configuration from a hollow profile or one containing several internal chambers.

Material selection should be considered at the same time. WPC formulations may use polyethylene (PE), polypropylene (PP), or other compatible thermoplastics, together with wood flour, additives, and processing aids. The material ratio and preparation method affect flow, dimensional stability, surface appearance, and the conditions required during extrusion. Buyers should confirm that the proposed equipment suits their actual formulation instead of assuming every plastic extruder can process every WPC compound.

Manufacturers should also establish measurable acceptance criteria. These may include profile dimensions, wall thickness, weight per meter, color consistency, surface condition, and cutting length. Mechanical and environmental requirements should reflect the intended application and relevant product standards. For outdoor decking, buyers may need to evaluate moisture exposure, sunlight, temperature changes, slip resistance, and the intended support spacing. Specific performance claims should be verified through appropriate testing.

A clear product specification helps equipment suppliers recommend a suitable configuration. It also gives the manufacturer a reference for commissioning and production inspection. Before requesting quotations, prepare drawings, representative samples, formulation information, expected tolerances, and the planned product range. This approach makes technical discussions more precise and helps prevent expensive configuration changes later.

Calculate Production Capacity and Factory Requirements

Production capacity should be based on actual demand rather than the largest output figure in a quotation. Manufacturers should estimate required finished-product volume, planned working hours, changeover frequency, and expected downtime. They should also account for material preparation, startup waste, inspection, cutting, packaging, and maintenance. The extrusion unit's nominal capacity does not automatically equal saleable output from the complete line.

The planned product range also affects capacity. A simple profile may run under different conditions from a thick, hollow, or complex decking section. Material formulation, filler content, die design, cooling performance, and dimensional requirements can all influence achievable output. Buyers should ask suppliers to explain the basis of any capacity estimate and identify the material, profile, and operating conditions used for that estimate. Where possible, request a trial or documented performance evidence for a comparable product.

Factory planning is equally important. A production line requires sufficient room for the extruder, die, calibration and cooling equipment, haul-off, cutting station, material handling, and finished-product collection. Space should also be reserved for raw materials, tooling, spare parts, maintenance access, and packaging. Electrical supply, cooling water, ventilation, material storage, and waste handling must be reviewed before installation.

A practical layout should support a continuous flow from raw material preparation to finished-product storage. Avoid placing equipment so close together that operators cannot inspect or maintain it safely. Consider how long decking profiles will move through the line and where cut products will be stacked. A detailed layout review with the equipment supplier can help identify space constraints before machinery arrives.

Select the Appropriate WPC Formulation and Feeding Method

WPC decking performance depends on the formulation and the consistency of material preparation. Common formulations combine thermoplastic resin, wood flour, and selected additives. Depending on the application, additives may help support processing, lubrication, color, weather resistance, or other required properties. The exact formulation should be developed and validated for the intended product rather than copied without testing from another application.

Wood flour requires particular attention because moisture and particle characteristics can influence processing. Excessive moisture may cause processing instability, surface defects, or voids, depending on the material system and operating conditions. Manufacturers should follow the formulation supplier's guidance for moisture limits, drying requirements, storage, and handling. Resin and additives should also be stored to avoid contamination or unintended changes in material condition.

The feeding and mixing arrangement must match the production process. Some factories prepare a complete compound before extrusion, while others use a configured feeding system to introduce materials at designated stages. The correct method depends on the formulation, equipment design, and process requirements. Buyers should confirm whether the proposed line includes mixing, dosing, feeding, drying, or other auxiliary equipment, or whether these systems must be purchased separately.

Before full production, establish a documented material recipe and repeatable preparation procedure. Record batch identification, ingredient quantities, relevant moisture checks, and any approved process adjustments. This information helps operators investigate quality changes and reproduce successful production conditions. It also gives the quality team a traceable basis for comparing different batches and verifying that finished decking meets the required specification.

Tip: Prepare a product specification sheet before contacting suppliers. Include profile drawings, material formulation, target output, dimensional tolerances, and intended application.

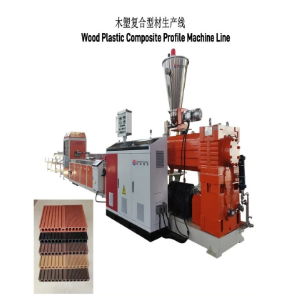

Which Equipment Is Required for a WPC Decking Production Line?

Choose an Extruder That Matches the WPC Compound

The extruder provides the main conveying, mixing, and plasticizing functions in a WPC decking line. Its screw design, barrel arrangement, heating system, drive, and control functions must suit the material formulation and required output. WPC compounds can behave differently from unfilled plastics because wood-based fillers influence flow, friction, and processing conditions. Buyers should therefore evaluate the complete extrusion system instead of selecting equipment based only on motor power or advertised capacity.

Twin-screw extruders are used in many WPC applications because their configurations can support compound processing and material conveying. However, the appropriate screw design depends on the resin, filler content, compound preparation method, profile geometry, and production target. A suitable supplier should explain why the proposed extruder fits the specified formulation. The configuration should also provide practical access for cleaning, inspection, and maintenance.

Temperature control is another important factor. The extruder must process the compound under conditions that support appropriate flow without damaging heat-sensitive components. Different temperature zones may require separate controls, and operating settings should be established through material guidance and commissioning trials. Screw speed and feed rate must also be coordinated to maintain a stable supply to the die.

Before purchasing, request a technical specification that identifies the extruder type, screw configuration, heating and cooling arrangements, control system, and compatible materials. Clarify whether the quoted output applies to the proposed WPC formulation and profile. If the manufacturer intends to produce several decking designs, discuss whether the extruder can support the full planned product range or whether additional equipment changes will be required.

Match the Die and Calibration System to the Decking Profile

The extrusion die forms the initial decking cross-section. Its internal channels distribute the plasticized compound into the intended geometry, including solid sections, hollow cavities, grooves, or other design features. Poor flow balance can lead to uneven wall thickness, dimensional differences, or inconsistent surface quality. The die must therefore be designed around the approved product drawing and intended material formulation.

Calibration equipment helps the hot profile retain its required dimensions after leaving the die. Depending on the design, the system may use suitable sizing fixtures, vacuum calibration, or other arrangements. The appropriate method depends on profile geometry, material behavior, and the equipment configuration. Complex decking sections may need more careful support and cooling than simpler profiles because their different sections can respond differently during solidification.

Tooling compatibility should be confirmed before the order is finalized. Buyers should ask which profile dimensions the die can produce, which calibration components are included, and what tooling is required for additional product designs. They should also discuss setup procedures, cleaning access, wear parts, and the expected process for developing a new profile. A drawing review is particularly important when a product includes interlocking edges or other features that must fit precisely during installation.

For manufacturers considering broader plastic profile production, reviewing the supplier's equipment range can help identify relevant options. Qingdao Zhongrui Plastic Machinery Co., Ltd. provides information about its PVC Profile Production Line category. Although PVC profile equipment and WPC decking lines may share certain extrusion principles, their suitability is not automatic. Buyers should confirm the material compatibility, die configuration, and downstream equipment required for WPC production.

Integrate Cooling, Haul-Off, Cutting, and Auxiliary Equipment

A WPC decking line requires coordinated downstream equipment. Cooling helps the extruded profile stabilize, while the haul-off unit controls its movement through the line. The cutting system then separates the continuous profile into the required lengths. If these components operate at incompatible speeds, the profile may deform, develop dimensional variation, or be cut inaccurately.

Cooling capacity should suit the profile thickness, geometry, material formulation, and target production rate. A thick profile may require more time to stabilize than a thin strip. Uneven cooling can contribute to warping or differences in shrinkage, so the system should distribute cooling appropriately for the product. The equipment supplier should explain the proposed cooling arrangement and how operators can monitor it during commissioning.

The haul-off unit must pull the profile consistently without stretching or damaging it. Its contact surfaces, pulling force, and speed should match the product. The cutting station must then synchronize with the line and provide repeatable lengths. Manufacturers should check the finished profile's dimensions and straightness before stacking or packaging it. Automated stacking may be useful for some production volumes, but its value depends on the product, available space, and handling requirements.

Auxiliary equipment can include mixers, feeders, drying systems, crushers, and material transport components, depending on the chosen process. Zhongrui's PVC/PE/PP Wood Plastic Board Production Line is a related equipment option to review when evaluating plastic board production requirements. Buyers should verify whether its configuration suits the specific decking profile and formulation. A complete proposal should list included machinery, optional equipment, utilities, installation requirements, and operator responsibilities.

Note: Do not assume a PVC profile line can produce WPC decking without modification. Confirm the extruder, screw design, die, calibration system, and cooling arrangement against the actual WPC formulation and profile design.

How Should Manufacturers Install and Commission the Production Line?

Prepare the Factory Layout and Utilities Before Installation

Installation planning should begin before the machinery arrives. Manufacturers should review the equipment layout, floor conditions, electrical supply, cooling water, ventilation, and material storage requirements. The production area must provide enough room for equipment installation, operator access, routine inspection, and future maintenance. Any lifting or material-handling requirements should also be addressed in advance.

The line layout should support a logical production flow. Raw materials should move efficiently toward preparation and feeding equipment, while finished profiles should move toward inspection, stacking, and packaging. Long decking profiles need sufficient clearance to prevent bending or accidental damage during transfer. Operators should also have safe access to emergency stops, control panels, and inspection points.

Before installation, compare the delivered machinery against the approved equipment list. Confirm the machine models, accessories, tooling, electrical components, and spare parts. Any missing or damaged items should be documented and reported promptly. The installation team should follow the supplier's instructions for positioning, alignment, connections, and assembly rather than making unapproved changes.

Utilities deserve particular attention because inadequate supply can affect commissioning. Confirm the required electrical specifications, cooling water conditions, and other site services with the equipment supplier. The factory should also prepare suitable storage for resin, wood flour, additives, and finished products. Good preparation reduces avoidable installation delays and helps the commissioning team focus on verifying equipment operation.

Test Each Equipment Unit Before Full Production

Commissioning should proceed in a controlled sequence. The installation team should first check mechanical assembly, electrical connections, safety devices, lubrication requirements, and cooling circuits. Each unit should then be tested according to the manufacturer's procedures. These checks help identify installation problems before material enters the extrusion system.

After individual equipment checks, the team can verify communication and coordination between the extruder, die, calibration equipment, haul-off, and cutter. Control settings should be checked against the approved configuration. The team should also confirm that guards, emergency stops, and other safety features function correctly. Any abnormal noise, vibration, leakage, or unexpected movement should be investigated before production continues.

Material trials should use the approved formulation and suitable operating procedures. Operators can gradually establish stable processing conditions while monitoring material flow, profile geometry, cooling, and pulling behavior. The first products should be inspected carefully against the product drawing. Dimensions, surface appearance, straightness, and cut lengths should be recorded to create a baseline for future production.

Commissioning records should identify the equipment configuration, material batch, relevant settings, inspection results, and any corrective actions. The manufacturer and supplier should agree on the acceptance criteria before testing begins. This creates a clear basis for determining whether the equipment meets the agreed requirements. Buyers should avoid relying solely on a successful machine startup because stable, repeatable product quality is the more important production objective.

Train Operators and Establish Standard Production Procedures

Operator training helps convert installed machinery into a workable manufacturing process. Staff should understand the function of each major unit, the control interface, material handling requirements, and the correct sequence for startup and shutdown. Training should also cover safe operating practices, emergency procedures, and the limits of routine operator adjustments.

Standard operating procedures should explain how materials are identified and prepared, how approved recipes are followed, and how production settings are recorded. They should define the checks required during startup and regular operation. If the profile begins to warp or its dimensions move outside the accepted limits, operators should know which checks to perform and when to stop the line for further investigation.

Training should include hands-on practice under appropriate supervision. Operators need to recognize normal equipment behavior and report abnormal conditions. Maintenance tasks requiring specialist knowledge should remain with trained personnel. Clear responsibilities help prevent unapproved repairs or process changes that could damage machinery or compromise product quality.

A production log should record relevant material batches, operating conditions, inspection measurements, downtime, and maintenance actions. Supervisors can use these records to compare shifts and identify recurring problems. When a stable process has been established, documented settings can provide a useful reference for repeat orders. However, operators must still verify conditions when materials, tooling, or product specifications change.

Tip: Agree on commissioning criteria before installation begins. Include equipment checks, safety verification, sample production, dimensional inspection, and documentation requirements.

How Can Manufacturers Maintain Consistent WPC Decking Quality?

Control Dimensions, Surface Appearance, and Profile Stability

Quality inspection should reflect the decking's intended application and approved specification. Common checks include profile width, thickness, wall dimensions, straightness, length, color, and surface appearance. Where relevant, manufacturers may also need to verify weight per meter, fitting dimensions, or other product-specific characteristics. The inspection plan should identify the measuring method, acceptance limits, and frequency of checks.

Dimensional consistency matters because decking profiles must fit the intended installation system. Variations in interlocking edges or overall width can complicate installation and create uneven joints. Surface appearance also influences customer acceptance. Streaks, voids, discoloration, or visible deformation may indicate material, tooling, or processing problems that require investigation.

Measurements should be taken at suitable points along the profile rather than relying on a single reading. Long profiles may vary from one end to the other, especially if cooling or pulling conditions are unstable. Inspection results should be compared with the approved drawing and recorded by production batch. If a result falls outside the accepted range, affected products should be identified and managed according to the factory's quality procedure.

Finished-product testing should also reflect the intended use. Outdoor decking may require evaluation of relevant mechanical properties, weather exposure, dimensional stability, or slip-related performance. The required tests depend on the market, application, and applicable standards. Manufacturers should not claim specific durability or safety performance without supporting evidence from appropriate testing.

Identify Extrusion Defects Through a Structured Troubleshooting Process

Common WPC extrusion problems include uneven dimensions, rough surfaces, voids, warping, inconsistent color, and inaccurate cutting lengths. These defects may arise from different causes. Material moisture, inconsistent feeding, unsuitable processing conditions, die flow, cooling, and haul-off behavior should all be considered during troubleshooting.

The first step is to describe the defect clearly. Operators should record when it appeared, which product batch was running, and whether any material or setting had recently changed. They should then inspect the affected profiles and compare their measurements with earlier samples. This information helps narrow the investigation instead of relying on guesswork.

Next, check likely causes one at a time. For example, surface defects may require inspection of material condition, tooling cleanliness, and processing records. Warping may call for checks of cooling distribution, line alignment, and pulling speed. Dimensional changes may indicate die, calibration, feeding, or material-flow problems. Any adjustments should follow approved operating procedures and be recorded alongside the resulting inspection measurements.

A corrective action is useful only when the result is verified. After making an adjustment, inspect new samples and compare them with the accepted criteria. If the problem persists, escalate the issue to the relevant process engineer or equipment supplier. A structured troubleshooting record helps the team resolve repeat problems faster and improves knowledge sharing between production and maintenance staff.

Establish Preventive Maintenance and Material Traceability

Preventive maintenance helps keep the line in suitable operating condition. The maintenance plan should cover the extruder, die, calibration system, cooling equipment, haul-off, cutter, and installed auxiliary machinery. Inspection frequency should follow the equipment manual and reflect actual operating conditions. Components subject to wear should be checked for deterioration, buildup, alignment problems, or abnormal movement.

Cleaning procedures are particularly important when switching between materials or colors. Residue in feeding equipment, the extruder, or tooling may contaminate a later batch. Cleaning should follow the manufacturer's approved procedure, including any safety requirements for shutdown and isolation. Spare parts should be identified according to their importance and expected replacement needs, rather than purchased without a maintenance plan.

Material traceability provides another layer of quality control. Production records should connect finished decking to the material batches and relevant operating conditions used to manufacture it. When a defect is reported, the team can use this information to determine which products may be affected. Traceability also helps distinguish a one-time processing problem from a recurring material or equipment issue.

Quality and maintenance teams should review recurring defects together. They can identify patterns in downtime, rejected products, tooling wear, and process adjustments. This review supports more informed maintenance planning and process improvement. Over time, consistent records help manufacturers establish repeatable production practices and reduce avoidable variation without relying on unsupported assumptions about machine performance.

Note: Product acceptance limits and test methods should be established before commercial production. Use requirements appropriate to the decking's intended application and target market.

How Should Buyers Evaluate Suppliers and Production Line Options?

Compare Complete Line Configurations Instead of Individual Machines

When comparing suppliers, buyers should evaluate the complete production system rather than focusing only on the extruder price. A quotation may include the main machine but exclude mixing, feeding, calibration, cooling, cutting, or stacking equipment. These differences can make two apparently similar offers difficult to compare. Buyers should request an itemized equipment list that identifies included components, optional units, tooling, and spare parts.

The technical comparison should begin with the intended decking profile and material formulation. Buyers should confirm the extruder configuration, die design, calibration method, cooling capacity, and downstream handling arrangements. They should also ask whether the supplier's proposed line has been designed for a comparable product. A machine intended for PVC wall panels, for example, should not automatically be treated as suitable for WPC decking without confirming material and process compatibility.

Capacity claims require careful review. Buyers should ask what material, profile dimensions, and operating conditions support the quoted output. They should also consider startup waste, changeovers, inspection requirements, and expected downtime when estimating saleable production. Where available, documented trials or comparable production evidence can provide more useful information than a general capacity statement.

Commercial terms should be compared alongside technical specifications. Installation, commissioning, operator training, warranty conditions, delivery arrangements, and after-sales support can affect the overall project cost. Buyers should clarify what happens if the line requires additional adjustments during commissioning. A detailed written proposal provides a stronger basis for comparing suppliers and reduces the risk of misunderstandings after the order is placed.

Review Product Applications and Related Equipment Carefully

A supplier's existing equipment range can help buyers understand its manufacturing focus, but each product must be assessed according to its intended application. Plastic profile extrusion, wall panel production, board extrusion, and WPC decking production may share some basic principles. However, material formulations, screw designs, dies, calibration systems, and cooling arrangements can differ significantly.

For example, Zhongrui offers a High-Yield PVC Wall Panel Line for Construction and Precision-Calibrated PVC Wall Panel Production Machinery. These products are relevant references for understanding its plastic extrusion equipment range. They should not be assumed to be ready-to-run WPC decking solutions without confirmation from the manufacturer.

Buyers can use these product references to start a technical discussion. They should explain the required decking dimensions, resin type, wood flour content, target output, surface requirements, and production schedule. The supplier can then confirm whether an existing configuration is suitable or whether a different screw, die, calibration system, or downstream arrangement is required.

The same principle applies to other profile and sheet machinery. A product listing provides an initial reference, not a complete engineering assessment. Before placing an order, buyers should obtain the actual machine specification and confirm all material compatibility and production requirements in writing. This approach helps prevent an equipment purchase based on product names alone.

Confirm Customization, Technical Support, and Delivery Requirements

WPC decking projects often involve product-specific tooling and process development. Buyers should establish which parts of the line can be customized and what information the supplier needs before finalizing a design. This may include profile drawings, sample products, formulation details, dimensional tolerances, and target production volume. Any changes to the approved configuration should be documented.

Technical support should be assessed before purchase. Buyers should ask about installation guidance, commissioning procedures, operator training, troubleshooting support, and spare-part availability. They should also confirm the languages available for manuals and technical communication when equipment will be installed overseas. Clear arrangements help the factory prepare for installation and support operators after production begins.

Delivery planning should include manufacturing lead time, packing requirements, shipping arrangements, and the responsibilities of each party. Buyers should confirm whether installation services and commissioning travel are included or quoted separately. They should also check which documents will accompany the equipment and what site preparations must be completed before delivery.

Qingdao Zhongrui Plastic Machinery Co., Ltd. is based in Jiaozhou, Qingdao, Shandong Province, and reports international exports across multiple regions. Buyers interested in its equipment can review the official website and submit their product requirements for evaluation. The most useful inquiry includes the decking profile drawing, material formulation, desired output, and destination market. This gives the supplier a clearer basis for discussing configuration and project requirements.

Tip: Request a written technical proposal that separates standard equipment, customized tooling, optional auxiliary units, and commissioning services. This makes the final scope easier to verify.

Conclusion

A reliable WPC decking production line combines extrusion, cooling, cutting, and quality control. Proper equipment selection improves production consistency and reduces avoidable defects.

Qingdao Zhongrui Plastic Machinery Co., Ltd. supplies plastic extrusion lines and auxiliary equipment to support different manufacturing needs.

FAQ

Q: What does a WPC decking production line do?

A: It combines extrusion, forming, cooling, and cutting to manufacture wood-plastic composite decking profiles.

Q: Which extruder is suitable for WPC decking?

A: The choice depends on resin type, wood flour content, profile design, and required output.

Q: Why is calibration important in WPC extrusion?

A: Calibration helps maintain profile dimensions and cross-sectional shape during cooling.

Q: How can manufacturers reduce WPC decking defects?

A: Control material moisture, maintain consistent feeding, inspect tooling, and monitor cooling and haul-off speed.

Q: What should buyers check before purchasing a line?

A: Confirm material compatibility, tooling, output requirements, auxiliary equipment, commissioning, and technical support.
