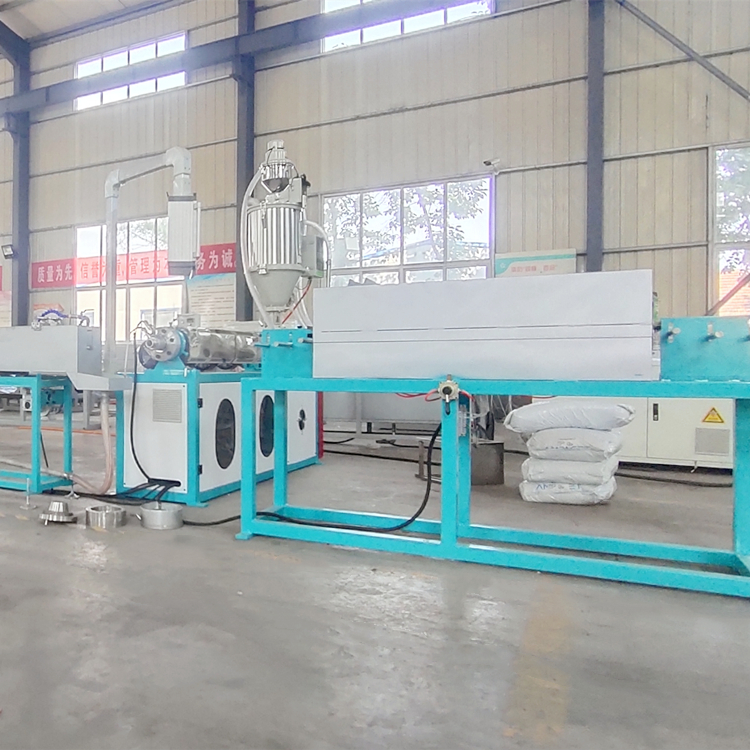

What Controls Strap Width and Thickness on an Extrusion Line?

Dimensional precision in industrial extrusion separates high-tensile load security from catastrophic downstream failure. Microscopic deviations in strap dimensions compromise structural integrity under load. Inconsistent width and thickness in packaging straps cause excessive raw material waste, frequent jams in automated strapping machines, and compromised pallet stability. For manufacturers, these variances directly erode profit margins and customer trust.

Achieving exact dimensional tolerances requires a synchronized approach across mechanical hardware, thermal management, and digital control systems. This guide breaks down the variables and equipment required to maintain strict dimensional control. We provide a framework for evaluating equipment upgrades or troubleshooting existing lines to eliminate surging, prevent dimensional creep, and lock in exact specifications.

• The Primary Ratio: Strap thickness is fundamentally dictated by the ratio of extruder output rate (melt volume) to haul-off speed (draw rate).
• Thermal and Viscosity Stability: Consistent dimensions rely heavily on screw thermoregulation to maintain uniform melt viscosity before the polymer ever reaches the die.
• Die and Pump Mechanics: Precision die lip gap adjustments and the integration of melt pumps are non-negotiable for eliminating surging and maintaining uniform cross-sectional profiles.
• Material Variables Matter: Control parameters must be uniquely calibrated depending on the polymer; a PP strapping production line requires different thermal and draw configurations than a PET line.
• Closed-Loop Automation: Modern lines rely on real-time gauging sensors and PID (Proportional-Integral-Derivative) controllers to automatically adjust line speeds, vacuum levels, and die parameters, minimizing human error and material waste.

The Core Mechanics of Dimensional Control for Packaging Straps

Extruder Output Rate vs. Haul-Off Speed (The Primary Lever)

The fundamental mechanism controlling strap dimensions is the mathematical relationship between the volume of polymer exiting the die and the speed at which it is pulled away. Extruder output rate is governed by screw RPM and melt density. As the screw rotates, it conveys, melts, and pumps the polymer forward. The exact volume of plastic pushed through the die per minute establishes the baseline mass available for shaping.

Haul-off speed introduces the draw ratio. As the extrudate leaves the die, motorized rollers pull the material faster than it exits the die lip. This speed differential stretches the molten plastic, directly reducing both its thickness and width. A higher haul-off speed yields a thinner, narrower strap. A slower speed results in a thicker, wider profile. Operators calculate the draw ratio by dividing the cross-sectional area of the die opening by the cross-sectional area of the finished strap.

Synchronization between the extruder drive motor and the haul-off motor is mandatory. Minor fluctuations in either drive system require immediate compensation. If the extruder surges while the haul-off speed remains constant, the resulting strap develops thick spots or gauge bands. If the haul-off motor accelerates momentarily without a corresponding increase in melt output, the strap experiences necking. Necking causes localized narrowing and weak points that snap under tension.

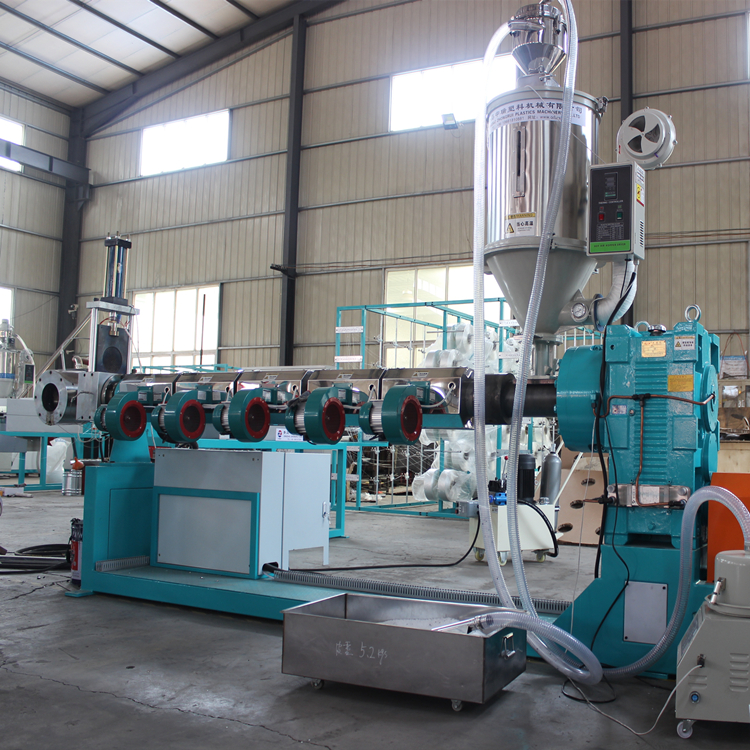

Screw Thermoregulation and Melt Viscosity Control

Mechanical speed controls fail if the polymer behaves unpredictably. The control unit for screw thermoregulation maintains precise temperature zones along the barrel and the screw. Polymers generate significant shear heat as they are compressed and pushed along the screw flights. Without active thermoregulation, this friction causes localized temperature spikes.

Temperature directly dictates melt viscosity. If the polymer melt runs too hot, its viscosity drops. The material flows too rapidly through the center of the die, resulting in uneven thickness across the web. If it runs too cold, high viscosity creates excessive backpressure, leading to flow instability and motor overload. Maintaining a uniform temperature profile ensures the melt viscosity remains constant before the polymer reaches the die block.

Consistent melt viscosity guarantees a steady volumetric flow. Thermal stability prevents the surging that leads to thick and thin spots in the final strap. Advanced lines utilize liquid-cooled barrel zones and internally cored screws with circulating thermal fluids to extract excess shear heat. This keeps the polymer strictly within its ideal processing window.

Operators follow a strict procedure for establishing thermal profiles:

1. Set the feed zone temperature low enough to prevent premature melting, which causes bridging in the throat.
2. Gradually increase temperatures through the compression zone to match the polymer's melting point.
3. Lower the temperature slightly in the metering zone to remove excess shear heat generated by the screw flights.
4. Maintain a highly stable, uniform temperature across the die block to ensure equal flow velocity across the entire lip width.

Die Lip Gap Adjustment, Profiling, and Camber Control

The extrusion die serves as the primary mechanical gatekeeper. It sets the initial width and thickness profile of the melt stream. The internal geometry of the die distributes the cylindrical melt flow from the extruder into a flat, rectangular sheet. The die lip gap physically restricts the polymer, establishing the starting dimensions before the draw ratio takes effect.

Adjusting this gap requires precision. Manual die adjustments rely on push-pull bolts spaced along the die width. Operators tighten or loosen these bolts to bend the flexible die lip, correcting thick or thin bands. Manual tuning is slow and relies heavily on operator experience. Automatic dies utilize thermally actuated bolts. These bolts expand or contract based on electrical inputs from a downstream thickness gauge, providing continuous, microscopic adjustments without human intervention.

Edge profile and camber control dictate how the strap behaves downstream. Die swell occurs as the pressurized polymer exits the die and expands. Without proper die design, this expansion creates a "dog-bone" cross-section, where the edges are thicker than the center. Uneven flow distribution causes strap curvature, known as camber. A strap with severe camber misfeeds through the tracks of automated strapping machines, leading to equipment jams.

Material-Specific Extrusion Dynamics and Line Configurations

PP Strapping Production Line Variables

Polypropylene behaves distinctly during extrusion, requiring specific thermal and mechanical configurations. Operating a PP strapping production line demands close attention to the material's melt flow index (MFI). PP generally exhibits a higher MFI compared to heavy-duty industrial plastics. It flows easily but requires rapid, controlled cooling to lock in its dimensions.

Quenching water temperature and the physical distance between the die lip and the water bath dictate PP crystallization rates. If the water is too cold or the air gap is too short, the surface of the strap freezes instantly while the core remains molten. This leads to internal voids and surface warping. Gradual, controlled quenching ensures uniform crystallization.

Structural stability directly impacts final width consistency and determines how well the strap accepts surface embossing. Proper embossing depth relies on a specific surface hardness achieved only through optimized quenching. Operators typically maintain the primary water bath between 20°C and 25°C, adjusting the immersion angle to prevent water from splashing back onto the die face, which would cause localized freezing and dimensional distortion.

PET Strapping Production Line Variables

Polyethylene Terephthalate introduces unique processing challenges due to its high sensitivity to moisture. A PET strapping production line must incorporate intensive pre-drying systems. If moisture remains in the resin during extrusion, it causes hydrolysis, leading to severe intrinsic viscosity (IV) degradation. Degraded PET loses its molecular weight, resulting in a brittle strap that cannot maintain dimensional stability under tension.

PET requires significantly higher tensile strength than PP, necessitating complex orientation processes. Precise control over stretching oven temperatures is mandatory. The polymer must be heated precisely to its glass transition temperature to allow molecular alignment without melting. Multi-stage draw ratios stretch the material incrementally.

Sequential stretching aligns the polymer chains, exponentially increasing tensile strength while permanently locking in the final thickness and width. The annealing process, or heat setting, follows the stretching phase. The strap passes through a secondary oven under high tension to relax internal stresses. Skipping the annealing phase causes the PET strap to shrink uncontrollably once it cools, ruining the dimensional tolerances achieved at the die.

Specialized Lines: Fiber and Sandwich Packaging Belt Production Lines

Standard monolithic straps do not always meet extreme load requirements. This leads to the development of specialized extrusion architectures designed for specific industrial applications.

In a fiber packaging belt production line, continuous fiber rovings are integrated directly into the polymer matrix during the extrusion process. The primary challenge is tension control. The fibers must feed into the crosshead die at the exact same speed as the polymer melt. If fiber tension is too high, it pulls the molten plastic, narrowing the width unpredictably. If tension is too low, the fibers bunch up, creating thick spots and causing the strap to warp upon cooling. Precise synchronization between the fiber creel let-off and the main haul-off dictates the final dimensions.

A sandwich packaging belt production line utilizes co-extrusion technology to combine different materials. This typically involves a high-strength core encapsulated by a weather-resistant or weldable outer skin. Controlling layer distribution is the primary operational hurdle. The feedblock and die must merge multiple melt streams without turbulent mixing.

Operators manage the thickness ratios between the core and skin materials precisely. Fluctuations in the secondary extruder's output alter the skin thickness, compromising the overall strap dimensions and affecting the friction characteristics required for ultrasonic welding. Rheological matching ensures the core and skin polymers possess similar viscosities at the processing temperature, preventing flow instability at the layer interface.

Advanced Auxiliary Equipment for Precision Control

Melt Pumps and Screen Changers

Relying solely on the extruder screw to build pressure and meter the polymer results in dimensional inconsistencies. The integration of a melt pump, also known as a gear pump, isolates the extrusion die from upstream surges. Positioned between the extruder and the die, the melt pump utilizes counter-rotating gears to capture and deliver a highly precise, constant volumetric flow rate of plastic.

Regardless of pressure fluctuations or backpressure generated within the extruder barrel, the melt pump ensures the die receives an unwavering supply of polymer. This mechanical isolation directly prevents the thick and thin spots that plague standard extrusion setups. The extruder's only job becomes feeding the melt pump at a constant suction pressure, while the pump handles the precise metering to the die.

Continuous screen changers operate in tandem with melt pumps. As recycled resins or regrind materials are processed, contaminants must be filtered out. Traditional screen changers cause massive pressure spikes when a clogged filter is swapped, disrupting the melt flow and ruining strap dimensions for several meters. Continuous screen changers utilize dual-piston or rotary designs to introduce new filtration mesh without interrupting the melt flow. This maintains consistent backpressure and uninterrupted thickness control.

Real-Time Gauging and PID Control Loops

Manual measurement using calipers is insufficient for high-speed production. Continuous, non-contact measurement technologies track extrudate dimensions in real time. Laser micrometers scan the width and thickness of the strap as it exits the cooling bath, providing instantaneous data. For multi-layer or dense materials, ultrasonic sensors and beta gauges offer deeper penetration to verify internal layer consistency and overall mass.

Measurement data requires a closed-loop PID (Proportional-Integral-Derivative) control system to be effective. The PID controller receives the dimensional data and compares it against the target setpoint. If the laser detects the strap is running 0.02mm too thick, the PID loop calculates the necessary correction and feeds this data back to the main PLC.

The system automatically micro-adjusts the haul-off speeds, slightly increases the draw ratio, or adjusts the automatic die bolts without operator intervention. This continuous feedback loop eliminates human error and keeps the product strictly within tolerance. Operators calibrate these sensors daily using certified gauge blocks to ensure the laser optics remain unaffected by airborne polymer dust or water vapor from the quenching baths.

The Quenching and Stretching Process (Post-Die Control)

Dimensional control does not end at the die lip. The post-die cooling and stretching phases solidify the final geometry. The water bath utilizes vacuum mechanics to stabilize the molten polymer. As the strap enters the sizing calibrator within the water bath, a vacuum pulls the plastic against the calibrator walls, setting its initial shape.

Micro-adjustments to the vacuum level over the water column fine-tune dimensions. If the strap size begins to creep upward, reducing the vacuum alters the water column dynamics, allowing the polymer to shrink slightly before fully freezing. This thermodynamic control prevents the strap from dragging against the calibrator, which causes surface scoring and dimensional distortion.

The Machine Direction Orientation (MDO) process permanently sets the width and thickness. This involves passing the heated strap between slow and fast stretching godets. The speed differential between these heavy-duty rollers dictates the final molecular alignment. A precise speed ratio stretches the polymer chains longitudinally, increasing tensile strength while proportionally reducing the cross-sectional area.

Any slippage on these rollers instantly ruins the dimensional profile. High-friction roller coatings, exact motor synchronization, and precise oil-heating systems within the rollers are mandatory to maintain traction and uniform heat transfer during the draw phase.

Evaluating a Packaging Belt Production Line for Dimensional Accuracy

Features-to-Outcomes: Defining Success Criteria

When assessing a modern packaging belt production line, the baseline requirement for dimensional accuracy should be tolerances of ±0.05mm or better. Equipment lacking the hardware to guarantee this tolerance produces straps that fail in automated packaging environments. Evaluating a line requires mapping specific hardware features to direct production outcomes.

Scalability, Material Yield, and ROI

Upgrading to precision extrusion technology involves capital allocation decisions. The upfront expenditure of automated gauging, melt pumps, and thermally actuated dies generates long-term savings in raw material yield and reduces the need for constant operator intervention.

Accurate thickness control via PID systems prevents upward dimensional creep. In legacy systems, operators run the line slightly thicker than necessary to avoid dropping below minimum strength specifications. This giveaway consumes massive amounts of excess resin over a year. By tightening tolerances, manufacturers run closer to the minimum spec without risking failure, directly saving on polymer costs. Consistent dimensions ensure uniform flexural strength across the entire spool, eliminating customer rejections.

Scalability of the control software dictates future operational efficiency. Modern PLCs integrate seamlessly with factory-wide SCADA (Supervisory Control and Data Acquisition) systems. This connectivity allows plant managers to track material yield in real time, schedule predictive maintenance for wear parts like screw flights, and maintain digital quality records for every spool produced.

Implementation Risks and Mitigation Strategies

Improving dimensional control often involves retrofitting legacy equipment, which carries inherent risks. The most common issue is hardware compatibility. Attempting to pair a modern, high-speed PID controller and inline laser gauge with old DC motors or outdated relay logic results in communication failures and erratic line behavior. The lag time between the sensor reading and the old motor's response worsens surging.

To mitigate these risks, engineers execute a comprehensive line audit before purchasing auxiliary equipment. They evaluate the condition of the existing screw, barrel, and drive motors. If the mechanical foundation is severely worn, adding a melt pump will not solve the root problem. Investing in a turnkey, pre-integrated extrusion line provides a faster, more reliable path to operational stability than piecemeal retrofits.

Advanced controls fail without proper operator training. Floor staff must understand the underlying extrusion physics. If an operator manually overrides the PID loop because they do not understand how the vacuum sizing bath interacts with the draw ratio, the investment in automation is wasted. Training programs shift focus from manual knob-turning to interpreting digital data and managing automated systems.

A standard audit checklist includes:

• Measuring screw-to-barrel clearance to identify wear that causes pressure leakage.
• Testing drive motor encoder feedback loops for signal latency.
• Verifying the calibration of all barrel heater band thermocouples.
• Inspecting the die lip for microscopic scoring or carbon buildup.
• Checking the water bath circulation pumps for flow consistency.

Execute the following steps to stabilize your extrusion dimensions:

• Conduct a scrap-rate analysis on your current production to quantify exactly how much material waste is caused by dimensional variations.
• Audit your existing extrusion line to check the condition of the screw, barrel, and drive motors to determine if surging is mechanical or thermal.
• Install a continuous laser micrometer to establish a baseline data set of your current dimensional deviations.
• Consult with an extrusion line engineer to determine if a targeted retrofit, such as adding a melt pump, is viable for your setup.
• Upgrade legacy DC drives to AC vector drives to ensure precise synchronization between the extruder and haul-off motors.

FAQ

Q: How do you adjust thickness on a packaging strap extrusion line?

A: Thickness is primarily adjusted by altering the ratio between the extruder screw speed (output) and the haul-off roller speed (draw). Fine-tuning is accomplished via die lip gap adjustments and modifying the vacuum sizing parameters within the water cooling bath.

Q: What causes width variations in packaging straps during production?

A: Width variations are typically caused by inconsistent melt pressure, surging in the extruder, fluctuations in the water bath temperature, uneven tension in the stretching rollers, or poor screw thermoregulation affecting polymer viscosity.

Q: How does a melt pump improve strap dimensional stability?

A: A melt pump acts as a positive displacement metering device. It eliminates pressure surges from the extruder screw, delivering a perfectly consistent volume of polymer to the die, which directly prevents thick and thin spots in the strap.

Q: What is the difference between PP and PET strapping lines regarding thickness control?

A: PET requires stricter moisture control and higher stretching temperatures to achieve its tensile strength. The thermal controls in PET stretching ovens play a larger role in locking in final dimensions compared to PP, which relies heavily on initial water quenching dynamics.

Q: How does vacuum sizing affect strap dimensions?

A: Vacuum sizing stabilizes the molten polymer as it enters the cooling bath. Adjusting the vacuum level alters how the plastic interacts with the calibrator walls. Reducing the vacuum allows slight shrinkage, preventing the strap from dragging and distorting its final shape.
