What Is the Difference Between Fiber and Sandwich Strapping Lines?

Industrial packaging operations are moving away from metallic banding toward high-performance polymer alternatives. This transition forces plant managers to upgrade their extrusion and weaving infrastructure to meet strict tensile and safety standards. Choosing between different manufacturing technologies directly dictates the physical properties of your final product, your operational overhead, and the specific market segments you can supply. Selecting the wrong machinery creates production bottlenecks, generates excessive material waste, and causes failures in heavy-duty load containment. This guide provides a technical evaluation of fiber and sandwich production lines. We compare their mechanical processes and output capabilities to support your capital equipment procurement decisions. You will learn how each system handles raw materials, manages tension, and outputs packaging straps tailored for distinct industrial applications.

• Process Distinction: Fiber lines focus on weaving or gluing high-tenacity polyester yarns to create composite or woven straps, whereas sandwich lines utilize co-extrusion to bond multiple polymer layers (often a rigid core with flexible outer layers).

• Application Targeting: Fiber production lines output highly flexible, shock-absorbent straps ideal for irregular loads and lumber, while sandwich lines produce rigid, high-tension straps designed to replace steel in heavy industrial applications.

• Operational Complexity: Sandwich co-extrusion requires precise thermal management and polymer compatibility controls, demanding higher operator expertise compared to the mechanical tensioning focus of fiber lines.

• CapEx vs. OpEx: Fiber lines typically present a lower initial capital expenditure but may incur higher raw material costs (specialty yarns), whereas sandwich lines require significant upfront investment but offer long-term savings through bulk polymer resin processing.

Defining Success Criteria for a Packaging Belt Production Line

Market Demand and Load Containment Specifications

Defining target end-user requirements dictates your equipment selection. You must differentiate between equipment calibrated for lighter product banding and heavy-duty industrial strapping. Lighter banding requires lower tensile strength and focuses on high-speed application for corrugated boxes or lightweight pallets. Heavy-duty strapping demands massive break strength and minimal creep to secure steel coils, timber, or concrete blocks. Evaluate the necessary break strength required by your target market. Analyze elongation recovery and retained tension metrics. A high-performance packaging belt production line must consistently meet these exact specifications without deviation.

Assess static versus dynamic load requirements. Manufactured straps must perform reliably under sudden movements. Transit shocks test the dynamic strength of the material during rail or sea freight. Static loads require high retained tension over long storage periods in warehouses subject to temperature fluctuations. Dynamic loads require shock absorption to prevent snapping upon impact. Your chosen machinery must align with the specific load profiles of your end customers.

Production Volume and Scalability Targets

Assess required throughput rates measured in meters per minute. High-volume operations require continuous operation capabilities. Evaluate the machinery's ability to run without frequent stops for material splicing or screen changes. Determine your facility's capacity for raw material storage. Yarn spools require different environmental controls than bulk resin silos. Resin silos demand significant vertical space, reinforced concrete pads, and pneumatic conveying systems. Finished goods staging also requires adequate floor space for palletizing and wrapping.

Scalability depends on the line's ability to integrate automated winders and accumulators. When planning your facility layout, consider the following infrastructure requirements:

1. Power Supply: Verify that your local grid can handle the massive amperage draw of multiple extruder heaters and stretching ovens.

2. Cooling Water: Install closed-loop chiller systems capable of rapidly quenching extruded polymers to prevent crystallization issues.

3. Compressed Air: Ensure clean, dry air lines are available for pneumatic actuators, screen changers, and automated splicing units.

4. Material Handling: Designate clear forklift paths for transporting heavy yarn creels or supersacks of polymer resin to the loading zones.

Fiber Packaging Belt Production Line: Mechanics and Output

Mechanical Process Overview (Weaving and Coating)

A fiber packaging belt production line relies on mechanical tension and bonding rather than melting bulk plastics. The process begins at the yarn creel setup. Hundreds of high-tenacity polyester yarns feed into the system from individual spools. Tensioning systems maintain uniform pull across all individual yarns. This prevents slack and ensures uniform strength across the width of the strap. The yarns then enter a weaving or parallel-gluing process. Woven straps use industrial looms to interlock the warp and weft yarns for maximum cross-directional strength. Composite straps align the yarns parallel and pass them through an adhesive bath.

Polymer coatings are applied to bind the fibers together. Extrusion coating encapsulates the yarns in a protective layer of polyethylene or polypropylene. This coating provides weather resistance. It protects the core fibers from UV degradation, moisture, and chemical exposure. The coating bath must maintain precise temperatures to ensure optimal viscosity for penetration. Chill rolls then rapidly cool the coated strap before it passes through the final accumulator and onto the winding spools.

Output Characteristics

Fiber packaging straps exhibit high cross-directional strength. They offer superior shock absorption compared to solid extruded plastics. The woven or composite structure resists splitting along the length of the strap, even if nicked by a sharp edge. This makes them highly reliable for securing irregular or sharp-edged loads like stamped metal parts or rough-sawn timber. The lightweight nature of woven polyester cording improves end-user ergonomics. It significantly reduces shipping weight compared to solid plastic or steel alternatives.

Safety advantages drive end-user adoption in specific sectors. Fiber straps lack the sharp edges found on steel banding. They offer soft handling, protecting both the operator during tensioning and the product during transit. This makes them dominant in the lumber and fragile goods sectors. They will not scratch finished surfaces, dent corrugated corners, or damage delicate edges during handling.

Implementation Realities and Maintenance

Operating fiber lines presents specific mechanical challenges. Managing yarn tension consistency is the primary operational hurdle. Uneven tension causes warping, bowing, and weak spots in the final product. Line operators monitor the creel and tensioning godets constantly. Preventing adhesive buildup in the coating section requires continuous oversight. Excess adhesive alters the strap dimensions, fouls the cooling rollers, and causes the strap to stick to itself on the final roll.

Minimizing splice defects is critical for continuous production. Automated splicing units help maintain throughput, but operators must still thread the machines correctly. Routine maintenance focuses heavily on the weaving looms and coating applicators. Looms require frequent lubrication and inspection of moving parts like heddles and reeds. Coating dies need regular cleaning to prevent blockages and ensure uniform application across the fiber bundle.

Sandwich Packaging Belt Production Line: Mechanics and Output

Co-Extrusion and Multi-Layer Bonding Processes

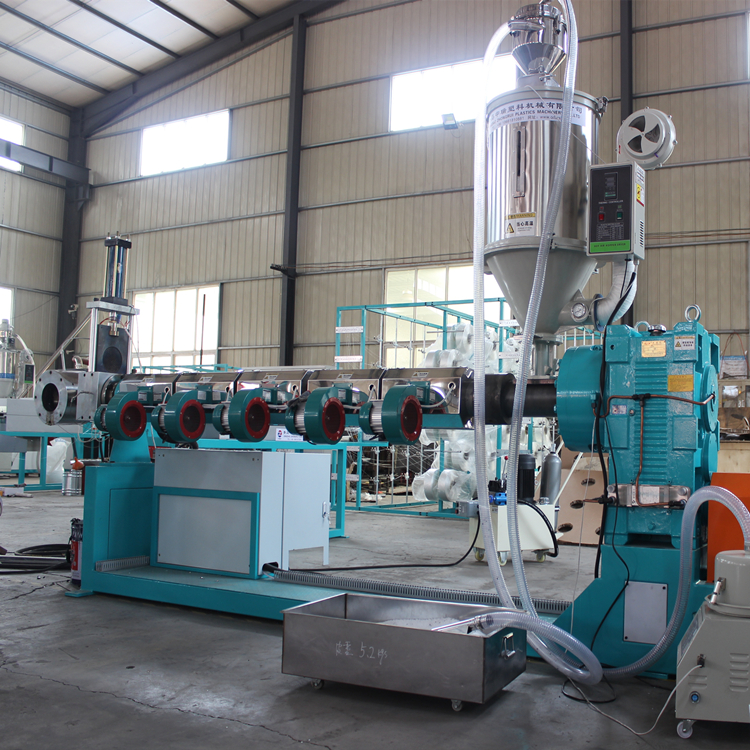

A sandwich packaging belt production line utilizes advanced co-extrusion technology. Multiple extruders feed molten polymer into a single, complex feedblock and die assembly. This creates a multi-layer sandwich structure. Typically, this involves a high-tensile core layer flanked by specialized outer layers. The outer layers are formulated for optimal weldability in automated friction-welding strapping machines. The core provides the primary mechanical strength and rigidity.

Melt temperature synchronization is absolutely critical. Different polymer grades possess different melt flow indices. The die must merge these layers without causing turbulence, flow lines, or delamination. Advanced co-extrusion capabilities allow for material innovation. Some lines integrate foaming agents into the core layer. This reduces overall material weight while maintaining structural bending properties. The foamed core creates a rigid yet lightweight profile that feeds perfectly through automated arch machines.

Output Characteristics

Sandwich straps deliver high rigidity and exceptionally low elongation. They feature optimized surface friction designed specifically for automated strapping machines. The outer skin layers ensure consistent feeding through machine tracks without generating excessive plastic dust. These multi-layer straps compete directly against traditional steel banding. They replace steel in heavy industrial applications like metal stamping, aluminum smelting, and brick manufacturing.

PET sandwich straps absorb impact efficiently. They retain tension better over time than steel. Steel banding can be brittle under sudden movement or transit shocks. Sandwich straps stretch slightly under impact and recover their shape due to their elastic memory. This memory effect keeps loads tight even if the cargo settles, shrinks, or shifts during long-haul shipment.

Equipment Complexity and Operator Training

Managing co-extrusion parameters involves a steep learning curve. Operators balance extruder screw speeds, melt pressures, and die temperatures across multiple zones. Die adjustments require precision to maintain uniform layer distribution and prevent gauge variations. Cooling bath temperatures must be strictly controlled to optimize crystallization. Rapid quenching prevents the polymer from becoming overly brittle before it enters the stretching ovens.

Advanced PLC systems are mandatory for these lines. These systems monitor hundreds of data points simultaneously, from hopper feed rates to winder tension. Skilled technicians interpret this data to prevent layer delamination and maintain dimensional stability. Training programs must cover polymer rheology, thermal dynamics, and mechanical stretching principles. The stretching ovens and annealing godets require precise speed ratios to orient the polymer molecules correctly.

• Extruder Operation: Technicians must understand temperature profiling to prevent polymer degradation in the barrel.

• Die Profiling: Operators adjust the die lip bolts to control the thickness of the strap down to the micron level.

• Quench Tank Management: Water flow and temperature dictate the amorphous state of the plastic prior to stretching.

• Draw Ratio Control: Setting the exact speed differential between the slow and fast godet rollers determines the final tensile strength.

• Annealing: Proper heat treatment after stretching relaxes internal stresses and prevents the strap from shrinking on the roll.

Technical Evaluation: Comparing Production Line Capabilities

Tensile Strength, Elongation, and Creep Resistance

Sandwich lines achieve strength through mechanical stretching. The extruded profile passes through heated ovens and stretching godets. This process aligns the polymer molecules longitudinally, creating massive tensile strength. Fiber lines rely on the inherent strength of pre-drawn industrial yarns. The weaving process simply bundles this existing strength together. Sandwich lines control elasticity through the draw ratio during extrusion. Fiber lines control elasticity based on the specific yarn denier and material selected.

Creep resistance measures tension retention over time under a constant load. Sandwich straps, particularly PET variants, exhibit excellent creep resistance. They hold heavy loads securely during long-term storage in hot warehouses. Fiber straps offer more initial elasticity. This makes them better for loads that expand or contract, like timber reacting to humidity changes. Both systems require strict quality control testing to ensure loads remain secure.

Polymer Flexibility and Line Integration

Equipment adaptability determines your operational flexibility. A well-designed sandwich line can process different resins with the right modifications. Operating as a PET strapping production line requires specific dehumidifying dryers and crystallization equipment because PET is highly hygroscopic. Moisture destroys PET during extrusion. Switching the same equipment to function as a PP strapping production line requires tooling changes. PP does not require extensive pre-drying. The extruder screw design and die geometry must accommodate the different melt behaviors and expansion rates of the two plastics.

Fiber lines offer different adaptability. They easily switch between different yarn deniers to change the strap's break strength. Changing the coating material requires flushing the applicator system and adjusting the chill roll temperatures. Fiber lines handle product changeovers faster than co-extrusion lines. Co-extrusion lines require significant time to purge old resin, stabilize thermal zones, and dial in the new layer ratios.

Energy Consumption and Sustainability

Thermal energy requirements dominate sandwich line operations. Melting multiple polymer layers consumes significant electricity. The stretching ovens and annealing units also require continuous heat to maintain the plastic in a pliable state. Fiber lines consume less thermal energy. Their primary energy draw comes from the mechanical action of the weaving looms and the winding motors. The coating process requires some heat to melt the adhesive or outer jacket, but far less than bulk extrusion.

Sustainability demands are reshaping both technologies. Sandwich lines increasingly incorporate recycled materials. Advanced co-extrusion allows rPET flakes (recycled water bottles) to form the thick core layer. Virgin material is reserved for the thin outer skins to ensure reliable welding. This meets growing demands for recyclable packaging straps. Fiber lines utilize recycled polyester yarns. Both systems offer pathways to reduce the carbon footprint of industrial packaging operations.

Capital Equipment Investment and Operational Costs

Initial Equipment Investment

Procuring a production line requires analyzing the baseline machinery costs. Sandwich lines demand heavy capital for multiple extruders, complex co-extrusion feedblocks, precision dies, long cooling tanks, heated stretching godets, annealing ovens, and automated winders. You must also factor in the cost of auxiliary equipment. This includes industrial chillers, resin crystallizers, dehumidifying dryers, and automated screen changers. The infrastructure required to support a sandwich line is substantial.

Fiber lines present a different equipment footprint. The investment centers on massive yarn creels, high-speed industrial looms, tensioning racks, coating applicators, and winders. Auxiliary equipment includes yarn splicers and adhesive melters. While the initial machinery cost for a fiber line is generally lower than a multi-layer co-extrusion setup, the floor space required for the creels can be extensive.

Long-Term Operational Costs

Analyze the cost per meter of output based on raw material consumption. Sandwich lines benefit from processing bulk polymer resins, which generally cost less per kilogram than highly engineered industrial yarns. However, sandwich lines consume more electricity for heating and cooling. Fiber lines incur higher raw material costs because the polyester yarns are pre-processed and drawn by the supplier. Fiber lines offset this with lower energy consumption during the manufacturing phase.

Evaluate tooling replacement and maintenance schedules. Extrusion dies require periodic refurbishment to maintain flat lips. Extruder screws wear down over time, especially when processing recycled flakes containing abrasive contaminants. Weaving looms require constant replacement of needles, heddles, and cutting blades. Calculate your expected return based on the current market demand for premium woven straps versus high-volume multi-layer rigid straps.

Implementation Risks and Mitigation Strategies

Supply Chain Sourcing for Raw Materials

Raw material availability presents a significant operational risk. Volatility in the pricing of high-tenacity polyester yarns impacts fiber line profitability. Specific polymer grades required for co-extrusion also face supply chain disruptions. Relying on a single supplier for specialized resins, adhesives, or yarns jeopardizes continuous production. Material shortages lead directly to idle machinery, wasted labor hours, and missed delivery schedules.

Diversifying supplier networks mitigates this risk. Qualify multiple vendors for your critical raw materials before finalizing your equipment purchase. Invest in production lines with higher raw material tolerance. A robust sandwich line should handle slight variations in rPET intrinsic viscosity without crashing the process. A versatile fiber line should process yarns from different manufacturers without requiring extensive mechanical recalibration of the tensioning godets.

Quality Control and Testing Protocols

Manufacturing defects lead to immediate product rejection. Inconsistent strap dimensions jam automated strapping machines, causing downtime for your customers. Layer delamination in sandwich straps destroys structural integrity. Fiber fraying in woven straps compromises load security and looks unprofessional. These defects damage your reputation and incur heavy replacement costs. Relying solely on manual inspection guarantees that defective products will reach the end user.

Implement automated, inline testing protocols. Install inline laser measurement systems to monitor strap width and thickness continuously. Integrate automated tension testing to verify break strength and elongation on every master roll. Strict adherence to ASTM/ISO standards for packaging straps is non-negotiable. Documenting these quality metrics provides traceability and assures customers of consistent product performance.

Conclusion

1. Conduct a comprehensive raw material availability analysis comparing bulk polymer resins against high-tenacity polyester yarns in your specific geographic region.

2. Request pilot runs or sample testing from equipment manufacturers to verify that the machinery can meet your exact break strength and elongation recovery specifications.

3. Develop a detailed Request for Proposal (RFP) focusing on throughput guarantees, energy efficiency metrics, and the integration of inline laser measurement systems.

4. Audit your facility's floor space, power grid capacity, and cooling water infrastructure to ensure adequate support for either resin silos or expansive yarn creel setups.

FAQ

Q: What is the primary difference between a fiber and a sandwich packaging belt production line?

A: A fiber line mechanically weaves or glues pre-drawn polyester yarns together and applies a protective coating. A sandwich line uses co-extrusion to melt and bond multiple polymer layers together, followed by mechanical stretching to orient the molecules for high tensile strength.

Q: Can a sandwich line operate as both a PET and PP strapping production line?

A: Yes, but it requires specific tooling and parameter changes. Switching between Polypropylene and Polyethylene Terephthalate requires adjusting extruder temperatures, changing die geometries, bypassing the PET crystallizers, and altering the stretching oven speeds to accommodate different melt flow behaviors.

Q: What is the difference between manufacturing strapping versus banding on these lines?

A: Banding typically refers to lighter-duty bundling that requires less tensile strength and focuses on high-speed application for boxes. Strapping refers to heavy-duty load containment requiring massive break strength, minimal elongation, and high retained tension for securing industrial transit loads.

Q: How do sandwich straps compare to steel banding in dynamic load conditions?

A: Sandwich straps, particularly PET, absorb impact and recover their shape during transit shocks due to elastic memory. Steel banding is highly rigid but can be brittle; it may snap under sudden dynamic movement because it lacks the elasticity to absorb the shock.

Q: What maintenance is required for the co-extrusion die on a sandwich line?

A: The co-extrusion die requires precise thermal calibration and regular internal cleaning. Operators must purge degraded polymer to prevent flow lines, ensure uniform layer distribution, and inspect the die lips for wear that could cause dimensional inconsistencies in the strap.
