What Output Can a PU Pipe Production Line Achieve?

Industrial reliance on flexible, high-pressure pneumatic control equipment drives strict dimensional, transparency, and volume demands for manufacturing a PU pipe. Modern pneumatic systems require tubing that withstands rapid cycling, aggressive bending, and continuous vibration without failing. Procurement and plant managers frequently encounter discrepancies between a machine manufacturer's theoretical maximum output and the actual, sustainable yield achieved on the shop floor. A machine rated for high capacity often falls short when operators attempt to maintain strict optical clarity and burst pressure standards. Accurately forecasting production capacity requires evaluating the interplay between extruder specifications, material behavior, tooling surface treatments, and downstream line components. You cannot simply look at the motor size and assume a guaranteed hourly yield. Achieving peak performance demands a holistic understanding of how polymer melt dynamics interact with mechanical constraints to ensure capital investments align with operational targets.

• Baseline Output Metrics: Standard commercial lines typically yield between 40 to 70 kg/h, heavily dependent on motor power (e.g., 22Kw) and screw design.
• Dimensional Trade-offs: Production speeds (meters per minute) fluctuate significantly based on the target die head size, with 4-16mm being the standard operational range for pneumatic applications.
• Yield Multiplication: Utilizing double-outlet (dual-strand) configurations can effectively double the linear output for smaller diameter (4-8mm) PU pipes without pushing single-line speeds to unstable levels.
• Bottleneck Prevention: Achieving maximum theoretical output requires synchronized downstream equipment; inadequate cooling or haul-off calibration will throttle the entire extrusion process and ruin optical clarity.
• Material Sensitivity: Polyurethane (PU) and Thermoplastic Polyurethane (TPU) require precise thermal and moisture management; failing to optimize pre-drying directly reduces viable output rates and compromises high-pressure resistance.

Defining Output Metrics in PU Pipe Manufacturing

Establish the baseline for what constitutes output in extrusion environments by shifting focus from raw material consumption to sellable, high-quality product yield. Pushing polymer through a die at maximum speed means nothing if the resulting tubing fails concentricity checks or exhibits surface defects. True output measures the volume of tubing that passes quality assurance and is ready for spooling. Operators must track the exact percentage of material that converts into viable inventory versus the material lost to scrap, startup purging, and dimensional failures.

Theoretical vs. Practical Yield

Nameplate capacity represents the absolute maximum mass of polymer an extruder can plasticize and push through the barrel under ideal, unrestricted conditions. A machine rated at 70 kg/h achieves this number in a laboratory setting using highly optimized resins and zero downstream resistance. Overall Equipment Effectiveness (OEE) provides a much more accurate picture of shop floor reality. OEE factors in machine availability, performance efficiency, and product quality to determine the actual yield you can rely on for production planning.

Standard deduction factors immediately reduce theoretical capacity. Setup time, screen changes, and scrap rates during startup consume valuable production hours. Every time operators switch from a 4mm die to a 12mm die, the line must be stopped, recalibrated, and purged. You must balance the desire to maximize screw RPM with the necessity of maintaining performance features like high transparency, vibration resistance, and bending flexibility. Running a PU pipe production line too fast often induces melt fracture, resulting in cloudy tubing that fails visual inspection.

Kg/hr vs. Meters/minute

Mass throughput (kg/h) dictates how much material the extruder processes, but linear output (meters/minute) determines how quickly you fulfill orders. Calculating linear output requires knowing the mass throughput, the pipe's outer diameter, the inner diameter, and the specific gravity of the polyurethane grade being used. Most pneumatic PU grades have a specific gravity around 1.15 to 1.25 g/cm³. By calculating the cross-sectional area and multiplying it by the material density, you determine the weight per meter of the tubing.

Once you establish the weight per meter, converting kg/h into actionable inventory metrics becomes straightforward. Divide the hourly mass output by 60 to get kilograms per minute, then divide that figure by the weight per meter. Facility managers must use these linear calculations to synchronize downstream coiling equipment and prevent end-of-line bottlenecks.

Core Components Influencing a PU Pipe Production Line's Capacity

Specific mechanical components dictate the maximum throughput of any extrusion setup. Upgrading a single part rarely yields proportional increases in output. The entire system must operate in harmony. The extruder, tooling, and downstream equipment act as a continuous chain. The weakest link in this chain establishes the absolute speed limit for the entire operation. Identifying and optimizing these core components pushes production closer to theoretical maximums.

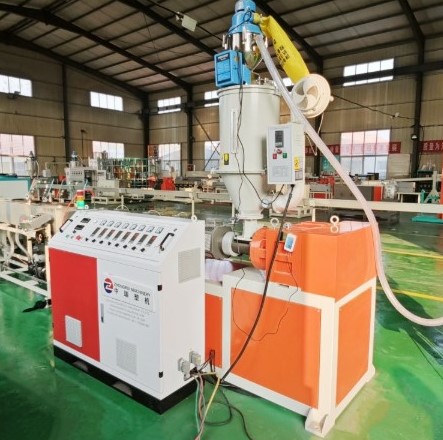

Extruder Motor Power and Screw Geometry

Drive motors provide the brute force necessary to turn the screw against immense backpressure. Standard configurations often utilize 22Kw AC motors paired with robust gearboxes to maintain consistent torque at high RPMs. Polyurethane is a highly viscous material that generates significant shear heat. The motor must deliver smooth, uninterrupted power to prevent surging. If the motor lacks sufficient torque, the screw RPM will fluctuate, causing immediate variations in the tube's wall thickness and overall diameter.

Screw geometry directly impacts how effectively the machine melts and conveys the polymer. Length to Diameter (L/D) ratios optimized for PU and TPU typically range from 28:1 to 30:1. This extended length allows for a gradual, controlled melting process. Polyurethane is highly sensitive to shear degradation. If the compression ratio of the screw is too aggressive, or if the flight depths are incorrect, the material will overheat and degrade before it even reaches the die. Proper screw design ensures a homogenous melt at high outputs without destroying the polymer's molecular structure.

Die Head Specifications and Tooling

Material flow dynamics through the die head strictly govern extrusion speed and surface quality. S136 mold steel is the industry standard for PU tooling due to its exceptional corrosion resistance and ability to hold a high polish. As polyurethane degrades slightly during processing, it can release acidic byproducts that pit and corrode inferior metals. S136 steel maintains its structural integrity, ensuring that the flow channels remain perfectly smooth even after thousands of hours of continuous high-pressure operation.

Chrome-plated surface treatments are mandatory for reducing friction within the die. Polyurethane tends to adhere to metal surfaces. Chrome plating prevents material hang-up, eliminates dead spots where polymer can stagnate and burn, and significantly boosts linear speed by reducing drag. Switching between standard 4mm to 16mm tooling profiles introduces output variations. Smaller dies create higher backpressure, requiring precise temperature control to prevent melt fracture. Larger dies reduce backpressure but demand massive cooling capacity to solidify the thick-walled tube before it deforms.

Downstream Synchronization

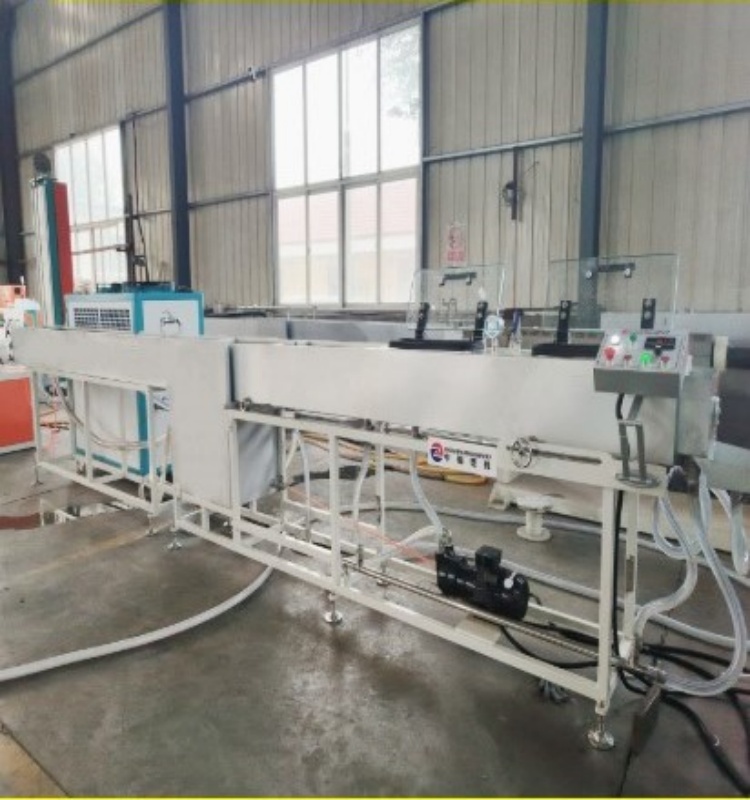

The vacuum calibration tank and cooling flume length often dictate the actual line speed limit. You can extrude polymer at 100 meters per minute, but if the cooling tank is only four meters long, the tubing will exit the tank still warm and immediately deform on the haul-off belts. High transparency in PU pipes requires rapid, uniform quenching. The water temperature must remain consistently chilled, usually between 10°C and 15°C, to lock in the amorphous structure of the polymer and prevent crystallization that causes cloudiness.

Servo-driven haul-off units pull the tubing through the cooling tanks at a highly regulated speed. These units must maintain exact tension without stretching or flattening the warm PU pipe. Standard AC motors on haul-off units often suffer from micro-fluctuations in speed, which translates directly into diameter variations. Servo motors provide absolute speed control, ensuring the tube retains its perfect roundness, which is required for maintaining its weather resistance, corrosion resistance, and ability to form an airtight seal with pneumatic push-in fittings.

Material Variables: How TPU/PU Characteristics Affect Extrusion Speed

The chemical and physical properties of the raw material interact directly with machine capabilities to influence final output. You cannot treat all polyurethane grades equally. A machine calibrated for a rigid TPU will perform vastly differently when fed a highly flexible PU grade. Evaluating these material dimensions allows operators to adjust thermal profiles and screw speeds to match the specific polymer behavior, thereby maximizing yield and preventing unexpected downtime.

Melt Flow Index (MFI) and Thermal Stability

The specific grade of PU or TPU dictates the maximum allowable screw RPM before material degradation occurs. Melt Flow Index (MFI) measures how easily the polymer flows when heated. High MFI materials flow easily, allowing for faster extrusion speeds and lower backpressure, but they often sacrifice ultimate burst pressure and abrasion resistance. Low MFI materials provide superior physical properties for high-pressure pneumatic applications but require higher torque and generate more shear heat during extrusion. Operators must balance these factors to maintain optimal output.

Polyurethane possesses a notoriously narrow processing temperature window. Unlike PVC or polyethylene, which can tolerate minor temperature fluctuations, PU will rapidly degrade if overheated by even a few degrees. This thermal sensitivity severely impacts throughput. If you attempt to increase output by simply raising the barrel temperatures, the material will burn, resulting in black specks and complete loss of physical properties. Precise PID temperature controllers and highly responsive barrel cooling fans are required to maintain the melt exactly within its stable processing window.

Moisture Management

Polyurethane is highly hygroscopic, meaning it absorbs moisture directly from the ambient air. Inadequate pre-drying is the single most common cause of output failure in a polyurethane pipe extrusion line. When wet PU enters the heated barrel, the trapped moisture instantly flashes into steam. This steam creates micro-bubbles within the polymer melt, leading to surface defects, loss of transparency, and catastrophic failure of the tube's high-pressure rating. Operators are forced to drastically slow down the line to try and vent the moisture, destroying overall yield.

Desiccant dryers are an absolute necessity for maintaining continuous high-speed output. Standard hot air dryers are insufficient because they simply blow ambient, moisture-laden air over the pellets. Desiccant systems use chemical beds to strip moisture from the air before heating it and passing it through the material hopper. PU must typically be dried to a moisture content of less than 0.02% before extrusion. Maintaining this extreme level of dryness ensures a smooth, bubble-free melt, allowing operators to run the extruder at maximum RPM without compromising the tube's structural integrity.

Comparing Standard vs. High-Speed Plastic Pipe Production Lines

Buyers weighing standard equipment against premium, high-speed alternatives must conduct a rigorous trade-off analysis. The goal is to determine which system provides the best overall value based on specific production demands. A high-speed line offers massive theoretical output, but if your facility lacks the downstream infrastructure or material handling capabilities to support it, the extra investment is wasted. Evaluating these factors ensures capital expenditure aligns with realistic operational capabilities.

Capital Expenditure (CapEx) vs. Output Gains

The initial investment of a standard 40-70 kg/h line is significantly lower than that of high-output or high-RPM models. Standard lines utilize conventional gearboxes and standard AC drives, making them reliable and easy to maintain. High-speed lines require precision-engineered gearboxes, specialized barrier screws, and massive cooling infrastructure to handle the increased throughput. Buyers must calculate the projected ROI timeline based on the increased yield and the reduced labor required per meter of pipe produced.

Running a high-speed line reduces the cost per meter by spreading fixed facility costs and operator wages over a larger volume of product. However, this only holds true if the machine runs consistently. If a high-speed line suffers from frequent downtime due to complex maintenance requirements or material handling bottlenecks, the actual ROI will fall far behind a reliable, standard-speed machine. Facilities with high-volume, single-product contracts benefit most from high-speed investments, while custom shops running frequent size changes are better served by standard equipment.

Single vs. Double-Outlet Configurations

Double-outlet extrusion lines offer significant operational benefits for manufacturing 4-8mm pneumatic air tubes. These dual-strand configurations split the polymer melt flow into two separate dies, allowing the machine to produce two tubes simultaneously. This setup maximizes the kg/h utilization of the extruder without exceeding the optimal cooling speeds of the downstream equipment. You effectively double the linear output of the machine while keeping the actual line speed manageable.

Pushing a single 4mm tube at 120 meters per minute requires an exceptionally long cooling tank and invites severe tension control issues. By using a double-outlet configuration, you can run two 4mm tubes at 60 meters per minute. This slower linear speed ensures perfect cooling, high transparency, and exact dimensional stability, all while achieving the same total hourly output. This approach is highly effective for maximizing the efficiency of a plastic pipe production line dedicated to small-diameter tubing.

Automation and Scrap Reduction

Automated laser diameter gauges and closed-loop feedback systems drastically minimize out-of-spec waste. These systems continuously measure the outer diameter of the tubing as it exits the cooling tank. If the diameter deviates from the set tolerance, the system automatically adjusts the haul-off speed or the extruder RPM to correct the issue in real-time. This eliminates the need for operators to manually measure the tube and make educated guesses on machine adjustments, saving thousands of meters of scrap material during long production runs.

Automated coiling and cutting units prevent end-of-line bottlenecks at high extrusion speeds. When producing small-diameter tubing at 80 meters per minute, manual spool changes are impossible without stopping or slowing down the line. Fully automated dual-station coilers automatically cut the tubing and switch to an empty spool once the target length is reached. This continuous operation ensures the extruder never has to slow down to accommodate downstream handling, allowing the facility to achieve true maximum output.

Implementation Risks and Yield Mitigation Strategies

Operational realities frequently prevent a facility from reaching the advertised output of their equipment. Environmental factors, operator skill levels, and raw material inconsistencies introduce variables that disrupt the extrusion process. Identifying these implementation risks and deploying specific mitigation strategies ensures the production line remains stable and profitable. Proactive management of the extrusion environment is just as critical as the mechanical capabilities of the machine itself.

Addressing Wall Thickness Variations

Concentricity issues at high line speeds critically lower the burst pressure resistance of pneumatic tubing. If the wall thickness is uneven, the tube will fail at its thinnest point when subjected to high-pressure air. These variations are often caused by die swell, where the polymer expands immediately after leaving the die, or by uneven cooling in the calibration tank. If the vacuum sizing sleeve is not perfectly aligned, or if the water flow is turbulent, the tube will warp and pull to one side, destroying its concentricity.

Mitigation tactics require precise vacuum sizing adjustments and the integration of melt pumps. A melt pump is a gear pump installed between the extruder and the die head. It takes the variable pressure generated by the extruder screw and delivers an absolutely constant, pulseless volume of polymer to the die. This eliminates surging and ensures a perfectly uniform wall thickness regardless of minor fluctuations in motor speed or material viscosity. Proper alignment of the vacuum calibration sleeve and controlled, laminar water flow further guarantee dimensional stability.

Maintenance Protocols for Sustained Output

Output degradation occurs gradually due to wear on the screw and barrel. As the abrasive fillers or rigid polymers wear down the flights of the screw, the clearance between the screw and the barrel wall increases. This allows polymer to slip backward over the flights, reducing the conveying efficiency and dropping the total kg/h output. Regular inspection and measurement of the screw flights are required to identify wear before it severely impacts production yields.

Chrome-plated or S136 steel components require strict maintenance requirements to maintain optimal flow rates and prevent surface defects on the finished hose. Operators must clean the die heads using only soft brass tools. Using steel scrapers will scratch the chrome plating, creating drag points that cause melt fracture and burn marks. Implementing a rigorous purging protocol using dedicated purging compounds prevents degraded PU from carbonizing inside the die during shutdowns, ensuring a clean startup and immediate production of sellable tubing.

Conclusion

1. Request a Factory Acceptance Test (FAT) using the exact PU/TPU grade and die sizes intended for production to verify actual yield and physical properties before signing off on equipment delivery.
2. Audit your facility's material handling capabilities to ensure desiccant dryers can maintain a moisture content below 0.02% at maximum throughput to prevent line slowdowns.
3. Calculate the required cooling tank length based on your target linear speed and the specific gravity of your heaviest-walled tubing to avoid downstream deformation.
4. Implement closed-loop laser diameter gauges on the extrusion line to eliminate manual measurement errors and automatically adjust haul-off speeds in real-time.

FAQ

Q: What is the average extrusion output of a standard PU pipe production line?

A: A standard commercial line utilizing a 22Kw motor typically yields between 40 to 70 kg/h. The exact output depends heavily on the screw geometry, the specific grade of polyurethane being processed, and the efficiency of the downstream cooling equipment.

Q: How does pipe diameter affect the production speed of PU pipes?

A: Linear production speed drops significantly as pipe diameter and wall thickness increase. A 4mm tube might run at 80 meters per minute, while a 16mm tube on the same machine may only reach 15 meters per minute due to the massive increase in material volume requiring cooling.

Q: How does extrusion speed impact the transparency and pressure resistance of PU pneumatic tubing?

A: Pushing extrusion speeds beyond the cooling capacity of the line prevents the polymer from quenching rapidly. This slow cooling induces crystallization, turning the clear tube cloudy. Excessive speed also causes melt fracture and uneven wall thickness, drastically lowering burst pressure resistance.

Q: Can a polyurethane pipe extrusion line process both PU and TPU materials efficiently?

A: Yes, these lines handle both PU and TPU, provided the screw features an optimized L/D ratio (typically 28:1 to 30:1) to manage the shear sensitivity of both materials. Operators must adjust thermal profiles and pre-drying parameters when switching between grades.

Q: Are double-outlet configurations viable for maximizing output in a plastic pipe production line?

A: Double-outlet configurations are highly effective for 4-8mm tubing. They split the melt flow to produce two tubes simultaneously, effectively doubling the linear output without exceeding the cooling tank's capacity or causing tension control issues associated with ultra-high-speed single lines.

Q: Why is cooling tank length critical for high-speed pneumatic air tubing production?

A: The cooling tank dictates the absolute speed limit of the line. If the tubing exits the tank before fully solidifying, it will deform on the haul-off belts. High-speed production requires extended cooling flumes with chilled water (10-15°C) to lock in dimensions and transparency.
