Processing thermoplastic polyurethane (TPU) and standard polyurethane elastomers presents distinct challenges on the factory floor. These materials are highly shear-sensitive, aggressively hygroscopic, and operate within extremely narrow temperature windows. Running them with standard, off-the-shelf screw geometries guarantees failure. You will experience polymer degradation, poor melt homogenization, and severe dimensional variations in the final product. High scrap rates quickly destroy profit margins. Achieving stable throughput and high-quality output requires a highly specified screw design tailored directly to the resin's rheology. This guide evaluates the specific screw geometries, thermal management requirements, and system configurations necessary to build a high-performance extrusion setup. We focus on practical adjustments that keep production running smoothly.
Polyester-based and polyether-based TPUs behave entirely differently inside the extruder barrel. You must understand these differences to optimize screw geometry. Operators often struggle when switching between these two grades without adjusting the machine setup.
Polyester TPUs offer high mechanical strength. They provide excellent heat resistance and superior oil resistance. However, they possess a higher melt viscosity. This high viscosity means the material resists flow, generating significant internal friction as the screw rotates. A deeper flight profile suits a highly viscous polyester grade. It prevents excessive shear generation. If you run polyester TPU on a shallow-flighted screw, the mechanical shear will overheat the melt, causing immediate degradation.
Polyether TPUs provide superior hydrolysis resistance. They maintain excellent low-temperature flexibility. They generally exhibit a lower melt viscosity compared to polyester grades. Because the material flows more easily, polyether grades often require tighter clearances between the screw flight and the barrel wall. This tighter clearance maintains forward conveying pressure and prevents the less viscous melt from flowing backward over the flights.
The hard and soft segments within the TPU matrix react differently to mechanical stress. The screw must balance distributive mixing without fracturing the polymer chains. When designing the screw profile, engineers must account for the specific Shore hardness of the target material. A 70 Shore A polyether TPU requires a vastly different melting strategy than a 55 Shore D polyester TPU.
TPU is notoriously hygroscopic. It absorbs moisture from the ambient air rapidly. You must implement rigorous pre-extrusion drying protocols. Leaving a gaylord of TPU open on the shop floor for even an hour can ruin the batch.
Residual moisture acts as a potent plasticizer. It causes severe hydrolysis within the barrel during extrusion. Heat and moisture combine to break the urethane bonds. This chemical reaction drastically drops the melt viscosity. Even the most optimized screw geometry becomes entirely ineffective under these conditions. The screw loses its ability to generate stable pressure.
Excess moisture leads to foaming. It causes surface defects and dimensional instability in the final PU pipe. You will hear distinct popping sounds as the melt exits the die, and you will see splay marks along the surface of the tubing. You cannot correct moisture-induced viscosity drops through screw speed adjustments or barrel temperature changes. The only fix is proper drying.
Elastomers are highly sensitive to aggressive shear forces. Excessive shear breaks down the polymer chains rapidly. This molecular weight reduction leads to a massive loss of physical properties. The final tubing will fail burst pressure tests. You will also notice distinct visual defects. Gels, fisheyes, and localized bubbles will appear in the extruded product.
A successful screw design maximizes mixing capability while minimizing localized shear peaks. We focus on gentle melting mechanisms. Aggressive mechanical shearing is strictly avoided. The channel depth in the metering zone must be deep enough to limit the shear rate. However, it must remain shallow enough to ensure complete melting and adequate pressure generation.
Operators can identify shear degradation by examining the purge patty. If the purged TPU is significantly darker than the virgin pellets or exhibits a brittle texture once cooled, the screw is generating too much shear. Finding the exact geometric balance dictates the success of the extrusion operation.
Industry-standard L/D ratios for these materials typically range from 24:1 to 30:1. This extended length provides adequate residence time. It allows the TPU to melt gently without thermal degradation. Short screws force rapid melting, which invariably spikes shear rates.
Compression ratios should remain low to medium. We generally specify ratios between 2.5:1 and 3:1. This ensures a gradual transition from the solid feed zone to the metering zone. High compression ratios cause severe overheating in elastomers.
An elongated, gradual transition zone is strictly necessary. It often comprises 30% to 40% of the total screw length. This extended zone prevents rapid compression spikes. It mitigates localized overheating. The solid bed melts progressively over several flights. This prevents unmelted plugs from surging forward into the metering section.
| Screw Zone | Percentage of Total Length | Primary Function | Design Consideration for Elastomers |
|---|---|---|---|
| Feed Zone | 25% - 30% | Solid conveying and pre-heating | Deep flights to maximize intake volume; requires core cooling to prevent bridging. |
| Transition Zone | 35% - 40% | Compression and melting | Elongated profile to ensure gentle, low-shear plasticization. |
| Metering Zone | 25% - 30% | Pumping and final homogenization | Moderate depth to balance pressure generation with shear limitation. |
| Mixing Section | 5% - 10% | Distributive mixing | Low-shear Maddock or pineapple mixers; avoid aggressive dispersive elements. |
Barrier screw designs utilize specialized secondary flights in the transition zone. This geometry physically separates the solid bed from the melt pool. As the polymer melts against the heated barrel wall, it flows over the undercut barrier flight. It then collects in a dedicated melt channel.

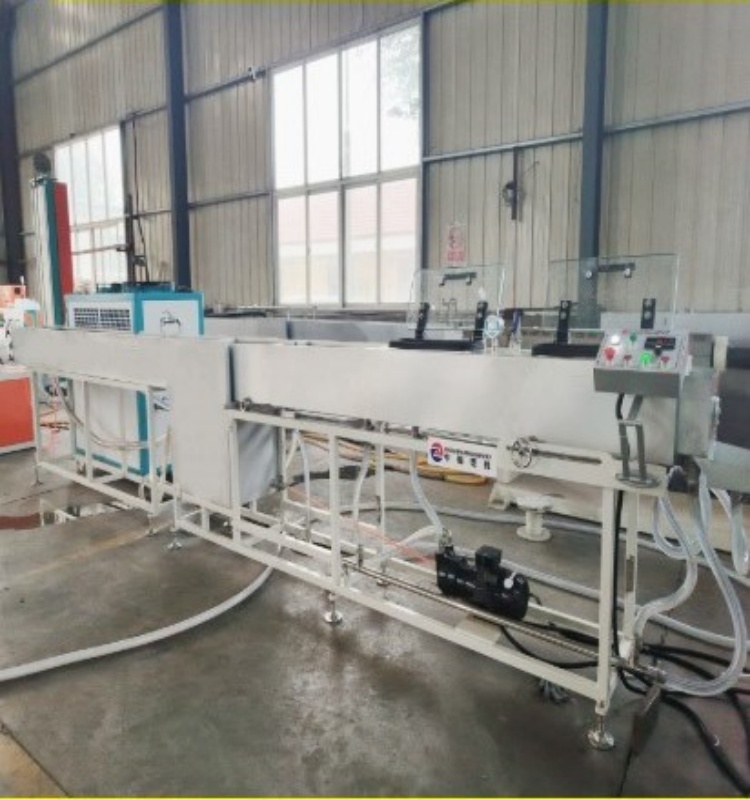

This mechanism prevents unmelted solid particles from reaching the die. It ensures a completely homogenous melt. It guarantees consistent wall thickness. When operating a PU pipe production line, barrier technology significantly reduces pressure surging. The barrier clearance must be machined precisely. If the clearance is too large, unbelted solids slip through. If it is too tight, shear heating skyrockets.
Standard single-flighted screws often struggle with TPU because the solid bed can break apart prematurely. These solid fragments float in the melt stream and cause severe gauge variations at the die. The barrier flight acts as a physical filter, ensuring only fully plasticized material moves forward.
Selecting the correct extruder platform depends entirely on the material formulation.

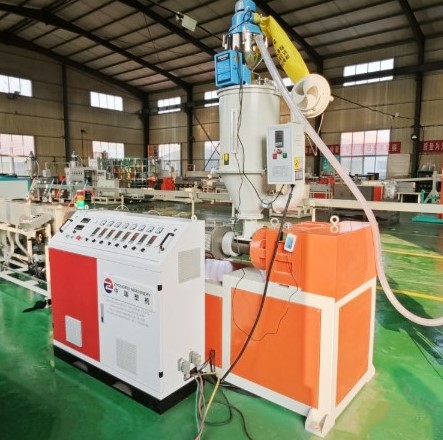

Single screw extruders excel in producing standard, uncompounded TPU medical tubes and pneumatic hoses. They offer a smaller footprint. They require a lower initial investment. They provide excellent baseline precision for neat resins. For most standard tubing applications, a well-designed single screw is the optimal choice.
Conversely, co-rotating twin-screw extruders are mandatory for specialized applications. Fiber-reinforced TPU requires intense distributive and dispersive mixing. Single screws simply cannot provide this level of compounding. If you attempt to run heavily filled TPU on a single screw, you will experience poor dispersion, resulting in weak spots in the final tubing.
When comparing twin-screw configurations, we evaluate conical versus parallel designs. Conical twin screws generate high pressure efficiently at the die. Parallel twin screws deliver superior, consistent dispersion along the entire barrel length. Parallel designs minimize dispersion risks. They allow for complex compounding directly within the polyurethane pipe extrusion line.
| Feature | Single Screw Extruder | Parallel Twin Screw | Conical Twin Screw |
|---|---|---|---|
| Primary Application | Neat TPU, Medical Tubing | Highly Compounded TPU | High-Pressure Profile Extrusion |
| Mixing Capability | Low to Medium (Distributive) | Excellent (Dispersive & Distributive) | Good (High Shear) |
| Shear Generation | Low (with Barrier Design) | Medium to High (Configurable) | High |
| Maintenance Complexity | Simple, straightforward screw pulls | Complex, requires precise alignment | Specialized gearbox maintenance |
Shear heating occurs when the mechanical action of the screw generates internal friction. This viscous dissipation often pushes melt temperatures far beyond the barrel heater settings. Elastomers are highly susceptible to this phenomenon due to their viscosity profiles.
Engineering best practices dictate a specific safety margin. You should design the screw geometry to develop a melt temperature approximately 10°F below the manufacturer's recommended melt point. This buffer protects against thermal degradation during unexpected pressure spikes.
The barrel cooling system manages minor temperature fluctuations. Relying on barrel cooling to fix a high-shear screw design will fail. The polymer acts as an insulator. The core of the melt stream will degrade even if the barrel wall remains cool. Operators often notice that the barrel cooling fans run continuously when processing TPU. This indicates that the screw is generating excess shear heat, and the machine is fighting to maintain the setpoint.
Internal screw cooling systems are often necessary in the feed and transition zones. Bored screws allow temperature-controlled fluid to circulate through the core. You connect a rotary union to the shank of the screw to supply the fluid.
Active core temperature regulation prevents premature melting in the feed throat. This premature melting is known as bridging. It blocks resin flow entirely and halts production. By keeping the feed section of the screw cool, the solid pellets maintain friction against the barrel wall. This friction is necessary for forward conveying.
Proper core cooling stabilizes throughput and maintains consistent feed rates regardless of ambient factory temperatures. Without core cooling, the screw can become too hot, causing the TPU pellets to stick to the root of the screw rather than the barrel wall. When this happens, the material simply spins with the screw instead of moving forward, causing a complete loss of output.
Integrating a gear or melt pump between the extruder and the die head provides a massive strategic advantage. The melt pump acts as a positive displacement device. It relieves the extruder screw from the burden of generating the total die pressure.
This separation of duties allows the screw to operate at lower RPMs. Lower speeds drastically reduce shear stress on the TPU. The melt pump ensures surge-free, dimensionally perfect extrusion across the entire plastic pipe production line.
It eliminates the low-frequency pressure variations inherent to single-screw extrusion. You achieve tighter tolerances on wall thickness. This directly reduces material waste and improves product consistency. The control system synchronizes the extruder drive with the melt pump drive. A pressure transducer located before the pump monitors the suction pressure. The PLC automatically adjusts the extruder screw speed to maintain a constant feed of melt into the pump gears.
Screw diameter directly maps to expected throughput capacities. Precision medical tubing often utilizes 30mm machines. These small extruders yield around 5kg/h to 10kg/h. Industrial applications require massive systems. You might specify up to 150mm screws to achieve 500kg/h output rates.
Scaling screw design is strictly non-linear. You cannot simply multiply dimensions by a scale factor. Heat transfer dynamics change drastically as the screw diameter increases. The volume of polymer increases faster than the surface area of the barrel.
Flight depths, barrier clearances, and zone lengths must be mathematically recalculated. This ensures you maintain identical melt quality and temperature stability at higher production volumes. A screw profile that works perfectly on a 45mm lab line will likely cause severe thermal degradation if scaled directly to a 90mm production machine without adjusting the compression ratio and channel depths.
Abrasive additives severely impact screw metallurgy. Glass fibers or mineral fillers scour the steel surfaces constantly. Corrosive byproducts from certain flame-retardant elastomer grades also accelerate wear.
Specialized surface treatments extend screw lifespan significantly. You should specify bimetallic coatings for the barrel lining. Hard-facing alloys must be welded onto the screw flight lands. Maintaining tight clearances between the screw flights and the barrel wall over time is essential.
As wear increases this clearance, leakage flow occurs. This leakage reduces throughput, increases residence time, and elevates melt temperatures. Investing in robust metallurgy prevents these processing drifts. Tungsten carbide coatings offer excellent protection against abrasive wear, while specific nickel-based alloys resist corrosive attacks from flame-retardant additives.
When processing elastomers, operators must quickly identify whether a defect originates from the screw design or external factors. Follow these diagnostic steps to isolate the root cause:
A: The ideal compression ratio typically ranges between 2.5:1 and 3:1. This low to medium ratio ensures a gradual transition from the solid feed to the melt phase. It prevents excessive shear heating and polymer degradation, which are common when processing sensitive elastomers with high-compression geometries.
A: No. Standard PVC or PE screws lack the specialized elongated transition zones and barrier geometries required for elastomers. Using them causes excessive shear, poor mixing, and severe thermal degradation of the material. Elastomers require gentle melting profiles that general-purpose screws cannot provide.
A: Residual moisture acts as a plasticizer and causes hydrolysis inside the barrel under high heat. This chemical reaction drastically lowers melt viscosity, rendering the screw's geometry ineffective for building pressure. It ultimately results in foaming, bubbles, and severe dimensional instability in the final product.
A: Bubbles and surface defects usually stem from two main issues: inadequate pre-drying of the hygroscopic resin or excessive shear heating within the screw. Both problems degrade the polymer matrix and release gasses into the melt stream, which manifest as visual defects upon exiting the die.
A: You should choose a twin-screw extruder when processing highly compounded materials or fiber-reinforced elastomers. Twin screws provide the intense dispersive and distributive mixing required for these complex formulations. Single screws lack the mechanical capability to homogenize heavy filler loads effectively.
A: A barrier screw physically separates the solid polymer bed from the melted pool using secondary flights. This prevents unmelted particles from surging forward and reaching the die. It ensures a completely homogenous melt, stable pressure, and highly consistent pipe wall thickness.
A: The recommended Length-to-Diameter (L/D) ratio is generally between 24:1 and 30:1. This extended length provides sufficient residence time to gently melt the polymer. It ensures complete plasticization without subjecting the material to aggressive, degradation-inducing shear forces common in shorter barrels.
