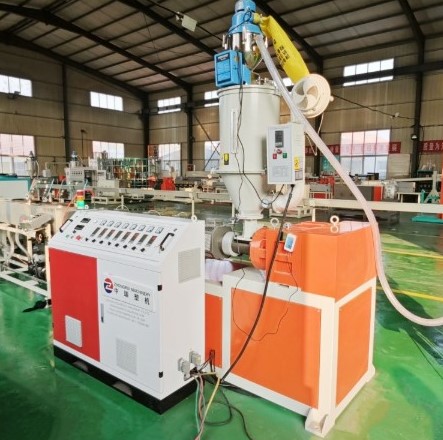

Which Cutting and Winding Systems Suit PU Pipe Production?

Polyurethane presents specific material handling challenges during extrusion. Its high elasticity, distinct shape memory, and melt viscosity make it highly susceptible to deformation immediately after leaving the die. Unlike rigid polymers, polyurethane remains pliable and sensitive to tension long after it enters the cooling phase. If downstream equipment applies incorrect pressure or speed, the material stretches, flattens, or warps.

Mismatched downstream equipment creates severe operational bottlenecks. When a production setup uses generic haul-offs, cutters, or winders, the results are predictable: crushed profiles, inaccurate cut lengths, and excessive scrap rates. These downstream failures negate the efficiency gains achieved by high-performance upstream extruders. You end up producing out-of-spec tubing that fails quality control, wasting raw material and operator time.

Selecting the correct cutting and winding systems requires evaluating tension control capabilities, cutting mechanisms, inline quality validation, and synchronization with the main extruder to ensure continuous, high-yield manufacturing.

  • Tension Control is Non-Negotiable: Winding systems for PU pipe must feature precise, closed-loop tension control to prevent stretching or flattening of the flexible tubing.
  • Cutting Precision Dictates Quality: Servo-driven rotary or planetary cutters are required to achieve clean, square cuts on PU without inducing ovality or leaving burrs.
  • Synchronization Eliminates Bottlenecks: Downstream equipment must seamlessly integrate with the polyurethane pipe extrusion line's PLC to match line speeds, melt viscosity, and cooling behaviors dynamically.
  • Reinforcement Requires Specialized Handling: Producing high-pressure PU tubing demands specialized winding systems capable of integrating fiberglass tape or steel wire wrapping (RTP).
  • Scalability Requires Automation: Dual-station winders with automatic crossover, cutting, and inline quality validation significantly reduce manual intervention and minimize downtime in high-volume production.

The Unique Downstream Demands of PU Pipe

Polyurethane behaves differently than rigid polymers like PVC or high-density polyethylene. Its flexibility and wide range of Shore hardness variations require specialized handling. PU retains thermal energy longer than many other plastics. Because it stays soft for an extended period, any mechanical stress applied during the cooling phase permanently alters its dimensions. Standard downstream equipment lacks the finesse required to handle this sensitivity.

Viscosity and Melt Behavior

The specific melt viscosity of polyurethane dictates strict parameters for haul-off speeds. When the polymer exits the die, it is highly viscous but lacks structural integrity. If the haul-off pulls too aggressively, the tubing stretches, reducing the wall thickness and altering the inner diameter. You must calibrate downstream handling equipment to apply zero-tension pulling.

The haul-off belts must grip the tubing with enough surface area to move it forward without crushing the profile or inducing longitudinal stress. We often see operators struggle with this when running softer Shore A compounds. The material acts like a rubber band. You need long, soft-caterpillar haul-offs to distribute the pulling force evenly. Adjusting the pneumatic pressure on the upper caterpillar track is mandatory; too much pressure flattens the tube, while too little causes slippage and inconsistent line speeds.

The Cooling-to-Winding Window

A direct relationship exists between melt temperature, cooling bath efficiency, and the exact moment the tubing enters the winding stage. If the cooling bath is too short or the water temperature is improperly managed, the core of the tubing remains warm even if the outer skin feels cool. Winding a warm tube causes the layers on the spool to compress the inner layers. This compression flattens the tubing, ruining the batch.

To prevent this, implement a multi-zone cooling strategy:

  1. Zone 1: Warm water shock prevention (typically 40-50°C) to prevent surface cracking and manage the initial shrinkage rate.
  2. Zone 2: Chilled water immersion (10-15°C) for rapid core heat extraction.
  3. Zone 3: Extended ambient water cooling to stabilize the final dimensions before the haul-off.

You must calculate the exact cooling distance required for your specific line speed before the material ever reaches the winder. Vacuum sizing tanks also require careful calibration. Applying too much vacuum to a soft PU tube will suck the walls outward, causing the tube to rupture inside the sizing sleeve.

Why Standard Equipment Fails

Operators run into massive operational risks when utilizing a generic plastic pipe production line for polyurethane. Generic cutters often use pneumatic guillotine blades that pinch the flexible tubing before slicing it, resulting in angled, deformed ends. Standard winders lack micro-tension adjustments, leading to over-tensioning. Standard rotary blades generate friction that can melt the cut edge of the PU, leaving unacceptable burrs. Specialized equipment is mandatory to preserve the integrity of the extruded profile.

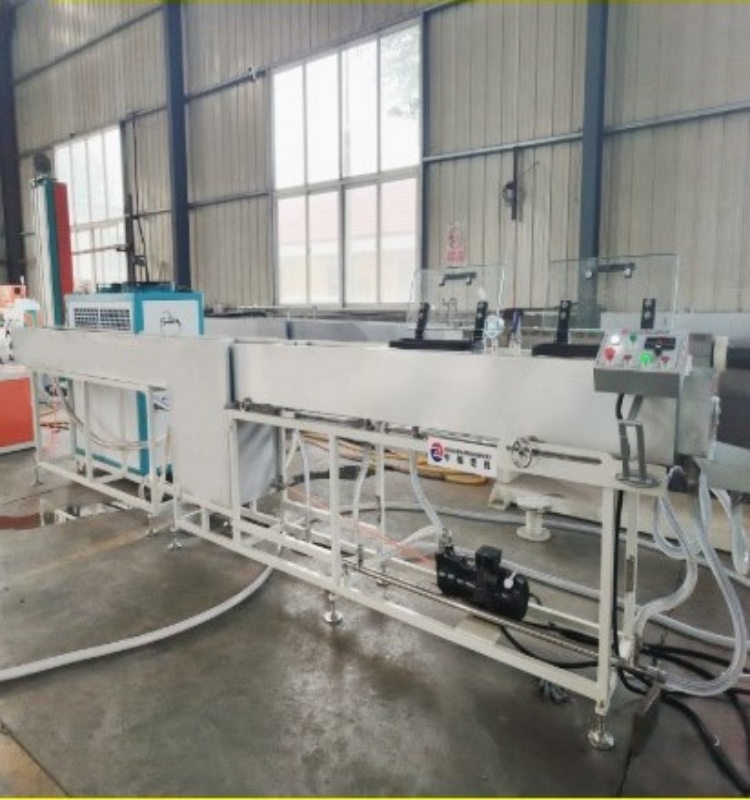

PU pipe cutting and winding systems

Evaluating Winding Systems for Polyurethane Pipes

Winding flexible tubing requires a delicate balance of speed and tension. The winder must pull the material fast enough to keep up with the extruder, but gently enough to avoid stretching. This balance is achieved through advanced drive technologies and precise mechanical configurations.

Tension Control and Speed Synchronization

Closed-loop dancer systems are the backbone of proper tension control. A dancer arm accumulator uses a series of rollers mounted on a pivoting arm. As the tubing feeds into the winder, the arm moves up and down to absorb minor speed fluctuations. Load cells measure the exact tension applied to the tubing. This closed-loop feedback tells the winder to speed up or slow down instantly, maintaining consistent tension regardless of how large the spool diameter grows.

Standard variable frequency drives often lack the rapid response times needed for this process. Servo-driven motors are far superior for winding applications. Servos execute micro-adjustments in winding speed in milliseconds. This rapid response prevents the ovality or flattening that occurs when tubing is wound too tightly while it still retains residual core heat from the extrusion process.

Winder Configurations: Single vs. Dual Station

Single station winders are suitable for lower-speed lines or batch production runs. They have a smaller footprint and are mechanically simpler. However, they require significant manual labor. When a spool is full, an operator must manually cut the tubing, secure the end, remove the heavy spool, and thread the material onto a new spool. This process inherently slows down production and introduces the risk of human error.

Fully automatic dual station winders provide a massive upgrade for continuous manufacturing. When the first spool reaches its programmed length, the winder automatically transfers the tubing to the second empty spool. An integrated cutting mechanism severs the line, and the machine secures the new end without slowing down the extrusion line. This continuous operation maximizes throughput and ensures consistent spooling quality.

Winding Solutions for Reinforced PU Pipes (RTP)

Producing Reinforced Thermoplastic Pipes (RTP), such as high-pressure pneumatic or hydraulic hoses, introduces complex winding requirements. These composite structures often feature an inner PU core, a reinforcement layer, and an outer PU jacket. The winding system must handle a much heavier, stiffer product while maintaining the same precision.

Integration with braiding and wrapping machinery is mandatory. During continuous filament winding processes, steel wire, fiberglass UD tape, or aramid fibers are wrapped around the core. The winder must synchronize perfectly with these intermediate wrapping stations. If the winder pulls unevenly, the reinforcement layers will bunch up or gap, compromising the burst pressure rating of the final product. The tension requirements for the inner liner differ vastly from the final jacketed product, requiring multi-stage tension control profiles within the winder's PLC.

Traverse Mechanisms and Pitch Control

Spooling accuracy depends heavily on the traverse mechanism. The traverse guides the tubing back and forth across the width of the spool. Programmable traverse pitch control ensures the tubing lays flat and even. If the pitch is too wide, gaps form between the coils. If the pitch is too narrow, the tubing overrides itself, causing tangles and crushing the layers beneath it.

Mechanical rolling ring drives, commonly known as Uhing drives, offer reliable traverse movement for standard applications. However, fully programmable servo-driven traverse systems provide superior flexibility. Servo traverses allow operators to input specific tubing diameters into the control panel, and the machine automatically calculates the perfect pitch. This eliminates manual mechanical adjustments during product changeovers.

Troubleshooting Common Winding Defects

Even with advanced equipment, operators must monitor the spooling process for common defects. Identifying these issues early prevents massive scrap generation.

  • Telescoping Spools: This occurs when the layers of tubing slide sideways off the core, creating a cone shape. It is usually caused by insufficient winding tension or a misaligned traverse guide. Increasing the dancer arm tension slightly and verifying the traverse reversal points will correct this.
  • Crushed Inner Layers: If the tubing at the core of the spool is flattened while the outer layers remain round, the winding tension is too high, or the tubing was spooled while still warm. Reduce the taper tension settings in the PLC so the winder applies less force as the spool diameter increases.
  • Surface Scuffing: Abrasions on the outer jacket of the PU tube indicate friction within the downstream equipment. Check the traverse guide rollers to ensure they spin freely and are not dragging against the material.

Selecting the Right Cutting Technology for PU Pipe

Cutting flexible polyurethane requires a completely different approach than cutting rigid PVC. The elasticity of the material means that blunt force or slow cutting actions will deform the profile before severing it. You must select a cutting mechanism that slices cleanly and rapidly.

Rotary vs. Guillotine Cutting Mechanisms

Pneumatic guillotine cutters are widely used in basic extrusion setups, but they present severe limitations when processing flexible tubing. A guillotine blade presses down on the material, forcing it against a lower block. With polyurethane, this action pinches the walls together before the blade actually cuts through. The result is a deformed, oval-shaped cut end that often requires manual trimming.

High-speed, servo-driven rotary cutters are the industry standard for flexible tubing. A rotary cutter spins a thin, razor-sharp blade at incredibly high RPMs. As the blade passes through the material, it slices cleanly without applying downward crushing force. This provides a perfect 90-degree cut, maintaining the roundness and structural integrity of the tubing wall.

Feature Pneumatic Guillotine Cutters Servo-Driven Rotary Cutters
Cutting Action Downward pressing/chopping force. High-speed slicing motion.
Impact on PU Tubing Pinches and deforms the profile; causes ovality. Clean, 90-degree cut; maintains wall integrity.
Speed Capabilities Limited by pneumatic cylinder response time. Extremely fast; ideal for high-speed lines.
Best Application Rigid profiles, low-speed applications. Flexible tubing, medical tubes, high-speed lines.

Flying Shear and Continuous Line Synchronization

Because the extrusion line never stops, the cutting mechanism must move with the tubing to ensure a straight cut. Flying shear systems travel alongside the moving material during the cutting cycle. The cutter carriage accelerates to match the exact speed of the extrusion line, performs the cut, and then rapidly returns to its home position.

Achieving tight cut-length tolerances requires precise encoder feedback. An encoder mounted on the haul-off unit tracks the exact length of tubing passing through. It sends this data to the cutter's PLC. When the programmed length is reached, the flying shear activates. This synchronization ensures precision and eliminates line disruption.

When processing reinforced materials, standard razor blades fail instantly. Cutting PU pipe reinforced with steel wire or fiberglass requires specialized hardened blades or planetary cutting mechanisms. Planetary cutters use a spinning router bit or saw blade that orbits the circumference of the pipe, cutting through the tough reinforcement layers without crushing the inner core.

Swarf-less (Dust-Free) Cutting Requirements

Many polyurethane applications, such as pneumatic logic lines, medical fluid transfer, or clean-room environments, demand absolute purity. Traditional saw cutting generates swarf—tiny plastic chips and dust that contaminate the inside of the tubing. Swarf-less cutting techniques are mandatory for these high-purity applications.

Blade geometry and material play a massive role in swarf-less cutting. Thin, highly polished blades reduce friction and prevent material buildup. Polyurethane generates significant static electricity during the cutting process, which causes any generated dust to cling stubbornly to the inner walls of the tube. Implementing static elimination bars directly before the cutter neutralizes this charge.

In some cases, hot knife cutting is employed. A heated blade slices through the PU, simultaneously sealing the edge and preventing any particulate generation. The temperature must be strictly controlled to prevent burning or degrading the polymer. For high-speed lines, pneumatic chip extraction systems are integrated into the cutter housing to vacuum away any micro-particles before they enter the tubing.

Integrating Downstream Systems into the Polyurethane Pipe Extrusion Line

Standalone downstream equipment creates isolated data silos and forces operators to manage multiple control panels. To achieve maximum efficiency, the haul-off, cutter, and winder must operate as a unified system integrated directly with the main extruder.

PLC and HMI Centralization

Integrating the cutter and winder PLCs with the master extrusion control panel is standard for modern manufacturing. Industrial communication protocols like PROFINET or EtherCAT allow high-speed data transfer between all machines on the line. An operator can monitor line speed, winder tension, and cut length from a single Human-Machine Interface (HMI).

Centralized recipe management drastically reduces setup time. Instead of manually adjusting the tension on the winder, the speed on the haul-off, and the pitch on the traverse, an operator simply selects a pre-programmed recipe for a specific polyurethane pipe extrusion line product. The PLC automatically pushes the correct parameters to every piece of downstream equipment, eliminating operator error during product changeovers.

Inline Quality Control and Validation

Quality control cannot wait until the spool is finished. Real-time monitoring must occur directly before the cutting and winding stages. Integrating laboratory-grade equipment into the production line ensures continuous validation. Multi-axis laser diameter gauges measure the outer dimensions from multiple angles, detecting any ovality or sizing variations instantly. Ultrasonic wall thickness sensors monitor the internal concentricity of the tubing.

Advanced setups utilize closed-loop feedback from the laser micrometer to directly adjust the haul-off speed. If the tube diameter starts to run large, the PLC slightly increases the haul-off speed to draw the material down to the correct specification. When these sensors detect a defect that cannot be corrected, the system reacts automatically. The PLC triggers the cutter to isolate the defective section. An automated rejection system then kicks the out-of-spec segment off the line before it reaches the winder. This guarantees that only 100% quality-validated tubing is spooled for shipment.

Footprint and Layout Considerations

Adding advanced downstream equipment requires careful space optimization within an existing plant layout. Accumulators, flying shear cutters, and fully automatic dual-winders consume significant floor space. You must map out the physical footprint to ensure smooth material flow.

Layout planning requires leaving at least 1.5 meters of clearance around the winder for forklift access. Dual-station spools are heavy, and operators need unobstructed paths to remove finished reels safely. Safety and compliance are paramount when implementing automated cutting and winding zones. These machines feature high-speed moving parts, sharp blades, and heavy rotating masses. Proper safety guarding, interlocking doors, and light curtains are strictly required to protect operators and maintain CE or OSHA compliance.

Implementation Risks and Commissioning Pitfalls

Deploying a new PU pipe production line involves significant technical execution. Even with top-tier equipment, improper setup and lack of maintenance will quickly derail production efficiency.

Common Setup and Commissioning Pitfalls

Synchronization failures are the most common issue during the initial startup phase. If the haul-off, cutter, and winder are not perfectly calibrated to communicate with each other, the line will fail. A haul-off running slightly faster than the winder creates material slack, causing the tubing to drag on the floor. A winder running faster than the haul-off creates extreme tension, snapping the tubing or stretching it beyond acceptable tolerances.

Inadequate cooling remains a persistent pitfall. Operators often try to increase line speeds to boost output without extending the cooling baths. No winder, regardless of how advanced its tension control is, can compensate for tubing that has not been sufficiently cooled. Winding warm polyurethane guarantees spool-crushing and ovality defects.

Maintenance and Wear Parts

Proactive maintenance is required to keep downstream equipment running at peak precision. You must identify and monitor high-wear components. Cutting blades dull over time, leading to jagged cuts and increased friction. Traverse belts stretch, causing inaccurate pitch control and messy spooling. Dancer pneumatics and load cells require regular calibration to ensure they are reading tension accurately.

Mechanical maintenance on the flying shear is also required. You must grease the linear bearings regularly and check the encoder couplings for backlash. Establish a strict replacement frequency for these consumables based on operating hours, not just when they fail. Running a dull blade on a high-speed line will immediately spike your scrap rates, wasting expensive raw material and negating the productivity of the entire shift.

Conclusion

  1. Request material trial runs with equipment manufacturers using your specific polyurethane compounds to verify tension control and cut quality before finalizing any purchase.
  2. Audit your current cooling bath length and water temperature zones to ensure the tubing will be fully set before it reaches the new winding equipment.
  3. Integrate multi-axis laser diameter gauges directly into your PLC network to automate the rejection of out-of-spec segments prior to spooling.
  4. Standardize your cutting mechanism to a servo-driven rotary system to eliminate ovality and prevent swarf contamination in the final product.

FAQ

Q: What is the best cutting method for flexible PU pipe?

A: High-speed, servo-driven rotary cutters are the best method. They use a razor-sharp blade that slices cleanly through the flexible material without applying the downward crushing force typical of guillotine cutters. This prevents ovality and ensures a perfect 90-degree cut.

Q: How do you prevent PU pipe from flattening during the winding process?

A: Flattening is prevented by utilizing closed-loop dancer systems with load cells to maintain precise, near-zero tension. Additionally, ensuring the tubing is completely cooled before it reaches the winder prevents the inner layers from compressing under the weight of the outer layers.

Q: Can standard plastic pipe production line winders be used for polyurethane?

A: Generally, no. Standard winders often lack the micro-tension adjustments and rapid servo responses required for highly elastic materials. Using them on polyurethane typically results in over-tensioning, stretching, and permanent deformation of the tubing profile.

Q: How do winding systems differ for reinforced polyurethane (RTP) pipes?

A: RTP winding systems must handle heavier, stiffer composite structures. They require specialized traverse mechanisms to manage the increased weight and must synchronize perfectly with intermediate braiding or wrapping stations that apply steel wire or fiberglass tape.

Q: What is the role of a dancer accumulator in a PU pipe production line?

A: A dancer accumulator absorbs minor speed fluctuations between the haul-off and the winder. It uses a pivoting arm and load cells to measure tension, sending real-time feedback to the winder's drive to speed up or slow down, ensuring consistent spooling tension.

Q: How is inline quality control integrated into the winding process?

A: Laser diameter gauges and ultrasonic thickness sensors are installed just before the cutter. They monitor dimensions in real-time. If a defect is detected, the PLC automatically triggers the cutter to isolate the bad segment and a rejection mechanism removes it before spooling.
