Which Materials Can a PU Pipe Production Line Process?

Industrial demand for high-abrasion, highly flexible piping solutions places strict performance requirements on manufacturing equipment. Misalignment between raw material specifications and extrusion equipment capabilities introduces severe operational risks. Treating a specialized extrusion setup like a generic plastic manufacturing system inevitably leads to thermal degradation, moisture-induced defects, and unacceptable scrap rates. You need a technical evaluation framework to clarify material compatibility before running production. We will break down exactly which polymers, reinforcement yarns, and co-extrusion materials a dedicated extrusion setup can reliably process. By matching material chemistry with machine configuration, operators eliminate production bottlenecks, reduce material waste, and ensure the final product meets stringent industrial standards.

• Primary Capability: Thermoplastic Polyurethane (TPU) is the core material, divided strictly into polyether (water-resistant) and polyester (oil/abrasion-resistant) grades, each requiring specific thermal profiling.
• Cross-Compatibility: While optimized for PU, these lines can often process other thermoplastic elastomers (TPE, TPV) and flexible PVC, provided screw geometries align.
• Critical Dependencies: Processing PU pipe successfully is highly dependent on auxiliary equipment, specifically desiccant drying systems, due to the hygroscopic nature of polyurethane.
• Co-Extrusion Potential: Advanced lines support multi-layer processing, integrating reinforcement yarns (Kevlar, polyester) and dissimilar polymer jackets for specialized industrial applications.

Core Material Processing: Thermoplastic Polyurethane (TPU) Grades

Not all polyurethane behaves the same way in an extruder. Selecting the wrong TPU grade for the intended application or failing to match the resin to the machine's thermal profile results in immediate pipe failure. Operators must recognize the distinct chemical properties of different TPU formulations to optimize the extrusion process and prevent material degradation.

The Raw Material Foundation

TPU pellets are synthesized from a precise combination of polyols and diisocyanates. This chemical baseline dictates how the resin reacts to heat and shear inside the extruder barrel. The ratio and type of these foundational chemicals determine the material's molecular weight, melt flow index, and sensitivity to thermal degradation. Understanding this chemistry helps operators anticipate melt behavior, allowing them to adjust barrel temperatures and screw speeds before defects like melt fracture or die drool occur on the production floor.

Polyester-Based TPU

Polyester-based TPU is engineered for environments requiring maximum abrasion resistance, exceptional oil and solvent resistance, and high tensile strength. These properties make it the standard choice for pneumatic lines, hydraulic hoses, and industrial fluid transfer systems where mechanical wear is a constant threat.

Processing polyester TPU requires tight control over the thermal profile. This material exhibits high shear sensitivity, meaning excessive friction from the extruder screw can easily burn the polymer. Melt temperatures typically range between 190°C and 210°C, depending on the specific shore hardness (usually between 70A and 95A). Operators must utilize a low-shear screw design to gently transition the solid pellets into a homogenous melt without breaking down the polymer chains. Screen packs must be carefully selected to build adequate backpressure without causing localized overheating.

Polyether-Based TPU

Polyether-based TPU serves an entirely different set of industrial applications. It provides excellent hydrolysis resistance, microbial resistance, and superior low-temperature flexibility. This makes polyether grades ideal for potable water transfer, outdoor environments, and applications exposed to constant moisture or freezing conditions.

From a processing standpoint, polyether TPU generally features a higher melt flow index (MFI) compared to polyester grades. This higher MFI means the material flows more easily when melted, which complicates the sizing and cooling phases. The melt strength is slightly lower, requiring highly accurate vacuum calibration to prevent the pipe from collapsing or deforming as it exits the die head. Melt temperatures for polyether grades usually sit slightly lower, demanding precise temperature zoning along the extruder barrel to prevent the material from becoming too fluid before it hits the sizing sleeve.

Aliphatic vs. Aromatic TPU

Beyond the polyether and polyester division, TPU is categorized by its diisocyanate base into aliphatic and aromatic grades. Aromatic TPU is the industry standard. It is easier to process, highly durable, and cost-effective, but it is prone to UV degradation, often yellowing when exposed to sunlight. Aliphatic TPU offers absolute UV stability and optical clarity, making it ideal for premium outdoor applications or medical tubing.

Processing aliphatic TPU requires highly specialized temperature controls, as its processing window is exceptionally narrow. Even minor temperature fluctuations can cause severe viscosity changes, leading to uneven wall thickness and surging at the die. Operators running aliphatic grades must rely on high-precision PID controllers and often utilize melt pumps to ensure a perfectly consistent volumetric flow rate.

Multi-Layer and Co-Extrusion Material Capabilities

Modern industrial applications rarely rely on a single homogeneous layer of plastic. High-pressure environments demand composite structures. A properly configured PU pipe production line handles complex co-extrusion tasks, integrating reinforcement layers and dissimilar polymers into a single, cohesive product.

Reinforcement Yarns and Braiding

To withstand high burst pressures, flexible piping often requires internal reinforcement. This involves integrating high-tensile materials such as polyester yarn, Kevlar, or steel wire between an inner TPU core and an outer TPU jacket. The extrusion line must sync perfectly with specialized braiding or knitting machinery positioned between the first and second extruder.

The critical factor here is tensioning and adhesion. If the yarn tension is uneven, the pipe will twist or snake under pressure. Furthermore, the outer layer of extruded TPU must achieve a thermal bond with the inner core through the gaps in the reinforcement mesh. This requires the outer extruder to apply the melt at a precise temperature and pressure, ensuring encapsulation without melting or degrading the reinforcement fibers. Operators often adjust the crosshead die tooling to control the exact penetration depth of the outer jacket into the braided mesh.

Tie-Layers and Adhesives

Certain applications require combining TPU with non-polar plastics, such as Polyethylene (PE) or Polypropylene (PP). Because these materials do not naturally bond to polyurethane, co-extrusion requires the introduction of extrudable adhesive resins, commonly known as tie-layers.

Processing tie-layers requires a multi-extruder setup feeding into a complex co-extrusion die head. The line must precisely control the output of the main polymer, the tie-layer, and the TPU simultaneously. The adhesive resin must reach its activation temperature exactly as it meets the adjacent polymer layers inside the die, preventing delamination in the finished product. Flow channel design inside the die is critical here to ensure uniform distribution of the tie-layer, which is often only a fraction of a millimeter thick.

Dissimilar Polymer Jacketing

Another advanced capability is the application of a rigid outer jacket over a flexible core. For example, extruding a rigid Nylon (PA) jacket over a flexible TPU core combines extreme burst pressure resistance with internal flexibility. Processing dissimilar polymers requires distinct thermal profiles for each extruder.

The die head design must isolate the melt streams until the very last moment to prevent the higher-temperature melt (like Nylon, processing around 240°C) from thermally degrading the lower-temperature TPU core (processing around 200°C) before they exit the die. Cooling shrinkage rates also differ between polymers, meaning the water bath temperatures must be staged carefully to prevent the outer jacket from shrinking too fast and crushing the inner core.

Cross-Compatibility: Can a PU Line Process Other Plastics?

Manufacturers frequently ask if their specialized equipment can handle alternative materials to diversify product offerings. Contrasting a dedicated polyurethane setup with a standard plastic pipe production line reveals specific overlaps and strict limitations regarding material compatibility.

Overlap with Flexible PVC and Elastomers

A machine optimized for polyurethane can typically process flexible PVC, Thermoplastic Elastomers (TPE), and Thermoplastic Vulcanizates (TPV). These materials share similar rheological properties with TPU. They require gentle, low-shear plasticization, similar compression ratios (usually around 2.5:1 to 3:1), and comparable cooling methodologies.

Because flexible PVC and TPE are also shear-sensitive, the low-compression screw design used for TPU prevents material degradation. The vacuum sizing tanks and cooling troughs designed to handle tacky, flexible polyurethane are perfectly suited for hauling off and cooling other elastomeric materials without causing deformation. Operators usually only need to adjust barrel temperatures and haul-off speeds when switching between these flexible materials.

Limitations with Rigid Plastics (PE, PP, Rigid PVC)

Attempting to process rigid polyolefins (like PE or PP) or rigid PVC on a line built for elastomers presents severe technical barriers. Rigid plastics require entirely different screw designs. Polyolefins typically need longer Length-to-Diameter (L/D) ratios, specific barrier flights, and higher compression ratios (often 3.5:1 or higher) to achieve proper melt homogeneity.

Furthermore, the cooling requirements differ drastically. Rigid pipes require intense, rapid cooling and heavy-duty haul-off caterpillars capable of gripping hard surfaces. Flexible pipe lines use softer, silicone-coated belts to prevent crushing. Running rigid PE through a TPU setup will result in poor melt quality, inadequate cooling, and potential damage to the haul-off mechanisms. Transitioning to rigid plastics requires major tooling changes, including swapping the screw, barrel, die head, and downstream sizing equipment.

Processing Recycled Materials (Regrind)

Sustainability and cost-efficiency drive the need to process recycled materials. A well-configured line can successfully process recycled TPU or factory regrind directly in the hopper. Utilizing regrind offers direct cost-saving advantages by repurposing scrap generated during startup, shutdown, or out-of-spec production runs.

Industry standards dictate a maximum regrind ratio of 10% to 20% mixed with virgin resin. Exceeding this ratio risks degrading the molecular weight of the final product, leading to diminished mechanical integrity and lower burst pressure ratings. The regrind must be kept absolutely clean, free of dust, and must undergo the exact same rigorous desiccant drying process as virgin pellets. Gravimetric blenders are essential here to ensure the exact ratio of virgin material to regrind is maintained consistently throughout the production run, automatically adjusting for bulk density differences between pellets and regrind flakes.

Technical Evaluation: Matching Material to Machine Configuration

Achieving a flawless end product requires matching the physical and chemical properties of the raw material to the specific hardware configurations of the polyurethane pipe extrusion line. Every component, from the hopper to the cutter, must be optimized for elastomer processing.

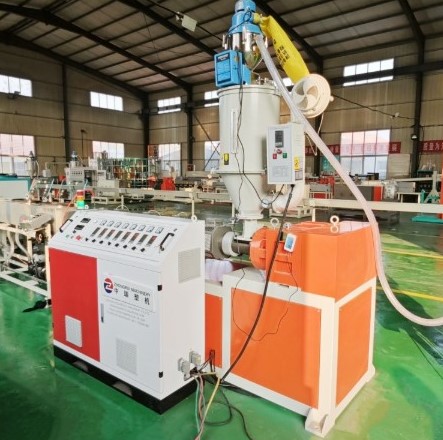

Screw Geometry and Barrel Heating

The extruder screw is the heart of the operation. For TPU processing, the ideal Length-to-Diameter (L/D) ratio typically falls between 25:1 and 30:1. The screw must feature a low-shear, gradual transition design. Standard polyolefin screws generate excessive frictional heat, which easily burns heat-sensitive polyurethane, resulting in black specks and degraded mechanical properties.

The extruder barrel acts as a highly controlled heating furnace. Precise Proportional-Integral-Derivative (PID) temperature control zones along the barrel are mandatory. These controllers constantly adjust the heating and cooling elements on the barrel to maintain a stable melt temperature. Because TPU is highly viscous, the friction generated during extrusion adds internal heat. The PID system must actively trigger cooling blowers on specific barrel zones to prevent the melt from overshooting the target temperature.

Drying and Gravimetric Feeding Systems

Thermoplastic polyurethane is exceptionally hygroscopic; it absorbs moisture from the ambient air rapidly. If moisture remains in the pellets during extrusion, it turns into steam, causing hydrolysis. This breaks the polymer chains and creates bubbles, voids, and surface defects in the finished pipe.

Standard hot air dryers are insufficient. The line must utilize advanced desiccant dryers capable of maintaining a dew point of -40°C and reducing the moisture content of the resin to below 0.02% prior to extrusion. Once dried, the material moves to the feeding system. Gravimetric dosing ensures precise material blending by weighing the resin and additives (like color masterbatches or UV stabilizers) in real-time using load cells. This guarantees exact formulation consistency, which is critical when maintaining strict mechanical specifications.

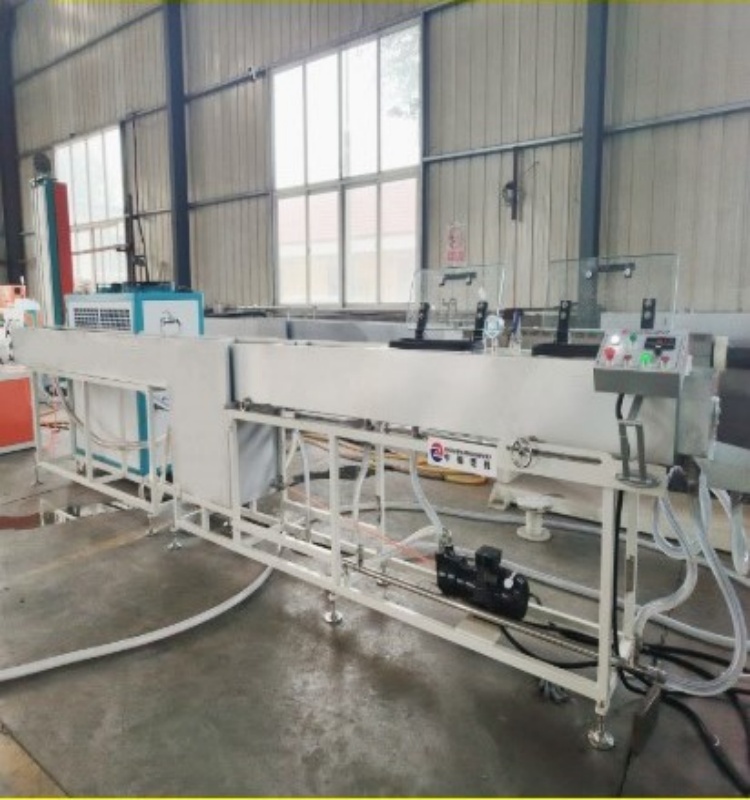

Vacuum Sizing, Cooling, and Haul-Off Mechanisms

As TPU exits the die head, it is highly viscous, tacky, and prone to sagging. Maintaining strict outer diameter (OD) tolerances requires specialized downstream equipment. The melt enters a vacuum sizing and calibration tank immediately after the die.

The vacuum environment pulls the soft polymer against a brass or stainless steel sizing sleeve, locking in the outer diameter while the initial cooling takes place. Because TPU remains tacky at higher temperatures, the cooling bath water must be strictly temperature-controlled to solidify the outer skin rapidly without causing internal stress. Water flow must be turbulent enough to strip away the heat boundary layer surrounding the pipe.

The haul-off mechanism pulls the pipe through the cooling tanks. Standard hard-rubber cleats will crush or deform warm TPU. Instead, the haul-off must utilize customized belts—often silicone-coated or shaped caterpillars—that apply even, gentle pressure across a large surface area. Encoder synchronization between the extruder drive and the haul-off motor ensures the drawdown ratio remains perfectly constant, preventing wall thickness variations.

Implementation Risks and Mitigation Strategies

Even with high-end machinery, extruding PU pipe presents distinct operational challenges. Operators must recognize the symptoms of processing failures and implement immediate mitigation strategies to maintain production yields.

1. Moisture Contamination: The appearance of bubbles, internal voids, foaming, and rough surface defects on the finished pipe indicates wet resin. The mechanical strength will be severely compromised. Enforce strict adherence to dew point monitoring within the desiccant dryer. Ensure the material remains in the drying hopper for the manufacturer-specified residence time (usually 3 to 4 hours) at the correct temperature before feeding.
2. Thermal Degradation and Cross-Linking: The occurrence of "die drool" (buildup of degraded material at the die exit), black specks embedded in the pipe wall, or a complete loss of elasticity points to overheating. Calibrate PID temperature control zones frequently. Minimize the residence time of the melt in the extruder barrel and die head by optimizing screw speed. Ensure the screw geometry matches the specific TPU grade being processed.
3. Uneven Wall Thickness: Concentricity issues where one side of the pipe wall is thinner than the other create weak points that lead to burst failures under operational pressure. Utilize inline ultrasonic wall thickness monitoring systems. These systems provide real-time data, allowing operators to make micro-adjustments to the die centering bolts, haul-off speed controls, and vacuum calibration tank pressures before out-of-spec pipe is produced.
4. Poor Layer Adhesion in Co-Extrusion: If the outer jacket easily peels away from the inner core or reinforcement layer, the thermal bond has failed. Increase the melt temperature of the outer layer slightly to improve flow and penetration into the reinforcement mesh. Check the tension of the braiding yarns; if they are too tight, they prevent the outer melt from reaching the inner core.
5. Surface Tackiness and Deformation: If the pipe sticks to the haul-off belts or deforms when coiled, it has not been cooled sufficiently. Lower the temperature of the primary cooling bath. Increase the length of the cooling trough or reduce the line speed to give the polymer more time to shed heat before it reaches the haul-off mechanism.

Conclusion

• Audit your exact material formulations, documenting required melt flow indices, moisture sensitivity levels, and reinforcement integration needs before selecting machinery.
• Demand proof of capability from equipment vendors, specifically verifying low-shear screw designs, gravimetric feeding accuracy, and vacuum sizing technologies tailored for tacky elastomers.
• Verify the capacity of the desiccant drying system to ensure it can consistently maintain a -40°C dew point at your target production throughput.
• Request a comprehensive Factory Acceptance Test (FAT) using your exact proprietary material blend, including any regrind ratios or specific color masterbatches, to validate dimensional tolerances.

FAQ

Q: What is the difference between a PU pipe production line and a standard plastic pipe production line?

A: A dedicated PU setup features screw geometry tailored for shear-sensitive elastomers, preventing thermal degradation. It includes specialized vacuum sizing to handle tacky materials without deformation and mandates heavy-duty desiccant drying systems to remove moisture, which standard lines processing rigid plastics like PVC or PE do not require.

Q: Can you process recycled PU in a polyurethane pipe extrusion line?

A: Yes, clean and dry regrind can be utilized to achieve cost savings. It is typically blended at a 10% to 20% ratio with virgin material using gravimetric feeders. The regrind must be thoroughly re-dried in a desiccant system to prevent moisture-induced defects during extrusion.

Q: What moisture level is acceptable before extruding PU pipe?

A: The industry standard requires reducing the moisture content of TPU pellets to below 0.02% before extrusion. Exceeding this moisture level leads to hydrolysis inside the barrel, resulting in bubbles, voids, and a severe loss of mechanical strength in the finished product.

Q: Can a PU extruder handle flexible PVC or TPE?

A: Yes. Because flexible PVC and Thermoplastic Elastomers (TPE) exhibit similar melt behaviors, shear sensitivity, and flexibility requirements, a line optimized for polyurethane can often process these materials with minimal tooling adjustments or screw changes.

Q: Why is screw design critical for PU pipe manufacturing?

A: Standard polyolefin screws generate high shear friction, which easily burns heat-sensitive TPU. Processing polyurethane necessitates a low-shear, gradual compression screw design coupled with precise PID barrel heating zones to melt the resin gently without breaking down its molecular structure.
