Which PU Pipe Line Setup Fits Pneumatic and Hydraulic Tubing?

The increasing reliance on automated fluid power systems and complex industrial plant routing has driven demand for high-performance polyurethane tubing, forcing manufacturers to upgrade their extrusion capabilities. Producing tubing for pneumatic and hydraulic applications requires strict dimensional stability, media compatibility, and material integrity. A generic plastic pipe production line often fails to meet the tight outer diameter (OD) tolerances required for push-to-connect fittings or the burst pressure ratings needed for fluid transfer. Selecting the optimal setup requires aligning extrusion technology, cooling mechanisms, and quality control systems with the specific end-use demands of pneumatic automation and low-pressure hydraulic environments. You must configure the equipment to handle polyurethane's unique hygroscopic properties and slow crystallization rates. This ensures the final product withstands the rigors of continuous industrial use without leaking, degrading, or failing under pressure.

• Application Dictates Setup: Pneumatic tubing prioritizes high flexibility, strict OD tolerances, and color-coding capabilities, while hydraulic PU applications require setups capable of producing thicker walls or multi-layer reinforced structures for low-pressure fluid transfer.
• Material Handling is Critical: Polyurethane is highly hygroscopic; a viable polyurethane pipe extrusion line must include advanced pre-drying and specialized screw designs to prevent material degradation and maintain chemical resistance.
• Precision Over Speed: For fluid power applications, in-line laser measurement and vacuum calibration are non-negotiable features to ensure leak-free connections and proper tube routing in the final product.
• Equipment Specialization: Standard polyolefin extrusion lines cannot be seamlessly repurposed for PU pipe without significant modifications to the die head, cooling tanks, and haul-off units.

Understanding End-Use Demands: Pneumatic vs. Hydraulic PU Pipe

Success Criteria for Fluid Power Tubing

Defining the baseline requirements for the final product is the first step in configuring an extrusion setup. Fluid power tubing must meet stringent engineering standards that dictate its performance in active industrial environments. Burst pressure and operating temperature thresholds are primary indicators of tubing quality. Polyurethane exhibits excellent memory and elasticity, but these properties degrade rapidly if the extrusion process introduces thermal degradation or moisture contamination.

Bend radius serves as another non-negotiable success criterion. Industrial routing often requires navigating tight corners inside machinery enclosures without kinking or collapsing the inner diameter. Media compatibility also requires strict evaluation. While the raw polymer offers inherent resistance to many chemicals, improper processing alters its crystalline structure, leaving the finished tubing vulnerable to degradation from synthetic oils or compressed air condensates. Structural integrity separates standard tubing from reinforced hose, dictating whether the line must support downstream braiding or co-extrusion processes.

Pneumatic System Requirements

Pneumatic systems operate using compressible air, making leak prevention at connection points an absolute priority. Tubing used in these applications requires high flexibility and exceptional kink resistance to accommodate the dynamic movement of robotic arms and automated actuators. The defining characteristic of successful pneumatic tubing is its exact outer diameter tolerance. Push-in fittings rely on an internal O-ring seal that compresses against the tube's exterior. Even microscopic ovality or surface imperfections will result in pressure drops, forcing compressors to work harder and wasting significant energy across the plant.

Color-coding and identification play a massive role in pneumatic circuit design. Complex automation manifolds utilize multi-colored tubing to differentiate between supply lines, exhaust lines, and specific actuator controls. Consequently, a dedicated PU pipe production line must efficiently handle rapid color changeovers. Advanced setups integrate precision gravimetric dosing units for masterbatch pigments or utilize small co-extruders to apply permanent dual-color striping along the length of the tube.

Production lines targeting the pneumatic sector must consistently output thin-to-medium wall thicknesses. The extrusion die and downstream calibration must work in perfect harmony to prevent wall thinning or ovality issues. Any geometric distortion during the cooling phase disrupts automated assembly processes and leads to catastrophic fitting failures in the field. Operators must monitor the haul-off speed continuously to ensure the wall thickness remains uniform from the beginning of the spool to the end.

Hydraulic and Lubrication System Limitations

Transitioning from pneumatic to hydraulic applications requires a clear understanding of material limitations. Unreinforced PU pipe is strictly restricted to low-pressure, small-flow, and normal-temperature hydraulic systems. Common applications include compact hydraulic tools, centralized lubrication lines for CNC machinery, and low-pressure return lines. High-pressure hydraulic systems operating at thousands of PSI require wire-braided rubber hoses, not standard thermoplastic tubing.

Media compatibility is paramount in hydraulic and lubrication routing. The extrusion process must preserve the polymer's inherent resistance to hydraulic fluids, synthetic lubricants, and petroleum-based media. Excessive shear heating during extrusion breaks down the polymer chains, significantly reducing the tubing's chemical resistance. This degradation leads to premature swelling, embrittlement, or complete rupture in the field when exposed to aggressive industrial fluids.

To increase burst pressure thresholds for more demanding hydraulic applications, production setups often require co-extrusion capabilities. This allows for the creation of multi-layer structures, bonding a chemically resistant inner liner with a robust outer jacket. Alternatively, the extrusion line must integrate seamlessly with downstream braiding machinery, allowing manufacturers to transition from producing simple tubing to manufacturing reinforced hoses.

Core Components of a Dedicated PU Pipe Production Line

Pre-Extrusion Moisture Control

Polyurethane is notoriously hygroscopic, meaning it rapidly absorbs moisture from the ambient atmosphere. Processing wet resin is the leading cause of catastrophic failure in thermoplastic elastomer extrusion. A high-performance polyurethane pipe extrusion line must incorporate desiccant dehumidifying dryers. Standard hot air dryers are entirely insufficient for this material because they simply circulate ambient, moisture-laden air over the pellets.

The PU resin must be dried to specific moisture levels, typically below 0.02%, before entering the feed throat. If moisture remains in the polymer matrix, it flashes into steam upon hitting the heated extruder barrel. This causes hydrolysis, a chemical reaction that breaks the polymer chains and drastically reduces the material's molecular weight. The physical manifestations of poor drying include visible bubbles in the tube wall, a rough surface finish, severe structural weakness, and a total loss of chemical resistance.

To achieve proper moisture control, operators follow a strict drying protocol:

1. Load raw PU pellets into a closed-loop vacuum conveying system to prevent ambient moisture exposure during transfer.
2. Circulate dehumidified air with a verified dew point of -40°C through the insulated drying hopper.
3. Maintain drying temperatures between 90°C and 105°C for 3 to 4 hours, depending on the specific resin grade and manufacturer specifications.
4. Verify the moisture content has dropped below the 0.02% threshold using an offline moisture analyzer before initiating the extrusion sequence.

Precision Extruders and Screw Design

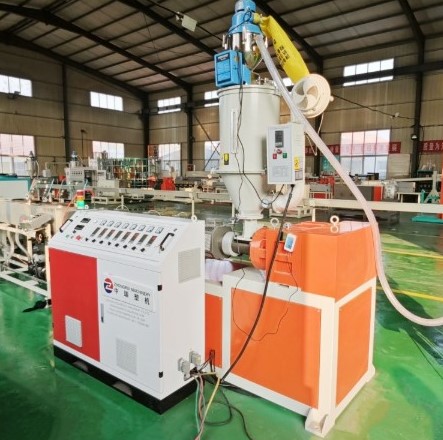

The heart of the extrusion process lies in the screw geometry. Polyurethane is a shear-sensitive elastomer. Standard screws designed for polyethylene or PVC generate excessive frictional heat, degrading the PU melt and destroying its mechanical properties. Specialized barrier screws with specific Length to Diameter (L/D) ratios—typically ranging from 25:1 to 30:1—are required to optimize the melting process.

A 30:1 ratio means the flighted length of the screw is 30 times its nominal diameter. This longer barrel provides more surface area for conductive heating. Polyurethane requires gentle melting. If you use a short 24:1 screw, you have to run the barrel heaters at higher temperatures or spin the screw faster to achieve the same output. This introduces massive shear stress. The mechanical friction tears the polymer chains apart, causing shear degradation. The resulting tubing might look acceptable on the spool, but it will burst at half its rated pressure during field operation.

These specialized single-screw extruders feature a deeper flight depth in the feed zone and a highly engineered transition zone to ensure gentle, uniform melting. By controlling the shear rate, the extruder prevents melt fracture and maintains the polymer's natural elasticity and bend radius. Precise PID temperature control across all barrel zones ensures the melt remains homogeneous, preventing un-melted gels from compromising the tube's structural integrity.

Die Head Technology

The die head shapes the molten polymer into a tubular profile and dictates the initial wall thickness distribution. For fluid power applications, high-precision spiral or spider die heads are mandatory. The internal geometry of the die must maintain uniform melt flow velocity across the entire circumference. Poor flow distribution results in weld lines—seams where the polymer flow recombines after passing around the die mandrel.

Weld lines represent severe structural weak points. In pressurized pneumatic or hydraulic systems, a tube will almost always rupture along a poorly formed weld line. High-quality die heads eliminate these weaknesses through optimized flow channels that promote complete polymer entanglement before the melt exits the die lip. Additionally, die heads equipped for co-extrusion allow manufacturers to introduce a secondary melt stream. This supports the manufacturing of striped tubing for pneumatic circuit identification or bonding distinct polymer layers for specialized fluid transfer.

Sizing, Cooling, and Downstream Equipment Evaluation

Vacuum Calibration Tanks

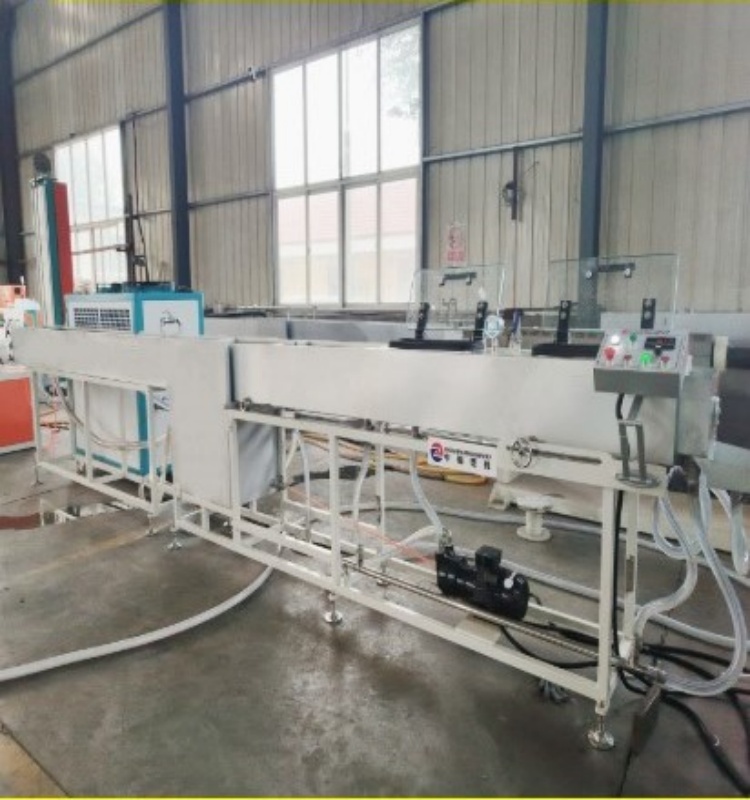

Once the molten tube exits the die, it enters the vacuum calibration tank, which is arguably the most critical stage for achieving pneumatic-grade OD tolerances. The vacuum environment pulls the soft polymer against a precision-machined brass or stainless steel sizing sleeve, setting the exact outer diameter. A water ring provides initial quenching as the tube enters the sleeve. Precise vacuum control and water temperature regulation are vital to prevent shrinkage and ensure the tube solidifies at the correct dimensions.

Operators must balance the vacuum pressure perfectly. Too much vacuum causes the tube to drag against the sizing sleeve, creating chatter marks on the surface or snapping the line entirely. Too little vacuum allows the tube to shrink away from the sleeve, resulting in an undersized outer diameter that will leak in a push-to-connect fitting.

Polyurethane has a relatively slow crystallization rate compared to rigid plastics like PVC. It remains tacky and soft for an extended period. Therefore, multi-stage cooling is necessary. The initial vacuum tank is usually followed by several secondary water cooling baths. Because PU acts as an excellent insulator, the outer skin cools quickly while the inner wall remains molten. This extended cooling length removes residual heat, preventing the tube from deforming downstream and locking in the flexibility and memory required for tight industrial routing.

Haul-Off Units (Tractors)

The haul-off unit pulls the tubing through the cooling tanks at a constant velocity. Because PU remains flexible and somewhat soft even after initial cooling, the choice of haul-off mechanism directly impacts the final product quality. Belt-type haul-off machines are vastly superior to standard caterpillar tracks for this application. Caterpillar tracks with flat rubber pads concentrate clamping force on the top and bottom dead center of the tube, crushing it into an oval.

Belt haul-offs utilize soft, high-friction nitrile rubber belts contoured to match the radius of the tubing. This wraps around the tube, distributing the pulling force evenly across the surface area and preserving the roundness. Multi-axis servo motors drive the upper and lower belts independently, preventing the belts from fighting each other and causing speed fluctuations.

Servo-driven, low-deformation haul-off mechanisms prevent stretching or flattening the flexible pipe before it fully cures. Precise speed synchronization between the extruder RPM and the haul-off velocity is required to maintain consistent wall thickness. Even a minor fluctuation in haul-off speed will cause the wall thickness to ripple, leading to rejected product.

Coiling and Cutting

The final stage of production involves winding the finished tubing onto spools. Standard torque-motor coilers often pull the tubing too tightly, introducing mechanical stress and stretching the inner diameter. Tension-control coiling machines utilize dancer arms and sophisticated feedback loops to wind the tubing with near-zero tension.

The tubing loops around a weighted pulley on the dancer arm before entering the coiler. A potentiometer measures the position of the arm. If the coiler pulls too fast, the arm lifts, and the control system slows down the coiler motor. If the coiler runs too slow, the arm drops, and the motor speeds up. This closed-loop feedback ensures the tubing winds perfectly. Proper coiling prevents kinking and ensures the tubing retains its perfectly round profile on the spool. When the end-user unspools the product for installation, it lays flat and routes cleanly without retaining a tight coil memory.

Evaluating Overall Value and Conceptual Trade-offs

Tubing vs. Hose Production Capabilities

Capital expenditure decisions heavily depend on the target market. A line dedicated solely to unreinforced pneumatic tubing requires a lower initial investment. It focuses on high-speed single-extruder setups with extensive cooling and precision calibration. The footprint is generally smaller, often requiring only 15 to 20 meters of floor space.

Conversely, a modular line designed to produce hydraulic hoses requires integration with yarn or wire braiders, cross-head extruders for outer jacketing, and specialized adhesion promotion systems. Manufacturers must assess whether the localized demand for low-pressure hydraulic hose justifies the significant jump in equipment complexity and factory footprint. Modular lines offer incredible flexibility but require highly skilled operators to manage the synchronized speeds of extruders, braiders, and multiple cooling stages simultaneously.

Single-Layer vs. Multi-Layer (Co-extrusion) Setups

Single-layer lines offer the lowest barrier to entry and are highly efficient for producing standard automation tubing. However, their product range remains limited to basic pneumatic applications. Co-extrusion lines demand a higher initial cost but provide immense versatility. They produce reinforced tubing, chemically lined tubing for aggressive media, or dual-color pneumatic lines.

The ability to co-extrude allows manufacturers to optimize material costs. You can use a high-performance, expensive PU grade for the inner fluid-contact layer while utilizing a more economical, UV-resistant grade for the outer jacket. This strategic material usage often offsets the higher machinery tooling costs over long production runs. Quick-change co-extrusion die heads cost more upfront but save hours of labor and material waste during color changeovers.

Output Capacity vs. Dimensional Accuracy

A fundamental trade-off exists between line speed and dimensional precision. Pushing an extrusion line to its maximum theoretical output capacity often compromises the strict ±0.05mm tolerances required for leak-free pneumatic fittings. At excessive speeds, the polymer does not have adequate time to cool and crystallize in the vacuum tank, leading to shrinkage and ovality downstream.

For fluid power applications, precision must always take precedence over sheer output volume. Producing high volumes of out-of-spec tubing results in massive scrap rates, rejected shipments, and damaged client relationships. Optimizing the line speed to guarantee 100% yield within tolerance is the only sustainable approach to manufacturing industrial-grade PU pipe.

Implementation Risks and Mitigation Strategies

Operating a high-precision extrusion line involves navigating several technical risks. Identifying these issues early prevents massive material waste and ensures consistent product quality.

Inconsistent wall thickness creates weak points prone to bursting, while ovality prevents proper sealing in pneumatic fittings. The integration of closed-loop in-line laser micrometers and ultrasonic wall thickness gauges is mandatory for modern lines. These measurement devices continuously scan the tubing as it exits the cooling tank. Dual-axis lasers measure the X and Y diameters simultaneously, calculating ovality in real-time. If the dimensions drift near the tolerance limits, the system automatically adjusts the haul-off speeds or extruder RPM, correcting the geometry before scrap is produced.

Pneumatic tubing manufacturers frequently switch between metric and imperial sizes, as well as various colors. Traditional setups require shutting down the line, dismantling the die, and purging massive amounts of resin, leading to significant downtime. Selecting die heads with quick-change tooling allows operators to swap sizing mandrels and pins rapidly. Automated purge sequences and optimized melt channels minimize dead spots inside the die, ensuring old colors flush out quickly.

Conclusion

1. Request comprehensive material trial runs with your specific PU resin grades before finalizing equipment purchases to verify melt stability and actual output rates.
2. Audit the manufacturer's vacuum calibration technology and cooling tank lengths to ensure they accommodate the slow crystallization rate of polyurethane.
3. Calculate your return on investment based on guaranteed tolerance yields rather than theoretical maximum output speeds to ensure profitable, defect-free manufacturing.
4. Implement strict ambient humidity controls in your facility's resin storage and drying areas to prevent hydrolysis before the material even reaches the hopper.

FAQ

Q: Can a standard plastic pipe production line be used to manufacture PU pipe?

A: While technically possible, standard lines lack the specialized screw design, moisture control, and delicate haul-off mechanisms required for flexible, high-tolerance PU tubing. Using standard equipment typically leads to high scrap rates, severe ovality, and poor bend radius.

Q: What is the ideal screw L/D ratio for a polyurethane pipe extrusion line?

A: The ideal Length to Diameter (L/D) ratio for processing polyurethane typically ranges between 25:1 and 30:1. This specific geometry melts shear-sensitive elastomers gently, preventing thermal degradation and preserving the polymer's mechanical properties.

Q: Can PU pipe produced on these lines handle high-pressure hydraulic systems?

A: No. Standard unreinforced PU tubing only handles low-pressure, small-flow hydraulics and lubrication lines. High-pressure hydraulic systems require dedicated hose production lines featuring wire-braiding capabilities and heavy-duty outer jacketing.

Q: How does the production line handle color-coding for pneumatic tubing?

A: Modern production lines utilize precision gravimetric dosing units to introduce masterbatch pigments directly at the extruder throat. Alternatively, they employ small co-extrusion die heads to add permanent colored stripes along the tubing without compromising overall line speed.

Q: How does moisture affect the PU pipe production process?

A: Polyurethane is highly hygroscopic. Inadequate drying leads to hydrolysis inside the heated extruder barrel. This chemical breakdown results in visible bubbles, a rough surface finish, severe structural weakness, and compromised burst pressure in the final pneumatic tubing.

Q: Why is in-line laser measurement necessary for pneumatic PU tubing?

A: Pneumatic systems rely heavily on push-to-connect fittings, which require exact outer diameter tolerances to seal properly and prevent air leaks. In-line laser measurement provides real-time quality assurance, automatically adjusting line speeds to keep dimensions strictly within tolerance.
