Plastic Pipe Production Line Explained from Start to Finish

A plastic pipe production line turns raw thermoplastic pellets into finished pipe in one continuous sequence. The steps are material handling and drying, melting inside the extruder, shaping through the die head, vacuum sizing and water-bath cooling, haul-off, and cutting to length. The same sequence applies whether a PE/PPR Pipe Production Line or a PVC Pipe Production Line runs the floor. Each stage depends on a specific machine, and the machines work as one linked system. A PVC Pipe Production Line Manufacturer sets up those machines around the target material, diameter, and output rate. This post follows the process in order and names the key equipment at every stage.

Key Takeaways

• A plastic pipe production line turns raw plastic pellets into finished pipe in one smooth, ongoing process.

• The process includes feeding, melting, shaping, cooling, pulling, and cutting—each step relies on the one before it.

• Different plastics, such as PE, PVC, and PP, need their own machine settings and designs to work best.

• Today's lines use advanced controls to keep pipe wall thickness accurate and save energy and material.

• Drying materials the right way and checking quality lower defects and help machines last longer.

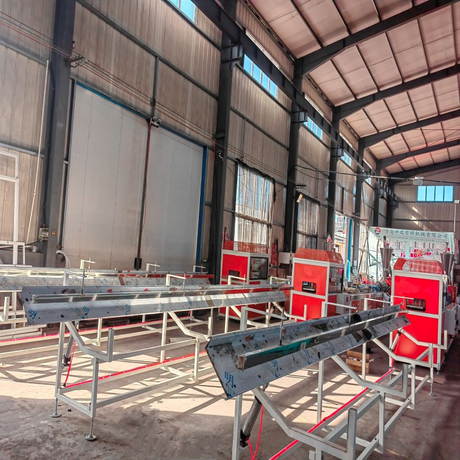

What Is a Plastic Pipe Production Line

A plastic pipe production line is a continuous system. It turns thermoplastic pellets or powder into finished pipes. The line processes PE, PVC, PP, PP-R, PET, PE-RT, and PA. These systems run around the clock with quick change-over and minimal waste.

Core Components

The main components of a plastic extrusion machine form a linked chain. A vacuum loader and hopper dryer feed and dry the raw material. A single-screw or twin-screw extruder melts and homogenizes the resin. A screen changer and melt pump clean and stabilize the melt. The die head shapes the molten polymer into a uniform pipe. Vacuum calibration and spray cooling tanks size and cool the pipe. A servo-controlled multi-belt haul-off pulls it at a steady speed. A chip-free planetary or saw cutter trims it to length. A stacker or coiler collects the finished product. A PLC with HMI controls the line and stores recipes.

A single-screw extruder with a barrier screw suits polyolefin pipe. Its screw runs long, often 33:1 to 40:1 length-to-diameter. A 90-mm grooved-feed unit at 38:1 can reach roughly 1,000 to 1,100 kg/hr. Barrel zones typically hold 180 to 220 °C, set by resin grade.

How the Line Works Together

The extrusion process follows one unbroken order. Pellets load into the hopper, and a rotating screw pushes them through the heated barrel. The barrel melts the plastic, and the melt passes into the shaping head. Cooling sets the shape, the puller draws the pipe forward, and the cutter slices it to length. This sequence shows how plastic extrusion machines work as one system.

Each stage must hold its setpoint. Haul-off speed and melt pressure must stay matched. A drift in one stage shows up as a wall-thickness error downstream. That balance is why a plastic extrusion line runs for days with proper maintenance. The plastic extrusion line basics come down to this balance. A well-tuned plastic extrusion line delivers steady output. The plastic pipe production line works as one team. Modern pipe extrusion equipment adds in-line ultrasonic gauges. A modern plastic extrusion machine stores recipes on its PLC. Good extrusion depends on careful setup. The extrusion stage sets the pace for every later step.

The Pipe Extrusion Process Step by Step

The pipe extrusion process follows a fixed order. Each stage builds on the one before it. Operators track every step on the control panel of the plastic pipe production line.

Feeding, Melting, and Extrusion

The plastic extrusion process begins at the hopper of the plastic extrusion machine. Dried pellets or powder drop through a cooled feed throat into the barrel. A vacuum feed hopper helps low-bulk-density material avoid trapped air. The screw rotates at controlled speed. It pushes plastic through the barrel in three zones: feed, compression, and metering. The barrel heats the plastic with PID-controlled heater bands, and friction adds more heat. The feed zone usually runs 20–30 °C below the processing temperature to prevent bridging. Die temperature sits slightly above the last barrel zone, often 5–15 °C higher for PVC pipe. Typical starting points look like this:

These values are starting points only. Additives, pigments, and molecular weight may call for adjustment. A screen pack filters out contaminants before the melt reaches the die. The die shapes the plastic into a hollow tube. A spider plate spreads melt evenly around the mandrel and holds the pin in the center. The die shapes the plastic with uniform pressure and wall thickness. This is the heart of extruding through the die.

Cooling, Sizing, and Cutting

The still-molten pipe leaves the die and enters a calibrator. A calibrator is a precision sleeve whose inner diameter matches the target pipe size. A vacuum pump pulls the soft pipe outward against the sleeve. The cooling system sets the shape while water circulates around the pipe. Gradual cooling avoids internal stress and surface cracking. The cooling system sets the shape again in a second tank for thicker walls. Air cooling sections between water baths help thick-walled pipe avoid thermal shock. Coolant turbulence matters more than coolant temperature alone. Fast-moving water breaks up the hot boundary layer and pulls heat away.

A multi-belt haul-off pulls the pipe at steady speed and tension. Speed must match melt output, or wall thickness drifts. A planetary or saw cutter then trims the pipe to length without chips. Some lines add in-line belling, which forms a socket end for push-fit joints. This completes cooling and cutting. The whole plastic extrusion process depends on balance here. A well-run plastic extrusion line holds tolerance for days. Modern pipe extrusion equipment adds ultrasonic gauges to check wall thickness in line. Every plastic extrusion machine on the floor follows the same logic: melt, shape, and cool plastic in one pass. That is how plastic extrusion machines work as a team.

Types of Pipes and Applications

Common Plastic Materials

A plastic extrusion line can make pipes in many sizes. Diameters go from 16 mm to 1600 mm, and output can reach up to 1200 kg/h, depending on the model and material. The plastic extrusion line works with PE, PVC, PP, PP-R, PET, PE-RT, and PA. Each resin has its own traits that it brings to the plastic extrusion process.

The plastic extrusion machine must match its screw and die design to the resin. PP-R and PE-RT run on dedicated lines with barrier screws and grooved feed barrels. This setup gives high output and steady quality during plastic extrusion.

Best-Fit Applications

Each material fits a certain job. HDPE serves city water and gas distribution, plus drainage. PVC suits main water lines and drainage networks. PP works well for sewer and warm water supply. PE-RT and PP-R fit underfloor heating and hot water delivery. ABS handles vent and drain lines. CPVC serves industrial plumbing and home hot water lines. Farm irrigation draws on flexible polyolefin pipe.

The extrusion line adapts across these markets. A small 300 kg/h line suits flexible factories with modest demand. A 1000 kg/h line fits steady, high-volume orders. Buyers match line size to their target market before they commit. That planning keeps every plastic extrusion line productive. Careful material selection drives good pipe extrusion results. The extrusion process rewards this kind of upfront thinking. Modern plastic extrusion equipment stores each recipe for fast change-over. Every plastic extrusion machine on the floor then runs at its best. Skilled operators keep the plastic extrusion line efficient. Good plastic extrusion depends on matching resin to application. The right extrusion machine choice pays off for years. A well-planned extrusion line serves many markets. Smart plastic extrusion planning reduces waste. Reliable plastic extrusion keeps customers satisfied. Strong plastic extrusion starts with the right material map.

Advantages and Limitations

Process Strengths

Today's lines keep tight control over every meter of pipe. Computer digital control keeps wall thickness at a precise target. Servo motors bring real energy savings to the plastic extrusion machine. A permanent magnet synchronous servo drive removes the reduction gear and lifts transmission efficiency above 95%. It cuts energy use by 10%–20% compared with a traditional AC motor with a gearbox. Speed control accuracy of ±0.5% keeps the extrusion process steady. High starting torque handles frequent starts and load swings well.

Gravimetric extrusion control adds another layer of value. The system measures real material use and adjusts feed rates to hold target throughput. It saves 1%–5% of raw material, and the payback period stays short. Startup scrap drops sharply, so less off-spec pipe reaches the reprocessing bin. Closed-loop water circuits cut environmental impact, and inline ultrasonic gauges check wall thickness as the pipe runs. These features make the plastic extrusion line efficient and repeatable.

Limits to Consider

Setup and change-over take real effort. A diameter change means swapping the die head tooling, the calibration sleeve, and the support rollers in the cooling tanks. On modern lines, this changeover takes about two to four hours. Recipe management makes the job easier. The PLC stores temperature profiles, speed settings, and calibration adjustments for each size, and it reconfigures the line when an operator selects a recipe. That automation cuts changeover from hours to minutes.

Each resin also needs its own screw and die design. A screw built for HDPE will not run PVC well, so buyers should confirm the machine handles their full material range. Raw material quality matters just as much. Uneven pellet size disturbs melting and flow. Excess moisture causes surface flaws and brittleness, and proper drying can cut moisture-related defects by up to about 30%. Impurities speed up screw wear. Buyers who control incoming material quality get the most from any plastic extrusion machine.

The journey goes from dried pellets to cut pipe. The plastic pipe production line moves material through melting, shaping, cooling, and cutting in one linked order. Each stage protects accuracy, surface quality, and steady output. The pipe extrusion process rewards balance at every step. A well-tuned plastic extrusion line holds tolerance for days. Modern plastic extrusion adds servo drives and stored recipes. The plastic extrusion process also gains from in-line gauges. Careful extrusion setup keeps the plastic extrusion line productive. Buyers tailor each extrusion machine to their material range. The extrusion process fits many markets. Smart plastic extrusion planning pays off. Reliable pipe extrusion builds customer trust. Every extrusion line gains from this focus.

FAQ

What materials can a plastic pipe production line process?

The line works with PE, PVC, PP, PP-R, PET, PE-RT, and PA. Each resin needs a screw and die design that fits it. Before buying, buyers should make sure the machine covers all the materials they plan to run.

What pipe sizes and output rates are possible?

Diameters go from 16 mm to 1600 mm. Output can reach up to 1200 kg/h, depending on the model and material. A small line works for modest demand, and a large line fits steady, high-volume orders.

How long does a size change-over take?

A diameter change means swapping the die head tooling, calibration sleeve, and support rollers. On modern lines, this changeover takes about two to four hours. Stored recipes let the PLC set up the line again quickly.

How does the line keep wall thickness accurate?

Computer digital control keeps wall thickness at a precise target. Gravimetric extrusion control adjusts feed rates and saves 1%–5% of raw material. Inline ultrasonic gauges check wall thickness while the pipe runs.

Why does raw material quality matter?

Uneven pellet size disturbs melting and flow during extrusion. Too much moisture causes surface flaws and brittleness. Proper drying can cut moisture-related defects by up to about 30%. Clean, consistent material protects the extrusion process and helps the screw last longer.
