Choosing the Right PE Pipe Production Line Supplier

The initial capital expenditure of a new extrusion setup represents only a fraction of its lifecycle expense. Real profitability relies heavily on operational efficiency, material yield, and machine uptime. Manufacturers face a saturated market filled with machinery suppliers. Differentiating between robust engineering and aggressive marketing is difficult. Poor equipment choices risk hidden operational burdens. Inadequate after-sales support leaves production lines stranded during critical failures. You need verifiable data to make an informed decision. Establishing a strict evaluation process mitigates these risks. You will learn how to assess extruder technology, downstream automation, and supplier service infrastructure. This guide provides actionable steps to match specific pipe applications with the correct machinery configurations. We focus on technical capability, component quality, independent industry reputation, and long-term operational reliability. This ensures your investment delivers consistent material yield and maximum uptime without unnecessary downtime.

• Prioritize Overall Equipment Effectiveness (OEE) and energy consumption per kilogram of processed material over the lowest initial purchase price.

• Verify supplier engineering capabilities across specific applications, ensuring they can customize a PE water supply pipe production line or a specialized PE-RT heating pipe production line to exact industry standards.

• Assess the integration of downstream equipment (vacuum calibration, haul-off, cutting) and upstream auxiliaries (color mixers, dryers) with the main extruder to guarantee dimensional stability in a high capacity PE pipe production line.

• Mandate transparent Service Level Agreements (SLAs) for Factory Acceptance Testing (FAT), on-site commissioning, and global after-sales support.

Defining Success Criteria for Your Extrusion Investment

Production Capacity vs. Pipe Specifications

Mapping required pipe diameters directly influences your machinery selection. Target applications dictate the Standard Dimension Ratio (SDR) classes you must produce. Standard Dimension Ratio dictates the wall thickness relative to the pipe's outer diameter. Producing an SDR 11 pipe for high-pressure water mains requires significantly more cooling capacity and melt stability than an SDR 26 gravity sewer pipe. You must map your target diameters, ranging from 16mm micro-ducts up to 2000mm municipal mains, directly to the extruder's output curve. Die head sizes must accommodate the full range of your intended product portfolio without requiring excessive changeover times.

Balancing high-speed output claims against physical realities prevents costly specification errors. Pushing an extruder beyond its optimal range degrades melt quality and induces melt fracture. Dimensional stability suffers when cooling capacities cannot keep up with line speeds. You must verify that the quoted output aligns with acceptable pipe tolerances. Do not accept theoretical maximums as guaranteed daily production rates. Always demand output guarantees based on your specific resin grades and required SDR classes.

1. Define the maximum kilogram per hour (kg/hr) required for your heaviest pipe wall thickness at target line speeds.

2. Calculate the required cooling tank length based on the specific heat capacity of high-density polyethylene and your plant's chilled water temperature.

3. Match the haul-off contact length to the pipe diameter to prevent slippage without crushing the extruded profile.

4. Size the main drive motor to handle the maximum torque required at the lowest anticipated screw RPM.

Operational Efficiency and Resource Management

Calculating specific energy consumption reveals the true efficiency of an extrusion setup. You must measure the kilowatt-hours required to process one kilogram of resin (kWh/kg). The main drive motor and barrel heating zones consume the most power on the factory floor. Compare these metrics across different suppliers. Efficient drive trains, insulated barrel covers, and optimized heater bands significantly reduce daily utility loads. Over a ten-year operational lifespan, a machine that saves 0.05 kWh/kg yields massive financial returns.

Projected scrap rates directly impact your material yield. Startup phases, color changeovers, and routine maintenance generate unavoidable waste. You must evaluate how quickly the line reaches stable production dimensions. Factor in the lifecycle longevity of wear parts like screws, barrels, and sizing sleeves. Frequent replacements halt production and inflate maintenance budgets. Reliable machinery minimizes these disruptions through superior metallurgy and precise machining tolerances.

Energy Consumption and Efficiency Metrics

Evaluating Core Components of an Extrusion Setup

Upstream Preparation and Auxiliary Equipment

Consistent pipe quality starts before the resin enters the feed throat. You must assess the integration of essential auxiliary machinery. Color mixer machines ensure uniform masterbatch blending. Poor mixing causes visual defects, uneven UV resistance, and structural weak points. Desiccant dryers remove moisture from hygroscopic additives or carbon black masterbatches. Moisture trapped in the melt causes surface blisters, internal voids, and a rough inner pipe surface.

Evaluating in-line scrap recycling solutions maximizes your material yield. Crushers, shredders, and pulverizers process startup scrap back into usable regrind. Efficient recycling prevents valuable resin from ending up in landfills. You must ensure the dosing system can accurately blend virgin resin with regrind at precise percentages. Fluctuations in bulk density between virgin pellets and regrind cause surging in the extruder if not managed by advanced gravimetric blenders.

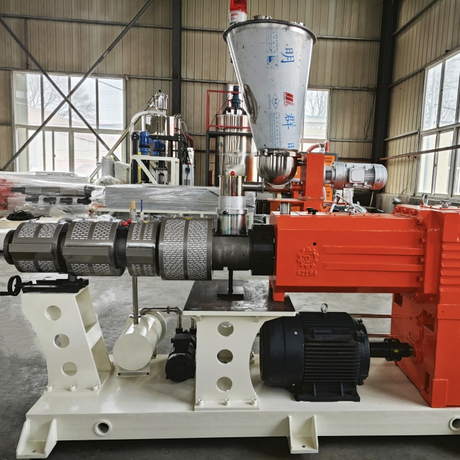

Extruder Technology and Screw Design

Screw geometry dictates the homogeneity of the polymer melt. Modern high-density polyethylene extrusion demands Length to Diameter (L/D) ratios of at least 33:1, often pushing to 38:1 or 40:1 for high-output applications. This extended barrel length provides the necessary residence time to melt the polymer gently. It relies on conductive heat rather than excessive mechanical shear. Barrier screw designs are mandatory. They feature a secondary flight that physically separates the unmelted solid bed from the melt pool. This prevents solid polymer plugs from reaching the die head.

Drive train efficiency determines power transmission reliability. Compare standard alternating current (AC) motors against permanent magnet synchronous motors (PMSM). PMSM technology offers superior torque at lower RPMs and maintains high efficiency across its entire operating range. Pair these motors with high-torque gearboxes featuring forced lubrication and external oil coolers. This combination reduces energy consumption, prevents overheating, and extends the mechanical lifespan of the primary drive unit.

Die Head and Calibration Systems

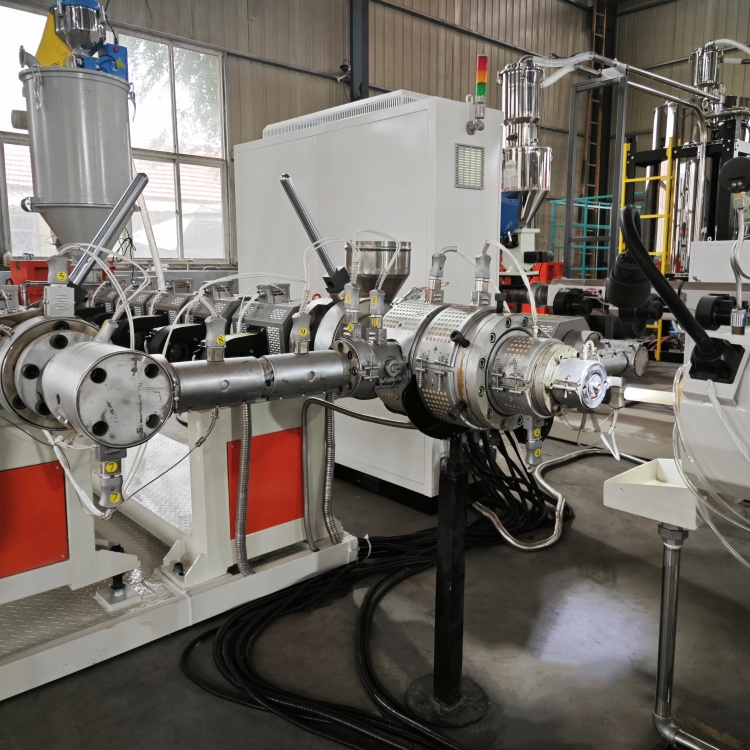

The die head forms the molten polymer into a precise tubular shape. You must evaluate the internal flow channel design. Spiral mandrel die heads eliminate weld lines by overlapping melt streams through helical channels. Basket-type die heads offer lower pressure drops for specific high-viscosity resin grades. Both designs must ensure uniform melt distribution. Consistent wall thickness prevents material giveaway and ensures structural integrity under pressure.

Vacuum calibration tanks freeze the pipe dimensions immediately after the die head. Analyze the water flow control and temperature regulation mechanisms. Precise vacuum stability is non-negotiable. You need dedicated variable frequency drives (VFDs) on the vacuum pumps to maintain a stable negative pressure, usually around -0.04 to -0.08 MPa. Fluctuating vacuum pressure causes pipe ovality and wall thickness variations. Ensure the spray nozzles provide full 360-degree coverage without dead zones.

Die Head Technology Comparison

Downstream Automation and Handling

Haul-off machines pull the extruded pipe through the cooling tanks. You must evaluate multi-caterpillar configurations based on pipe diameter. Smaller pipes require 2 or 3 caterpillars. Large diameters demand up to 16 caterpillars to distribute the pulling force. The pulling force must remain perfectly synchronized with the extruder speed. Uneven traction causes pipe deformation, wall thinning, and surface scuffing. Servo-driven motors on each caterpillar track provide the necessary precision for stable line speeds.

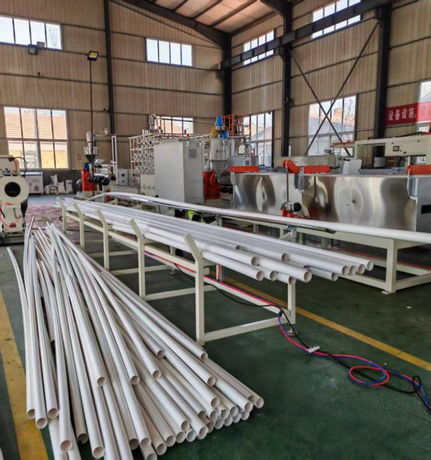

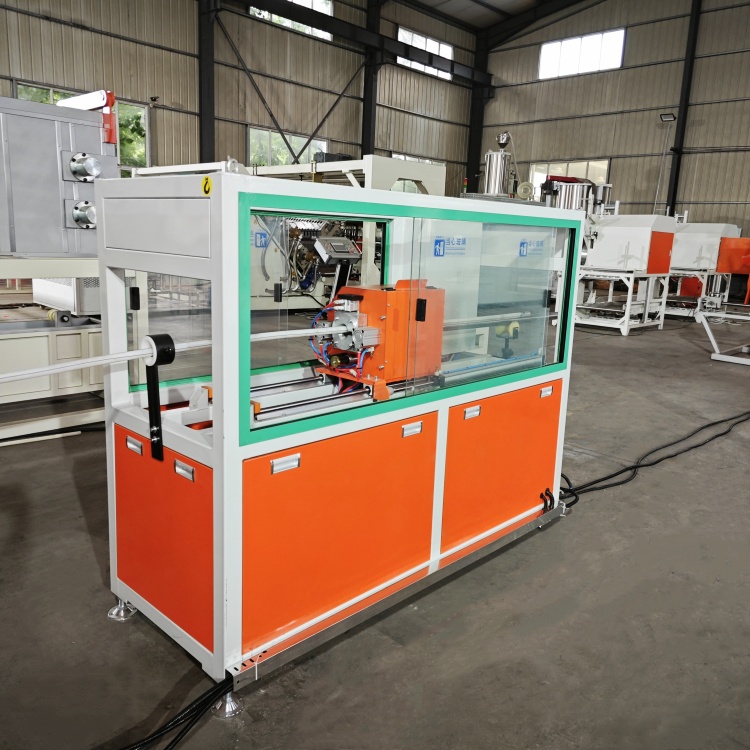

Cutting and handling equipment finalize the production process. Specify planetary cutters for swarfless, precise cuts on rigid pipes. Standard friction saws generate dust that contaminates the factory floor and requires secondary chamfering. Automated belling machines form sockets for joint connections directly in-line. Coiling machinery handles flexible pipes, while automated stacking units manage rigid lengths. Automation reduces manual labor, prevents handling damage, and keeps pace with high-speed extrusion.

Matching Equipment to Specific Application Requirements

Water Supply Pipe Considerations

Municipal infrastructure demands strict adherence to international standards. Engineering requirements must meet ISO 4427 and EN 12201 specifications. The machinery must handle high-density resins like PE100 and PE100-RC, capable of sustaining high internal pressures for 50 years. Hygiene standards dictate smooth internal surfaces to prevent bacterial growth and minimize friction loss. A dedicated PE water supply pipe production line ensures compliance with these rigorous structural and sanitary requirements through optimized screw geometries and precise cooling controls.

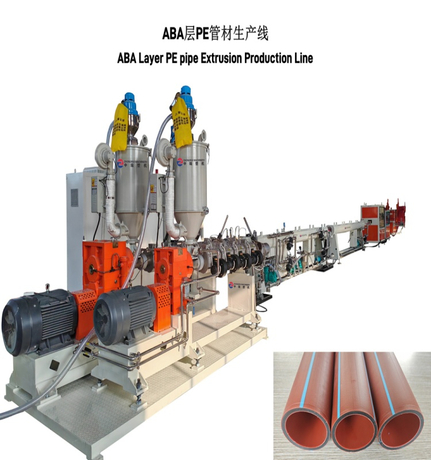

Co-extrusion configurations add necessary functional features. Color identification stripes require secondary extruders mounted directly to the main die head. Blue stripes indicate potable water, while yellow indicates gas distribution. Multi-layer functional pipes utilize crack-resistant outer layers. This protects the core pressure pipe from installation damage in trenchless applications like horizontal directional drilling. The co-extruder must synchronize perfectly with the main drive to maintain consistent stripe width and depth.

Heating Pipe Specifications

Underfloor heating systems utilize specialized high-temperature resistance materials. You must adapt the screw design to process Polyethylene of Raised Temperature Resistance (PE-RT) resins. These polymers require precise temperature control to prevent degradation during plasticization. Excessive shear heat destroys the molecular structure, leading to premature pipe failure under thermal cycling. A properly configured PE-RT heating pipe production line maintains melt integrity while achieving high output rates.

Small-diameter pipes demand high-speed continuous production. Sizes ranging from 16mm to 32mm run at extreme line speeds, often exceeding 30 meters per minute. The downstream equipment must match this velocity without inducing tension on the hot pipe. Specialized high-speed coilers are mandatory. Dual-station coilers with automatic cutting and transfer mechanisms allow continuous winding without slowing the main extruder. This synchronization prevents bottlenecks and maximizes daily output.

Scaling to High Capacity Extrusion

Large-diameter thick-wall extrusion requires massive infrastructure. Producing pipes up to 2000mm demands a significant factory footprint. Extended cooling lengths are necessary to remove heat from thick polymer walls, which can exceed 100mm in thickness. Inadequate cooling causes sagging, where the molten material flows downward due to gravity, resulting in a thicker bottom wall and a dangerously thin top wall. You must plan for robust foundation work to support heavy die heads and massive vacuum tanks.

Advanced gravimetric dosing systems become critical at high throughputs. Operating a high capacity PE pipe production line means processing over 1000 kg of resin per hour. Gravimetric systems precisely control the material weight per meter. They continuously adjust the extruder screw speed and haul-off velocity based on real-time mass flow data. This closed-loop control minimizes resin giveaway. Saving just a few grams per meter yields massive raw material cost reductions over a fiscal year.

Supplier Vetting: Beyond the Spec Sheet

Manufacturing Experience, Reputation, and Quality Control

You must audit the supplier's in-house machining capabilities. Look for advanced CNC centers dedicated to milling die heads, sizing sleeves, and screws. Relying heavily on outsourced components introduces severe quality control risks. In-house manufacturing guarantees tighter tolerances and faster replacement part availability. It demonstrates a fundamental understanding of extrusion mechanics rather than just assembly capabilities.

Request historical performance data and relevant case studies from similar manufacturing environments. Ask for rigorous Factory Acceptance Test (FAT) protocols. A reliable supplier welcomes independent due diligence. Research user reviews across industry forums. Contact existing clients to gather unfiltered feedback on machine uptime, spare parts availability, and software stability. Verify the supplier's reputation among global buyers before initiating contract discussions.

Factory Acceptance Test Mandatory Checkpoints

Automation Level and Industry 4.0 Integration

Modern extrusion relies on advanced Programmable Logic Controllers (PLC). Evaluate control systems from reputable brands like Siemens, B&R, or Beckhoff. These platforms offer centralized line management through intuitive Human-Machine Interfaces (HMI). Operators can store material recipes for quick changeovers, ensuring repeatable quality regardless of the shift operator. Synchronized speed control between the extruder, melt pump, and haul-off prevents dimensional variations during startup and shutdown sequences.

Assess remote diagnostic capabilities. Technicians should troubleshoot software issues and adjust PID loops without visiting the factory. Data logging facilitates predictive maintenance. Monitoring motor loads, gearbox vibrations, and barrel temperatures identifies failing components before they break. Integration with factory Enterprise Resource Planning (ERP) or Manufacturing Execution Systems (MES) streamlines production scheduling, tracks resin consumption, and automates inventory management.

After-Sales Support and Global Service Infrastructure

Machine downtime halts your revenue stream immediately. Verify the availability of local service technicians in your region. Regional spare parts depots drastically reduce shipping delays for critical components like heater bands, thermocouples, and VFD modules. Demand guaranteed response times within your service contract. A supplier lacking global infrastructure cannot support a continuous 24/7 manufacturing operation.

Review the supplier's standard operating procedures for technical support. They must provide clear protocols for remote troubleshooting and warranty claims. Software updates should deploy seamlessly without requiring complete system reboots during production runs. A true machinery supplier acts as a long-term technical partner. They should offer continuous process optimization advice as new resin grades enter the market or as your production requirements evolve.

Implementation Risks and Mitigation Strategies

Installation and Commissioning Delays

Site preparation requires strict coordination between your facility managers and the equipment supplier. Define clear contractual responsibilities early. The buyer usually handles utility connections. You must supply adequate chilled water, stable electrical power, and clean compressed air. Heavy rigging requires reinforced concrete floors, often needing specific load-bearing capacities exceeding 5 tons per square meter for large-diameter lines. Delays in these areas push back the commissioning schedule and delay your return on investment.

Ensure the supplier sends experienced commissioning engineers. They must oversee the final alignment of the extrusion axis. Improper alignment between the extruder, die head, and calibration tank causes uneven wear on the screw and barrel, and induces stress into the pipe. The engineers should run the line up to the guaranteed output capacity using your specific resin before signing the final handover documents.

Operator Training and Knowledge Transfer

Sophisticated machinery requires skilled operators. Ensure the supplier provides comprehensive on-site training. This training must cover process optimization, material rheology, and thermal behavior. Operators need thorough instruction on HMI navigation, recipe management, and alarm diagnostics. Basic mechanical and electrical troubleshooting empowers your team to resolve minor faults, like a blown heater band fuse or a tripped overload relay, without calling external support.

Document all training sessions. Create internal standard operating procedures based on the supplier's manuals but tailored to your specific factory environment. High turnover rates in manufacturing mean knowledge is easily lost. A well-documented training program, complete with video recordings of changeover procedures, ensures new operators quickly learn to run the line safely and efficiently.

Material Formulation and Processing Variables

Resin properties vary significantly between geographic regions and petrochemical suppliers. Mitigate processing risks by testing your specific materials early. Ship locally sourced resin grades to the supplier's facility. Run these materials during the FAT. This verifies output claims, melt temperatures, and die head pressure limits before the machine ships.

Do not rely on the supplier's standard test resins. They often use highly optimized, high-flow grades that inflate performance metrics. Testing your actual production formulation reveals hidden rheological challenges. It allows the supplier to modify the screw geometry, adjust the compression ratio, or alter the die head tooling before the equipment leaves their factory floor. This proactive approach prevents months of frustrating trial and error at your facility.

Conclusion

The optimal machinery supplier acts as a strategic partner. They balance advanced extrusion technology with robust operational support. You must look beyond standard specification sheets to evaluate actual engineering competence. A reliable PE pipe production line requires precision tooling, efficient drive trains, and seamless automation integration to maintain profitability in a competitive market.

Filter potential suppliers by their proven experience in your specific pipe diameter range. Prioritize those with verifiable operational efficiency data and strong user reviews. Evaluate their global after-sales infrastructure to ensure long-term uptime. Avoid suppliers who cannot demonstrate in-house machining capabilities or refuse rigorous testing protocols using your specific raw materials.

Take immediate action to secure the right equipment by following these steps:

1. Audit your current utility infrastructure to ensure it can support the power and chilled water demands of a new extrusion line.

2. Request detailed technical proposals that include component origin lists for all motors, drives, and PLCs.

3. Ship your own locally sourced resin to the supplier for mandatory testing.

4. Schedule a factory audit or visit an existing reference site to observe the machinery operating under real-world conditions.

5. Draft a binding Service Level Agreement defining strict, measurable FAT criteria and guaranteed spare parts delivery times before entering final contract negotiations.

FAQ

Q: What is the average operational lifespan of a commercial PE pipe production line?

A: A well-maintained extrusion line typically operates efficiently for 15 to 20 years. Wear parts like screws and barrels require replacement every 3 to 5 years depending on resin abrasiveness and operational hours. Upgrading PLC controls and drive motors can further extend the mechanical lifespan of the core extruder chassis.

Q: How do I calculate the required output capacity (kg/h) for my extrusion line?

A: Determine the weight per meter of your heaviest pipe specification. Multiply this weight by your target line speed in meters per minute, then multiply by 60 to find the hourly requirement. Always add a 15% safety margin to ensure the extruder does not run continuously at its absolute maximum mechanical limit.

Q: What is the technical difference between a standard and a high capacity PE pipe production line?

A: High capacity lines feature larger L/D ratio screws, higher torque gearboxes, and significantly longer vacuum calibration and cooling tanks. They often incorporate gravimetric dosing and advanced internal pipe cooling systems to manage the massive heat load generated by extruding thick-walled pipes at high velocities.

Q: Can a PE water supply pipe production line also be used to manufacture gas pipes?

A: Yes, the core extrusion technology is identical. However, gas pipes require different resin grades like PE100 and specific yellow color identification stripes. You must ensure the die head features the correct co-extrusion tooling and that your quality control equipment meets the stricter regulatory standards required for gas distribution.

Q: What are the critical maintenance points on a high-speed PE-RT heating pipe production line?

A: You must frequently inspect the high-speed coiler mechanisms for wear, as they operate under continuous mechanical stress. Monitor the extruder screw for polymer degradation buildup, as PE-RT is sensitive to shear heat. Regularly calibrate the inline laser diameter gauges to ensure the micro-ducts remain within strict dimensional tolerances.

Q: Why is a gravimetric dosing system critical for profitability in PE pipe manufacturing?

A: Gravimetric systems measure the exact mass of resin entering the extruder. They automatically adjust haul-off speeds to maintain a precise weight per meter. This prevents material giveaway caused by extruding pipes thicker than the required standard. Over time, saving fractions of a millimeter in wall thickness yields massive raw material cost reductions.
