How Are Dies and Calibrators Selected for Plastic Profiles?

Tooling precision dictates the profitability of any extrusion operation. The engineering behind dies and calibrators determines whether a facility achieves tight dimensional consistency or suffers from excessive scrap rates and continuous downtime. When molten polymer exits the extruder, its transition into a rigid, structurally sound plastic profile relies entirely on the fluid dynamics of the die and the thermodynamic efficiency of the calibration system.

Operational failures frequently stem from mismatched tooling and fundamental design miscalculations. Flow imbalances, uneven cooling gradients, severe warpage, and the inability to maintain tolerances at high line speeds are direct consequences of poorly engineered extrusion tooling. Addressing these issues requires moving beyond trial-and-error adjustments on the factory floor and implementing a rigorous technical evaluation framework before the steel is even cut.

Selecting the right dies and vacuum calibrators demands a deep understanding of polymer rheology, profile complexity, and specific production line configurations. By analyzing melt flow dynamics and matching calibration methods to material behavior, engineering teams can eliminate bottlenecks, reduce start-up waste, and maximize the operational ceiling of their extrusion lines.

• Die design must account for specific polymer melt flow dynamics, die swell, and drawdown ratios to ensure the polymer leaves the tooling in a controlled state, preventing structural weaknesses in the final plastic profile.

• Calibration selection (vacuum sizing, dry, wet, or hybrid) dictates the cooling rate and dimensional stability, directly impacting maximum achievable line speeds.

• Tooling material and design must be tailored to the specific extrusion setup, with abrasive materials requiring specialized wear-resistant alloys.

• Evaluating tooling partners requires assessing their ability to integrate dies, calibrators, sizing templates, and fabrication fixtures seamlessly into your existing extrusion machinery ecosystem.

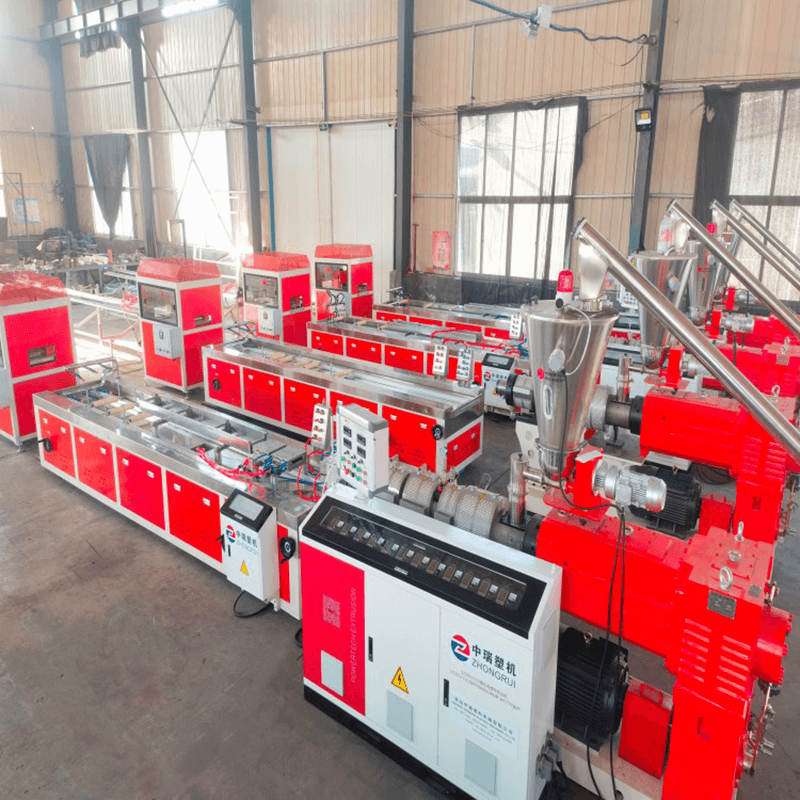

The Role of Dies and Calibrators in a Plastic Profile Production Line

Successful tooling integration is measured by strict performance metrics on the shop floor. You want minimal start-up scrap, consistent wall thickness across complex geometries, optimal surface finish, and uniform cooling. Achieving these criteria means the die and calibrator must work as a unified system. If the die introduces flow imbalances, the calibrator cannot correct them. Conversely, a perfectly balanced die is useless if the calibrator fails to freeze the profile accurately before internal stresses cause deformation.

Defining the Extrusion Die

The extrusion die serves as the mechanical transition point where a chaotic, rotating mass of molten polymer is transformed into a continuous, precise shape. When you bolt a new die to the extruder flange, the cavity must distribute the high-pressure melt evenly across the entire cross-section of the profile. This distribution relies on carefully engineered flow channels that manage the transition from the circular extruder barrel, through the breaker plate, and into the complex geometry of the die lip.

Streamlined flow channels are non-negotiable. Any dead zones or sharp transitions within the die will cause the polymer to stagnate. Stagnant plastic leads to thermal degradation, material burning, and surface defects on the final product. The internal geometry must maintain a constant shear rate, ensuring the material flows smoothly and exits the die with uniform velocity. Engineers often use coat-hanger manifolds or spider die configurations depending on whether the profile is solid or hollow.

The Function of the Calibrator (Sizer)

Immediately after the polymer exits the die, it enters the calibrator. At this stage, the material is semi-molten, highly susceptible to gravity, and prone to severe shrinkage. The calibrator performs a thermodynamic and mechanical role. It rapidly removes heat while physically supporting the profile to lock in its final dimensions.

Calibrators function by freezing the outer skin of the profile first. This rigid outer shell acts as a structural boundary while the internal core continues to cool and solidify. Sizing templates and vacuum slots within the calibrator pull the soft plastic against cooled metal surfaces. This prevents hollow sections from collapsing and ensures the plastic profile production line maintains strict dimensional tolerances throughout the run. If your calibrator water slots clog with calcium buildup or debris, you will immediately see dimensional drift on the line.

Key Evaluation Criteria for Plastic Profile Die Selection

Selecting an extrusion die requires analyzing the physical properties of the specific polymer being processed. Off-the-shelf solutions rarely work for complex profiles because different materials behave drastically differently under heat and pressure.

Polymer Rheology and Melt Flow Dynamics

Polymer rheology dictates the entire design of the die land length and channel geometry. Engineers must account for shear rate, viscosity changes, and temperature profiles. Some polymers exhibit severe shear-thinning behavior, meaning their viscosity drops as they are pushed faster through the die.

Balancing the exit velocity is the primary objective. If the polymer flows faster through the center of the die than at the edges, the resulting profile will warp, ripple, or experience melt fracture. Die designers use internal restrictors, varying land lengths, and precise channel tapering to ensure the molten polymer leaves the tooling in a highly controlled, uniform state.

Drawdown Ratios and Die Swell Compensation

When a polymer melt is forced through a restrictive die under high pressure, it naturally expands upon exiting. We call this phenomenon die swell. Because of die swell, you cannot simply cut the die orifice to the exact dimensions of the final desired shape. The die lip must be designed slightly smaller, or with altered proportions, to compensate for this expansion.

Following die swell, the haul-off equipment pulls the profile through the calibrator, slightly stretching it. This stretching is measured as the drawdown ratio. Calculating the correct drawdown ratio prevents excessive internal stress. High drawdown induces severe stress, leading to a brittle profile that will warp or crack upon installation. The die must be sized to accommodate a minimal, controlled drawdown that maintains structural integrity.

Material-Specific Tooling Requirements

The chemical and physical properties of the extruded material heavily influence tooling construction. Using standard steel for highly corrosive or abrasive materials will result in rapid tooling failure and unacceptable downtime.

• PVC Profile Production Line: Polyvinyl chloride is notoriously sensitive to heat and prone to thermal degradation, which releases corrosive hydrochloric acid gas. Dies used in a PVC profile production line must be manufactured from high-grade stainless steel (like 420 stainless) or heavily chrome-plated to resist corrosion and ensure a smooth, low-friction flow path.

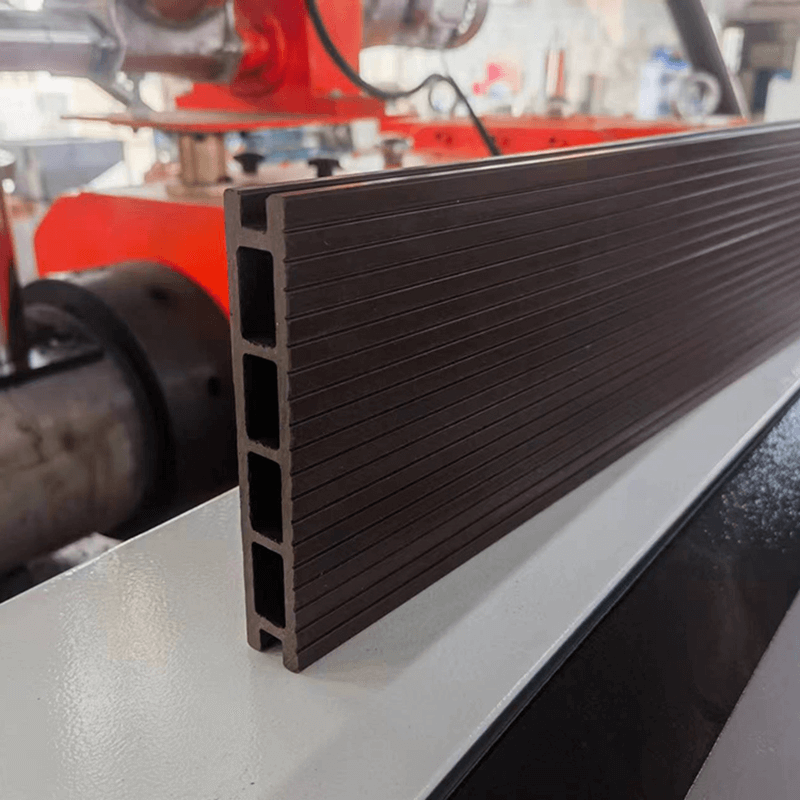

• WPC Plastic Profile Production Line: Wood-plastic composites contain high volumes of wood flour, rice husks, and mineral additives. These materials act like sandpaper inside the die. Tooling for a WPC plastic profile production line requires highly wear-resistant alloys, hardened D2 tool steel, and specialized surface coatings like tungsten carbide to withstand the continuous scouring action of the composite fibers.

Choosing the Right Calibration System for Your Extrusion Setup

The calibration system dictates the maximum speed of the extrusion line. If the calibrator cannot remove heat fast enough, you have to slow the line down to prevent the profile from warping. Selecting the right cooling methodology depends entirely on the geometry of the part and the required production output.

Vacuum Sizing vs. Pressure Calibration

Vacuum calibration is the industry standard for most complex profiles. It works by applying negative pressure through tiny slots or holes in the sizing blocks, actively pulling the semi-molten profile against the chilled metal walls. This method is highly effective for complex, multi-hollow profiles—such as window frames—where internal webs and external dimensions must be strictly maintained.

Internal pressure calibration uses air pressure injected through the die into the hollow center of the profile, forcing the plastic outward against the sizing sleeve. While less common for intricate architectural shapes, pressure sizing works exceptionally well for simple, solid geometries or heavy-walled pipes where vacuum forces alone are insufficient to hold the shape.

Dry, Wet, and Hybrid Calibration Methods

The cooling medium and contact method drastically alter the efficiency of the calibration process. Engineers must choose between dry blocks, wet tanks, or a combination of both based on the thermal load of the profile.

Integration with Customizable PVC Profile Machinery

Modern calibration tables do not operate in isolation. They must interface seamlessly with the entire extrusion ecosystem, including automated haul-off units, cutting saws, and downstream fabrication fixtures. When specifying customizable PVC profile machinery, the calibrator must align perfectly with the haul-off speed to prevent excessive tension. If the haul-off pulls faster than the calibrator allows, you will stretch the profile and ruin the dimensional tolerances.

Modular calibrator designs are increasingly necessary for facilities running multiple product lines. Quick-change manifolds, standardized mounting rails, and easily accessible vacuum and water connections allow operators to perform rapid tooling changeovers. This minimizes machine downtime between different production runs and keeps the line profitable.

Overall Value Influencing Factors: Trade-Offs in Tooling Procurement

Procuring extrusion tooling involves navigating significant engineering trade-offs. The decision between building capabilities internally or relying on external specialists impacts both lead times and the ultimate performance of the production line.

In-House Tooling vs. Outsourced Precision Engineering

Maintaining an in-house tooling shop requires substantial capital expenditure in wire-EDM machines, CNC mills, and specialized personnel. While it offers control over minor modifications, few in-house shops possess the advanced computational fluid dynamics (CFD) simulation software required to design complex dies from scratch.

Outsourcing to specialized tooling manufacturers provides access to dedicated extrusion engineers who understand the nuances of polymer behavior. Vertically integrated partners who design the dies, calibrators, and downstream fabrication fixtures under one roof offer significant advantages. They ensure all components are engineered to work together, streamlining procurement and reducing the risk of mismatched equipment.

Automated Design vs. Custom Iterative Engineering

The rise of automated die design software has accelerated the manufacturing of simple, standard profiles like tubes or flat panels. These programs use established algorithms to generate die geometries rapidly, cutting down engineering time.

However, automation has severe limitations when dealing with highly custom, non-standard profile geometries. Complex architectural shapes with varying wall thicknesses, internal webs, and asymmetrical features require iterative tuning and manual engineering oversight. Human intuition, backed by simulation data and on-site trial experience, remains essential for fine-tuning flow channels and ensuring uniform exit velocities on complex tooling.

Implementation Risks and Mitigation Strategies

Even with premium tooling, the extrusion process is highly sensitive to environmental and operational variables. Anticipating common failures and implementing strict mitigation strategies keeps production stable.

Risk: Uneven Cooling and Warpage

Uneven cooling is the primary cause of profile warpage. If one side of the profile cools faster than the other, the material shrinks unevenly, causing the part to bow or twist after it leaves the calibrator. This happens due to poorly designed cooling channels in the calibrator, mismatched water temperatures, or a failure to account for varying wall thicknesses in the profile design.

To mitigate this, facilities must implement multi-zone vacuum and cooling controls. By dividing the calibrator into independent zones, operators can adjust water flow and vacuum pressure specifically for thicker sections of the profile. This manages the thermal gradient precisely and ensures uniform shrinkage across the entire part.

Risk: Dimensional Instability at High Line Speeds

Pushing a production line faster than the calibrator's cooling capacity will cause the profile to lose its controlled state. If the internal core remains molten after exiting the calibration table, the profile will continue to shrink and deform as it travels toward the haul-off unit.

Mitigating speed-related instability requires increasing the cooling capacity. You can achieve this by extending the calibration table length, utilizing hybrid wet/dry systems for faster heat transfer, or upgrading to high-efficiency heat transfer alloys in the dry sizing blocks.

Risk: Flow Imbalance Leading to Wall Thickness Variations

Wall thickness variations waste material and compromise the structural integrity of the final product. This defect is almost always caused by flow imbalances within the die, typically due to incorrect die land lengths or uncompensated flow restrictions. When running a wood plastic profile machine, even minor flow imbalances can cause severe tearing of the composite material.

Preventing flow imbalance requires utilizing advanced flow simulation software prior to cutting any steel. Once the die is manufactured, rigorous wire-EDM tuning during the initial trial phase is mandatory. Engineers must run the tool, measure the output, and iteratively adjust the die lips until perfect flow balance is achieved.

Conclusion

1. Conduct a comprehensive tooling audit on your current production line to identify specific cooling bottlenecks and flow imbalances.

2. Consult with a specialized extrusion engineer to draft precise thermodynamic and rheological specifications for your next tooling investment.

3. Require flow simulation data from tooling vendors before approving any final die designs for manufacturing.

4. Upgrade existing calibration tables with independent, multi-zone cooling and vacuum controls to stabilize thermal gradients.

5. Implement a standardized trial-and-tuning protocol for all new dies to ensure uniform exit velocities before full-scale production begins.

FAQ

Q: What is the difference between an extrusion die and a calibrator?

A: The extrusion die is a heated metal tool that shapes the molten plastic as it exits the extruder. The calibrator, positioned immediately after the die, is a cooled unit that removes heat, supports the semi-molten plastic via templates, and locks the profile into its final dimensions.

Q: Why is vacuum sizing necessary for a plastic profile?

A: Vacuum sizing forces the semi-molten polymer against the chilled cooling walls of the calibrator. This negative pressure ensures precise external dimensions, provides a smooth surface finish, and prevents the internal walls of hollow sections from collapsing while the plastic solidifies.

Q: What are the most common design mistakes in plastic profile extrusion tooling?

A: Common mistakes include failing to account for uniform cooling across varying wall thicknesses, ignoring die swell characteristics of specific polymers, and designing flow channels that create mismatched exit velocities, preventing the polymer from leaving the die in a controlled state.

Q: How does material choice affect tooling on a wood plastic profile machine?

A: Wood composites contain highly abrasive wood fibers and mineral additives that quickly erode standard metals. Tooling for these machines requires hardened steel dies and specialized wear-resistant calibrator coatings to prevent rapid degradation and maintain dimensional accuracy over time.

Q: Can one die be used for different types of polymers?

A: This is generally not recommended. Different polymers have unique shrink rates, melt viscosities, shear-thinning behaviors, and die swell characteristics. A die optimized for rigid PVC will not produce accurate dimensions or balanced flow if used to extrude polyethylene or WPC.

Q: What causes a plastic profile to warp after leaving the calibrator?

A: Warpage is typically caused by uneven cooling rates where one side of the profile solidifies faster than the other. It can also result from residual internal stresses created by unbalanced flow in the die or excessive tension applied by the haul-off equipment.

Q: How long does it take to manufacture custom extrusion tooling?

A: Manufacturing custom tooling typically takes 4 to 8 weeks. This timeline factors in initial engineering design, computational flow simulation, CNC machining, fabrication of downstream fixtures, and the critical initial trial tuning required to balance the melt flow.
