How Are Dimple Height and Shape Adjusted on the Line?

The performance of a drainage board relies entirely on the precise geometry of its dimples. Compressive strength and water flow capacity depend directly on these engineered structural cavities. For manufacturers evaluating new equipment, understanding dimple formation proves highly critical. How do operators modify and control these specifications during active manufacturing? Answering this helps you assess machinery flexibility. It also helps you drastically minimize changeover downtime. This guide breaks down the mechanical, thermal, and vacuum processes used to adjust dimple profiles. You will learn exactly how tooling dictates baseline geometry. We also provide a robust framework for evaluating equipment capability. These insights will help you plan successful production scalability. The physical extrusion process involves complex thermodynamic balances. Mastery over these variables ensures optimal product durability. Proper calibration prevents material waste and costly line stoppages.

Key Takeaways

• Dimple shape and baseline height are dictated by physical forming rollers; changing profiles requires physical tooling changeovers, not digital adjustments.
• Precise vacuum pressure and melt temperature control are essential to prevent apex thinning and ensure the polymer fully conforms to the mold depth.
• Line speed must be strictly synchronized with cooling capacity to prevent dimple deformation (shrinkage) immediately after extrusion.
• Investing in a customizable drainage board production line with quick-change roller mechanisms drastically reduces idle time for facilities running mixed-SKU production.

The Mechanics of Dimple Forming: Tooling and Blister Rollers

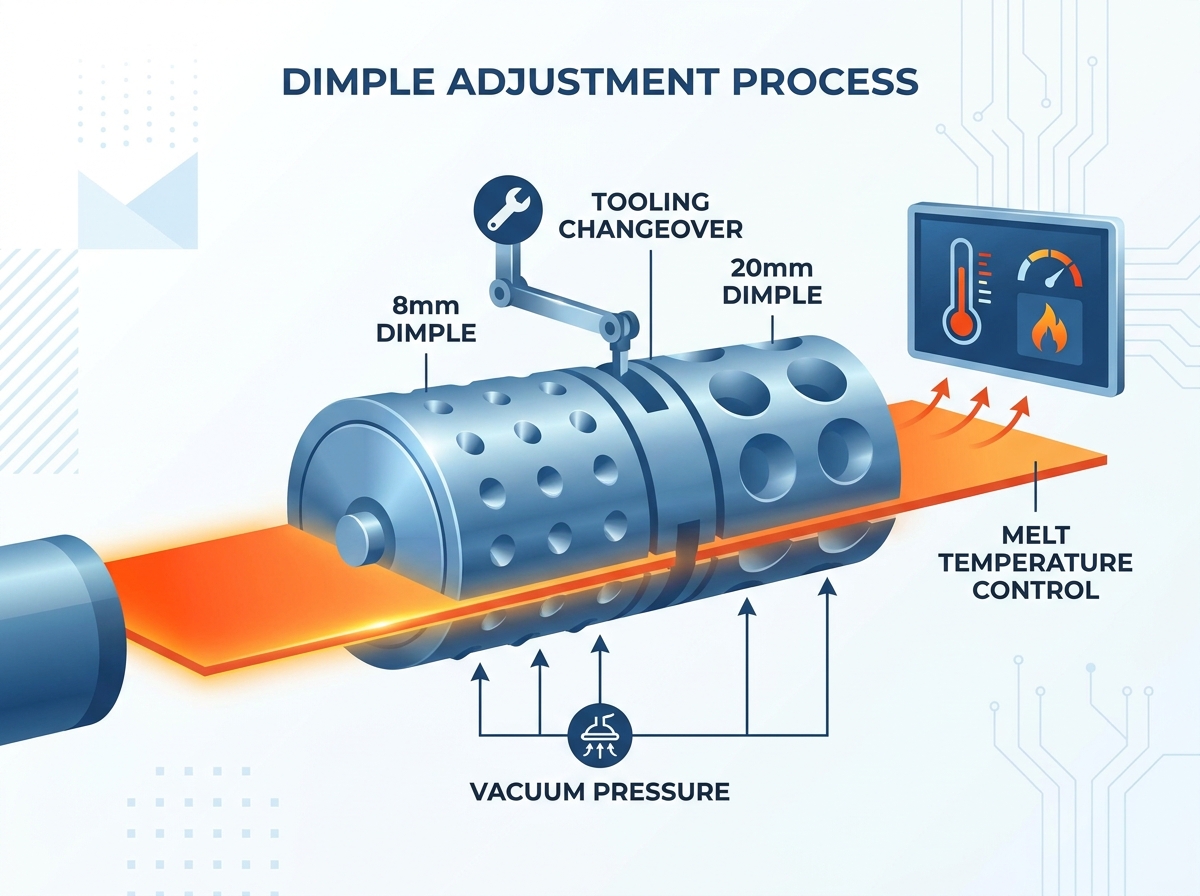

We must first examine the vacuum forming roller. It serves as the core technology in any drainage board and plastic sheet production line. Operators often call this the blister roller. The cylinder features hundreds of precision-machined cavities across its outer surface. Extruded polymer wraps around this spinning metal drum. Internal vacuum pressure then pulls the hot plastic into each individual cavity. This direct physical action forms the fundamental dimple structure.

Geometric limits remain completely hard-tooled into the metal itself. Operators cannot change basic dimple shapes through digital interface adjustments. Standard baseline heights typically range from 8mm to 30mm. Tooling engineers machine specific geometric profiles directly into the roller.

You must carefully evaluate roller metallurgy during equipment selection. High-volume continuous runs demand exceptional structural durability. Look for specialized steel alloys. Ask your manufacturer about hard chrome plating options. These surface treatments improve wear resistance significantly. They help maintain shape fidelity over extremely long operational lifespans. Processing abrasive recycled materials makes this metallurgy even more crucial.

Here are common dimple profiles and their primary industry applications:

• Conical Dimples: They provide maximum compressive strength for deep sub-grade foundation walls.
• Truncated Cones: These offer a wider flat top surface area. They work perfectly for adhering geotextile filtration fabrics.
• Star-Shaped Dimples: They maximize vertical water flow capacity in specialized civil engineering drainage projects.

Proper cavity design also includes a specific draft angle. This slight taper allows the cooled plastic to release easily from the mold. Without proper draft angles, the sheet would stick. It would wrap around the roller and jam the entire production sequence.

Managing Changeovers: Swapping Rollers for Different Heights

Switching from an 8mm dimple to a 20mm dimple requires manual physical intervention. Operators must execute a complete swap of the forming roller. This operational reality dictates your facility's daily throughput limits. Frequent product changeovers demand highly efficient mechanical designs.

Traditional bolt-on roller assemblies slow down production considerably. They require the manual unbolting of multiple heavy flanges. Workers must disconnect intricate water and vacuum lines by hand. They must wait for the metal to cool safely. Modern quick-release systems solve this pressing downtime issue. Modular forming units allow rapid extraction. Operators can slide the new cartridge into place swiftly.

You should evaluate HDPE drainage board equipment based heavily on its changeover ergonomics. Consider the ease of physical access to the main roller housing. Check the integrated lifting mechanics. Overhead cranes or heavy-duty sliding rails are mandatory for handling these massive steel cylinders. Review the manufacturer's stated Mean Time to Repair/Replace (MTTR). Fast MTTR directly translates into higher annual plant profitability.

Watch out for common mistakes during these routine tooling changeovers. Avoid these frequent operational pitfalls:

1. Ignoring detailed seal inspections on the new rotary union connections.
2. Failing to pre-heat the replacement roller before starting the line.
3. Rushing the mechanical realignment process.
4. Miscalibrating the sheet tracking guides after the swap.

Any of these errors will cause immediate sheet wandering. They will generate massive amounts of scrap plastic before the line stabilizes.

Fine-Tuning Dimple Quality: Vacuum Calibration and Thermal Dynamics

Operators must carefully adjust specific operational parameters continuously. These micro-adjustments ensure the polymer achieves the exact correct height inside the mold. Physical tooling defines the maximum possible depth limit. However, active process variables determine if the plastic actually reaches that full depth.

Adjusting negative pressure remains absolutely critical. Vacuum precision dictates how forcefully the plastic draws into the cavity. It also controls the uniformity of the draw across the entire sheet width. Weak vacuum pressure results in shallow, heavily under-formed dimples. The resulting board will fail standard compression tests.

Material behavior relies heavily on the main extruder melt temperature. Heat dictates the plastic melt flow index and general viscosity. Cold polymer becomes too stiff to stretch properly. It will never pull down into the full cavity depth. Conversely, overheated polymer flows much too easily. The dimple apex will thin out excessively as it stretches. This apex thinning severely compromises the final board's structural integrity.

A delicate thermodynamic balance ensures optimal physical characteristics. Operators monitor these thermal variables constantly. They make small adjustments to compensate for simple ambient plant temperature shifts. The following diagnostic matrix helps operators quickly identify and resolve common quality issues on the floor.

Troubleshooting Common Dimple Formation Defects

Synchronization Constraints: Speed, Cooling, and Shape Retention

Every extrusion production run involves a strict operational balancing act. You must maximize output speed while maintaining absolute structural integrity. Faster extrusion yields higher daily profits. However, excessive line speeds introduce severe product quality risks.

The plastic must cool sufficiently before exiting the forming roller. Internal water-cooling systems handle this massive thermal load. Chilled water circulates rapidly behind the molding cavities through complex manifolds. It extracts heat from the hot polymer instantly. This solidifies the plastic quickly. It allows the sheet to retain the engineered dimple shape perfectly upon release.

Investing in a highly reliable plastic drainage sheet extrusion machine minimizes these thermodynamic risks. Substandard equipment often lacks adequate internal chilling capacity. This design deficiency causes immediate post-extrusion shrinkage. The boards warp heavily on the downstream cooling racks. Dimple heights shrink and fall out of standard specification rapidly.

You must ensure the polymer drops below its glass transition temperature. Only then can you safely peel the sheet away from the mold. Implement these daily best practices to maintain proper line synchronization:

• Monitor the precise inlet and outlet temperatures of the roller cooling water.
• Adjust the haul-off speed directly proportional to the available chilling capacity.
• Inspect the internal water channels for mineral scale buildup every month.
• Verify ambient plant temperatures do not exceed the central chiller's operational limits.

Evaluating a Customizable Drainage Board Production Line for Your Facility

Choosing the correct machinery depends heavily on your specific product mix. A volume versus variety matrix provides a highly helpful evaluation framework. High-volume, single-spec production favors dedicated, robust machine setups. Frequent small-batch runs require highly adaptable tooling configurations.

Purchasing a premium customizable drainage board production line offers significant long-term strategic advantages. You should conduct a rigorous cost-benefit analysis regarding upfront tooling purchases. Buying extra forming rollers initially costs more capital. However, it lets you expand into diverse construction markets quickly. You can produce 8mm shallow dimples for basic residential waterproofing. You can then quickly switch to manufacturing 30mm deep dimples for advanced commercial green roof reservoirs.

A dedicated drainage board production line built for future scalability protects your initial investment. You can easily adapt to changing architectural market demands. You do not need to buy entirely new extrusion lines later.

Take specific next-step actions before finalizing any equipment procurement. Request detailed MTTR data for roller swaps directly from the manufacturer. Conduct a physical pilot run using your exact intended resin blends. Test both virgin HDPE and recycled polymer formulations. Finally, verify the vacuum system's pressure stability under maximum line speed conditions. Observe the human-machine interface (HMI) for easy recipe storage capabilities.

Conclusion

Adjusting dimple height and shape relies entirely on a hybrid manufacturing process. Physical tooling sets the hard geometric limits of the product. Precise thermal and vacuum calibration fine-tunes the final structural quality. You cannot achieve optimal results by focusing on just one single aspect.

The right machinery balances high-speed extrusion capabilities perfectly. It integrates rigid cooling infrastructure and powerful vacuum controls seamlessly. This engineering synergy ensures near zero-defect continuous production runs. It also minimizes expensive raw material waste dramatically.

Consult directly with experienced equipment engineers early in your purchasing journey. Review your specific board specifications together in detail. Discuss your anticipated daily throughput and tooling changeover requirements thoroughly. Proactive operational planning guarantees you acquire the most capable machinery for your facility.

FAQ

Q: Can a single machine produce both 8mm and 20mm drainage boards?

A: Yes, but it requires stopping the line entirely to swap the forming roller. The main extruder and downstream cooling equipment can easily accommodate both sizes. Operators just need to adjust the T-die gap and recalibrate the thermal parameters accordingly.

Q: How long does it take to change the forming roller on a plastic drainage sheet extrusion machine?

A: Time varies significantly by specific machine design. Standard equipment utilizing traditional bolt-on assemblies may take several hours to switch out. Conversely, specialized quick-change modular lines can reduce this turnaround time to well under an hour.

Q: What causes the dimples to thin out or tear at the top during production?

A: This "apex thinning" typically results from excessive vacuum pressure. It also happens frequently if extruder melt temperatures run too high, causing low polymer viscosity. Additionally, a severe imbalance in the initial sheet thickness prior to entering the forming roller often causes tearing.
