How Are Profile Dies Matched to Vacuum Calibrators?

In extrusion manufacturing, the physical gap between the die exit and the vacuum calibrator dictates whether molten polymer becomes a high-margin product or expensive scrap. Achieving strict dimensional tolerances on complex, hollow, or massive extrusions requires perfect synergy between the shaping tool and the sizing tool. Misalignment or mismatched tooling leads to warpage, inconsistent wall thickness, surface defects, and bottlenecked line speeds. For plant managers and engineers evaluating equipment upgrades, understanding the engineering principles behind die-to-calibrator matching is mandatory. This guide breaks down the technical evaluation criteria for aligning extrusion tooling, selecting the right vacuum sizing technology, and mitigating implementation risks to ensure reliable vacuum system stability. We will look at how to optimize cooling rates, manage draw-down ratios, and select the right machinery for specific polymer formulations.

• Die Swell and Draw-Down Compensation: Profile dies must be engineered slightly larger than the final profile to account for polymer swell, while the vacuum calibrator must be sized to lock in the exact final dimensions during the cooling phase.
• Tooling Synergy Dictates Speed: The efficiency of a PVC profile production line relies on matching the die's melt distribution with the calibrator's cooling capacity; mismatched systems force operators to slow down haul-off speeds to prevent deformation.
• Vacuum Stability is Non-Negotiable: Even perfectly matched tooling will fail if the vacuum system lacks precise, multi-zone gauge control to maintain consistent negative pressure against the calibration sleeve.
• Customization is Required for Complexity: Standardized machinery often fails for intricate geometries (like hollow window frames or co-extruded seals); investing in customizable PVC profile machinery ensures tooling is purpose-built for specific polymer rheology and extreme profile dimensions.

The Mechanics of Melt-to-Solid: Why Die and Calibrator Alignment Matters

The primary objective of the extrusion tooling stack is straightforward yet highly complex in execution. You must transition a viscoelastic melt into a rigid solid without inducing internal stress or dimensional deviation. This process requires absolute control over thermal dynamics and fluid mechanics. When a polymer exits the extruder, it possesses thermal energy and flow memory. The tooling stack must manage both simultaneously to yield a viable product. If the thermal energy is extracted too quickly, the product becomes brittle. If it is extracted too slowly, the product loses its shape.

Understanding the exact transition sequence at the die exit is fundamental to troubleshooting dimensional failures. The process follows a strict mechanical sequence:

1. The melt enters the profile die from the extruder adapter under high pressure.
2. It travels through the profile die stack, which is engineered to balance flow velocities across varying cross-sectional thicknesses.
3. The polymer exits the die land as a shaped molten profile, immediately experiencing atmospheric pressure.
4. The melt expands due to die swell before being pulled into the sizing tool.
5. The vacuum calibrator engages the melt, freezing the outer skin while the core remains pliable.

Upon leaving the restrictive confines of the die land, the polymer experiences die swell, also known as the Barus effect. This phenomenon occurs because the polymer chains, which were compressed and aligned under shear stress within the die, suddenly relax and expand upon exiting. Rigid and flexible formulations exhibit entirely different swell characteristics. Highly filled rigid compounds may swell minimally, often less than 5%. Flexible elastomers, however, can expand significantly, sometimes up to 20% depending on the plasticizer content.

The die land length directly influences the melt's memory. A longer land length provides more time for polymer chains to relax before exiting, thereby reducing die swell. Engineers must calculate this expansion precisely when designing the die orifice. If the die is cut to the exact dimensions of the final product, the resulting extrusion will be oversized and impossible to pull through the calibrator without severe distortion.

Immediately following the die exit, the vacuum calibrator takes control. The sizing tool engages the melt the moment it enters the calibration sleeve or plate. Vacuum forces pull the molten polymer skin outward against the chilled metal walls of the calibrator. This action freezes the outer dimensions instantly, creating a rigid shell while the inner core remains hot and pliable. The rapid cooling locks in the external geometry, preventing the profile from collapsing under its own weight.

To achieve the final target dimensions, operators must calculate and manage the draw-down ratio. This is the mathematical relationship between the cross-sectional area of the die orifice, the dimensions of the calibrator entrance, and the required haul-off speed. If the haul-off unit pulls the profile faster than the melt exits the die, the profile stretches and thins out. Proper alignment of these three variables ensures the polymer fills the calibrator completely without bunching up or tearing. A standard draw-down ratio for rigid profiles typically hovers between 1.05:1 and 1.15:1, providing just enough tension to keep the melt taut across the physical gap between the die and the sizing sleeve.

Key Evaluation Dimensions for Matching Tooling in a PVC Profile Production Line

Maintaining tight tolerances on large or hollow profiles demands rigorous engineering. Achieving a dimensional accuracy of ±0.005 inches is standard for high-end applications like fenestration or architectural components. When dealing with profiles exceeding six inches in height and thirty inches in width, standard calibration techniques often fall short. You must utilize proprietary vacuum calibration methods designed specifically to handle massive heat loads and complex shrinkage rates. The tooling must account for the fact that polymer shrinks as it cools, meaning the calibrator itself is often machined slightly larger than the final room-temperature product.

Die flow channel design plays a preemptive role in calibration success. Areas of the profile with high mass will naturally cool slower inside the calibrator. If the die delivers too much material to a thick intersection, that section will retain heat, leading to sink marks or internal voids as the surrounding thinner walls cool and contract. The die must be engineered to slightly restrict flow to these heavy sections, balancing the mass distribution before the melt even reaches the sizing tool in a PVC profile production line. This preemptive flow restriction ensures uniform cooling rates across the entire cross-section.

Cooling rates dictate overall line efficiency and profitability. You must analyze the relationship between the volume of polymer extruded per hour and the required length of the vacuum calibration table. A high-output extruder pushing 1,000 pounds per hour requires a significantly longer cooling zone to remove the thermal energy from the plastic compared to a machine running at 300 pounds per hour. If the table is too short, the core of the profile remains soft upon exiting, causing the product to warp as it rests on the run-out table.

Maximum heat transfer within the calibrator blocks relies entirely on turbulent water flow. Laminar flow creates an insulating boundary layer of warm water against the cooling channels, drastically reducing efficiency. Calibrator blocks must feature internal channel designs that force the cooling water into a turbulent state, constantly stripping away heat from the metal surfaces contacting the hot polymer. Engineers aim for a Reynolds number greater than 4,000 within the cooling channels to guarantee turbulence.

Handling complex geometries introduces additional tooling alignment requirements. Solid profiles primarily require external cooling and sizing. Multi-lumen hollow profiles, such as window frames, present a unique challenge. The internal webs and chambers will collapse under the external vacuum forces if not properly supported. This requires the use of internal air, often called mandrel air. The die is designed to inject regulated air pressure into the hollow chambers. This internal pressure works in tandem with the external vacuum in the calibrator, sandwiching the polymer wall to hold its exact shape during the critical freezing phase.

System Categories: Selecting the Right Vacuum Calibration Technology

Selecting the appropriate calibration technology depends entirely on the geometry of the product and the desired line speed. There is no universal solution; tooling must be matched to the specific thermodynamic requirements of the profile. Using the wrong calibration method guarantees high scrap rates and constant operator intervention.

Dry calibration utilizes machined sizing blocks or sleeves. The hot profile contacts a chilled metal block equipped with intricate vacuum slots. Water circulates internally through the block to keep it cold, but the water does not directly touch the plastic inside the main sizing area. This method provides exceptional surface finish and strict dimensional control. It is the preferred choice for high-precision, complex hollow geometries where external water contact might cause uneven rapid cooling and induce warp. Dry blocks are typically machined from stainless steel or specialized aluminum alloys to maximize thermal conductivity while resisting corrosion.

Wet calibration involves vacuum tanks where the profile is directly submerged in a water bath under negative pressure. Sizing plates are positioned at intervals within the tank to guide the profile and maintain its shape. This method excels at rapid bulk cooling. It is highly effective for simpler geometries, thick-walled solid profiles, or any high-speed plastic profile production line where extracting heat quickly is the primary bottleneck. Wet tanks are generally less expensive to tool than dry blocks, making them ideal for high-volume commodity extrusions.

Hybrid approaches combine both technologies for specialized applications. A common configuration utilizes a short dry calibration sleeve at the immediate die exit to freeze the critical outer skin and lock in precise surface details. This is immediately followed by a long wet vacuum tank to rapidly cool the remaining mass. This hybrid setup is particularly beneficial for a PVC sealing strip production line. It balances the need for precise lip and seal geometry achieved in the dry sleeve with the rapid bulk cooling required for flexible, highly plasticized materials in the wet tank. The transition between the dry and wet zones must be perfectly aligned to prevent the profile from snagging or scratching as it moves downstream.

Assessing Customizable PVC Profile Machinery: Features to Outcomes

Standardized equipment often restricts operational flexibility. When evaluating machinery, specific features directly correlate to lower scrap rates and higher product consistency. Investing in customizable PVC profile machinery ensures your production floor can adapt to varying polymer behaviors and tooling demands. Off-the-shelf systems force operators to compromise on line speed to maintain quality, whereas custom-engineered platforms allow for maximum throughput without sacrificing tolerances.

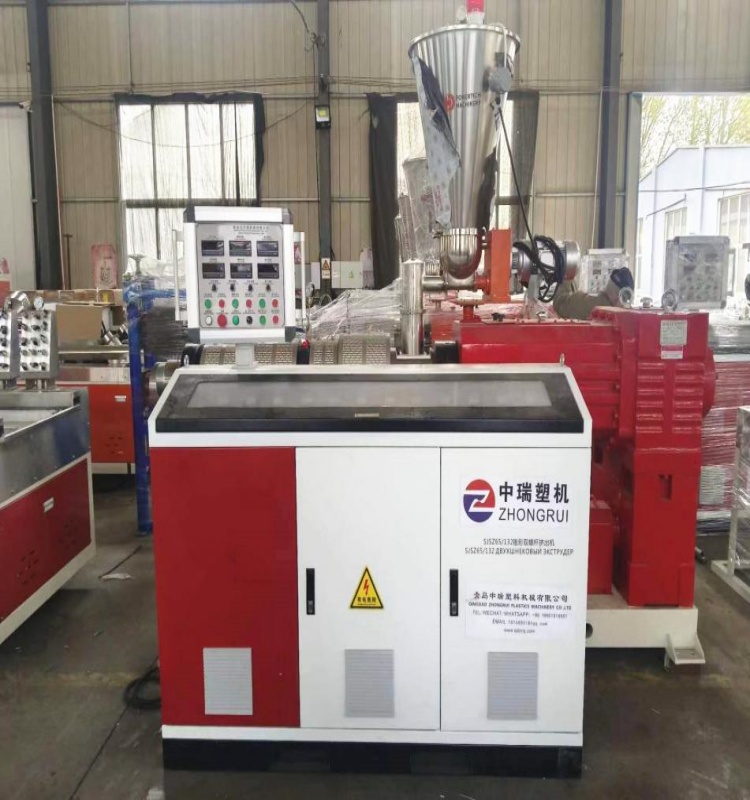

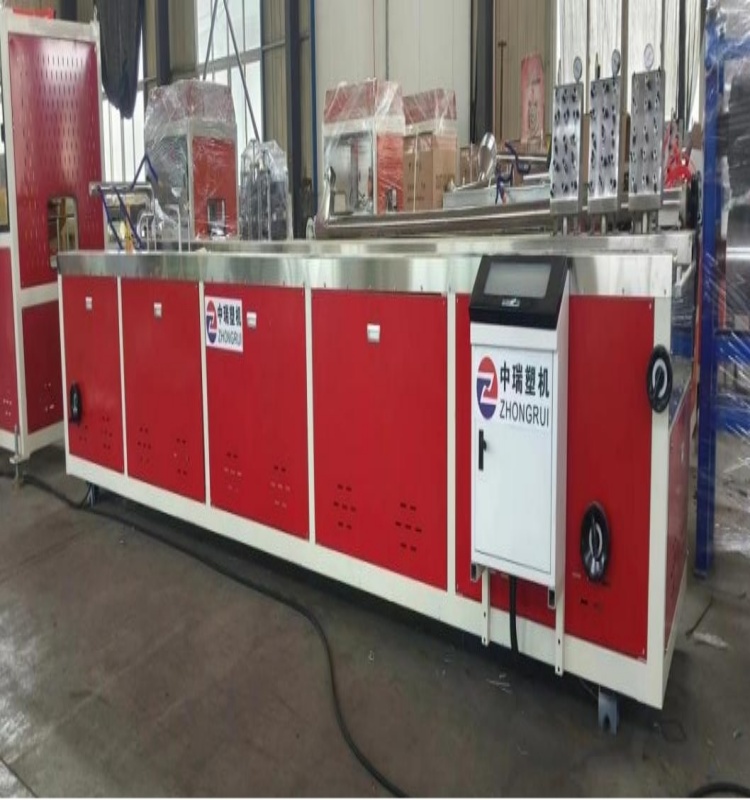

Multi-zone vacuum and temperature control is a critical feature. A high-quality calibration table divides the vacuum and water flow into independent sections. This allows operators to apply maximum vacuum at the entrance of the calibrator. High initial vacuum forces the hot melt aggressively against the chilled walls, instantly freezing the skin. As the profile moves downstream and gains structural integrity, operators can lower the vacuum pressure. This reduces unnecessary drag friction against the tooling, which directly reduces internal stress and lowers scrap rates caused by stretching. Independent water temperature controls also allow for a gradual cooling profile, preventing thermal shock that can cause brittle failure in rigid compounds.

Vacuum gauge stability separates adequate machinery from exceptional machinery. You need high-accuracy vacuum gauges capable of managing distinct pressure categories. Some profiles require high vacuum, while delicate hollow sections might require low vacuum calibrations ranging down to 1 x 10^-4 depending on the system architecture. Precise gauges prevent vacuum fluctuations. Unstable vacuum causes the polymer to rapidly pull away from and slam back against the calibrator wall. This creates chatter marks or dimensional pulsing on the profile surface. Reliable vacuum system stability is mandatory for a flawless finish on any PVC profile.

Synchronization with haul-off units ensures the entire line acts as a single cohesive system. Advanced machinery features closed-loop communication between the extruder drive, the vacuum calibrator drag-resistance metrics, and the caterpillar haul-off speed. If the calibrator generates excess drag due to a slight temperature drop, the haul-off must adapt its pulling force to maintain consistent tension. This prevents the hot plastic from stretching, thinning out, or bunching up inside the calibration sleeve. Encoder feedback loops monitor the line speed down to the millimeter per minute, making micro-adjustments automatically without requiring operator intervention.

Implementation Risks and Mitigation Strategies in a PVC Profile Extrusion Line

Even with premium tooling, operational execution carries inherent risks. Identifying these risks early prevents catastrophic line failures and excessive material waste. The physical gap between the die and the calibrator is the most vulnerable point on the entire extrusion line. Any disruption here magnifies exponentially as the product moves downstream.

Tooling misalignment is the most common cause of profile warpage. If there is even a millimeter of vertical or horizontal misalignment between the die face and the calibrator entrance, the melt enters the sizing sleeve at an angle. This creates uneven drag friction on one side of the profile and asymmetrical cooling. The resulting internal stress guarantees the product will bow or twist after it leaves the cooling tank. To mitigate this, you must specify machinery equipped with precision 3-axis micro-adjustment capabilities on the vacuum table. Operators must be able to fine-tune the table's X, Y, and Z axes while the line is running to achieve perfect concentricity. Motorized adjustments with digital readouts provide the highest level of repeatability.

Vacuum system degradation over time silently destroys product quality. The vacuum slots in sizing sleeves are incredibly narrow, often machined to fractions of a millimeter. Over weeks of production, volatile off-gassing, wax lubricants, and calcium carbonate from the polymer compound can clog these slots. Furthermore, uncalibrated vacuum gauges provide false pressure readings, leading operators to make incorrect process adjustments. Implement a strict preventative maintenance schedule. Sizing tools require ultrasonic cleaning to clear micro-slots without damaging the metal surfaces. Pressure and vacuum devices must undergo routine calibration adjustments. Industry best practice dictates testing and calibrating gauges every 12 months to ensure low and high vacuum readings remain completely accurate.

Material formulation changes frequently render existing die-to-calibrator matches obsolete. Switching compound suppliers or altering the regrind ratio changes the melt viscosity, thermal conductivity, and die swell characteristics of the plastic. A die that worked perfectly with virgin material may produce oversized or undersized profiles when running a 30% regrind mix. To mitigate this risk on a PVC profile extrusion line, conduct comprehensive rheological testing before approving compound changes. Use a capillary rheometer to measure the exact shear rates and swell percentages of the new batch. Where applicable, utilize adjustable die lips to fine-tune the melt flow without requiring a complete tooling rebuild.

Conclusion

1. Audit current scrap rates and dimensional variance logs to identify specific cooling or sizing bottlenecks on the production floor.
2. Implement a 12-month mandatory calibration schedule for all vacuum gauges and pressure transducers to prevent false readings.
3. Initiate an RFQ for a modernized vacuum calibration table with integrated haul-off synchronization if the current system lacks closed-loop control.
4. Establish a preventative maintenance protocol for ultrasonic cleaning of dry calibration blocks to prevent slot clogging from compound off-gassing.

FAQ

Q: What is the purpose of a vacuum calibrator in a PVC profile extrusion line?

A: A vacuum calibrator sizes and cools the molten polymer immediately after it exits the die stack. It uses negative pressure to hold the hot plastic outward against a chilled metal mold, locking in the final external dimensions while extracting heat to freeze the profile into a rigid solid.

Q: How do you calculate the gap distance between the die and the calibrator?

A: The gap is typically kept as short as possible, often just a few millimeters. This prevents the hot melt from sagging under gravity before entering the sizing tool. The exact distance varies based on the specific draw-down ratio, the polymer's melt strength, and the line speed.

Q: Why is my PVC profile warping after it leaves the vacuum calibration table?

A: Warpage is usually caused by uneven cooling, misaligned tooling between the die and the calibrator, or internal stresses. If the haul-off unit pulls the profile too fast through the sizing sleeve, or if one side of the calibrator is warmer than the other, the plastic will bow as it reaches room temperature.

Q: What is the difference between dry vacuum calibration and wet vacuum tanks?

A: Dry calibration uses chilled metal blocks with vacuum slots to shape the profile without direct water contact, offering high precision for complex hollow shapes. Wet tanks submerge the profile directly in water under vacuum, providing faster bulk cooling which is ideal for simpler, thick-walled solid shapes.

Q: How often should vacuum gauges on a plastic profile production line be calibrated?

A: Industry standards recommend testing and making calibration adjustments to all pressure and vacuum devices every 12 months. Regular calibration ensures accurate readings, preventing vacuum fluctuations that cause surface defects or dimensional inconsistencies during production.
