How Can Cooling Maintain Straight Plastic Profiles?

Dimensional instability in extrusion carries a heavy financial penalty. Bowing, warping, and sink marks quickly lead to high scrap rates, rejected batches, and compromised structural integrity. Achieving a perfectly straight plastic profile requires more than precise die design. It depends entirely on the thermal dynamics immediately following extrusion. Uneven cooling creates internal stresses that pull the molten polymer out of alignment as it solidifies. Precise, controlled cooling methodologies dictate your operational success. Vacuum calibration and conformal cooling in tooling act as the critical differentiators between high-yield production and constant quality assurance failures. We will explore how advanced thermal management ensures dimensional accuracy across your entire extrusion operation, focusing on the mechanics of heat removal and physical restraint.

  • Dimensional Stability Relies on Uniformity: Differential cooling rates across varying wall thicknesses are the primary cause of warped profiles and sink marks; targeted thermal management is required to mitigate internal stress.

  • Calibration is Critical: Maintaining straightness requires physical restraint (vacuum sizing/templates) combined with rapid heat removal before the polymer reaches its glass transition temperature.

  • Material Dictates the Method: PVC and WPC (Wood-Plastic Composites) possess vastly different thermal conductivities, requiring specific configurations in the production line.

  • Tooling Design Impacts Yield: Investing in customizable machinery with advanced cooling channels (e.g., conformal cooling, baffles) directly reduces cycle times and improves linear accuracy.

The Physics of Warping in Plastic Profile Extrusion

Profile Geometry and Common Design Mistakes

The foundational geometry of the profile directly influences melt flow. It dictates pressure distribution within the die and controls subsequent cooling behavior. Symmetrical designs cool evenly, while asymmetrical designs inherently struggle with thermal balance. Abrupt transitions between thick and thin walls represent a massive design flaw. Thick sections hold thermal energy much longer than thin sections. This makes straightness nearly impossible to maintain without specialized cooling interventions. Engineers must anticipate these thermal imbalances during the initial CAD phase. Sharp internal corners accumulate heat rapidly and restrict the flow of cooling water in the calibration tooling.

Operators frequently encounter specific geometric flaws that ruin production runs. Identifying these early prevents massive material waste. The most frequent design errors include:

  1. Unbalanced wall thicknesses that force the outer skin to freeze while the core remains molten.

  2. Insufficient spacing between internal hollow chambers, which prevents adequate vacuum pressure application.

  3. Ignoring die swell characteristics, leading to oversized profiles that jam inside the primary calibration sleeve.

  4. Placing heavy structural ribs directly opposite flat cosmetic surfaces, guaranteeing visible sink marks.

  5. Failing to include smooth radii at intersections, which creates localized heat traps that resist standard water cooling.

Shrinkage, Melt Flow, and Internal Stresses

Melt flow geometry dictates cooling behavior once the polymer exits the die. The outer skin cools and solidifies first against the chilled metal of the calibrator. The inner core remains molten. As the core finally cools, it shrinks. Thicker sections of a profile retain heat longer, causing localized, delayed shrinkage. This delayed shrinkage physically pulls the outer skin inward. The result is a visible sink mark on the surface. If the shrinkage is asymmetrical across the entire cross-section, it bends the profile entirely. This causes bowing.

The glass transition temperature (Tg) plays a critical role in this phase. Once the polymer drops below its Tg, the molecular structure locks in place. Any internal stresses present at this exact moment become permanent deformation. Managing the cooling rate ensures the core and skin shrink at compatible rates. If you quench the outside too fast, the frozen skin acts as a rigid shell. The shrinking core then tears itself apart internally, creating voids that destroy the structural integrity of the part.

The Cost of Inadequate Cooling on the Production Line

Inadequate cooling introduces severe operational risks. Increased material waste is the most immediate consequence. Operators often slow down line speeds to compensate for poor cooling. If a line designed for three meters per minute must run at one meter per minute just to keep the profile straight, throughput drops drastically. Downstream assembly failures occur when warped profiles fail to fit together during final construction.

You must frame the evaluation of cooling systems accurately. They represent the primary bottleneck for throughput and dictate quality control limits in any plastic profile production line. Excessive scrap forces facilities to rely on regrind material. High percentages of regrind further alter the thermal properties of the melt. Regrind flows differently and cools differently than virgin resin. This creates a destructive cycle of dimensional instability. Robust cooling systems break this cycle by locking in dimensions regardless of minor melt variations.

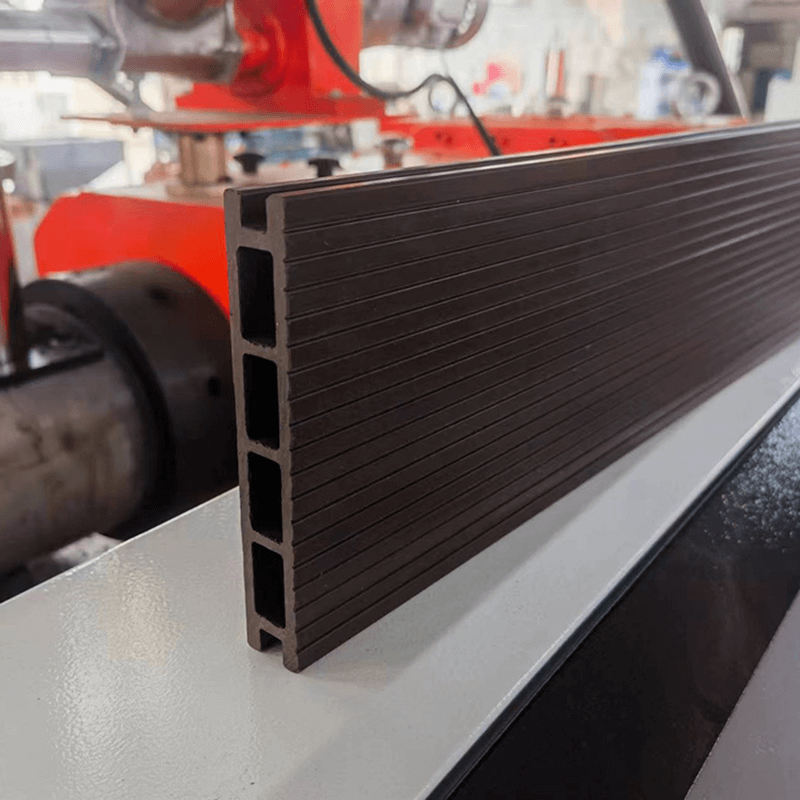

Advanced cooling systems for plastic profile extrusion

Core Cooling Methods for Dimensional Accuracy

Vacuum Calibration Systems

Vacuum calibration tables utilize both dry and wet mechanics. Dry calibration blocks use internal vacuum slots machined directly into the metal. Wet calibration tanks submerge the profile while applying vacuum pressure through sizing plates. Vacuum forces pull the extruded plastic against the cooling sleeve. The vacuum forces the polymer to hold a straight, precise shape while the outer skin solidifies. Complex geometries require multi-zone vacuum control. Independent vacuum valves prevent profile collapse. They allow operators to apply higher suction to thicker sections. Lower suction on delicate fins prevents tearing.

Proper vacuum sizing eliminates the natural tendency of the polymer to swell upon exiting the die. The initial dry block sets the outer dimensions. The subsequent wet tanks remove the bulk of the remaining heat. Balancing the vacuum pressure against the water pressure inside the tank requires constant monitoring. If the water pressure exceeds the vacuum pull, the profile will deform inward.

Water Baths and Submersion Cooling

Turbulent water baths provide rapid, bulk heat removal immediately after initial calibration. Turbulent flow breaks the thermal boundary layer around the plastic. This maximizes heat transfer efficiency. Spray cooling offers distinct advantages for complex shapes. High-velocity spray nozzles prevent water pooling. Pooling causes uneven cooling and localized warping on flat surfaces. Full submersion works better for thick-walled, simple profiles where aggressive thermal quenching is required.

Operators must monitor water temperature continuously. Chilled water systems keep the bath at an optimal temperature, usually between 10°C and 15°C depending on the polymer. Warm water drastically reduces the heat transfer coefficient. This allows the core to remain molten for too long. Flow meters on every water line ensure that no single section of the tank becomes a dead zone where hot water accumulates.

Cooling Method

Primary Application

Heat Removal Rate

Dimensional Control Mechanism

Dry Vacuum Calibration

Complex hollow profiles (Window frames)

Moderate

Physical restraint via vacuum slots against chilled metal

Wet Vacuum Calibration

Thick-walled solid profiles

High

Submersion combined with negative pressure sizing plates

Turbulent Spray Bath

Profiles prone to water pooling

Very High

High-velocity droplet impact breaking thermal boundaries

Air Frame Templates

Delicate micro-features, foamed polymers

Low

Physical template support with gentle convective cooling

Air Frames and Template Cooling

Some custom plastic extrusion profiles require air frames. These frames utilize metal or Teflon templates. The templates physically support the profile without the thermal shock of water. Air cooling prevents rapid quenching. Certain engineering plastics are highly sensitive to sudden temperature drops. Profiles with delicate micro-features often deform under heavy water spray. High-velocity air blowers provide gentle, uniform heat dissipation.

This method stabilizes dimensions without inducing brittle surface stress. Air frames allow operators to inspect the profile continuously, whereas water tanks obscure visibility. Template cooling is particularly effective for foamed polymers. Foamed structures collapse under high vacuum or aggressive water pressure. The templates hold the expanding foam in check while ambient or chilled air slowly removes the heat.

Material-Specific Cooling Strategies

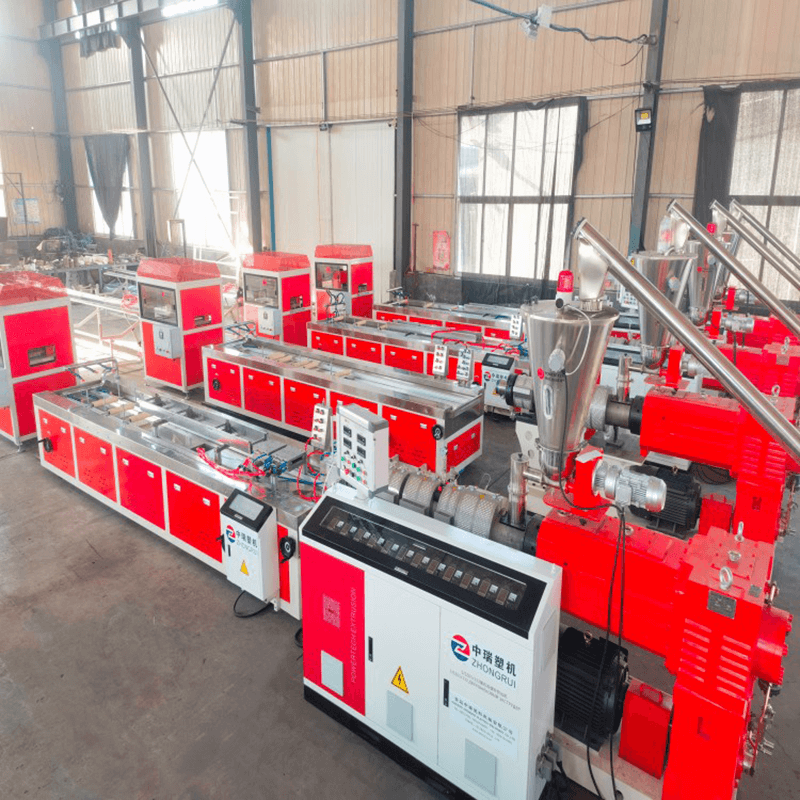

Optimizing a PVC Profile Production Line

Polyvinyl Chloride (PVC) exhibits specific thermal sensitivities. A dedicated PVC profile production line requires highly controlled, gradual cooling. Rapid quenching makes rigid PVC brittle. It induces surface defects and internal micro-cracking that compromise impact resistance. Strategic integration of multiple hollow chambers improves profile design. These chambers save raw material and significantly improve thermal performance.

Hollow sections allow more uniform heat dissipation during the cooling phase. They prevent the massive thermal gradients seen in solid PVC blocks. Window profiles rely heavily on this multi-chamber design. The internal webs act as structural supports while facilitating even cooling rates across the entire cross-section. Operators must balance the vacuum in these hollow chambers carefully. Too much vacuum will suck the internal webs out of alignment, ruining the structural integrity of the window frame.

Thermal Management in a WPC Plastic Profile Production Line

Wood-Plastic Composites (WPC) present unique cooling challenges. Wood fibers alter the melt flow entirely. They retain heat differently than pure polymers. WPC is highly susceptible to moisture-related defects if improperly quenched. A dedicated WPC plastic profile production line must account for this thermal lag. Operators must evaluate the specific cooling requirements for a wood plastic profile machine.

This includes extended cooling lengths and specialized spray nozzle configurations. These configurations prevent surface cracking while ensuring complete core solidification. Wood flour acts as an insulator. This forces the cooling process to take significantly longer than standard PVC. Rushing the cooling phase traps steam inside the profile. This leads to internal voids and structural failure. WPC decking boards often require cooling tanks twice as long as standard PVC lines to ensure the core temperature drops below the danger zone before hitting the haul-off unit.

Evaluating Customizable PVC Profile Machinery for Thermal Control

Conformal Cooling vs. Straight-Line Channels in Calibration Tooling

Traditional calibration dies use straight-line drilled cooling channels. These straight lines cannot follow complex profile contours. This leaves dangerous hot spots in the tooling. Advanced conformal cooling designs solve this problem. Conformal cooling utilizes non-straight-line channels that follow the exact geometry of the profile. Continuous extrusion now adapts advanced injection molding techniques to solve these thermal bottlenecks.

This includes the integration of bubblers, baffles, and thermal pins. These components force cooling water into deep, hard-to-reach sections of the die. They eliminate hot spots in complex calibration tooling. Uniform die temperatures guarantee uniform shrinkage. This directly translates to perfectly straight profiles. When sourcing customizable PVC profile machinery, specifying conformal cooling in the primary dry calibrator is non-negotiable for complex geometries.

Flow Rate, Temperature Zones, and Pressure Distribution

Equipment procurement requires strict attention to thermal features. Look for closed-loop water temperature controllers. High-capacity pumps are mandatory to maintain turbulent flow. Independent flow meters for each cooling zone provide necessary control. Precise pressure distribution in the calibration unit is vital. It prevents the profile from collapsing and stops the polymer from expanding out of tolerance.

Operators must balance water pressure against vacuum pressure. If water pressure exceeds vacuum strength, the profile will deform inward. Advanced machinery automates this delicate pressure balance using digital sensors and variable frequency drive (VFD) pumps. This ensures the final product remains free from dimensional distortion regardless of minor fluctuations in line speed or ambient plant temperature.

Extrusion Defect

Thermal Cause

Cooling System Adjustment

Sink Marks

Core cooling too slowly compared to the skin

Decrease water temperature; increase spray velocity on thick sections

Bowing / Warping

Asymmetrical cooling rates across the profile

Balance water flow meters; check for blocked cooling channels in the die

Surface Brittleness

Quenching the polymer too rapidly

Increase water temperature in the first calibration zone; use air cooling

Profile Collapse

Insufficient vacuum or excessive water pressure

Increase vacuum pressure; verify sizing plates are properly aligned

Implementation Risks and Mitigation in Profile Extrusion

Managing Tooling Complexity and Maintenance

Complex cooling channels carry inherent operational risks. Conformal designs with baffles and bubblers are highly susceptible to scaling. Poor water quality leads to rapid blockage. Blocked channels cause uneven cooling and sudden warping issues. You must implement strict water filtration protocols. Treat your cooling water to prevent mineral buildup and biological growth.

Design tooling with accessible clean-out ports. Utilize corrosion-resistant alloys for all internal cooling components. Perform routine ultrasonic cleaning on calibration dies. This removes microscopic scale deposits that act as thermal insulators. Consistent maintenance guarantees consistent thermal transfer rates over the lifespan of the tooling. A die that cools perfectly on day one will fail on day sixty if the water channels calcify.

Equipment Alignment and Downstream Handling

Perfect cooling cannot fix mechanical misalignment. Misalignment between the extruder, calibration table, and haul-off unit induces physical bowing. This happens while the core is still warm and pliable. Establish rigorous laser-alignment protocols during initial setup. Utilize precision-adjustable multi-axis calibration tables to dial in the exact center line.

Ensure the haul-off caterpillars apply even, non-crushing pressure. Smooth downstream handling locks in the straightness achieved during cooling. Sudden jerks from the puller will stretch the warm profile. This alters the cross-sectional dimensions permanently. Synchronize the haul-off speed perfectly with the extrusion rate to prevent tension-induced warping. The puller must act as a guide, not a tensioning device.

Conclusion

  • Conduct a comprehensive thermal flow analysis on all current profile designs to identify hot spots before cutting steel for new dies.

  • Request physical pilot runs on prospective production lines to verify dimensional stability at target speeds.

  • Upgrade your facility's water filtration system to protect complex cooling channels from mineral scaling and blockage.

  • Implement routine laser-alignment checks between the die, calibrator, and haul-off unit to prevent mechanical bowing.

  • Install independent flow meters on every cooling zone to guarantee repeatable thermal management across different operator shifts.

FAQ

Q: Why do plastic profiles warp or develop sink marks during the cooling process?

A: Warping and sink marks occur due to differential shrinkage rates. These are caused by uneven wall thicknesses, poor profile geometry, and non-uniform heat removal. Thicker sections retain heat longer, causing delayed, localized shrinkage that pulls the outer skin inward or bends the profile as internal stresses resolve.

Q: What is the role of a vacuum calibrator in a plastic profile production line?

A: A vacuum calibrator uses negative pressure to hold the molten plastic tightly against a chilled metal mold. This physical restraint locks in straightness and precise outer dimensions while the polymer's skin rapidly solidifies, preventing the profile from collapsing or swelling.

Q: How does cooling a WPC profile differ from a standard PVC profile?

A: WPC contains wood fibers that act as thermal insulators, retaining heat much longer than standard PVC. A wood plastic profile machine requires extended, specialized cooling zones and precise spray configurations to ensure complete core solidification without causing surface cracking or trapping steam.

Q: What is conformal cooling in extrusion tooling?

A: Conformal cooling utilizes non-straight-line cooling channels that physically follow the complex geometry of the profile. Often incorporating baffles and bubblers, this advanced tooling design eliminates hot spots and ensures uniform temperature reduction across asymmetrical or intricate shapes.

Q: Can upgrading my cooling system increase production line speed?

A: Yes. Faster, more efficient heat removal reduces the time required for the polymer core to drop below its glass transition temperature. Upgraded cooling systems directly eliminate the primary thermal bottleneck, allowing operators to safely increase extrusion speeds without sacrificing dimensional accuracy.
