How Do Calibration and Cooling Affect PVC Foam Board Quality?

Precise calibration and cooling operations act as the ultimate dividing line between commercially viable, high-grade PVC boards and disastrous, high-scrap production runs. Many manufacturers focus heavily on raw material formulation and initial extrusion temperatures. However, you must realize the post-extrusion shaping phases actually dictate the final physical tolerances, surface finish, and density uniformity of your product. If these downstream systems fail, your perfect polymer melt quickly becomes unusable waste.

We created this technical evaluation framework to help production managers and procurement engineers. You will learn how to audit your current manufacturing setups to identify hidden inefficiencies causing daily material loss. We also provide clear criteria for specifying a new PVC foam board production line to ensure maximum output quality. Read on to master the mechanics of calibration, troubleshoot complex cooling defects, and evaluate modern downstream equipment effectively.

Key Takeaways

• Calibration unit design directly dictates board thickness, surface smoothness, and core density by controlling the expansion of the polymer melt.
• Inadequate or rapid cooling introduces internal thermal stress, leading to post-production warping, bending, and dimensional instability.
• Investing in advanced cooling and calibration systems within a plastic sheet production line directly correlates to lower scrap rates and higher ROI.
• Evaluating production machinery requires scrutinizing vacuum control precision, cooling block length, and water flow consistency.

The Mechanics of Calibration in Density and Dimensional Control

Inconsistent board thickness and uneven density destroy profit margins. These issues lead directly to product rejection and severe material waste. Operators often struggle to maintain rigid specifications during long production shifts. Variations in the core structure weaken the final product. You cannot sell a PVC foam board if it fails basic density checks. Proper calibration solves this massive business problem.

The calibration process begins immediately after the foaming melt exits the die lip. The hot polymer mixture enters the calibration mold. Here, the sizing plates constrain the expanding material. The mold shapes the melt into its final rectangular profile. This physical constraint dictates the exact thickness of the board. It also stops the foaming agent from over-expanding.

Vacuum and pressure variables play a crucial role during this exact moment. Vacuum systems within the calibration unit pull the hot skin outward. They force the melt against the chilled mold surface. This intense contact rapidly cools the exterior layer. It creates the rigid, hard outer skin critical for a high-quality PVC foam board. Precise vacuum control ensures this skin remains perfectly flat and smooth.

A well-optimized calibration phase delivers predictable dimensional tolerances. You achieve a uniform cell structure across the entire cross-section of the board. The core density remains stable from edge to center. This consistency allows your downstream teams to cut, route, and print on the material reliably.

Best Practices for Calibration Management

• Clean the calibration plates thoroughly between different production runs.
• Monitor vacuum pump pressure gauges hourly to spot leaks early.
• Align the die lip perfectly parallel to the calibration unit entrance.
• Calibrate sensor equipment monthly to ensure accurate temperature readouts.

Why Proper Cooling Prevents Bending and Warping

Polymer cooling involves complex physics. Rapid or uneven temperature drops introduce a severe threat known as internal stress. The outer skin cools and shrinks faster than the hot inner core. This differential shrinkage locks internal thermal stresses into the material. The board may look flat on the line. However, it will inevitably warp or bend later.

You must implement a multi-stage cooling bracket system. This equipment gently brings the board down to room temperature. We call this gradual cooling. It contrasts sharply against shock cooling. Shock cooling happens when operators blast the hot board using extremely cold water. Gradual cooling allows the core and the skin to contract at similar rates. This symmetry prevents stress accumulation.

Table 1: Comparison of Gradual vs. Shock Cooling Dynamics

We evaluate warpage risks by examining specific field failures. Poor cooling zones directly cause boards to bend during secondary processing. Installers frequently report panels warping under sunlight. Cabinetry makers experience boards twisting after routing operations. These failures ruin your brand reputation. They all stem from improper temperature management during extrusion.

Consistent water temperature and flow rate in the cooling tank are mandatory. They are not optional upgrades for your machinery. Operators must guarantee a steady flow of chilled water across all zones. Variations in water pressure lead to asymmetrical cooling. Symmetrical cooling ensures long-term structural integrity.

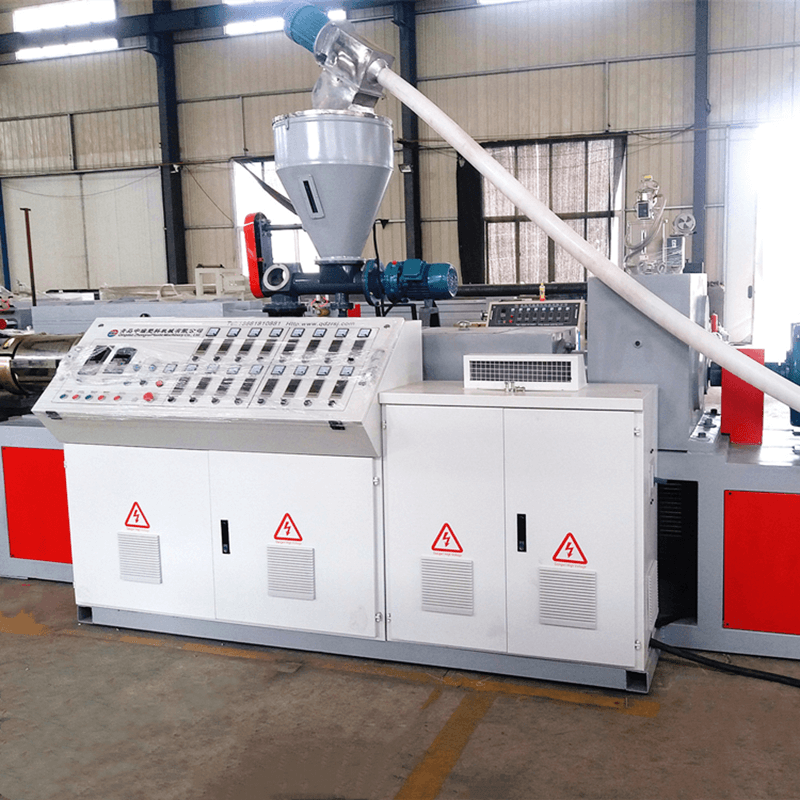

Diagnosing Common Defects Tied to Post-Extrusion Processes

Post-extrusion processes demand strict monitoring. Small deviations quickly manifest as visible physical defects. You can trace most structural failures back to calibration and cooling errors. Understanding these defects helps operators adjust the machinery promptly.

Surface Ripples and Poor Finish

Surface ripples ruin the visual appeal of the board. They render boards completely unusable for high-resolution printing applications. Customers expect a flawlessly smooth surface for signage. This defect occurs due to misaligned calibration plates. Inadequate vacuum pressure also causes this issue. The polymer skin fails to maintain tight contact against the sizing mold. It drags and creates small waves along the surface.

Bowing and Edge Waving

Bowing represents a critical structural failure. The edges of the board appear wavy or curled. This defect causes assembly failures in construction and cabinetry applications. Panels will not sit flush against flat frames. Asymmetrical cooling serves as the primary cause here. The top and bottom surfaces cool at completely different rates. One side shrinks faster, pulling the entire board into a curve.

Density Variations (Soft Spots)

You may sometimes find localized soft spots inside the core. These density variations compromise the screw-holding strength of the material. A weak core leads to catastrophic structural failure during installation. This defect happens due to premature cooling. The cooling process starts before the foaming agent fully expands within the calibration unit. The cells collapse or remain dense, destroying uniformity.

Common Mistakes in Defect Diagnosis

1. Blaming raw material formulations before checking vacuum pump seals.
2. Ignoring partial blockages inside the cooling water spray nozzles.
3. Measuring board thickness only at the center, ignoring the edges.
4. Speeding up the haul-off unit without increasing cooling capacity.

Evaluating Machinery: Critical Specs for Calibration and Cooling Systems

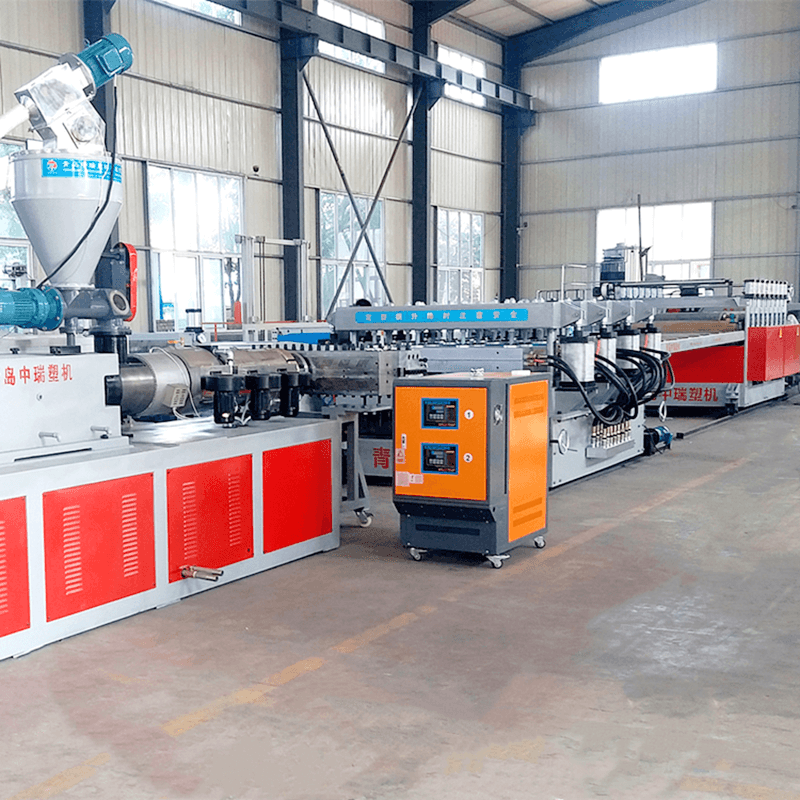

Purchasing new equipment requires a rigorous shortlisting logic. You must carefully assess the capability of a PVC foam sheet board extrusion machine production line before purchase. Do not rely solely on theoretical output capacities. The true value lies in the precision of the downstream components. We recommend scrutinizing three specific technical areas.

Calibration Plate Design and Length

The sizing template forms the heart of the shaping process. You must evaluate the overall length of the calibration plates. Longer templates provide a distinct manufacturing advantage. They allow for much higher line speeds. You can increase throughput without sacrificing dimensional quality. Short plates force you to run the line slowly to achieve proper skin formation.

Vacuum System Zoning

Single-zone vacuum systems lack necessary operational flexibility. You should actively look for multi-zone independent vacuum controls. These advanced systems divide the calibration unit into distinct manageable sections. Operators can fine-tune the vacuum pressure at different stages. This precision controls the board's skin thickness perfectly. It also guarantees superior surface flatness across wider panels.

Cooling Water Recirculation Efficiency

Water management dictates cooling success. Assess the total chilling capacity of the proposed machinery. Evaluate the flow distribution manifold carefully. Uneven water distribution remains a primary hidden cause of product inconsistency. Ensure the system includes high-capacity pumps. The plumbing design must deliver equal water volume to the top and bottom cooling brackets simultaneously.

ROI and Scalability: Upgrading vs. Optimizing Your Current Line

Production facilities eventually face a critical crossroad. You must choose between tweaking old machinery and investing in new technology. Implementation realities often limit the effectiveness of optimizing outdated equipment. Old pumps lose suction power. Worn calibration plates scratch the product surface. Modern PVC advertising board production machinery offers immense operational advantages. These new systems automate temperature controls and vacuum regulation.

A structured cost-to-benefit analysis clarifies this decision. First, calculate the daily financial cost of your ongoing scrap rates. Factor in the labor hours spent on manual quality control. Add the cost of rejected shipments and customer returns. Compare these massive recurring losses against the initial capital expenditure of modernizing your downstream equipment. You will often find the upgrade pays for itself rapidly through pure material yield improvements.

Scalability represents another major financial advantage. Upgrading calibration units transforms your production scheduling. Modern lines allow you to shift between standard advertising densities and high-density industrial boards seamlessly. You can execute these transitions without halting production for extended manual changeovers. This flexibility lets you capture diverse market demands efficiently.

We recommend several immediate next-step actions. Conduct a comprehensive line audit this week. Benchmark your current daily scrap rates accurately. Document the exact locations of recurring board defects. Finally, set rigid technical specifications based on this guide before contacting equipment vendors. Demand multi-zone vacuum setups and extended cooling brackets in your request for proposal.

Conclusion

The true physical quality of a PVC board is permanently locked in during the calibration and cooling phases. The finest resin formulations cannot compensate for sloppy downstream shaping. Precise vacuum control creates the tough, printable skin your customers demand. Gradual, symmetrical cooling prevents internal stress and subsequent warpage.

Precision in these specific manufacturing stages protects your brand reputation fiercely. It ensures strict product compliance for demanding construction and signage markets. Most importantly, optimal calibration and cooling maximize your raw material yield, turning expensive polymers into sellable inventory rather than floor scrap.

We strongly encourage you to audit your current downstream equipment today. Identify your recurring defects and trace them back to their cooling or vacuum origins. Consult with experienced manufacturing engineers to specify precise, multi-stage cooling parameters for your very next machinery investment.

FAQ

Q: Why does my PVC foam board bend after it leaves the production line?

A: Bending is typically caused by uneven cooling rates between the top and bottom surfaces, locking internal thermal stress into the board. Symmetrical and gradual cooling resolves this.

Q: Can I increase the speed of my PVC foam board production line without losing quality?

A: Only if your calibration unit and cooling blocks are long enough and efficient enough to handle the increased throughput. Speeding up without adequate cooling capacity leads to warping and density drops.

Q: How does vacuum pressure in the calibration unit affect the board's surface?

A: The vacuum pulls the expanding polymer melt against the smooth cooling plates. Precise vacuum pressure is required to create a hard, flat skin; too little pressure causes surface defects, while uneven pressure causes thickness variations.

Q: What is the ideal water temperature for the cooling phase?

A: While specific temperatures depend on the formulation and board thickness, a controlled, multi-stage temperature drop is critical to prevent thermal shock.
