How Does Coextrusion Add Color or Functional Layers to PVC Profiles?

Standard mono-extrusion forces manufacturers to compromise between material cost, structural integrity, and surface performance. You rarely achieve all three simultaneously. Meeting stringent industry standards requires premium materials. Window frames must pass AAMA weathering tests. Electrical conduits require specific fire ratings. Automotive seals demand exact compression sets. Using 100% virgin or specialized compounds for an entire profile destroys profit margins. It also ignores the inherent structural benefits of standard polyvinyl chloride.

Coextrusion solves this manufacturing bottleneck. It bonds multiple polymer streams into a single extrusion die. This technology allows manufacturers to place expensive, high-performance materials only where necessary. Each layer retains its unique characteristics. You get the flexibility, durability, or color you need exactly where you need it. The layers bond seamlessly at the molecular level. This guide breaks down the mechanics, functional applications, and machinery evaluation criteria for implementing coextrusion in your facility.

• Overcoming Mono-Extrusion Limitations: Coextrusion achieves functionality unavailable to standard single-extruded profiles by combining distinct plastics into a unified, high-performance component.

• Strategic Material Placement: The process allows for a low-cost or recycled PVC core capped with a premium, weather-resistant, or colored outer layer, optimizing production costs without sacrificing quality.

• Seamless Functional Integration: Combining rigid and flexible polymers in a single pass eliminates secondary assembly steps, which is essential for complex components like weather seals.

• Machinery Requirements: Upgrading to coextrusion requires precise control over multiple extruders, specialized die designs, and synchronized melt temperatures to prevent delamination.

• ROI vs. Complexity: While initial tooling and equipment costs are higher, the long-term savings in raw materials and the ability to command premium pricing for high-performance profiles justify the investment.

The Mechanics of Coextrusion in a PVC Profile

How Multiple Melt Streams Combine and Retain Properties

Coextrusion feeds two or more distinct polymer melts from separate extruders into a single, specialized die. The primary extruder handles the bulk core material. A secondary satellite extruder handles the outer skin or functional layer. These melt streams travel through isolated channels within the tooling. They only meet near the die exit. This late convergence prevents the materials from blending into a homogeneous mix.

Polymer melts have high viscosity. They do not experience turbulent flow under normal extrusion conditions. This physical property allows two different melts to flow side-by-side through a die without mixing. The boundary layer between them remains distinct. You must control the shear rate. If the skin layer has a drastically different melt flow index than the core, you get interfacial instability. This manifests as a wavy line or zig-zag pattern on the surface of the profile. Operators adjust zone temperatures on the barrel to bring the viscosities closer together before they hit the feed block. Unlike compounding plastics prior to extrusion, coextrusion ensures each layer retains its distinct mechanical and chemical properties post-bonding. The core maintains structural rigidity while the outer layer provides the required surface performance.

Tooling and Die Design Complexities

Coextrusion dies are complex blocks of steel. They use coat-hanger manifolds to spread the polymer melt evenly across the width of the profile. When designing the die, engineers must account for the different thermal requirements of the polymers. You might run a rigid core at 190°C and a flexible lip at 160°C. If the die block conducts too much heat from the core channel to the lip channel, the flexible material will degrade and burn. We use thermal breaks—machined air gaps or insulating plates—inside the die to isolate these temperature zones.

Die swell presents another physical reality. Polymers expand as they exit the die and atmospheric pressure takes over. Different materials exhibit different swell ratios. The core might swell by 10% upon exiting the die, while the skin swells by 5%. Engineers must compensate for these varying behaviors within the same profile block. The land length, which is the final straight section of the die, must be tuned to balance these internal pressures. Improper design leads to bowing, warping, or uneven layer thickness. Precision machining of the flow channels ensures the materials merge under equal pressure, creating a straight, uniform product.

Beyond Double-Layer: The Rise of Tri-Extrusion

Modern manufacturing often pushes beyond standard double-layer configurations. Tri-extrusion introduces multi-layer capabilities. Three distinct materials combine in a single continuous pass. This maximizes production efficiency and product functionality. A common configuration includes a highly filled core with heavy calcium carbonate loading, a virgin UV-resistant skin, and a flexible TPE sealing lip.

Moving from two layers to three requires a massive jump in control. You now have a main extruder and two satellite extruders. The startup sequence for a tri-extrusion line requires strict adherence to protocol:

1. Bring all die zones up to operating temperature and hold for a two-hour soak time to ensure uniform thermal expansion of the steel.

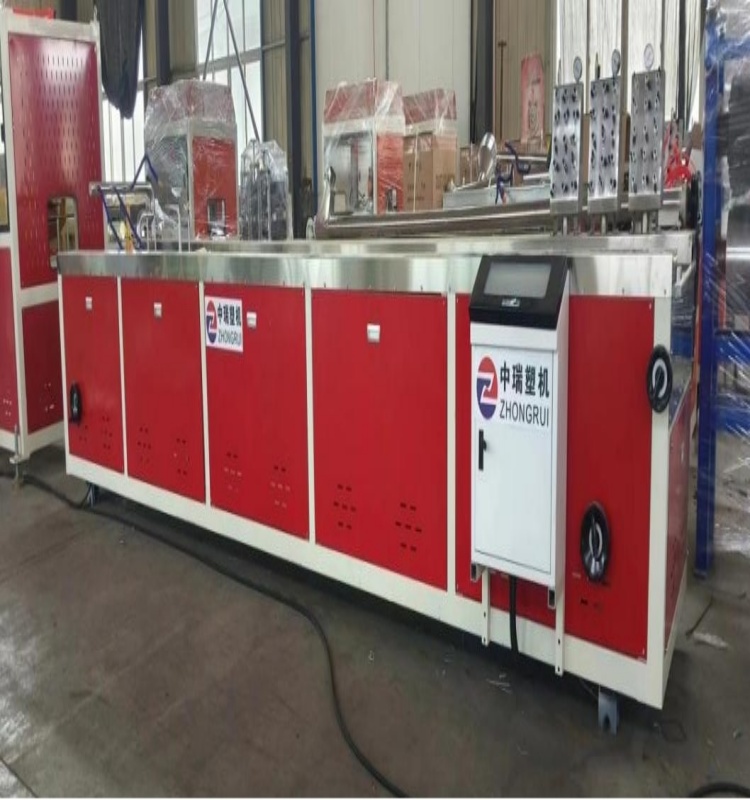

2. Start the main core extruder at a low RPM to establish the primary profile shape through the calibration table.

3. Introduce the skin layer co-extruder, gradually increasing screw speed until the capstock achieves full coverage without washing out the core.

4. Engage the third extruder for the flexible lip, fine-tuning the melt pump to ensure the lip adheres to the rigid spine without curling the profile.

5. Synchronize all three extruder drives to the main haul-off speed via the central PLC.

Adding Color: Aesthetic Enhancements Without Structural Compromise

Capstock (PMMA/ASA) over PVC Substrates

Capstocking applies a thin layer of highly pigmented, UV-stable polymer over a standard core. Manufacturers typically use Acrylonitrile Styrene Acrylate (ASA) or Polymethyl Methacrylate (PMMA). PMMA offers superior scratch resistance and a high-gloss finish. ASA provides better impact resistance and a matte finish. Both polymers resist UV degradation far better than standard polyvinyl chloride. This outer skin acts as a protective shield, providing brilliant color and exceptional weather resistance.

This method is far superior to bulk-coloring the entire profile. When you bulk-color a profile, you mix pigment directly into the main resin batch. High pigment loads, especially dark colors like black or bronze, absorb massive amounts of solar heat. This heat absorption causes the profile to warp on the building. It also requires a high volume of expensive masterbatch. Capstocking solves this. You apply a 0.2mm to 0.3mm layer of pigmented ASA over a white or natural core. The core provides the structural strength. The thin skin provides the color and UV defense. You cut masterbatch costs by up to 80% because you are only coloring a fraction of the total volume.

Colored Identification Stripes and Micro-Layering

Coextrusion excels at applying thin, colored identification stripes along the length of a product. This technique is standard practice for electrical conduits, plumbing pipes, and industrial profiles. A 20mm or 25mm single-screw micro-extruder mounts directly above or beside the main die. It injects a tiny stream of colored melt into a specific channel machined into the die lip. The stripe embeds directly into the outer surface of the main profile.

This provides permanent visual coding. It eliminates the need for secondary printing, inkjet marking, or full-profile pigmentation. The stripe cannot scratch off, fade easily, or dissolve under chemical exposure. It survives underground burial and harsh industrial cleaning. This is a zero-maintenance coding solution compared to inkjet printers that clog, run out of ink, or print illegible text when the line speed fluctuates. This micro-layering technique ensures strict compliance with industry identification standards while keeping production costs minimal.

Cost-Benefit: Coextrusion vs. Post-Extrusion Painting or Foiling

Evaluating coloring methods requires looking at capital expenditure and operational costs. Post-extrusion finishing is a logistical nightmare. Foiling requires primer application, precise tension control on the wrapping wheels, and expensive adhesives. If the profile geometry is complex, the foil bridges over internal corners and eventually peels off. Painting requires massive floor space for spray booths and curing ovens. You also have to manage volatile organic compounds and hazardous waste.

Coextrusion handles the coloring in the primary extrusion pass. The product exits the cooling tank completely finished. The initial cost of the satellite extruder and the complex die is higher. However, the operational cost per meter drops significantly because you eliminate secondary labor, adhesive costs, and curing energy. Coextruded colors are chemically bonded to the substrate. They will not peel, chip, or delaminate under standard environmental stress.

Engineering Functional Layers for High-Performance Applications

UV Protection and Weatherability

Exterior building products face relentless environmental degradation. Solar radiation breaks down polymer chains. This causes chalking, fading, and micro-cracking. Titanium dioxide (TiO2) is the primary UV blocker used in exterior plastics. It is expensive. Putting high levels of TiO2 into the entire core of a thick profile wastes money. The inner wall of a window frame never sees sunlight.

Coextrusion allows you to concentrate the TiO2 entirely in the outer capstock layer. This physical barrier reflects UV radiation before it can penetrate and break down the polymer chains in the core. Concentrating these expensive additives in a thin outer layer maximizes protection while minimizing cost. This engineered skin prevents yellowing in window frames and exterior cladding. It ensures the product passes accelerated weathering tests, such as Xenon arc exposure, without requiring a massive chemical budget.

Dual-Durometer Applications (Rigid + Flexible PVC)

Dual-durometer coextrusion merges materials of different hardness levels. Operators extrude a rigid structural spine simultaneously with a flexible lip or bulb. The rigid section, typically a Shore D hardness, provides mounting strength and dimensional stability. It snaps into an aluminum channel or gets nailed to a frame. The flexible section, typically a Shore A hardness, provides compression and sealing capabilities. The two materials bond permanently inside the die.

This specific technique forms the foundation of a modern PVC sealing strip production line. It eliminates the need for manual gasket insertion downstream. Manually inserted gaskets stretch when workers pull them off the spool. Over time, they relax and shrink, leaving gaps in the corners of the window. A coextruded gasket is permanently bonded to the rigid spine at the molecular level. It cannot shrink, pull away, or fall out during transport. It remains permanently fixed, ensuring long-term weatherproofing performance.

Electrical Insulation and Chemical Resistance

Industrial environments demand specialized surface properties. Standard formulations might not offer enough dielectric strength for high-voltage cable trays. Instead of making the entire tray out of an expensive specialty polymer, you coextrude a highly insulative skin over a standard structural core. This outer skin increases the dielectric strength of the conduit without requiring a thicker, heavier wall.

The same applies to chemical resistance. In agricultural facilities, ammonia and corrosive cleaning agents destroy standard plastics. Coextruding a chemically inert skin protects the structural core from degradation. You get the mechanical strength of the core and the chemical resistance of the skin in one pass. This targeted material application keeps overall product weight and cost manageable while surviving harsh operating environments.

Recycled Core with Virgin Skin (Sustainability & Cost)

Material costs dictate profitability. Using post-consumer recycled material or factory regrind lowers your raw material overhead. However, recycled material often has inconsistent color and lower surface quality. It might contain minor impurities that cause visual defects. Coextrusion hides these imperfections. You run the recycled material as the core, making up 70% to 80% of the profile's volume. This significantly reduces reliance on expensive virgin resins.

Manufacturers cap this recycled core with a thin layer of virgin material. The final PVC profile looks, feels, and performs exactly like a 100% virgin product. The outer skin provides the flawless surface finish, color consistency, and weather resistance. This approach maximizes the use of cheap regrind while maintaining premium product aesthetics. It improves sustainability metrics and drastically improves profit margins on high-volume runs.

Evaluating Machinery: Upgrading Your Extrusion Setup

Core Components of a Coextrusion Setup

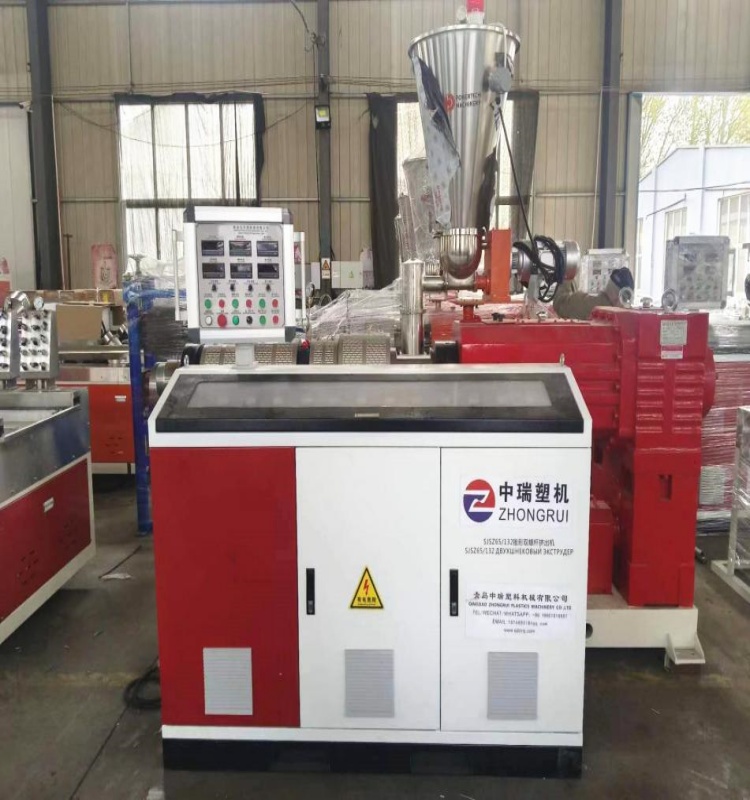

Upgrading a standard plastic profile production line requires specific hardware additions. You cannot simply bolt a second hopper onto an existing machine. The setup requires a primary extruder paired with one or more secondary co-extruders. The primary unit is usually a conical twin-screw extruder. Twin screws provide the high shear and positive displacement necessary to process rigid powder blends efficiently. The secondary units are typically smaller single-screw extruders. Single screws are ideal for processing pelletized materials like flexible compounds or pre-compounded color masterbatches.

Advanced control systems are non-negotiable. You must integrate a centralized Programmable Logic Controller. This system synchronizes screw speeds, melt pressures, and heating zones across all machines. If the haul-off speed increases, the PLC must ramp up the primary and secondary extruders at the exact same ratio. If they fall out of sync, the layer thickness fluctuates, and you produce scrap. Without this synchronized control, managing multiple melt streams becomes impossible.

Customization, Scalability, and Line Integration

Manufacturers face a choice: invest in a dedicated multi-layer setup or retrofit an existing line. A dedicated, fully integrated PVC profile production line offers maximum stability. Every component, from the dosing units to the cutting saw, communicates on the same network. This setup is ideal for high-volume, continuous production of a specific product family.

Retrofitting involves adding a satellite co-extruder to an existing PVC profile extrusion line. This requires less capital but demands careful integration. Look for customizable PVC profile machinery that supports modular die compatibility and quick-change tooling capabilities. The satellite extruder should sit on a mobile chassis with heavy-duty casters. This allows your maintenance team to roll the co-extruder out of the way during major die changes or move it to a different extrusion line when production schedules shift. Always evaluate the factory floor footprint. Coextrusion layouts require more space around the die head for maintenance and tooling changes.

Implementation Risks and Quality Control Mitigations

Interfacial Adhesion Failures

Interfacial adhesion failure is the most common defect in multi-layer extrusion. The layers look fine coming out of the die, but they peel apart when the profile cools or when a contractor cuts it on site. This happens when the surface energies of the two polymers do not match. You cannot force incompatible plastics to bond simply by pushing them through the same die.

Mitigate this risk through rigorous material compatibility testing before finalizing the compound formulation. If you must coextrude incompatible materials, you have to use a tie-layer. This requires a tri-extrusion setup where a specialized adhesive polymer acts as a bridge between the core and the skin. Temperature control is also mandatory. If the core melt cools too much before it meets the skin melt inside the die, the polymer chains will not entangle. You must maintain precise heat profiles right up to the convergence point to ensure permanent adhesion.

Thermal Degradation and Flow Imbalances

Polyvinyl chloride is highly sensitive to heat and shear. It degrades rapidly if it sits in the die too long. When you design a coextrusion die, you introduce complex flow channels. If these channels have sharp corners or sudden expansions, the melt velocity drops to zero in those areas. The material stagnates, burns, and releases hydrochloric acid gas. This gas pits the polished steel of the die and causes black streaks in the product.

Engineers prevent this by using computational fluid dynamics software to simulate the melt flow before machining the steel. They streamline the channels to eliminate dead spots. Installing high-precision melt pumps between the extruders and the die also helps. Melt pumps eliminate pressure surges from the extruder screws. They deliver a constant, volumetrically precise flow of polymer to the die. This ensures stable layer thickness and prevents material stagnation.

Conclusion

1. Conduct a material flow analysis for your specific profile geometry to identify potential stagnation zones before cutting steel for the die.

2. Request physical sample runs from machinery partners to validate interfacial adhesion and layer uniformity under real-world haul-off speeds.

3. Calculate your exact payback period based on the reduction of virgin material usage in the core versus the capital cost of the satellite extruder.

4. Audit your factory floor space to ensure adequate clearance for satellite extruder integration, mobile chassis movement, and routine maintenance access.

FAQ

Q: What materials can be coextruded with a PVC profile?

A: Common pairings include flexible PVC (fPVC), ASA, PMMA (acrylic), and TPU. Sometimes manufacturers use wood-plastic composites (WPC). The choice depends entirely on the required flexibility, weatherability, or aesthetic finish of the final product.

Q: How thick is the outer color or functional layer in a coextruded profile?

A: Capstock layers typically range from 0.1 mm to 0.5 mm. Engineers design them to be as thin as possible to save material costs while remaining thick enough to provide the required UV protection, aesthetic coverage, or insulative properties.

Q: Does coextrusion weaken the structural integrity of the profile?

A: No. When engineered correctly with compatible materials and proper melt temperatures, the layers form a permanent molecular bond. The final product performs as a single, unified substrate while retaining the unique strengths of each individual material layer.

Q: Can I add a co-extruder to my existing extrusion line?

A: Yes. Many manufacturers retrofit existing lines. They add a smaller, mobile single-screw co-extruder next to the primary machine. You must replace the existing mono-extrusion tooling with a specialized coextrusion die to merge the melt streams.

Q: What is the difference between coextrusion and dual-extrusion?

A: The terms are often used interchangeably in the industry. Both refer to the process of extruding two different materials through a single die to form one unified profile. Tri-extrusion specifically refers to combining three distinct material streams.

Q: How do you prevent the layers from mixing inside the die?

A: Polymer melts have high viscosity and experience laminar flow, meaning they do not naturally mix like water. By precisely controlling the shear rates, melt temperatures, and channel geometries, the die merges the streams smoothly without turbulent blending.
