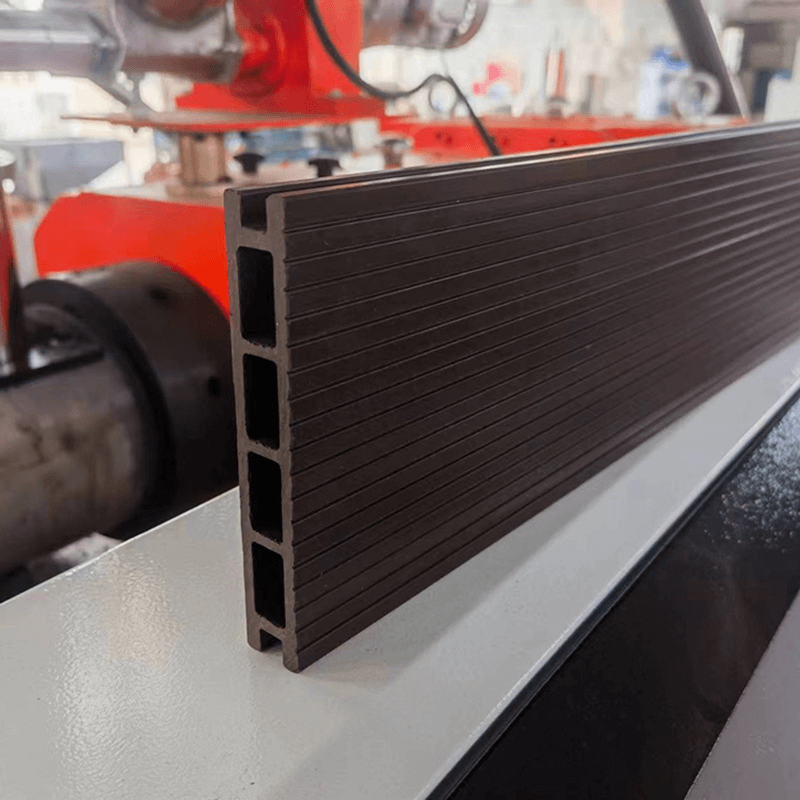

How Does Coextrusion Expand Plastic Profile Design Options?

Engineering a component that demands multiple, conflicting physical properties presents a significant manufacturing bottleneck. Component design frequently requires a single part to exhibit structural rigidity for mounting alongside a highly flexible edge for environmental sealing. Historically, achieving this dual functionality required secondary assembly processes. Manufacturers relied on gluing, ultrasonic welding, or mechanical fastening to join disparate materials together after the initial forming stages. These secondary steps introduce substantial hidden costs. They require additional manual labor, increase production cycle times, and create structural weak points prone to mechanical failure in the field.

Coextrusion eliminates these secondary assembly processes entirely. By fusing multiple polymer melts through a single engineered die, this advanced manufacturing method creates a unified, multi-functional plastic profile in one continuous step. Instead of forcing engineers to compromise on a single material's limitations, coextrusion allows for the strategic placement of different polymers exactly where their specific physical properties are needed.

• Design Consolidation: Coextrusion allows engineers to merge rigid structural foundations with flexible, weather-resistant, or cosmetically appealing outer layers into a single continuous profile.

• Cost Optimization: Utilizing recycled or lower-cost resins for the core while applying premium, UV-stable, or highly pigmented polymers only to the visible outer layer significantly reduces raw material expenses.

• Production Efficiency: Upgrading to a coextrusion-capable plastic profile production line eliminates downstream assembly steps, reducing labor costs and minimizing points of mechanical failure.

• Material Compatibility Constraints: Successful coextrusion requires precise alignment of polymer melt temperatures, shrinkage rates, and chemical adhesion properties to prevent delamination.

The Mechanics of Coextrusion in Plastic Profile Manufacturing

The coextrusion process demands rigorous control over material handling long before the plastic reaches the die. The first step involves precisely metering distinct plastic pellets or granules into separate extruders. Facilities typically employ gravimetric feeding systems to ensure consistent volume and mass flow rates. These systems weigh the resin as it enters the feed throat, adjusting the auger speed in real-time to compensate for variations in bulk density. This prevents contamination between the different material streams and maintains optimal melt quality. Proper material preparation also requires strict moisture control. Hygroscopic resins must pass through desiccant dryers, often reaching a dew point of -40°C, to prevent steam bubbles from forming within the melt. Moisture in the barrel compromises the structural integrity and surface finish of the final profile.

Once the materials enter their respective extruders, the technical workflow relies on precise thermal and mechanical shear. Two or more distinct polymer melts feed from these separate extruders into a highly engineered, single manifold die. The extruders melt, mix, and pump the polymers forward, utilizing specific screw designs tailored to each material's rheological properties. For instance, a rigid core material might require a screw with a 24:1 Length-to-Diameter (L/D) ratio and aggressive mixing sections, while a soft elastomer cap layer runs on a smaller co-extruder with a lower compression ratio to prevent material degradation.

As the separate melt streams enter the die, complex internal flow channels guide them together. Engineers generally use one of two die technologies: feedblock systems or multi-manifold dies. Feedblocks stack the polymer layers just before they enter a standard profile die, which is cost-effective but less precise for complex shapes. Multi-manifold dies keep the polymer streams entirely separate until just before the die exit. They meet under high pressure and controlled temperature, fusing into a single layered structure at the die lips. This method offers superior control over layer thickness and distribution.

Understanding the value of this process requires comparing the limitations of single-material extrusion against the layered capabilities of coextruded profiles. Mono-extrusion pushes a single homogeneous material through a die, restricting the final product to one set of physical and chemical properties. If the application requires UV resistance, you must compound the entire mass of the profile with expensive UV stabilizers. Coextrusion bypasses this limitation. It allows manufacturers to concentrate high-performance additives only on the exposed surfaces, while utilizing structural or lower-cost resins for the bulk of the component.

The success of the coextrusion process hinges entirely on interfacial adhesion. This refers to the physics of polymer bonding during the melt phase. When the distinct polymer streams converge inside the die, their molecular chains must entangle across the interface to create a permanent covalent bond. Chemical compatibility between the chosen polymers dictates this structural integrity. If the materials lack natural affinity, they will separate or peel apart under mechanical stress or thermal cycling. Temperature control within the die is equally demanding. If the melt temperatures are too disparate, the hotter material can degrade the cooler one, or the cooler material can freeze off the flow of the hotter one, causing immediate flow instability.

Expanding Design Capabilities for a Custom Plastic Profile

Multi-Durometer Profiles (Rigid and Flexible Integration)

One of the most common applications of coextrusion is the creation of multi-durometer profiles. This involves combining high-durometer, rigid polymers with low-durometer, flexible elastomers. The rigid section provides the necessary structural support, allowing the component to be securely mounted, snapped into a track, or bear mechanical loads. Simultaneously, the flexible section acts as a dynamic interface, providing sealing, gripping, or impact absorption. You see this heavily utilized in commercial weather stripping, where a rigid PVC base locks into an aluminum frame while a soft TPE lip compresses against a closing door to block air and water infiltration.

Beyond simple edge sealing, coextrusion allows for advanced structural reinforcement. Engineers can design profiles that embed a high-strength, rigid polymer spine entirely within a more pliable outer shell. This maximizes the load-bearing capacity of the component without sacrificing surface flexibility or tactile feel. The rigid core prevents the profile from stretching or deforming under tension during installation, while the soft exterior provides the necessary friction or impact resistance required by the end-use application.

Capping and Coating (Core vs. Cap Layering)

Applying a thin, high-performance cap layer over a standard core fundamentally changes how profiles withstand environmental degradation. This capping process extrudes a specialized polymer, such as Acrylonitrile Styrene Acrylate (ASA) or highly stabilized acrylic, over a less expensive structural core. The cap layer protects the underlying profile from UV degradation, chemical exposure, and severe weathering. This dramatically extends the lifespan of outdoor components, preventing the chalking, fading, and embrittlement that typically plague standard plastics exposed to direct sunlight.

Capping also provides extensive aesthetic customization options. Manufacturers can add high-gloss finishes, metallic sheens, or custom colors to the outer layer without bearing the cost of pigmenting the entire profile mass. If a client requires a specific architectural color match, operators only mix the expensive colorant into the thin cap stock. The core remains a natural or utility color, significantly reducing the masterbatch costs while delivering a premium visual finish on the exposed surfaces.

Multi-Layer Tubing and Hollow Profiles

Coextrusion is frequently utilized to manufacture complex hollow shapes and multi-layer tubing. The die technology allows for distinct internal and external material properties, controlling the flow of multiple polymers around a central air mandrel. Vacuum calibration sizing tanks then pull the extruded melt into its final hollow dimensions. The vacuum holds the hot plastic against the sizing sleeve while chilled water cools the plastic rapidly to freeze the complex geometry in place. This allows engineers to design internal ribs for crush resistance while maintaining a smooth, distinct outer layer.

In fluid-handling applications, this translates to highly functional liners. Engineers pair chemically resistant or biocompatible inner liners with durable, abrasion-resistant outer jackets. For example, a tube might require an inner layer of fluoropolymer to handle aggressive industrial chemicals without degrading. However, fluoropolymers are expensive and often lack mechanical toughness. By coextruding a rugged polyurethane outer jacket over the fluoropolymer liner, the resulting tubing achieves both chemical inertness and external abrasion resistance.

Sustainable and Cost-Effective Core Utilization

Integrating recycled materials is a primary driver for adopting coextrusion. Manufacturers utilize regrind, recycled, or off-spec materials for the hidden inner core of the profile. Because this core is entirely encapsulated by the outer layers, its visual appearance and minor surface imperfections do not affect the final product. This strategy allows facilities to consume their own industrial scrap or purchase lower-cost post-consumer recycled resins, drastically lowering the overall material footprint.

The core is then capped with virgin material to ensure surface finish, weatherability, and regulatory compliance. The virgin cap provides the necessary aesthetic and performance guarantees, masking the recycled core completely. This approach balances aggressive cost reduction with strict quality standards, proving that sustainability initiatives can directly improve manufacturing profit margins when executed through coextrusion.

Industry-Specific Applications and Use Cases

1. Construction & Building Materials: Manufacturers produce high-performance window frames, decking boards, and fencing systems. These typically utilize a highly filled rigid PVC core for dimensional stability, capped with a weather-resistant, UV-stable polymer to prevent fading and moisture absorption.

2. Automotive & Transportation: Vehicles rely heavily on multi-durometer door seals, windshield moldings, and trim components. These require rigid mounting channels to grip the metal chassis firmly, combined with highly flexible sealing lips to block wind noise and water.

3. Medical & Industrial Fluid Transfer: Multi-layer tubing requires chemically inert or sterile inner layers paired with flexible, kink-resistant outer casings. This ensures safe fluid delivery while allowing the tubing to route through complex machinery without collapsing.

4. Retail & Point of Purchase Displays: Ticket moldings and shelf edges use a rigid clear backing to snap onto metal shelving, coextruded with a flexible clear hinge that allows price tags to flip up without snapping off.

Evaluating Material Combinations and Compatibility

Proven Polymer Pairings

Not all plastics can be coextruded together. The industry relies on proven polymer pairings that exhibit natural chemical adhesion. Rigid PVC and flexible PVC represent the most common pairing, serving as the industry standard for integrated weather seals and construction profiles. Because they share the same base polymer chemistry, they bond aggressively during the melt phase and process at similar temperature ranges, making them highly reliable for complex die designs.

Another frequent combination is ABS paired with TPE (Thermoplastic Elastomer) or TPV (Thermoplastic Vulcanizate). ABS provides a high-impact, dimensionally stable structural base, while the TPE provides a tactile, soft-touch grip. This pairing is common in consumer goods, tool handles, and appliance seals. For transparent, high-strength applications, Polycarbonate is often coextruded with TPU (Thermoplastic Polyurethane). This delivers exceptional impact resistance with durable, flexible edges, often used in protective enclosures and specialized lighting fixtures.

Technical Limitations and Delamination Risks

Combining different polymers introduces significant technical limitations. Melt Flow Index (MFI) variances present a major risk of flow instability. If you combine a high-viscosity polymer with a low-viscosity polymer, the stiffer material can overpower the fluid material inside the die manifold. This causes the layers to encapsulate unevenly or creates wave-like instabilities at the interface, ruining the profile's dimensional tolerances. As a general rule, engineers try to match the MFI of the coextruded materials as closely as possible, ideally keeping them within 2 to 3 g/10min of each other at the processing temperature.

Thermal expansion and shrinkage rates must also be carefully managed. Different polymers cool and contract at different rates as they pass through the downstream water calibration tanks. If a rigid core shrinks less than a flexible cap layer, the differential cooling will cause the profile to warp, bow, or twist post-extrusion. Engineers design the cooling process to manage these stresses, often using differential water temperatures in the sizing tanks. They might run warm water on the side of the profile that shrinks faster to slow down its cooling rate, balancing the internal stresses before the plastic fully solidifies.

When an application demands the coextrusion of chemically incompatible materials, manufacturers must introduce tie layers. A tie layer is an intermediate adhesive polymer extruded between the two incompatible primary materials. This requires a tri-extrusion setup, adding a third extruder to pump the adhesive layer. The tie layer bonds chemically to both the inner core and the outer cap, preventing delamination in materials that would otherwise never adhere to one another. While effective, tie layers increase tooling complexity and material costs.

Upgrading Your Plastic Profile Production Line for Coextrusion

Core Machinery Requirements and Configurations

Transitioning from mono-extrusion to coextrusion requires specific upgrades to a plastic profile production line. Extruder synchronization is the most critical operational requirement. Advanced PLC (Programmable Logic Controller) systems must continuously monitor and synchronize the output rates, screw speeds, and melt pressures of the main extruder and all co-extruders. If one extruder surges or drops in output, the layer ratios inside the die will fluctuate, causing immediate out-of-spec production. Modern closed-loop systems use melt pressure transducers in the die to automatically adjust extruder RPMs, ensuring a perfectly consistent flow ratio.

Die design complexity also increases exponentially. Coextrusion tooling must manage multiple melt streams without causing turbulence, dead spots, or cross-contamination. Engineers utilize computational fluid dynamics (CFD) to design multi-manifold dies or feed block systems. These tools ensure that the different polymers distribute evenly across the profile cross-section before they exit the die lips, maintaining strict layer thickness tolerances.

Specialized Production Setups

Processing heat-sensitive materials requires specialized equipment configurations. A dedicated PVC profile production line must account for PVC's tendency to degrade under prolonged heat and shear. These setups typically employ a conical twin-screw extruder for the rigid PVC core, which provides excellent mixing and conveying at lower RPMs. A smaller, single-screw co-extruder is then positioned alongside or above the main barrel on a universal pedestal to pump the flexible PVC lips or cap stock directly into the die.

Wood-Plastic Composites introduce an entirely different set of processing variables. A WPC plastic profile production line must handle a core material that is highly abrasive and extremely sensitive to moisture. The natural wood fibers increase the viscosity of the melt and cause rapid wear on standard extruder screws. Capping this abrasive WPC core with a protective, wood-grain embossed polymer layer requires precise temperature control to prevent the wood fibers from burning while ensuring the thermoplastic cap flows smoothly over the rough core surface.

Modern equipment integration handles these distinct thermal profiles effectively. A high-quality wood plastic profile machine utilizes bimetallic barrels and specialized screw geometries to withstand the abrasion of natural fiber composites. The machinery isolates the heating zones, allowing the main barrel to run at the lower temperatures required for wood fibers, while the co-extruder runs at the higher temperatures needed to melt and bond the pure thermoplastic cap layer.

Investing in Customizable Machinery

For manufacturers looking to future-proof their operations, equipment flexibility is paramount. Investing in customizable PVC profile machinery provides the scalability needed to adapt to changing market demands. Modular machinery allows operators to physically move co-extruders in and out of the production cell. This means a single line can run high-volume mono-extruded parts one week, and switch to complex, multi-layer coextruded profiles the next, simply by changing the die and engaging the secondary extruders. This flexibility drastically improves the return on investment by maximizing machine uptime across diverse custom client specifications.

Cost-to-Value Trade-offs and Implementation Risks

Adopting coextrusion requires evaluating the higher upfront capital costs against long-term operational savings. Coextrusion dies are significantly more expensive to design and manufacture than standard mono-extrusion tooling. The complex internal manifolds require precision machining, wire EDM cutting, and extensive flow testing. Manufacturers must calculate the break-even point by comparing this tooling investment against the assembly savings. When you eliminate the labor, adhesives, and floor space required for secondary gluing or welding, the higher initial tooling cost is often recovered within the first few production runs.

However, coextrusion increases the demands on Quality Control (QC) departments. Monitoring a single material profile is straightforward. Coextruded profiles require operators to verify layer thickness consistency continuously. Facilities often install inline ultrasonic or optical laser measurement systems to monitor the cap layer thickness in real-time. QC must also conduct destructive testing, such as peel strength analysis, to verify that interfacial adhesion meets structural requirements. If the layers do not bond properly, the entire production run must be scrapped.

Scrap management presents another significant implementation risk. In mono-extrusion, edge trim and startup scrap are easily ground up and fed back into the hopper. Coextruded scrap consists of mixed polymers. If you coextrude rigid PVC with a flexible TPU lip, grinding that scrap mixes the two incompatible materials. This mixed regrind often cannot be reintroduced into the primary process without degrading the physical properties of the core. Facilities must plan for this reality, either by finding secondary applications for mixed regrind or by adjusting their material efficiency models to account for higher unrecoverable scrap rates.

Conclusion

1. Audit your current component designs to identify parts requiring secondary assembly that could be consolidated into a single coextruded profile.

2. Request a material compatibility matrix from your resin supplier to verify interfacial adhesion properties before investing in new tooling.

3. Calculate the break-even point of coextrusion dies by comparing upfront tooling costs against projected savings from eliminated manual labor and adhesives.

4. Upgrade your extrusion line controls to advanced closed-loop PLC systems capable of synchronizing multiple melt streams simultaneously.

FAQ

Q: What is the difference between a standard plastic profile production line and a coextrusion line?

A: A standard line uses a single extruder to push one homogeneous material through a die, creating a uniform profile. A coextrusion line utilizes two or more extruders feeding into a single complex die. This allows multiple different polymers to be layered or zoned together into one continuous, multi-functional profile in a single manufacturing step.

Q: Can you coextrude rigid and flexible PVC in the same plastic profile?

A: Yes. Coextruding rigid and flexible PVC is one of the most common and reliable applications in the industry. Because both materials share the same base polymer chemistry, they bond exceptionally well during the melt phase. This pairing is widely used for creating structural mounting channels with integrated flexible weather seals.

Q: What materials are typically used in a WPC plastic profile production line for the cap layer?

A: The cap layer on a WPC profile is typically made from highly durable, UV-stabilized thermoplastics. Common materials include specialized exterior-grade PVC, Polyethylene (PE), or advanced acrylic blends (ASA). These cap layers protect the moisture-sensitive wood fiber core from water ingress, UV fading, and physical abrasion.

Q: What causes delamination in coextruded plastic profiles?

A: Delamination occurs when the different polymer layers fail to bond permanently. This is primarily caused by chemical incompatibility between the chosen plastics. It can also result from severe mismatches in melt temperatures, where one material cools too rapidly before molecular entanglement occurs, or from extreme differences in shrinkage rates during the cooling process.

Q: Is a dedicated wood plastic profile machine required for coextruding WPC materials?

A: Yes. WPC materials are highly abrasive and require specific screw geometries and bimetallic barrels to prevent rapid equipment wear. A dedicated machine also provides the precise, isolated temperature controls necessary to process heat-sensitive wood fibers in the core while simultaneously melting the pure thermoplastic cap layer at higher temperatures.

Q: How do I choose customizable PVC profile machinery for multi-layer extrusion?

A: Look for modular machinery with advanced, closed-loop PLC systems capable of synchronizing multiple extruders. Ensure the equipment allows for easy repositioning of co-extruders to accommodate different die configurations. Prioritize systems that offer precise melt pressure transducers and robust temperature control zones to handle the strict tolerances required for multi-layer processing.
