How Does Cooling Affect PP Strap Strength and Flexibility?

In polymer extrusion, the mechanical integrity of the final product is not solely determined by raw material quality. It heavily relies on the precise manipulation of thermal dynamics during the manufacturing process. Packaging failures frequently stem from improper molecular orientation. You might see straps snapping under load, longitudinal splitting, or extreme brittleness in cold environments. Fatigue failure during transit is another common issue caused by inadequate cooling controls during production. For manufacturers and high-volume buyers, understanding the exact relationship between quenching rates, crystallization, and tensile impact properties is necessary. It helps you evaluate equipment upgrades and audit supplier quality. It also clarifies whether PP strapping or steel alternatives fit specific bundling applications best. Proper thermal management transforms basic raw materials into reliable packaging solutions.

Key Takeaways

• Cooling Dictates Crystallization: The rate at which extruded polypropylene transitions from a melt (approx. 160°C) to a solid dictates the size of its crystalline structures, directly impacting the balance between tensile strength, fatigue resistance, and flexibility.
• Stretching and Quenching are Symbiotic: Achieving high longitudinal strength requires stretching the polymer in high temperatures (often boiling water), followed by immediate, controlled cooling to lock the molecular chains in place.
• Equipment Capabilities Limit Output Quality: Consistent thermal management requires advanced machinery; variations in water bath temperature or line speed on a substandard PP strapping production line will yield inconsistent strap dimensions and mechanical failures.
• Temperature Extremes Expose Flaws: PP strapping cooled improperly is highly susceptible to the "cold snap" (brittleness below its glass transition point) and accelerated creep (stretching) in high-temperature environments.

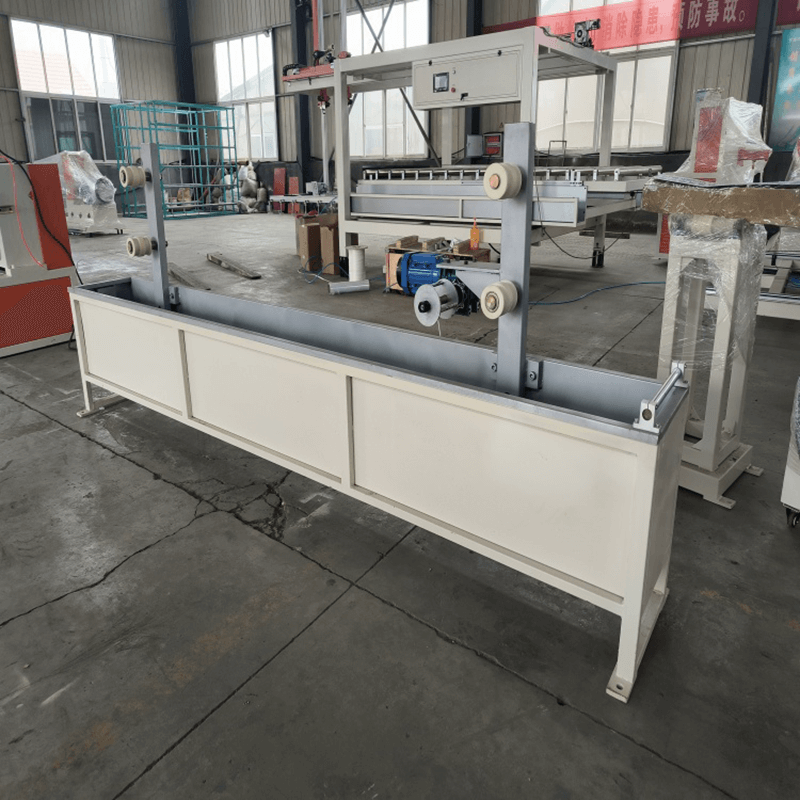

The Science of Thermal Dynamics in PP Strapping Production

Molecular Orientation and Polymer Chain Alignment

Raw polypropylene begins the extrusion process as an amorphous melt. Inside the extruder barrel, mechanical shear from the rotating screw and thermal energy from heater bands break down the solid pellets. The polymer transitions into a highly viscous fluid. At this stage, the molecular chains are tangled randomly and lack any directional strength. To create a durable packaging material capable of securing heavy loads, operators must force these chaotic molecules into a highly oriented, parallel structure.

This transformation requires aggressive mechanical stretching. As the extruded profile exits the die lips, it enters a stretching unit, typically a hot water bath or a forced-air oven. We apply tension to the polymer using motorized godet rollers running at different speeds while the material remains in a heated, pliable state. This process aligns the polymer chains parallel to the machine direction. Proper alignment exponentially increases longitudinal tensile strength. It reduces unnecessary elongation under load and enhances overall fatigue resistance for demanding bundling applications. Without this directional orientation, the strap would simply stretch like a rubber band and snap under minimal tension.

Glass Transition Temperature vs. Melting Point Realities

Understanding the thermal operational window dictates the success of the extrusion process. Polypropylene melts near 160°C to 165°C. At this temperature, intermolecular forces weaken significantly. The material loses its mechanical properties, allowing the melt pump and die head to shape it into a continuous, flat band. However, the shaping phase only sets the physical dimensions. The structural integrity is built as the temperature drops.

The glass transition temperature (Tg) represents a hard boundary in polymer science. For polypropylene, this sits around 0°C to -10°C. As the material cools below its melting point and approaches ambient temperatures, molecular mobility slows down. Once it hits the glass transition point, mobility ceases entirely. The polymer chains lock into their current configuration. If the cooling process is poorly managed and the temperature drops too rapidly without proper orientation, the final polymer becomes excessively hard and brittle. If managed correctly through staged cooling, the strap retains its toughness and flexibility. Operators navigate the temperature gradient between the melting point and ambient conditions to achieve the exact mechanical profile required for the end user.

Crystallization Kinetics

As molten polypropylene cools, it forms crystalline structures known as spherulites. The speed of temperature reduction directly dictates the size of these spherulites within the polymer matrix. This creates a fundamental trade-off in production that operators must balance daily.

The crystallization process generally follows three distinct phases during extrusion:

1. Nucleation: As the melt hits the initial cooling water, microscopic crystal seeds form throughout the polymer matrix.
2. Growth: The polymer chains begin folding and organizing around these nucleation sites, forming spherulites.
3. Maturation: The spherulites expand until they impinge on one another, solidifying the final internal structure of the strap.

Slow cooling allows polymer chains more time to fold and organize during the growth phase. This results in large spherulites. Large crystals yield higher stiffness but significantly lower impact resistance. The strap becomes rigid and prone to shattering under sudden shock loads, such as a pallet being dropped. Conversely, rapid quenching forces the polymer to solidify quickly. This creates a high density of very small spherulites. Small crystals improve toughness, flexibility, and dynamic load absorption. The operational goal is to control the cooling rate to achieve an optimal crystalline structure that balances stiffness for feeding through automated machines with shock absorption for transit.

How Cooling Rates Directly Impact Strength and Flexibility

Rapid Cooling (Quenching) and Tensile Strength

Quenching is the mechanical process of "freezing" the stretched molecular orientation. When the heated, stretched strap exits the stretching oven and enters a chilled water bath, the rapid temperature drop prevents the polymer chains from relaxing back into their natural, tangled state. This immediate thermal shock locks the longitudinal alignment firmly in place.

Optimal quenching maximizes tensile impact properties. It ensures the elongated PP maintains its load-bearing capacity. Rapid cooling also improves high-temperature tensile strength. By freezing the oriented chains quickly, the strap resists deformation when exposed to elevated temperatures later in its lifecycle. If the quenching water is too warm—often caused by undersized chillers failing to keep up with line speed—the chains relax. The strap loses the tensile strength gained during the stretching phase, resulting in a product that fails under standard tensioning.

Gradual Cooling and Elongation/Flexibility Trade-offs

Cooling the strap too slowly introduces severe structural risks to the final product. Gradual cooling allows the highly oriented molecular chains to lose their alignment before they solidify. This results in a direct loss of longitudinal strength. The strap will exhibit excessive elongation under tension, making it useless for securing heavy loads like lumber or masonry.

However, some applications require specific flexibility. Loads that shift during transit, such as corrugated boxes or agricultural products, require strapping with high shock absorption. Operators balance the cooling rate to maintain enough flexibility for these dynamic loads while preventing excessive stretch. If the application demands absolute rigidity without any elongation, steel strapping is typically used. But with precise thermal control and optimized cooling gradients, polypropylene can be engineered to handle many rigid bundling tasks previously reserved for steel, offering a safer and lighter alternative.

Mitigating the "Cold Snap" and High-Heat Degradation

Polypropylene is naturally susceptible to temperature extremes. In freezing logistics environments, the material drops well below its glass transition temperature. Molecular mobility stops entirely. The strap becomes highly vulnerable to the "cold snap," where it shatters upon impact. Production-stage annealing and controlled cooling prevent this extreme brittleness. Annealing involves passing the stretched, cooled strap over heated rollers to relieve internal stresses within the polymer matrix, significantly improving cold-weather performance.

High temperatures pose the opposite threat. Elevated heat accelerates creep, causing the strap to stretch and loosen over time. Proper cooling locks in high-temperature creep resistance. By ensuring optimal crystallization during extrusion, the elongated PP maintains its structural integrity and fatigue resistance even when exposed to hot shipping containers or outdoor storage in summer climates.

Evaluating Cooling Systems in a Packaging Belt Production Line

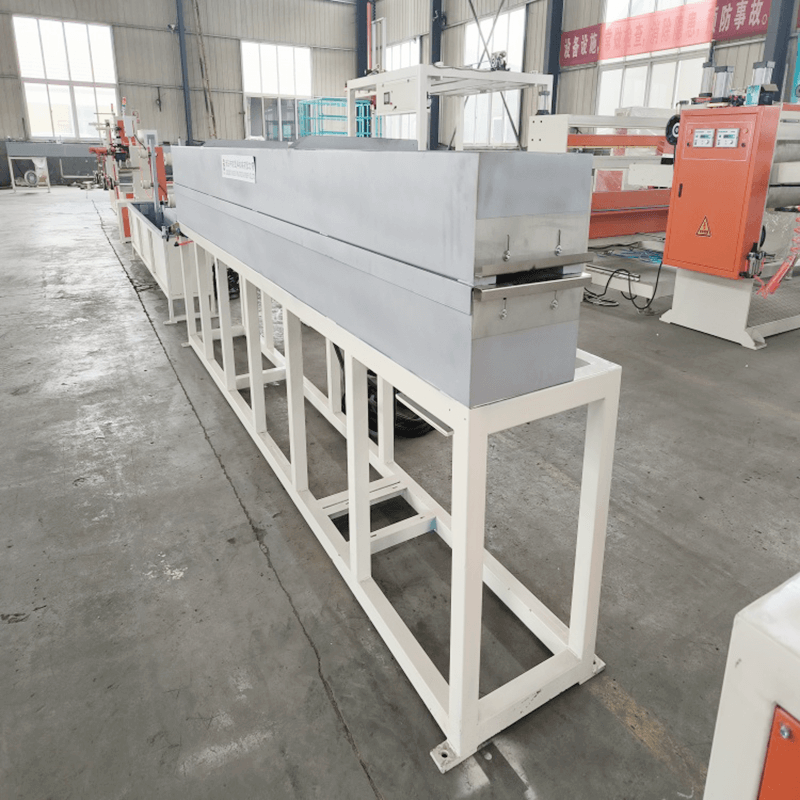

Water Bath Length and Temperature Control Mechanisms

The physical design of the cooling infrastructure dictates the absolute limits of your production speed. Evaluating a packaging belt production line requires close inspection of the water bath length. The cooling tanks must be sufficiently long to match high-speed extrusion rates. If the line runs at 120 meters per minute but the tanks are too short, the core of the strap remains hot when it hits the winders. This compromises the crystalline structure and causes the strap to warp on the spool.

Multi-zone temperature control is an absolute necessity for high-quality output. A single long tank with one temperature setting cannot manage the complex transition from stretching to final quenching. The system needs independent chillers, heaters, and circulation pumps. The initial zones often use hot water (90°C to 95°C) to facilitate stretching. Subsequent zones use chilled water (15°C to 20°C) to lock the orientation. Managing this gradient precisely prevents thermal shock defects while maximizing line speed.

Assessing a Computerized PP Strapping Strap Band Belt Machine

Modern extrusion relies heavily on automation to maintain tight tolerances. When assessing a computerized PP strapping strap band belt machine, the focus shifts to the Programmable Logic Controller (PLC) systems and sensor integration. These computers automate water bath temperatures, pump flow rates, and the speed of the haul-off rollers. They remove human error from the thermal management equation.

Computerized feedback loops are required for continuous 24/7 operation. As ambient factory temperatures fluctuate throughout the day, the PLC adjusts the chiller valves to maintain exact water bath temperatures. This prevents thermal drift. Consistent thermal management ensures that the fatigue resistance and tensile strength of the strap remain identical across all batches, regardless of whether they were produced during a cold night shift or a hot afternoon.

Specialized Production Requirements

Different strapping products require unique cooling parameters. Adapting the thermal controls for a PP fibre packing strapping tape production line differs significantly from producing standard embossed strapping. Fibre packing tape often requires a different stretching ratio and a highly specific annealing process to maintain its unique texture, tear resistance, and strength profile.

Operators adjust thermal controls based on multiple physical variables. Strap width and thickness change the thermal mass, requiring different residence times in the cooling tanks. Embossing depth alters the surface area exposed to the water, changing the heat transfer rate. The specific low-to-medium strength bundling application the strap is engineered for dictates the final balance between stiffness and flexibility. The machinery must feature modular cooling zones to handle these adjustments seamlessly without requiring massive mechanical reconfigurations.

Troubleshooting Common PP Strapping Quality Failures

Longitudinal Splitting (Fibrillation)

Longitudinal splitting, often called fibrillation, occurs when the strap easily tears down its length like a piece of string cheese. This failure makes the strap useless for automated packing machines, as the feed wheels will shred the material. The root cause is typically a combination of over-stretching and overly aggressive rapid cooling.

When operators push the stretch ratio too high (e.g., beyond 1:7), the molecular chains align almost perfectly in the longitudinal direction. If this is followed by an extreme, instantaneous quench in very cold water, the polymer forms a highly directional, brittle structure. It gains immense longitudinal strength but sacrifices all transverse strength. To fix this, operators reduce the stretch ratio slightly and implement a stepped cooling gradient rather than a single violent quench.

Camber and Dimensional Instability

Camber refers to the bowing or curving of the strap along its edge. If you lay a piece of strap flat on the floor and it curves to the left or right, it has camber. A strap with severe camber will jam automated strapping machines, causing costly downtime on the packaging floor. This dimensional instability is a direct result of uneven cooling.

If the water flow inside the cooling tank is turbulent or uneven, one side of the strap cools faster than the other. The side that cools faster shrinks differently than the warmer side, causing the strap to warp. Correcting camber requires auditing the water bath nozzles. Ensure laminar flow across the entire width of the strap. Check that the guide rollers keep the strap perfectly submerged and flat during the critical initial quenching phase.

Loss of Mechanical Properties Under Load (Creep)

Creep is the slow, continuous deformation of the strap under a constant load. A strap suffering from creep will initially hold a bundle tight, but loosen over days or weeks in storage. This leads to shifting loads and safety hazards in the warehouse. Creep is heavily accelerated in high-temperature environments.

The primary cause of excessive creep is inadequate annealing. If the production process fails to relieve the internal stresses generated during stretching, those stresses will eventually cause the polymer chains to slip past one another under load. Ensure the production line includes a proper annealing zone where the strap is exposed to controlled, moderate heat to relax these internal stresses before it reaches the final winding station.

To systematically address these issues on the factory floor, operators should follow a strict troubleshooting workflow:

1. Verify the melt temperature at the die head matches the material specification.
2. Measure the water temperature in the stretching bath to ensure it is hot enough to allow molecular alignment without tearing.
3. Check the stretch ratio by comparing the speed of the first godet to the second godet.
4. Inspect the quenching tank for turbulent water flow or blocked nozzles.
5. Test the surface temperature of the strap immediately after the annealing rollers to confirm stress relief.

Machinery Investment: Features to Outcomes in Extrusion Equipment

Specifying a PP Packing Strap Extrusion Machine for High-Yield Output

Investing in new equipment requires aligning mechanical specifications with desired production outcomes. When specifying a PP packing strap extrusion machine for high-yield output, you evaluate the extruder screw design and its integration with downstream cooling capacities. A high-output extruder is useless if the cooling system cannot keep up with the volume of hot plastic.

The critical evaluation dimension is matching the extruder throughput (measured in kg/hr) with the thermal removal capacity of the water baths. If you push 300 kg/hr through a cooling system designed for 200 kg/hr, the water temperatures will spike. The polymer will not crystallize properly. The resulting strap will suffer from severe dimensional instability and poor tensile strength. Always size the chillers and tanks for the maximum theoretical output of the extruder.

Scalability and Energy Efficiency

Inefficient cooling systems carry hidden operational costs. Undersized chillers run continuously at maximum load, drawing excessive power and suffering premature mechanical failure. Upgrading a substandard PP strapping production line often requires a complete overhaul of the water management system to handle increased speeds.

Modern facilities use closed-loop water cooling systems. These systems recycle the cooling water, passing it through high-efficiency heat exchangers. This drastically reduces water consumption and lowers the environmental impact of the facility. Integrating variable frequency drives (VFDs) on the chiller pumps allows the system to scale power usage based on real-time thermal loads, significantly reducing utility costs during slower production runs or colder ambient weather.

Implementation Risks and Mitigation

Purchasing high-speed extrusion lines carries inherent implementation risks. The most common risk is installing a high-speed line without upgrading the facility's underlying cooling infrastructure. This results in immediate bottlenecks. You experience high scrap rates, or worse, produce strapping that passes visual inspection but fails field fatigue tests.

To mitigate this risk, mandate comprehensive Factory Acceptance Testing (FAT) before taking delivery of the machinery. The FAT must prove that the machine maintains consistent water bath temperatures at its maximum rated line speed. Demand physical testing of the strap produced during the FAT. Verify its tensile strength, elongation limits, and high-temperature creep resistance. Do not accept equipment that requires slowing down the line to achieve acceptable cooling.

Conclusion

1. Audit your current strap failure rates to categorize issues strictly by splitting, snapping, or high-temperature creep.
2. Map these specific failures back to potential flaws in the stretching or cooling phases of your production line.
3. Request detailed technical specifications on cooling tank lengths, water flow dynamics, and chiller capacities from prospective machinery vendors.
4. Implement strict Factory Acceptance Testing protocols that require continuous high-speed operation while maintaining exact thermal gradients.
5. Calibrate your existing water bath temperature sensors monthly to prevent thermal drift and ensure consistent crystallization.

FAQ

Q: What is the ideal cooling water temperature for PP strapping extrusion?

A: The process requires a multi-stage temperature profile. Stretching typically occurs in hot or boiling water (90°C to 100°C). This is followed immediately by chilled water for final quenching. The quenching water is usually maintained between 15°C and 25°C, depending heavily on the specific line speed, strap thickness, and desired crystalline structure.

Q: Why does PP strapping become hard and brittle in cold weather?

A: Polypropylene has a specific glass transition temperature. When ambient temperatures drop below this point, molecular mobility within the polymer ceases entirely. The material loses its ability to absorb impact, leading to a "cold snap" effect where it shatters. Proper annealing during the cooling phase helps mitigate this extreme brittleness.

Q: How does stretching in boiling water improve strap strength?

A: Heating the polymer weakens the intermolecular forces just enough to allow mechanical manipulation without breaking the material. Stretching aligns the chaotic polymer chains longitudinally. This directional alignment maximizes tensile strength and fatigue resistance, transforming a weak plastic band into a heavy-duty packaging material.

Q: Can proper cooling improve PP strapping's resistance to high temperatures?

A: Yes. Optimal elongation followed by rapid, controlled quenching locks the oriented molecular structure firmly in place. This prevents the polymer chains from relaxing. It significantly improves the strap's high-temperature tensile strength and creep resistance compared to unoriented or poorly cooled polypropylene.

Q: What causes longitudinal splitting in plastic strapping?

A: Longitudinal splitting, or fibrillation, is caused by excessive molecular orientation combined with improper cooling. If the strap is over-stretched and then quenched too aggressively, it develops immense longitudinal strength but loses its transverse strength. The resulting brittle structure easily tears down its length.

Q: How do I choose the right cooling tank length for a PP packing strap extrusion machine?

A: Tank length must be calculated based on the maximum line speed (meters per minute) and the strap thickness. The tank must be long enough to provide the required residence time to bring the core temperature of the thickest polymer profile down to stable levels before winding.

Q: Can computerized controls improve PP strapping flexibility and durability?

A: PLCs maintain exact temperature gradients across multiple cooling zones. They prevent micro-fluctuations in water temperature that cause inconsistent crystallization. By eliminating these thermal variations, computerized controls prevent brittle spots and ensure uniform flexibility and durability throughout the entire length of the strap.
