How Does Online Lamination Improve Drainage Board Production?

Manufacturers are rapidly shifting away from outdated two-step manufacturing processes. Older methods relied on extrusion followed by separate offline gluing or welding. Today, continuous online lamination dominates modern drainage board production. You face a constant challenge on the factory floor. You must balance aggressive high-throughput demands against strict quality standards. Zero-defect geotextile adhesion remains absolutely critical for civil engineering project success.

This article provides a comprehensive evaluation of inline lamination technology. We explore the mechanical upgrades necessary for modern manufacturing facilities. You will learn how integrated systems improve product reliability. We also examine how upgrading your machinery drives commercial growth. You can finally eliminate costly secondary handling steps. Read on to discover the exact technical parameters needed for a successful factory upgrade.

Key Takeaways

• Process consolidation: Online lamination eliminates secondary processing steps, directly bonding geotextile to the dimpled HDPE sheet while residual heat is active.
• Superior adhesion: Continuous thermal or synchronized adhesive bonding minimizes delamination risks typical in offline processes.
• Cost reduction: Reduces labor requirements, floor space footprint, and energy consumption compared to two-stage systems.
• Equipment viability: Success requires evaluating material compatibility and tension-control capabilities when sourcing a drainage board production line.

The Bottleneck of Conventional Two-Stage Manufacturing

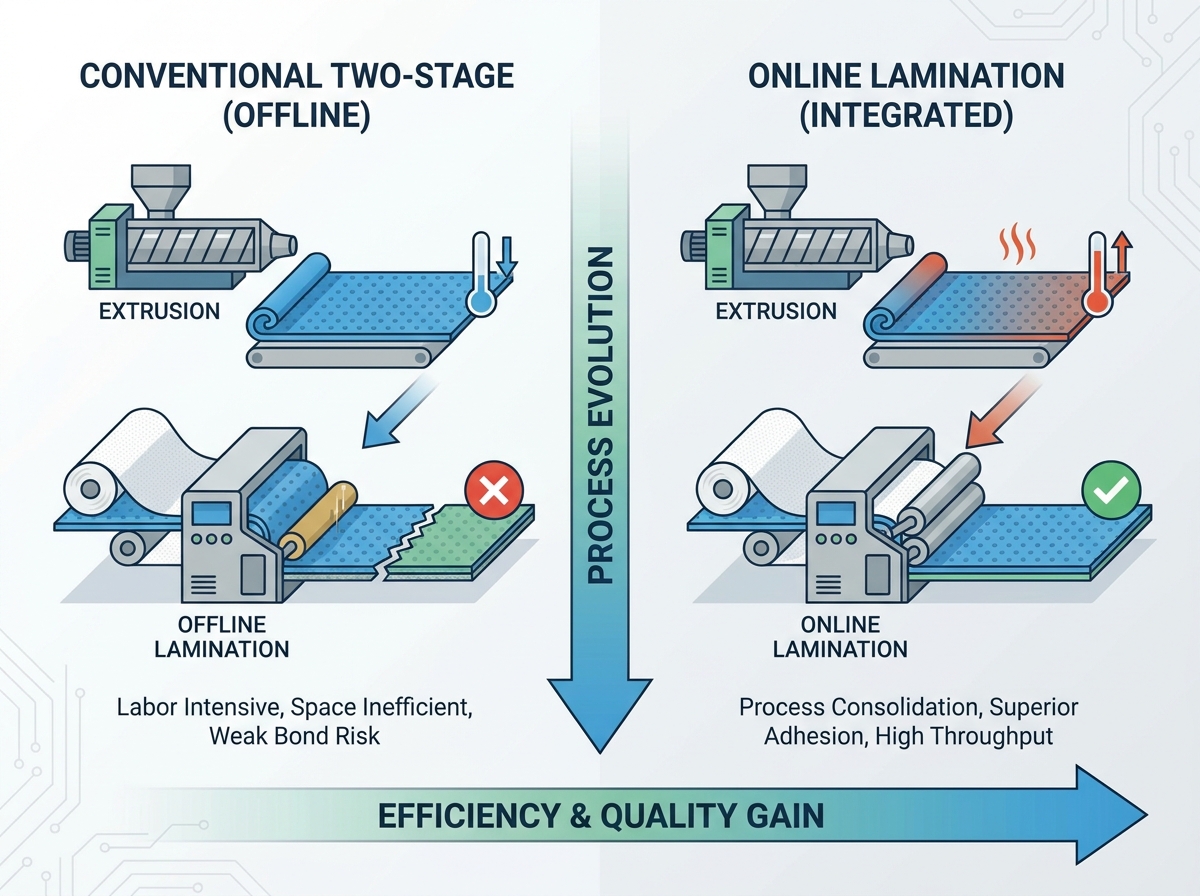

Conventional drainage board manufacturing relies on disjointed processes. Historically, factories produced the dimpled core sheet first. Operators stored these large plastic rolls on the factory floor. Later, they moved the heavy rolls to a separate lamination station. Here, they attached the geotextile filter fabric. This disconnected workflow creates massive production bottlenecks.

Offline processing wastes valuable resources daily. You must set up additional winding and unwinding stations. These extra machines consume critical facility space. Furthermore, two-step methods demand larger operator teams. You need staff to drive forklifts between stations. This unnecessary handling slows down output significantly. It also increases the risk of scratching the plastic sheets before lamination. Dust often settles on the stored rolls. This dust creates an invisible barrier against adhesion.

Quality control suffers immensely during offline lamination. The extruded plastic loses its initial heat during storage. Temperature drops severely compromise the final bond. Operators apply cold glue. Sometimes they rely on secondary heating elements. These workarounds rarely achieve deep polymer fusion. Consequently, the geotextile fabric experiences weak peel strength. Weak adhesion leads to catastrophic delamination in the field. When a drainage board fails underground, construction projects face severe water damage. These quality vulnerabilities force manufacturers to rethink their production strategies completely.

Mechanics of Online Lamination in a Plastic Sheet Production Line

Inline technology fundamentally transforms factory operations. Process integration happens directly on the primary extrusion line. Engineers position the lamination unit immediately downstream from the plastic drainage sheet extrusion machine. The plastic core exits the shaping rollers. The machine immediately guides it into the lamination nip. This immediate handoff eliminates costly delays.

Manufacturers choose between two primary integration methods. Both methods utilize the continuous motion of the moving web.

• Thermal Bonding: This method captures the residual heat of the newly formed dimpled sheet. The hot plastic safely fuses onto the non-woven fabric. It requires zero additional chemical adhesives.
• Inline Coating: Some composite materials resist heat bonding. Here, the system applies specialized hot-melt adhesives. The machine sprays the glue synchronously before the plastic cools.

Engineering success relies on precise tension and synchronization. The extrusion rollers move at specific speeds. The fabric unwinding module must perfectly match this pace. Control systems monitor both speeds continuously. If the speeds drift, the fabric stretches improperly. Stretching causes severe wrinkling across the board surface. It also distorts the underlying dimple structures. Modern proportional-integral-derivative controllers solve this problem. They adjust the unwinding tension in real time. Perfect synchronization ensures a flawless, flat product every single run.

Performance Outcomes: Evaluating Yield and Product Quality

Online lamination dramatically improves final product quality. We evaluate performance through several key manufacturing metrics.

First, bond strength metrics reveal a clear advantage. Inline heat utilization creates a highly uniform fusion layer. The plastic and fabric meld together smoothly. Cold-gluing often leaves dry spots. It also causes uneven adhesive distribution. In contrast, online thermal bonding achieves exceptional peel resistance. Industry standards mandate strict peel tests. High peel resistance ensures the fabric stays attached under heavy soil loads.

Second, throughput consistency reaches new heights. The offline method forces operators to stop and start constantly. Removing this secondary bottleneck unlocks your factory's true potential. Now, your drainage board production line operates at maximum continuous speeds. You experience zero interruptions for roll transfers. The line runs continuously from raw polymer pellet to finished composite roll.

Third, automated processing drastically lowers defect rates. You completely eliminate the human error inherent in manual roll handling.

1. Edge-curling reduction: Synchronized tension prevents the fabric from pulling the plastic edges upward.
2. Air pocket elimination: Continuous nip rollers press the materials together evenly. They squeeze out trapped air completely.
3. Misalignment prevention: Automated guiding systems keep the fabric perfectly centered over the dimpled core.

Single-pass processing guarantees superior consistency. Every inch of the roll meets strict civil engineering standards. You ship higher-quality products to your buyers. You also scrap far less material during daily quality inspections.

ROI and Scalability for HDPE Drainage Board Equipment

Upgrading your factory requires a detailed financial assessment. You must weigh the higher initial equipment costs against long-term operational savings. Integrated lines command a larger Capital Expenditure. However, they drastically lower your Operating Expenditure. You instantly reduce labor costs. You no longer pay teams to move heavy rolls across the floor. Furthermore, you slash scrap material expenses significantly.

Energy efficiency provides another major financial return. Conventional methods waste immense amounts of electricity. You must reheat cooled plastics. You often run separate energy-intensive curing ovens. Online lamination avoids these steps entirely. The process captures thermal energy already present in the extruded plastic. This green manufacturing approach lowers your monthly utility bills.

Investing in scalable machinery secures your market position. You might purchase a customizable drainage board production line. This smart investment offers unmatched flexibility. You can easily switch between different dimple heights. You can adjust overall board thicknesses without major mechanical retooling. Operators simply swap out the shaping rollers. They then adjust the lamination nip gap. This adaptability lets you serve diverse construction markets efficiently.

Table 1: Operational Comparison Between Offline and Online Lamination

Implementation Realities and Operator Risks

Deploying new technology brings distinct engineering realities to light. Material compatibility restrictions stand out immediately. Online thermal bonding requires exact polymer matching. You need compatible melt temperatures between the core and the geotextile. For example, bonding an HDPE core to a polypropylene fabric works well. Bonding to a polyester fabric poses distinct thermal challenges. You must carefully audit your raw material supply chain before upgrading.

Operators face noticeable calibration complexity initially. Your floor staff encounters a steep learning curve during the rollout. They must master a delicate balancing act. They have to control the extrusion temperature perfectly. Simultaneously, they must manage the lamination nip pressure. If the pressure runs too high, it crushes the plastic dimples. If it runs too low, the fabric fails to stick. Comprehensive training programs remain essential for commercial success.

You also face a critical facility decision. Should you upgrade your current setup or buy entirely new machines? Retrofitting an inline laminator onto older equipment seems tempting. However, older control systems often lack the processing power for precise tension synchronization. A completely new HDPE drainage board equipment setup usually offers better returns. You guarantee seamless communication between the extruder and the laminator. Furthermore, a modern drainage board and plastic sheet production line provides advanced sensor arrays. These sensors monitor quality continuously. They protect your investment from costly mechanical failures.

Conclusion

Online lamination delivers much more than a simple speed upgrade. It provides a massive structural improvement to your final product's reliability. By integrating the process, you eliminate dangerous temperature drops. You ensure consistent, high-strength adhesion across every roll. Furthermore, you drastically shrink your factory footprint. You also lower your daily labor costs.

Procurement teams should take immediate action to secure these benefits.

• Audit your current offline defect rates to identify financial leaks.
• Calculate the exact costs of delaminated scrap and customer returns.
• Request material-specific trial runs from equipment vendors.
• Test your exact HDPE and fabric combinations on vendor demonstration lines.

This evidence-based approach ensures you make a highly profitable technology upgrade.

FAQ

Q: Can existing drainage board lines be retrofitted for online lamination?

A: Yes, but it depends heavily on the spatial layout of your current line. You also need to evaluate the capacity of your existing control system. The older PLC must handle synchronized tension control. If your machinery lacks precise speed tracking, retrofitting will cause fabric wrinkling. Often, investing in new, integrated equipment proves more reliable.

Q: Does online lamination limit the types of geotextile fabrics I can use?

A: Thermal inline lamination requires strict melting point compatibility between the plastic core and the fabric. If your materials do not match thermally, adhesion fails. However, you can install inline adhesive modules. These hot-melt systems easily accommodate dissimilar materials, restoring your flexibility in fabric selection.

Q: How much faster is an online lamination process compared to offline?

A: It entirely eliminates secondary handling time. Your operators never stop to move rolls or reset machines. Consequently, you produce finished, fabric-backed boards at the exact speed of your primary extrusion limit. This continuous flow often doubles actual daily throughput compared to intermittent offline batches.
