Polymer extrusion presents a fundamental physical challenge. Molten plastic exits the die in a highly unstable state. At this exact moment, the material holds no structural integrity. Gravity pulls it down. Thermal dynamics cause it to swell. Without immediate and precise intervention, the extruded shape deforms. This physical instability leads directly to severe production issues. You face dimensional drift, severe warping, and a complete loss of straightness. When producing complex geometries at scale, these defects cause scrap rates to skyrocket. Wasted material and machine downtime destroy operational efficiency.
Vacuum calibration provides the stabilization mechanism required to solve this problem. It takes control of the molten polymer the millisecond it leaves the die. By applying precise negative pressure, the system forces the pliable plastic to conform to a rigid mold. It locks in exact dimensions before the material cools. The quality of this vacuum calibration system dictates the success of your entire operation. When evaluating a modern extrusion setup for capital investment, the calibration unit stands as the primary differentiator. It determines whether you produce high-precision products or expensive scrap.
Successful calibration requires four specific outcomes. First, the profile must retain its shape immediately upon entering the sizing unit. Second, cooling must penetrate the material uniformly. Third, the system must eliminate surface drag between the polymer and the metal tooling. Finally, the finished PVC profile must conform exactly to the internal geometry of the calibrator. Achieving these outcomes requires a precise balance of physical forces and thermal management. Operating a high-performance PVC profile extrusion line demands a deep understanding of these mechanics.
The critical transition zone exists in the few millimeters between the extrusion die face and the calibrator entrance. Here, the polymer is a viscous melt. As it enters the sizing sleeve, vacuum pumps generate negative pressure through tiny slots or holes machined into the sleeve walls. This pressure creates a powerful suction effect. It pulls the softened profile billet outward.
The material adsorbs tightly against the vacuum calibration die cavity. This immediate physical contact locks in the outer dimensions. The negative pressure counteracts the natural tendency of the plastic to shrink inward as it cools. For hollow sections, this outward pull prevents the internal walls from collapsing. The sizing sleeve acts as a rigid physical boundary. The vacuum force ensures the polymer respects that boundary until it solidifies enough to hold its own weight.
Engineers design these sizing sleeves with specific shrinkage allowances. The polymer will contract slightly after it leaves the cooling tank. The vacuum cavity must be marginally larger than the final desired dimension. This requires precise machining. A sleeve that is too tight causes excessive friction. A sleeve that is too loose fails to provide the necessary adsorption, leading to immediate dimensional failure.
Vacuum pressure alone cannot stabilize the profile. Thermal dynamics play an equally vital role. As the vacuum holds the plastic against the sleeve, chilled water flows through the calibration unit. This water extracts heat from the polymer. The heat transfer must happen rapidly to freeze the outer skin of the profile. A frozen skin provides the initial structural rigidity needed to pull the profile down the line.
Operators must balance this rapid solidification with controlled internal cooling. If you cool the outer skin too aggressively, the core remains hot and fluid. As the core eventually cools and shrinks, it pulls against the rigid outer shell. This creates massive internal material stress. Stress leads to bowing, twisting, and severe brittleness in the final product.
The water cooling system within the vacuum tank must remove heat at a calculated rate. This ensures uniform temperature reduction across the entire cross-section of the profile. Flow meters and temperature sensors monitor this process. You adjust the water flow to match the line speed and the mass of the extruded plastic. Heavy sections require more cooling time. Thin sections freeze almost instantly. The specific heat capacity of the polymer dictates how much energy the water must remove. Operators must calculate the thermal load based on the throughput rate in kilograms per hour. If the extruder pushes 300 kg/hr of material, the chilling system must have the corresponding tonnage to extract that heat continuously without the water bath temperature rising.
Every function within the vacuum calibration unit directly impacts the physical characteristics of the final product. Understanding this features-to-outcomes mapping helps operators troubleshoot defects and optimize line performance. The calibration table is where the actual quality of the product is forged.
Warping occurs when polymer sags under its own weight or cools unevenly. Continuous, stable vacuum pressure prevents this sagging. By holding the profile firmly against the straight walls of the calibrator, the system enforces absolute straightness along the longitudinal axis. The material cannot deviate from the intended path. It cools in a perfectly linear orientation.
For tubular or hollow sections, ovality is a constant threat. Without vacuum, a round pipe will flatten into an oval due to gravity. Negative pressure pulls the circumference evenly in all directions. This maintains strict geometric tolerances.
Dimensional drift happens when process variables fluctuate over time. A robust calibration system locks the dimensions in place, regardless of minor upstream variations in melt temperature or extruder output. When the vacuum holds steady, the dimensions hold steady.
Consistent wall thickness dictates the structural integrity of the profile. It also controls material usage. Overweight profiles consume excess resin, destroying profit margins. Uniform calibration pressure ensures the polymer distributes evenly across the die cavity. It prevents thick spots caused by material pooling and thin spots caused by stretching.
Surface finish relies heavily on the interaction between the sizing sleeve and the moving polymer. The friction coefficient must remain low. If friction is too high, the metal drags against the soft plastic. This creates surface chatter marks, dull spots, or deep scratches.
Water acts as a lubricant in this process. The vacuum pulls the water through the calibration slots, creating a micro-layer of moisture between the sleeve and the profile. This lubrication results in a high-gloss, perfectly smooth surface.
| Defect Type | Physical Appearance | Root Cause in Calibration | Corrective Action |
|---|---|---|---|
| Chatter Marks | Horizontal lines across the surface | Excessive friction or vacuum pulsation | Increase water lubrication; check pump VFD settings. |
| Ovality | Flattened hollow sections | Insufficient vacuum pressure | Clean vacuum slots; increase pump RPM. |
| Bowing | Profile curves along its length | Uneven cooling rates | Adjust water flow valves to balance temperature. |
| Surface Scratches | Deep longitudinal grooves | Debris caught in the sizing sleeve | Stop line, open calibrator, and polish internal surfaces. |

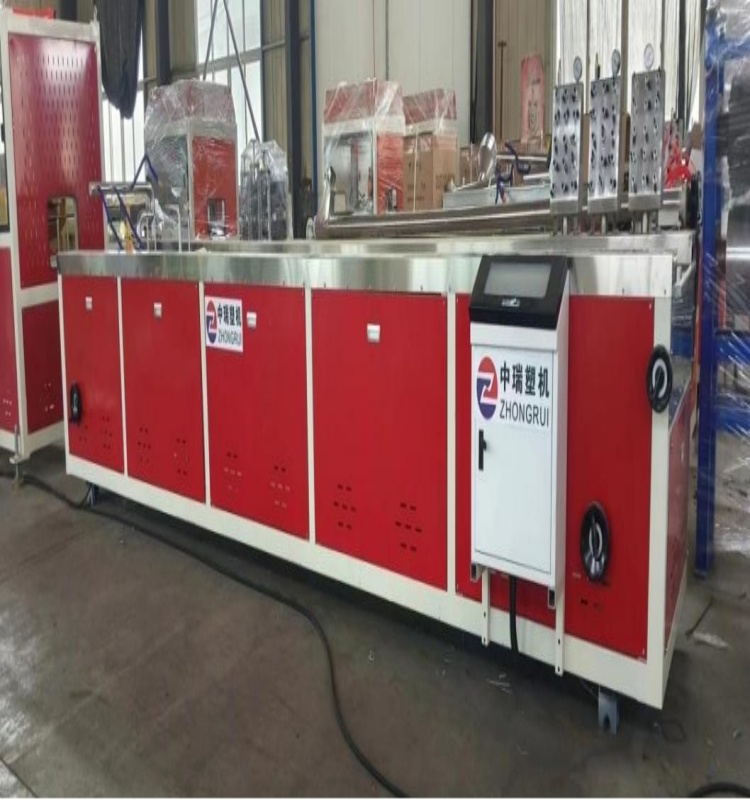

Engineers and procurement teams must look beyond basic specifications when evaluating a plastic profile production line. The calibration system requires intense scrutiny. You must assess the tank design, the control architecture, and the raw mechanical power of the vacuum pumps. These elements determine the operational limits of the machinery.
The physical construction of the vacuum tank dictates its longevity and performance. You must choose between single-chamber and dual-chamber designs. Dual-chamber tanks offer significant advantages for complex profiles. They allow operators to establish distinct pressure zones. The first chamber can run at maximum vacuum to freeze the outer skin instantly. The second chamber can operate at a lower vacuum to prevent excessive drag while continuing the cooling process.
Material selection is non-negotiable. The tank operates in a continuous water-contact environment. Standard steel will rust immediately. Aluminum corrodes over time. High-grade stainless steel, specifically SUS304 or better, is mandatory. It resists corrosion, prevents scale buildup, and maintains structural rigidity under heavy vacuum loads. A degraded tank compromises the vacuum seal, leading to immediate dimensional failures.
Manual valve adjustments belong in the past. Modern extrusion requires closed-loop PLC systems. These controllers continuously monitor vacuum pressure and water temperature via digital sensors. If the pressure drops, the PLC automatically increases pump speed to compensate. This instant auto-adjustment eliminates human error and prevents out-of-spec products from reaching the cutter.
Automated data logging provides a secondary benefit for quality assurance. The PLC records every pressure fluctuation and temperature shift during a production run. If a batch fails quality control, engineers can review the logs to identify the exact moment the calibration system deviated. This data-driven approach reduces dimensional fluctuation and ensures highly repeatable batch production across multiple shifts.
Vacuum pumps supply the raw force needed for calibration. You must evaluate pump power in relation to your specific line speed and profile size. A massive, heavy-wall window frame requires significantly more vacuum capacity than a small decorative trim. Liquid ring vacuum pumps are the industry standard due to their durability and ability to handle water carryover.
Pressure pulsation is a hidden risk in lower-tier systems. If the pump surges, the vacuum pressure fluctuates rapidly. This causes the profile to bounce against the sizing sleeve, creating visible chatter marks on the surface. High-end systems mitigate this risk by using oversized manifolds, precision-machined impellers, and VFD controls to ensure continuous, flat-line pressure stability. A standard 6-meter calibration table might utilize three separate 5.5 kW liquid ring pumps to manage different zones. The first zone requires the highest volumetric flow to establish the initial skin. Subsequent zones require less flow but highly stable pressure to maintain the shape as the core cools.
| Profile Size Category | Typical Width (mm) | Recommended Pump Power (kW) | Vacuum Zones Required |
|---|---|---|---|
| Small Trim / Edge Banding | 10 - 40 | 2.2 - 4.0 | 1 - 2 |
| Medium Technical Profiles | 40 - 100 | 4.0 - 5.5 | 2 - 3 |
| Large Window Frames | 100 - 200 | 5.5 - 7.5 | 3 - 5 |
| Heavy Structural Panels | 200+ | 7.5 - 11.0 | 5+ |
No two extrusion processes are identical. The calibration system must adapt to the specific demands of the product being manufactured. Scalability and flexibility define a superior production setup. The machinery must handle everything from simple geometric shapes to highly complex, multi-cavity designs without requiring massive mechanical overhauls.
Manufacturing window frames, structural beams, or asymmetrical designs presents unique calibration challenges. These profiles feature heavy walls, internal webs, and complex angles. They do not cool evenly. The heavy sections retain heat longer, causing the profile to warp toward the thicker side. Operating customizable PVC profile machinery addresses this by utilizing highly specialized sizing sleeves with targeted cooling channels.
Precise die alignment is critical for these complex shapes. The calibration table must feature multi-axis adjustability. Operators need the ability to move the table up, down, left, right, forward, and backward with millimeter precision. If the calibrator is slightly misaligned with the die exit, the profile will stretch unevenly, destroying the internal web structure. Quick-change tooling systems allow operators to swap these heavy calibration dies rapidly, minimizing downtime during product changeovers.
Extruding flexible or semi-rigid sealing strips requires a completely different approach. A PVC sealing strip production line operates at high line speeds. The material spends very little time inside the vacuum tank. Rapid heat transfer is the primary objective. The system must cool the soft plastic instantly to prevent it from sticking to itself on the winder.
Operators must apply vacuum cautiously. Flexible materials stretch easily. If the vacuum pressure is too high, the friction against the sizing sleeve will stretch the strip, reducing its cross-sectional area and destroying the profile geometry. Calibration for sealing strips relies on high-volume water flow and very gentle, highly regulated vacuum pressure to maintain the shape without inducing longitudinal stress.
Installing a high-performance vacuum calibration system introduces new operational realities to the factory floor. Plant managers must address the trade-offs between performance, resource consumption, and maintenance. Ignoring these factors leads to inflated operational expenses and unexpected machine downtime.
Continuous high-capacity vacuum pumps draw significant electrical power. Running multiple pumps at full speed 24 hours a day impacts the facility's energy footprint. Implementing variable frequency drives (VFDs) on these pumps optimizes energy usage. The VFD allows the pump to run only as fast as necessary to maintain the set pressure. This reduces energy consumption without sacrificing pressure stability.
Water management presents another challenge. Calibration tanks consume massive volumes of water to cool the hot polymer. Running this water straight to a drain is financially unsustainable. Facilities must implement closed-loop water chilling systems. These systems capture the heated water from the tank, run it through a heat exchanger or cooling tower, and return it to the process at a consistent, chilled temperature. Consistent water temperature is vital. Fluctuations will immediately alter the cooling rate and change the dimensions of the profile.
Even the best PVC profile production line will fail without rigorous maintenance. The vacuum calibration system has specific, predictable failure points. The most common issue is clogged vacuum slots in the sizing sleeves. As the polymer passes through, tiny amounts of wax, additives, and degraded plastic build up in the micro-slots. Hard water exacerbates this by depositing calcium scale.
When these slots clog, vacuum pressure drops locally. The profile pulls away from the wall, causing a dimensional failure. Operators must follow a strict preventative maintenance schedule.
A: The ideal negative pressure typically ranges between -0.02 MPa and -0.06 MPa. Exact metrics depend heavily on the profile's wall thickness, the extrusion line speed, and the specific polymer formulation. Heavy-wall profiles require stronger vacuum to prevent sagging. Thin-wall or flexible profiles need lower pressure to avoid stretching and deformation.
A: Vacuum calibration uses external negative pressure to pull the soft polymer outward against a sizing sleeve. It is ideal for complex, multi-chamber profiles. Pressure calibration uses internal positive air pressure to push the material outward against a cooling jacket. This internal pressurization method is primarily used for manufacturing large-diameter, single-lumen plastic pipes.
A: Yes. The calibration table itself acts as a universal platform. It handles different shapes through the use of modular calibration dies and sizing sleeves. Operators swap these tools based on the product. This requires multi-axis adjustable tables to ensure the new tooling aligns perfectly with the extruder die exit.
A: Warping typically stems from uneven thermal dynamics or mechanical misalignment. Potential culprits include inconsistent vacuum pump pressure, misaligned calibration dies, and uneven cooling water distribution causing one side to shrink faster. Excessive line speed can also induce internal material stress before the profile fully solidifies.
A: PLC integration provides real-time monitoring and automatic pressure stabilization via closed-loop feedback. It eliminates manual valve adjustments. This removes human error, prevents sudden dimensional fluctuations, and ensures consistent product quality across long production runs by automatically adjusting pump speeds to maintain exact setpoints.
A: Maintenance requires regular cleaning of the vacuum ports to remove plasticizer buildup and wax. You must check the water filtration systems daily to prevent scale from blocking spray nozzles. Additionally, inspect the vacuum pump seals and impellers regularly to ensure they maintain the capacity required for high-speed line operations.
