How Does a PP Strapping Line Maintain Straight Strap Tracking?

Strap camber—the lateral curvature of a polymer band—causes severe operational failures in automated packaging environments. When high-speed strapping machines process curved bands, even minor deviations in straightness trigger catastrophic jamming, equipment downtime, and compromised load containment. Maintaining absolute dimensional stability while processing polymer melt under high tension and thermal stress presents a massive engineering challenge. The plastic must undergo extrusion, cooling, stretching, and annealing with flawless uniformity. Any variation introduces internal stresses that warp the material. To guarantee consistent tracking from the extruder die to the final winding core, plant managers must rigorously evaluate the mechanical, thermal, and digital control systems governing their operations. Resolving lateral drift demands a deep understanding of molecular orientation dynamics, precision tooling alignment, and closed-loop tension feedback. Mastering these variables ensures continuous yield and eliminates the manual interventions typically required for tracking correction.

• Tension Control is Paramount: Straight tracking relies on closed-loop, servo-driven tension control across all stretching and annealing stages to prevent uneven molecular orientation.
• Thermal Uniformity Dictates Stability: Inconsistent cooling in the quenching tank or uneven heating in the annealing oven directly causes post-production strap warping.
• Precision Tooling Prevents Drift: The alignment of embossing rollers, slitting knives, and guide godets must be maintained at micro-tolerances to prevent lateral drift during high-speed production.
• Material Purity Impacts Mechanics: Moisture and contaminants in the raw PP mix create localized stress points that induce camber during the stretching phase.
• Automation Reduces Variability: Upgrading to a computerized system minimizes human error in tension calibration, draw ratios, and thermal management.

The Business Impact of Strap Camber in PP Strapping

Camber in polymer strapping refers to the lateral deviation from a perfectly straight line. Industry standards dictate a maximum allowable deviation, typically measured as less than 50mm of curvature over a 2-meter length. When a strap exceeds this tolerance, it fails to feed smoothly through the chutes of fully automatic arch strapping machines. The physical curve causes the leading edge of the strap to catch on internal guides. This instantly triggers a machine fault and halts the packaging line.

The mechanics of a strap jam are destructive. When a band with a 60mm camber enters an arch, the friction against the chute walls increases exponentially. The feed motor continues to push the strap, but the tip drags and catches. This causes the strap to buckle inside the accumulator box. Clearing this jam takes an operator several minutes. If a plant runs hundreds of strapping cycles an hour, a minor jam rate destroys throughput.

The financial impact of out-of-spec strapping cascades through an operation in several measurable ways:

1. Direct Machine Downtime: End-of-line packaging halts, creating bottlenecks that back up entire production floors.
2. Compromised Load Containment: Curved straps fail to tension evenly around a pallet. Uneven tension increases the risk of load shifting and transit damage.
3. Material Waste: Operators discard entire coils of warped PP strapping that automated equipment cannot process.
4. Accelerated Equipment Wear: Forcing curved straps through feed wheels and tensioning gears causes premature wear on the strapping machine components.

The baseline success criteria for any high-performance manufacturing setup is continuous yield with zero manual intervention for tracking correction. Operators should not need to constantly adjust guide rollers or tweak tension settings to keep the band centered. Achieving this requires engineering mechanical precision and thermal stability directly into the equipment.

Core Mechanics of a PP Strapping Production Line for Straight Tracking

Raw Material Preparation and Moisture Control

The foundation of straight strap tracking begins before the polymer enters the extruder. Dehumidification and crystallization of the raw polypropylene flakes or pellets are mandatory steps. Polypropylene is naturally hydrophobic, but surface moisture easily accumulates, especially when utilizing recycled materials. If this moisture enters the extrusion barrel, it vaporizes under high heat.

Residual moisture causes steam bubbles to form within the polymer melt. These microscopic voids create inconsistent density across the width of the extruded sheet. During the stretching phase, areas with lower density yield faster than denser areas. This results in uneven elongation that physically pulls the strap off-center. Proper desiccant drying systems, maintaining a dew point of -40°C, ensure the material maintains a uniform moisture profile. This prevents structural weaknesses before extrusion begins.

Precision Extrusion and Melt Uniformity

A high-quality PP packing strap extrusion machine guarantees a homogenous melt index. The design of the die head plays the primary role in distributing the polymer evenly across the entire extrusion width. Coat-hanger die structures with adjustable restrictor bars allow technicians to dial in the exact melt flow. If the die lips are improperly calibrated, the resulting sheet suffers from edge-thickness variations.

Thicker edges require more force to stretch than thinner centers. This discrepancy leads to uneven tension during the orientation phase, forcing the band to curve toward the thicker side. Continuous screen changers and advanced melt filtration systems remove microscopic contaminants. Solid impurities create localized stress points that disrupt the linear alignment of polymer chains. This induces camber under tension. Maintaining a consistent melt pressure between 100 and 150 bar ensures the polymer exits the die with uniform density.

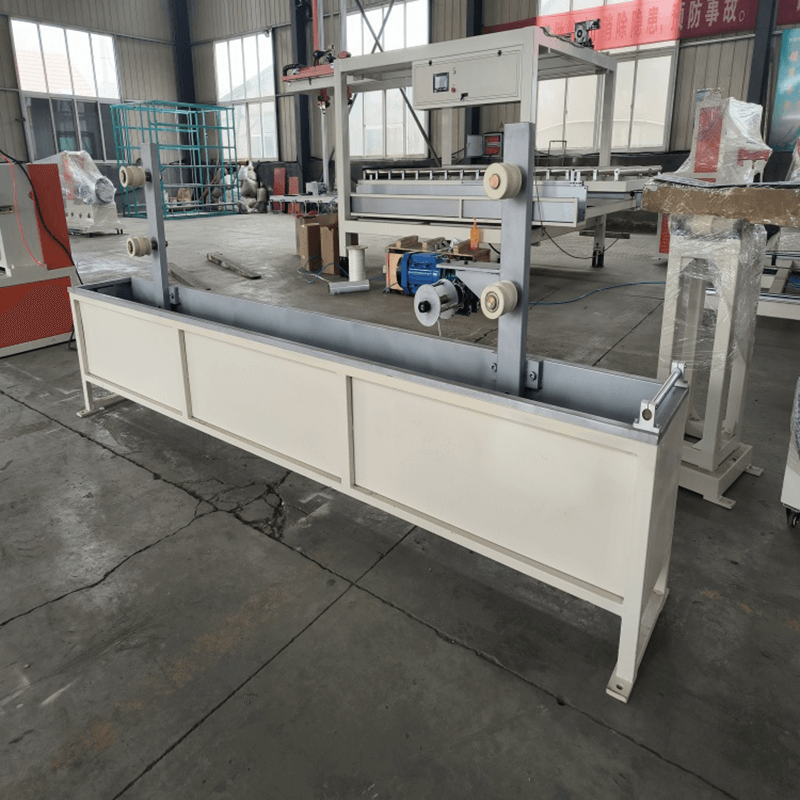

The Role of the Quenching Tank

Once the polymer exits the die, it enters the water cooling bath. Hydrodynamics dictate the initial structural integrity of the strap. The quenching tank must cool the molten sheet rapidly and uniformly. Uneven cooling rates across the width of the extruded sheet cause asymmetric crystallization.

If one side of the sheet cools faster than the other, the polymer chains lock into place at different rates. This creates an immediate internal stress imbalance. Asymmetric crystallization is a primary root cause of lateral tracking drift. Advanced PP strapping production line systems utilize precision water flow controls, turbulence dampeners, and temperature regulation zones. These features ensure the thermal drop remains identical across the entire surface area of the plastic. Water temperatures must remain strictly controlled, typically between 20°C and 30°C, depending on the line speed and sheet thickness.

Stretching and Molecular Orientation Dynamics

The Machine Direction Orientation (MDO) process transforms the brittle extruded sheet into a high-tensile packaging band. This involves heating the material and pulling it between sets of godet rollers running at progressively higher speeds. For the strap to track straight, the primary and secondary stretching godets must maintain perfect parallel alignment.

Any angular deviation in the rollers introduces lateral stress. This forces the polymer chains to align diagonally rather than linearly. When the chains align off-axis, the strap naturally curves to relieve the tension. Heavy-duty machine frames and precision bearings prevent roller deflection under the immense pulling forces generated during the MDO phase. Roller runout tolerances must remain below 0.02mm to prevent cyclical tension variations that cause the strap to wander.

Advanced Tracking Technologies in a Computerized PP Strapping Strap Band Belt Machine

Closed-Loop Tension Control Systems

Maintaining straight tracking at high speeds requires continuous, real-time adjustments. The integration of load cells and PLC feedback loops forms the backbone of a modern computerized PP strapping strap band belt machine. Load cells constantly measure the tension applied to the band across various stages of the line, reading forces from 0 to 500kg with extreme accuracy.

This data feeds directly into the PLC, which instantly adjusts the speed of the servo motors driving the godets. Real-time tension adjustments prevent micro-slippage on the rollers. When a strap slips even a fraction of a millimeter on a high-speed roller, it loses its center tracking and wanders toward the edge. Closed-loop systems eliminate this slack. They hold the band rigidly in its designated path by updating motor speeds in milliseconds.

Precision Edge Slitting and Trimming

Before final stretching, the wide extruded sheet is slit into individual bands. The mechanics of this slitting station directly impact downstream tracking. Razor-sharp, perfectly aligned rotary knives slice the polymer without causing micro-tears along the edges. Razor cutting versus rotary shear cutting depends on the thickness of the sheet, but blade overlap and side load must remain perfectly calibrated.

Asymmetric edge damage leads to uneven tension distribution. If one edge is cleanly cut while the other features microscopic jagged tears, the damaged side stretches differently under load. This differential elongation pulls the strap off-center. High-precision slitting blocks ensure clean, uniform cuts that maintain symmetrical structural integrity.

Embossing Roller Alignment and Pressure Distribution

The embossing stage presses a diamond or cross-hatch pattern into the strap to improve stiffness and joint strength. This process applies massive pressure to the hot polymer. Uneven pneumatic or hydraulic pressure on the embossing rollers forces the strap to track toward the side with lower pressure.

If the left side of the roller applies 5% more force than the right side, the material physically squeezes out toward the right. This causes a permanent lateral curve. Precision pressure regulators and heavy-duty roller mounts maintain perfectly balanced force across the entire width of the band during embossing. Nip pressure must be monitored constantly via the HMI to detect any pressure drops in the pneumatic cylinders.

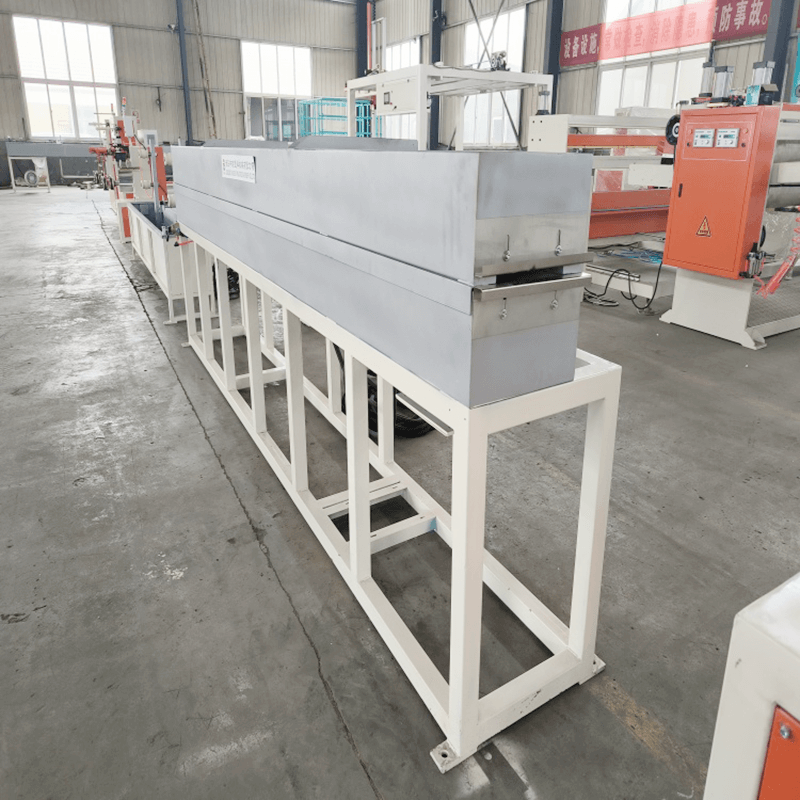

Annealing and Thermal Stabilization

Even if a strap tracks perfectly through the stretching and embossing stages, it warps after production if internal stresses remain unresolved. The annealing oven provides controlled heat relaxation. By reheating the stretched strap slightly below its melting point, the polymer chains relax and settle into their new oriented positions.

This thermal stabilization removes residual internal stresses. The line speed is slightly reduced in this section, creating a relaxation ratio of 5% to 10%. Without proper annealing, the strap slowly contracts unevenly as it cools to room temperature on the winding core. This results in a delayed camber effect. A highly controlled thermal gradient in the annealing oven ensures the strap remains dead-straight long after it leaves the facility.

Evaluating a Packaging Belt Production Line: Features vs. Outcomes

Draw Ratio Optimization Capabilities

When assessing a packaging belt production line, the ability to maintain precise stretching ratios serves as a primary performance metric. Typical draw ratios for polypropylene range from 1:5 to 1:7. The machinery must hold these ratios exactly, without fluctuation, to ensure uniform tensile strength.

Balancing tensile strength without over-stretching prevents fibrillation—the splintering of polymer chains. When a strap is over-stretched, its internal structure fractures. This leads to immediate structural warping and severe camber. Advanced lines allow operators to dial in exact draw ratios via the HMI, locking the parameters to prevent accidental over-orientation.

Mechanical vs. Servo-Driven Winders

The final stage of production easily ruins a perfectly straight strap if the winding tension and traverse pitch are incorrect. The choice of winder technology heavily influences the final product quality. The winder must lay the strap perfectly flat on the paper core using a dancer arm tension control system.

Precise traverse pitch control prevents edge build-up on the coil. When straps overlap unevenly on the core, the physical pressure permanently deforms the plastic. This creates a memory curve that manifests when the end-user unspools the band.

Multi-Strap vs. Single-Strap Line Trade-offs

Scaling output involves extruding 4, 6, or 8 straps simultaneously. Maintaining straight tracking across multiple parallel paths introduces significant complexity. A minor temperature variance in the center of the oven affects the middle straps differently than the outer straps.

High-end multi-strap systems utilize individual tension compensators for each strap path. These accumulators absorb minor speed fluctuations independently. They ensure that a tension drop on strap number two does not pull strap number three off its guide roller. Evaluating the isolation of these tension zones is critical for high-capacity operations.

Automation and Quality Control Sensors

Modern quality control relies heavily on automation. An advanced PP fibre packing strapping tape production line integrates inline camber measurement sensors. These sensors continuously scan the band using laser micrometers or optical arrays. If the system detects a lateral deviation approaching the 50mm threshold, it alerts the operator or automatically adjusts downstream tension.

Automated edge-trimming systems play a vital role. By continuously measuring and trimming the strap to an exact width tolerance, these systems ensure uniform mass distribution. Uniform width directly impacts tracking stability. It guarantees the strap interacts symmetrically with all subsequent guide rollers and embossing stations.

Implementation Risks and Mitigation in PP Strapping Extrusion

Operator Training for Tension Calibration

Human error remains a high risk to tracking stability. Operators attempt to manually override PLC tension settings based on visual cues, such as a slight sag in the line, rather than relying on load cell data. This manual interference frequently overcorrects the tension, causing the strap to snap or wander aggressively off-center.

Facilities must implement strict Standard Operating Procedures. These SOPs rely entirely on HMI recipes pre-configured for specific strap dimensions. By locking out manual override functions during steady-state production, manufacturers force reliance on the closed-loop servo systems designed to handle micro-adjustments.

Maintenance of Guide Rollers and Bearings

Mechanical wear degrades tracking performance over time. Worn bearings cause guide rollers to drag, introducing uneven resistance. Polymer build-up on the surface of the rollers changes their effective diameter. This alters the speed and tension of the strap passing over them.

Mitigation requires aggressive preventative maintenance schedules. Technicians must regularly check bearing tolerances and clean roller surfaces. Utilizing non-stick, wear-resistant roller coatings, such as specialized hard chrome or ceramic treatments, significantly reduces polymer adhesion and extends the lifespan of the tracking mechanics.

Material Formulation Variables

Using 100% recycled PP flakes introduces severe melt flow fluctuations. Recycled batches contain varying molecular weights and trace contaminants. These inconsistencies cause the melt to surge or thin out unpredictably at the die, leading to uneven stretching and immediate camber.

Facilities mitigate this risk by utilizing advanced gravimetric dosing systems. These units precisely blend virgin material, recycled flakes, and additives by weight rather than volume. Coupled with multi-stage melt filtration, gravimetric blending stabilizes the material behavior through the die. This provides a uniform foundation for straight tracking.

Ambient Factory Environmental Factors

Polymer extrusion is highly sensitive to environmental changes. Fluctuating ambient temperatures and drafts across the factory floor unevenly cool the extruded sheet before it enters the quenching tank. Drafts also disrupt the thermal stability of the annealing oven.

Installing climate-controlled extrusion zones mitigates environmental interference. If full climate control is unfeasible, utilizing fully insulated cooling baths and heavily shielded ovens ensures that external drafts cannot penetrate the critical thermal zones. Maintaining strict thermal boundaries prevents uneven molecular orientation.

Conclusion

1. Audit your current acceptable camber rates and document the exact locations where tracking failures occur most frequently on the line.
2. Request material test runs from equipment manufacturers using your specific recycled polymer blends to verify melt filtration and tension control capabilities.
3. Review the HMI capabilities of shortlisted machinery to ensure they provide locked recipe management and real-time load cell feedback.
4. Implement gravimetric dosing systems on your existing extruders to eliminate melt flow fluctuations caused by inconsistent bulk density in raw materials.
5. Establish a strict preventative maintenance schedule focused on bearing replacement and roller surface cleaning to prevent mechanical drag.

FAQ

Q: What is the acceptable camber tolerance for machine-grade PP strapping?

A: Industry standards require machine-grade PP strapping to have a camber of less than 50mm of curvature over a 2-meter length. Maintaining this tight tolerance is mandatory for operation in fully automatic arch strapping machines, where excessive curvature causes the band to catch in the chutes and jam the equipment.

Q: How does the extrusion die affect strap straightness?

A: The extrusion die determines the initial thickness profile of the polymer sheet. Uneven melt distribution at the die lips creates lateral thickness variations. During the MDO phase, thicker sections require more force to stretch than thinner sections, causing differential elongation that physically forces the strap to curve off-center.

Q: How does moisture in raw materials affect strap tracking?

A: Residual moisture in raw polypropylene vaporizes inside the extruder barrel, creating microscopic steam pockets in the polymer melt. These voids lead to inconsistent material density. When stretched, the varying density causes uneven elongation, creating localized stress points that directly induce lateral camber.

Q: Why do PP straps sometimes curve days after production?

A: Delayed curvature is caused by inadequate annealing. If internal stresses generated during the stretching phase are not properly relaxed in the thermal oven, the polymer chains remain tense. Over time, these chains slowly contract unevenly at room temperature, causing the strap to warp while sitting on the coil.

Q: What is the role of the traverse winder in maintaining strap tracking?

A: The traverse winder must lay the strap perfectly flat on the paper core. Improper traverse speed or tension causes the strap to overlap unevenly or crush against the edges. This physical pressure induces a memory curve into the plastic, permanently deforming it before it reaches the end-user.

Q: Can 100% recycled materials be used without compromising strap straightness?

A: Yes, but it requires advanced equipment. Recycled flakes have inherent viscosity variations. Processing them successfully requires precision gravimetric blending, superior multi-stage melt filtration, and highly responsive closed-loop tension controls to instantly compensate for melt flow fluctuations and prevent uneven stretching.

Q: How do computerized controls prevent lateral drift?

A: PLCs continuously monitor line speed and tension via integrated load cells. They make micro-adjustments to the servo motors driving the godet rollers much faster than a human operator could. This real-time feedback prevents micro-slippage and slack, keeping the strap rigidly centered along its designated path.
