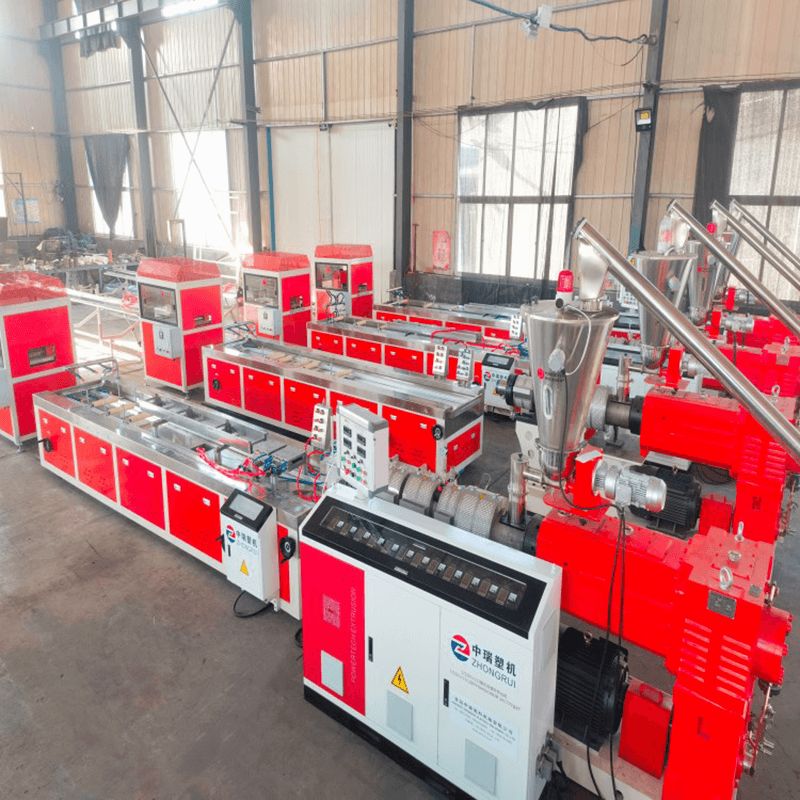

CNC machining subtracts material to reach exact dimensions. Extrusion operates differently. We must control a dynamic, molten polymer state as it transitions into a solid shape. Dimensional instability carries a heavy financial impact on the factory floor. Die swell, uneven cooling, and haul-off inconsistencies lead to rejected batches. They waste expensive resin and cause failures when meeting tight assembly tolerances for end-users. Maintaining cross-section accuracy does not rely on a single component. It requires the synchronized operation of the entire plastic profile production line. This spans from initial die design to inline laser measurement. You must control thermal and mechanical variables simultaneously to achieve a stable output. We will break down exactly how to manage melt pressure, calibration vacuum, and line speed to keep your profiles within spec.
Die Design Dictates the Baseline: The extrusion die establishes the initial geometry, but must account for polymer-specific rheology and die swell to achieve the final target shape.
Calibration and Cooling are Inseparable: Vacuum calibration and targeted cooling zones freeze the profile's outer dimensions before internal thermal shrinkage can distort the cross-section.
Synchronization is Critical: Even with perfect tooling, micro-fluctuations in haul-off speed will stretch or compress the profile, destroying dimensional tolerances.
Inline Measurement Drives Yield: Modern lines utilize closed-loop inspection systems to measure inner and outer geometries in real-time, allowing for automated adjustments without stopping production.
An accurate plastic profile meets strict geometric requirements. These include wall thickness uniformity, angular precision, and the absence of warping. A 2D profile tolerance controls one specific cross-section at a time. Continuous process stability ensures the entire extruded surface remains in spec over long runs. You must maintain consistent melt pressure and temperature to hit these targets. Any deviation results in geometric failure. When a window frame profile deviates by even a fraction of a millimeter, the weather stripping will not seat properly, and the corner welds will fail under stress. Achieving success means holding these tolerances across thousands of feet of continuous production.
Polymers expand upon exiting the die. This phenomenon is known as die swell or the Barus effect. Polymer chains compress under high pressure inside the extruder barrel and die. They relax and expand outward once they clear the die lip. The degree of expansion depends on the polymer type, molecular weight, and extrusion speed. Tooling engineers must calculate this expansion rate. They design the die opening slightly smaller or differently shaped than the final target dimension. If the shear rate inside the die land is too high, the polymer chains do not have enough time to align, resulting in unpredictable swelling as the material hits the open air.
Cooling rates differ drastically across a single profile. The outer skin touches the cooling water or calibration tooling first. It freezes quickly. The inner core and internal webbing cool much slower. This temperature differential causes internal stresses. The slower-cooling sections pull on the rigid outer skin as they shrink. This uneven thermal contraction leads to bowing, twisting, or cupping. Proper cooling tank design mitigates this effect by managing the heat transfer rate. Operators must balance the water temperature in the primary calibration block with the secondary cooling tanks to ensure the core solidifies without distorting the outer walls.
Subtractive manufacturing allows operators to measure a part and remove more material if needed. Extrusion lacks this luxury. Continuous process control is the only way to maintain a 2D profile tolerance over a continuous length. You cannot simply remove material to fix a mistake. Once the polymer freezes, the dimensions are locked. Operators must adjust upstream variables like extruder RPM or downstream variables like puller speed to correct dimensional drift in real-time. Treating an extrusion line like a CNC machine leads to massive scrap rates, as operators chase tolerances by making reactive, rather than proactive, adjustments.
The die land length and flow channel design balance melt pressure and velocity. A longer land length gives the polymer chains time to align. This reduces die swell and improves surface finish. Common design mistakes include drastically unbalanced wall thicknesses. Thick sections flow faster than thin sections. This imbalance makes downstream dimensional accuracy nearly impossible to maintain. Engineers must over-size or under-size specific die sections. This compensates for anticipated downstream shrinkage and balances the exit velocity across the entire profile face. Wire EDM machining allows toolmakers to cut complex flow channels that guide the melt smoothly, preventing dead spots where polymer can degrade.
Vacuum calibration locks in the external dimensions while the cooling process begins. The system pulls the semi-molten plastic against the sizing tooling. Dry calibration uses water channels inside metal blocks to cool the profile. Water bath calibration submerges the profile entirely while applying vacuum through sizing plates. The choice depends on the polymer and the profile complexity. The vacuum force must remain constant. Fluctuations allow the profile to pull away from the tooling, causing dimensional collapse. Vacuum slots must be machined precisely; if they are too wide, the soft polymer gets sucked in, creating drag lines on the surface. If they are too narrow, they clog with wax and additives.
Caterpillar or cleat pullers maintain constant line tension. They grip the profile and pull it through the cooling tanks. Haul-off speed must perfectly match extruder output. A speed mismatch destroys the cross-section. If the puller runs too fast, the profile stretches and thins out. If it runs too slow, the material bunches up and expands beyond the tolerance limits. High-precision servo motors drive modern haul-off units to eliminate speed micro-fluctuations. The contact length of the puller belts also matters. Short belts require high clamping pressure, which can crush hollow profiles. Longer belts distribute the pulling force, allowing for lower clamping pressure and preserving the cross-sectional integrity.
Rigid PVC exhibits high viscosity and shear sensitivity. It degrades quickly if exposed to excessive heat or friction. A dedicated PVC profile production line requires specific cooling and calibration tooling. The tooling must prevent degradation while maintaining complex internal webbing. Window profiles often feature multiple hollow chambers. The calibration system uses dedicated vacuum zones to keep these internal walls straight while the thick outer walls cool. The formulation of the PVC, including the specific ratio of calcium-zinc stabilizers and impact modifiers, directly affects how the material behaves inside the calibration block.

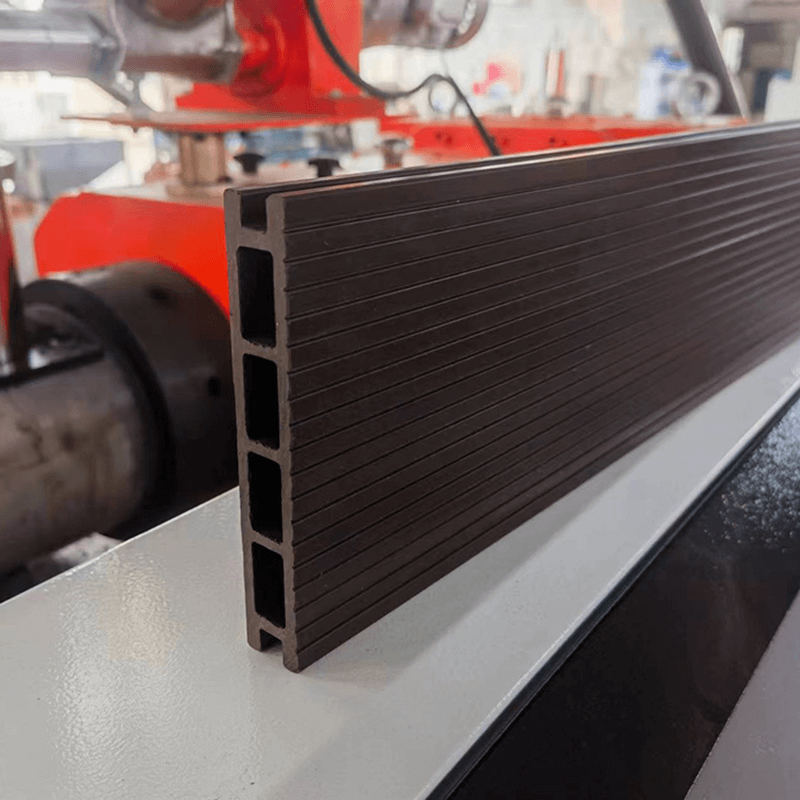

The addition of wood flour or natural fibers alters melt flow and cooling rates. Wood fibers insulate the polymer, slowing down the cooling process. A WPC plastic profile production line must manage lower melt strength. The composite material easily tears if pulled too hard before freezing. You must evaluate specific tooling requirements for a wood plastic profile machine. Focus on wear resistance. Wood fibers are highly abrasive and quickly degrade standard steel dies and calibrators. Furthermore, wood flour holds moisture. If the extruder does not vent this moisture properly, steam bubbles will form in the melt, blowing out the cross-section and ruining the dimensional tolerance.
Semi-crystalline polymers like PP and PE have high shrinkage rates, sometimes reaching up to 3%. They require extended cooling tanks to stabilize. You must oversize the die significantly to account for this massive thermal contraction. Amorphous polymers like ABS and PC shrink less and hold tighter tolerances easily. Flexible profiles like TPU present unique challenges. They rely heavily on precise free-sizing techniques. Rigid vacuum calibration causes TPU to stick and deform. Specialized cooling coverage, such as targeted water sprays, replaces heavy vacuum blocks for these elastomers. The water temperature must be controlled precisely to prevent shocking the material.
Material Type | Typical Shrinkage Rate | Primary Calibration Strategy | Common Processing Challenges |
|---|---|---|---|
Rigid PVC | 0.2% - 0.5% | Dry vacuum calibration blocks | Shear sensitivity, thermal degradation, complex hollow chambers |
WPC (Wood Plastic Composite) | 0.1% - 0.4% | Extended vacuum cooling tanks | Abrasive wear on tooling, low melt strength, moisture venting |
Polyolefins (PP, PE) | 1.5% - 3.0% | Water bath vacuum sizing | High thermal contraction, severe warping, long cooling times |
Elastomers (TPU, TPE) | 0.8% - 1.5% | Free-sizing, targeted water spray | Sticking to calibration tooling, stretching under tension |
Amorphous (ABS, PC) | 0.4% - 0.7% | Dry or wet vacuum calibration | Maintaining surface gloss, managing high melt temperatures |
Modern inline inspection systems utilize laser profiling, ultrasonic sensors, and terahertz technology. These systems illuminate and measure complex internal geometries. They detect coating layers and hidden wall thicknesses without cutting samples. Terahertz scanners monitor co-extrusion layers. They verify the exact rate and distribution of recycled material within the core. This ensures structural integrity while maximizing the use of regrind material. Operators see real-time cross-section maps on the control screen. Instead of waiting for a profile to exit a 40-foot cooling tank to measure it with calipers, the operator knows instantly if the internal webbing is thinning out.
Data from inline scanners feeds back directly to the line controller. The system identifies a wall thickness dropping below the lower control limit. It triggers automated adjustments. The controller makes micro-adjustments to haul-off speed, vacuum pressure, or extruder RPM. This maintains tolerances within specified control limits without human intervention. Closed-loop systems eliminate the delay between manual measurement and manual machine adjustment. They reduce scrap rates significantly during long production runs. If the laser detects the overall width expanding, the PID loop will slightly increase the haul-off speed to draw the profile down back to the target dimension.
Running a line at maximum capacity often compromises strict cross-sectional accuracy. Pushing polymer through the die too fast increases shear stress and die swell. You must determine the optimal line speed based on cooling capacity and polymer thermal conductivity. Calculate the exact BTU removal rate of your cooling tanks. If the water cannot extract heat fast enough, the profile center remains soft. The haul-off unit will crush or deform the profile. Speed must match cooling capability. When auditing customizable PVC profile machinery, look at the pump sizing and heat exchanger efficiency on the downstream equipment.
Mechanical design features allow for rapid die and calibrator changes. Dovetail slide mounts and quick-connect water manifolds reduce downtime. A well-designed line accommodates quick shifts between different profile geometries. It stores recipe data for extruder temperatures and puller speeds. This prevents extensive trial-and-error calibration during startup. Quick changeovers increase actual production hours and improve overall plant output.
Follow these steps when evaluating a new extrusion setup:
Calculate the required cooling capacity based on your maximum target throughput and the specific heat of your polymer.
Inspect the vacuum manifold design to ensure operators can easily clean out wax and additive buildup.
Verify the encoder resolution on the haul-off drives to guarantee they can execute micro-speed adjustments.
Test the HMI for open-architecture data logging so you can track dimensional stability over time.
Review the die mounting hardware to ensure a single operator can perform a tooling changeover safely.
Operators sometimes manually override automated settings based on outdated habits. This introduces process drift. An operator might increase puller speed to thin out a wall, ignoring the resulting internal stress that will cause the profile to warp hours later in the warehouse. Mitigation requires strict standard operating procedures (SOPs). Implement recipe-driven HMI controls that lock critical parameters. Provide comprehensive training on polymer rheology. Operators must understand how temperature, pressure, and speed interact dynamically. They need to know that adjusting a die bolt is often the correct fix for a localized thickness issue, rather than changing the global line speed.
Fluctuations in ambient plant temperature destabilize a previously accurate profile. Changes in cooling water temperature or pressure alter the freezing rate. A sudden drop in water pressure causes the vacuum calibration to fail, allowing the profile to collapse. Summer and winter temperature swings in the factory can completely change the freezing line inside the calibration tank. Mitigation involves implementing closed-loop water chillers. Install automated flow regulators on all water lines. Maintain climate-controlled extrusion environments to eliminate drafts that cause uneven cooling on the die face. A dedicated chiller holding water at exactly 60°F year-round is mandatory for tight-tolerance work.
To secure cross-section accuracy and eliminate dimensional rejects on your extrusion floor, take the following actions:
Initiate a technical consultation with machinery providers to map out your specific geometric tolerances and cooling requirements.
Request material-specific trial runs using your exact polymer blend before finalizing any equipment purchase.
Define acceptable tolerance classes and document them directly in the equipment specification sheet.
Audit your current cooling water infrastructure to ensure it meets the exact BTU removal requirements of the new extrusion lines.
A: The extrusion die sets the initial shape, but the vacuum calibration system is the most critical component. It freezes the final dimensions. Without precise vacuum and cooling control, the polymer will warp and shrink out of tolerance regardless of the die design.
A: A WPC line requires specialized screw designs for mixing abrasive wood fibers. It uses highly wear-resistant tooling to combat friction. The cooling rates are modified because wood composites insulate the melt, requiring longer cooling tanks and careful moisture extraction.
A: Yes. Modern ultrasonic and terahertz inline systems measure inner cross-section geometries and hidden walls. They can also detect co-extruded recycled layers in real-time, ensuring the core material distribution meets structural requirements without cutting the profile.
A: Warping results from residual internal stresses. These stresses are caused by uneven cooling rates between the thick and thin sections of the profile. Poor initial die design, unbalanced water flow, or an insufficiently long cooling tank will cause the profile to bow as the core finally cools.
A: You should evaluate tooling flexibility, quick-change mechanisms, and closed-loop control capabilities. Assess the total cooling capacity of the downstream equipment. Ensure the manufacturer has proven expertise in designing dies for your specific complex profile geometries.
