How Quickly Can a PVC Profile Line Change Between Products?

High-mix, low-volume manufacturing environments face a persistent operational threat: equipment downtime during product changeovers. This idle time directly erodes profit margins, wastes massive amounts of energy, and cripples operational efficiency. Manufacturers frequently miscalculate these changeover times by only measuring the physical tooling swap. This narrow view ignores the severe time and energy lost to material preparation, purging, thermal stabilization, and downstream calibration. To maximize Overall Equipment Effectiveness (OEE) and cut energy costs, technical buyers must evaluate extrusion machinery differently. You need to look at verified "last good to first good" changeover metrics. Evaluating specific mechanical and software features designed to accelerate transitions is mandatory. We will break down exactly how to measure these transitions, identify the hidden bottlenecks, and implement the right technology to get your line back to producing sellable products faster.

• True Changeover Measurement: Accurate evaluation requires measuring the duration from the last approved piece of the previous PVC profile to the first quality-approved piece of the new run.
• Tooling vs. Calibration: Physical die changes represent only a fraction of downtime; downstream calibration, cooling adjustments, and cutting synchronization are the primary bottlenecks.
• Automation is Critical: Modern customizable PVC profile machinery utilizes PLC-based recipe management to synchronize extruder speeds, haul-off rates, cutting lengths, and temperatures, drastically reducing manual trial-and-error.
• ROI on Quick-Change Features: The higher CapEx of quick-change systems is typically justified for facilities running three or more profile variations per week, factoring in both recovered production time and reduced energy waste.

Defining True Changeover Time in a PVC Profile Production Line

Problem Framing (Success Criteria)

Establishing a baseline for a successful changeover requires looking far beyond the mechanical swap. A highly efficient transition minimizes machine idle time while keeping scrap rates near zero. Success in extrusion manufacturing means reaching steady-state production quickly. The primary goal is achieving dimensional stability and surface finish requirements without prolonged operator intervention. You must define success by how rapidly the line returns to its optimal run speed with sellable output. If operators spend two hours tweaking water valves after the die is bolted on, the changeover is failing. Real success looks like a seamless shift where the extruder, vacuum tanks, and haul-off units sync immediately.

The "Last Good to First Good" Metric

Industry standards dictate measuring OEE using the "last good to first good" methodology. This metric starts the clock the exact moment the final acceptable piece of the previous run exits the cutter. The clock stops only when the first fully inspected, quality-approved piece of the new run passes quality control. Measuring only the mechanical die swap provides a dangerously false sense of efficiency. A die might take 30 minutes to bolt onto the extruder flange. However, achieving proper melt flow, eliminating die swell, and dialing in the vacuum calibration can take hours. Using the complete timeline provides a realistic view of your PVC profile production line availability.

Hidden Downtime and Energy Factors

Changeovers hide massive inefficiencies that drain profitability. Material purging and thermal stabilization consume significant time and power. Keeping barrel heaters and die zones active without producing sellable product wastes massive amounts of electricity. Consider these hidden factors on the factory floor:

• Purging old resin formulations from the barrel requires running the machine at low speeds. This wastes both time and expensive raw material.
• Thermal stabilization requires waiting for heavy steel dies to reach uniform operating temperatures. Uneven heating causes flow imbalances and warped products.
• Scrap generation peaks during the calibration phase. Operators constantly adjust vacuum pressure and water flow to meet strict dimensional tolerances.
• Operator fatigue during complex transitions often leads to minor setup errors. These small mistakes extend the time needed to reach steady-state production.

Key Bottlenecks in a Standard Plastic Profile Production Line

Die and Tooling Swaps

Legacy equipment loses significant time during physical tooling changes. Unbolting, removing, and installing heavy extrusion dies demands intense physical labor. Operators often use overhead cranes or manual hoists to maneuver hot, heavy steel components. This process introduces severe risks of tooling damage. A minor bump against the extruder frame can scratch the delicate die lip. This causes permanent flow defects in the finished product. Improper seating of the die against the extruder flange leads to polymer leaks. When leaks occur, operators must tear down the setup, clean the hardened plastic with brass scrapers, and start over. Torquing bolts manually in a high-heat environment slows down the entire transition.

Downstream Calibration and Cooling Adjustments

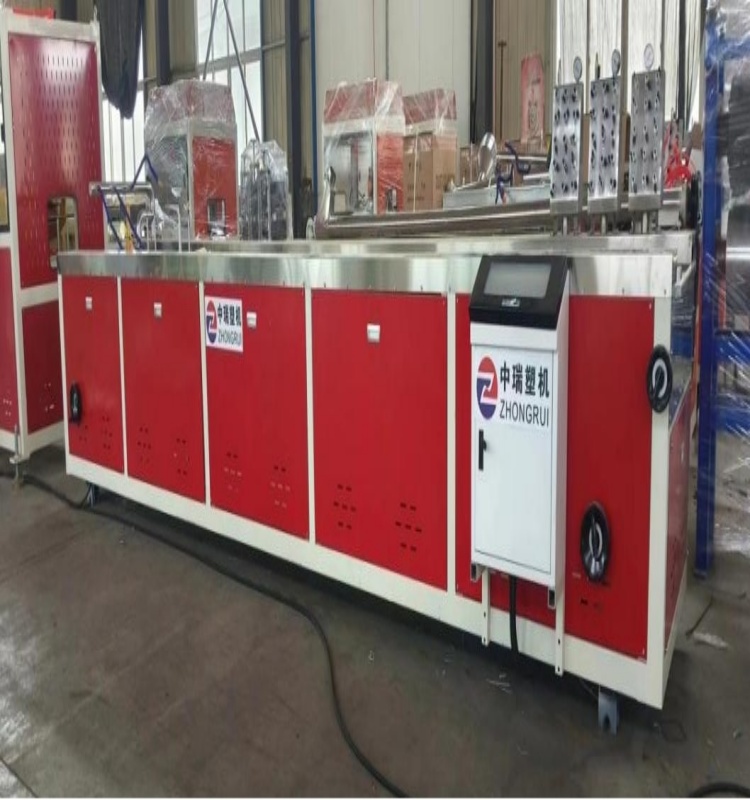

Downstream equipment is notoriously difficult to set up quickly. Aligning vacuum sizing tanks and cooling baths requires extreme precision. Complex fenestration profiles, like multi-chamber window frames, demand intricate calibration compared to simpler geometries like pipes or flat trims. Operators must manually adjust water flow valves and vacuum pressure across multiple zones. Too much vacuum causes the profile to drag and chatter against the sizing sleeve. Too little vacuum results in shrinkage and warping as the plastic cools. Achieving the perfect balance across a 6-meter cooling tank often involves extensive trial and error. This consumes hours of valuable production time and generates bins full of scrap plastic.

Material Preparation, Handling, and Purging

Transitioning materials creates severe bottlenecks in a standard plastic profile production line. Emptying hoppers and cleaning mixing equipment halts production entirely. Switching from a rigid powder formulation to a flexible pellet formulation requires meticulous cleanout to prevent cross-contamination. The type of extruder heavily influences this phase. Twin-screw extruders, typically used for dry blends, have complex screw geometries that hold onto material. This extends cleanout times significantly. Single-screw extruders purge faster but still require dedicated purging compounds to strip degraded polymer from the barrel walls. Any residual material left behind will cause black specks or weak weld lines in the new product.

Cutting and Finishing Synchronization

The final stage of the extrusion line often causes unexpected delays. Adjusting downstream saws, fly-knives, or guillotines to accommodate new profile dimensions takes precision. Operators must reposition clamping fixtures to match the new profile shape without crushing it. They must also reprogram cut lengths and synchronize the saw carriage speed with the new haul-off rate. The caterpillar haul-off unit must be adjusted so the belts apply enough pressure to pull the profile without deforming the hollow chambers. If the saw does not travel at the exact speed of the extrudate, the cut will be angled. Worse, the profile will buckle under the blade, generating immediate scrap and potentially damaging the cutting mechanism.

Evaluating Customizable PVC Profile Machinery for Rapid Changeovers

Quick-Change Tooling Systems (QCS)

Modern engineering offers robust solutions to mitigate physical changeover bottlenecks. Quick-change tooling systems replace traditional bolted flanges with hydraulic or mechanical quick-release clamps. This allows operators to secure heavy dies in seconds rather than minutes. Pre-heated die stations represent a massive leap in efficiency. By heating the upcoming die offline, you eliminate the hour-long wait for thermal stabilization on the main machine. Standardized mounting plates ensure that every die aligns perfectly with the extruder barrel on the first try. Modular calibration tables allow teams to set up vacuum sleeves and water jets offline. When the run ends, operators simply roll out the old table on floor rails and dock the pre-configured new one.

Automated Recipe Management (PLC Controls)

Software automation fundamentally changes how operators manage transitions. Centralized control systems utilize recipe management to store specific parameters for every product. With a single screen tap, the PLC recalls exact temperature zones across the barrel and die. It sets the screw RPM, haul-off caterpillar speed, and rotary knife cutting dimensions. This automated synchronization drastically reduces operator dependency. It prevents cold starts by ensuring the machine cannot run until all heating zones reach the precise setpoint. By eliminating manual dial adjustments, customizable PVC profile machinery accelerates the journey to the first good part. The system monitors melt pressure and automatically adjusts the screw speed to maintain a consistent output, which is nearly impossible to do manually during a fast startup.

Co-Extrusion and Multi-Material Flexibility

Complex products require specialized changeover strategies. A modern PVC sealing strip production line often involves co-extrusion. This process combines a rigid backing with a flexible sealing lip. Rapidly switching between multi-material profiles demands flexible machinery layouts. Secondary extruders mounted on mobile chassis allow for quick docking and undocking. Operators can wheel a small co-extruder into position, connect it to the main die via heated transfer hoses, and begin production. This modular approach prevents the need to purge multiple barrels when changing only one component of a co-extruded profile.

Trade-Offs: Speed vs. Precision in PVC Profile Extrusion

Capital Expenditure (CapEx) vs. OEE & Energy Gains

Upgrading to rapid-changeover technology involves financial and operational compromises. You must evaluate the payback period based on your specific production reality. Calculate the return on investment by factoring in your changeover frequency, hourly downtime costs, and energy savings from reduced idle time. Facilities running three or more profile variations per week see rapid ROI from quick-change features. Conversely, standard machinery remains highly cost-effective for dedicated, high-volume lines running a single profile continuously for months.

Maintenance Complexities of Quick-Change Systems

Speed introduces complexity. Highly automated PVC profile extrusion line equipment requires a different maintenance approach. Automated clamps rely on hydraulic or pneumatic systems that require regular seal inspections. Sensors that verify die seating and temperature must be kept clean and calibrated. Quick-connect plumbing for cooling water is prone to O-ring wear and minor leaks if not maintained properly. You must evaluate the potential failure points in highly automated lines compared to robust, manual systems. Your maintenance team must possess strong electrical and PLC troubleshooting skills. The focus shifts away from purely mechanical repairs toward software and sensor diagnostics.

Implementation Risks and Mitigation Strategies

Operator Training and Standard Operating Procedures (SOPs)

Deploying advanced extrusion technology on the factory floor carries operational risks. The most significant risk is advanced machinery underperforming due to a lack of operator competence. If operators do not trust the PLC recipes, they will manually override settings. This defeats the entire purpose of the automation. You must develop strict Standard Operating Procedures (SOPs) for material preparation, die handling, and machine operation. Utilize OEM training programs extensively. Operators must understand the mechanics behind the automated sequences, not just which buttons to push.

1. Document every step of the changeover process with clear visual aids and checklists.
2. Conduct hands-on training sessions focusing on safe die handling and quick-connect usage.
3. Establish a strict protocol for updating PLC recipes when raw material batches vary in viscosity.
4. Cross-train operators on both mechanical setup and software navigation to build a versatile workforce.

Managing Thermal Stability and Preventing Critical Failures

Thermal management is critical during transitions. Every PVC profile formulation is highly heat-sensitive. If left stagnant in a hot barrel during a lengthy tooling swap, the polymer will degrade. It will burn and release corrosive hydrochloric acid gas. This damages the screw, the barrel, and the die. To mitigate this risk, implement optimized purging compounds designed to encapsulate the resin and clean the metal surfaces. Use staged temperature reduction protocols during shutdowns to prevent material from baking onto the screw. Rely on automated torque monitoring within the PLC. This detects cold spots or un-melted material before it snaps the extruder screw during startup.

Conclusion

To reduce your changeover times from hours to minutes and reclaim lost production capacity, execute the following steps:

• Request a live or recorded changeover demonstration from shortlisted OEMs, specifically asking to see the transition from the last good product to the first good product.
• Audit your current production logs to calculate the exact hours lost to calibration and purging over the last quarter.
• Evaluate your existing tooling inventory to determine compatibility with modular quick-change clamping systems.
• Develop a comprehensive training matrix for your operators focusing on PLC recipe management and thermal degradation prevention.

FAQ

Q: What is the average changeover time for a standard PVC profile extrusion line?

A: Typically 2 to 4 hours, depending on profile complexity, tooling size, and operator experience, heavily weighted by calibration time.

Q: How does automated recipe management reduce scrap during changeovers?

A: By instantly recalling optimal temperature, extruder speed, and haul-off settings, eliminating the manual trial-and-error phase that produces out-of-spec profiles.

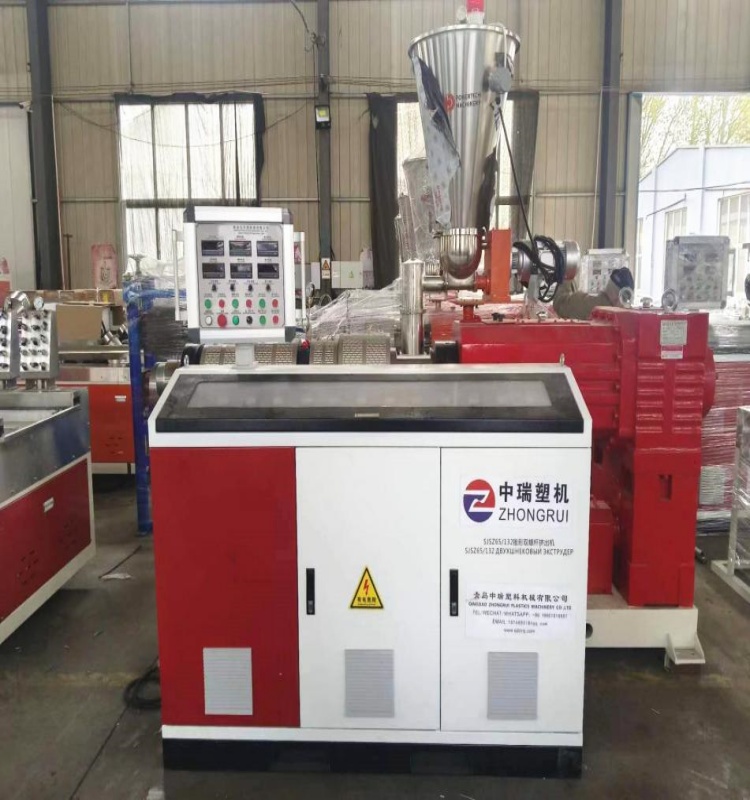

Q: How does extruder type (twin-screw vs. single-screw) affect purging and changeover times?

A: Twin-screw extruders, often used for rigid PVC powder, generally take longer to purge and clean than single-screw extruders used for flexible PVC pellets, impacting total transition time.

Q: Can quick-change tooling be retrofitted to an existing plastic profile production line?

A: Yes, certain elements like quick-connect plumbing and modular vacuum tables can be retrofitted, but full automation usually requires a new PLC and integrated line.

Q: What is the difference in changeover time between rigid PVC and flexible PVC?

A: Flexible PVC generally requires less precise vacuum calibration than complex rigid window (fenestration) profiles, often resulting in faster downstream setup times.

Q: How do I evaluate the OEE of a PVC sealing strip production line?

A: Calculate OEE by factoring in availability (downtime for changeovers), performance (running speed vs. design speed), and quality (scrap rate during transitions).

Q: Why is "last good to first good" the most important changeover metric?

A: It captures the true cost of downtime by including material preparation, purging, heating, mechanical swaps, and the calibration required to reach sellable tolerances.
