Key Quality Checks for Continuous Drainage Board Extrusion

In continuous extrusion, minor process deviations compound rapidly. They lead to out-of-spec batches, compromised dimple integrity, and costly material waste. This variation eats into your profit margins and delays critical delivery schedules. For B2B buyers evaluating equipment upgrades, understanding the integrated quality control (QC) mechanisms within modern machinery is critical. You must mitigate operational risk before it negatively impacts your bottom line. Consistent yield in high-volume drainage board manufacturing requires a strategic operational shift. Plant managers must move from post-production sampling to inline, automated monitoring across the entire extrusion and forming process. We will explore how real-time system adjustments ensure uniform product strength. You will learn to evaluate machinery options based on proactive quality assurance capabilities. Ultimately, mastering these continuous extrusion checks guarantees a highly reliable output. Buyers can confidently supply contractors with durable, specification-grade materials.

Key Takeaways

• Real-time melt pressure and temperature monitoring prevent polymer degradation before it reaches the forming die.
• Inline thickness gauging and vacuum forming calibration are non-negotiable for ensuring uniform compressive strength.
• Integrating automated QA data with your production line management system reduces reliance on manual sampling and human error.
• Selecting equipment with customizable feedback loops ensures adaptability to varying raw material grades, including recycled HDPE blends.

Defining Success Criteria in a Plastic Sheet Production Line

We must first unpack the commercial impact of inconsistent extrusion. Poor process control causes localized thinning across the polymer web. It also creates uneven dimple heights and warped sheet edges. These physical flaws routinely lead to site installation failures. Eventually, they trigger expensive warranty claims from construction contractors. You need a highly reliable drainage board and plastic sheet production line to prevent these common manufacturing issues. Reliable machinery protects your brand reputation.

Establish a clear baseline for a high-performing line. A successful setup maintains tight thickness tolerance margins. You should target ±0.1mm variation at maximum line speeds. Operators must achieve this precision without sacrificing the dimensional stability of the board. High throughput means nothing if the final product lacks physical uniformity. You must balance speed and accuracy perfectly.

The industry requires a fundamental shift to proactive quality assurance. Traditional end-of-line visual inspections fall short today. They only catch defects after you have wasted expensive resin. Contrast this outdated method against continuous inline monitoring. Inline sensors act as your primary defense for mitigating downtime. They flag anomalies instantly, allowing immediate corrective action.

Table: Traditional vs. Proactive Quality Assurance

Raw Material Verification and Melt Control in HDPE Drainage Board Equipment

Quality control begins long before the polymer enters the extruder. You must implement strict pre-inspection protocols for your resin supply. Routine checks on core raw material metrics remain essential for consistency.

• Verify the Melt Flow Index (MFI) to ensure consistent polymer viscosity.
• Test moisture content to prevent steam bubbles forming inside the sheet.
• Analyze the purity of post-consumer recycled (PCR) pellets before blending.
• Check pellet size distribution to guarantee uniform feeding into the hopper.

These steps are particularly vital when blending virgin polymers alongside PCR materials. Recycled resins introduce natural variances into your feed system. High-quality HDPE drainage board equipment handles these variations effectively, provided operators configure it properly.

Barrel and Screw Calibration

Extruder temperature profiling dictates the ultimate success of your melt. Maintaining exact heating zones across the barrel is absolutely crucial. This precision prevents the thermal degradation of sensitive HDPE blends. If a zone runs too hot, the plastic degrades rapidly. If it runs too cold, un-melted particles damage the dimple forming rollers. Calibrate your extruder screws regularly to ensure consistent shear rates. Consistent shear guarantees a homogenous melt flow directly into the die block.

Melt Pressure Consistency

Melt pressure consistency directly impacts final sheet uniformity. Install high-precision pressure transducers along the entire extrusion path. These sensors detect screen pack clogging instantly. They also identify raw material feeding inconsistencies in real-time. Catching sudden pressure drops early averts severe downstream structural defects.

Ignoring slight melt temperature fluctuations creates a compounding danger. These minor thermal shifts directly degrade the polymer's tensile properties. They weaken the molecular bonds within the extruded plastic sheet. We strongly recommend setting automated alarms for any temperature deviation exceeding 2°C. Mitigating this specific risk preserves the long-term structural integrity of your drainage boards.

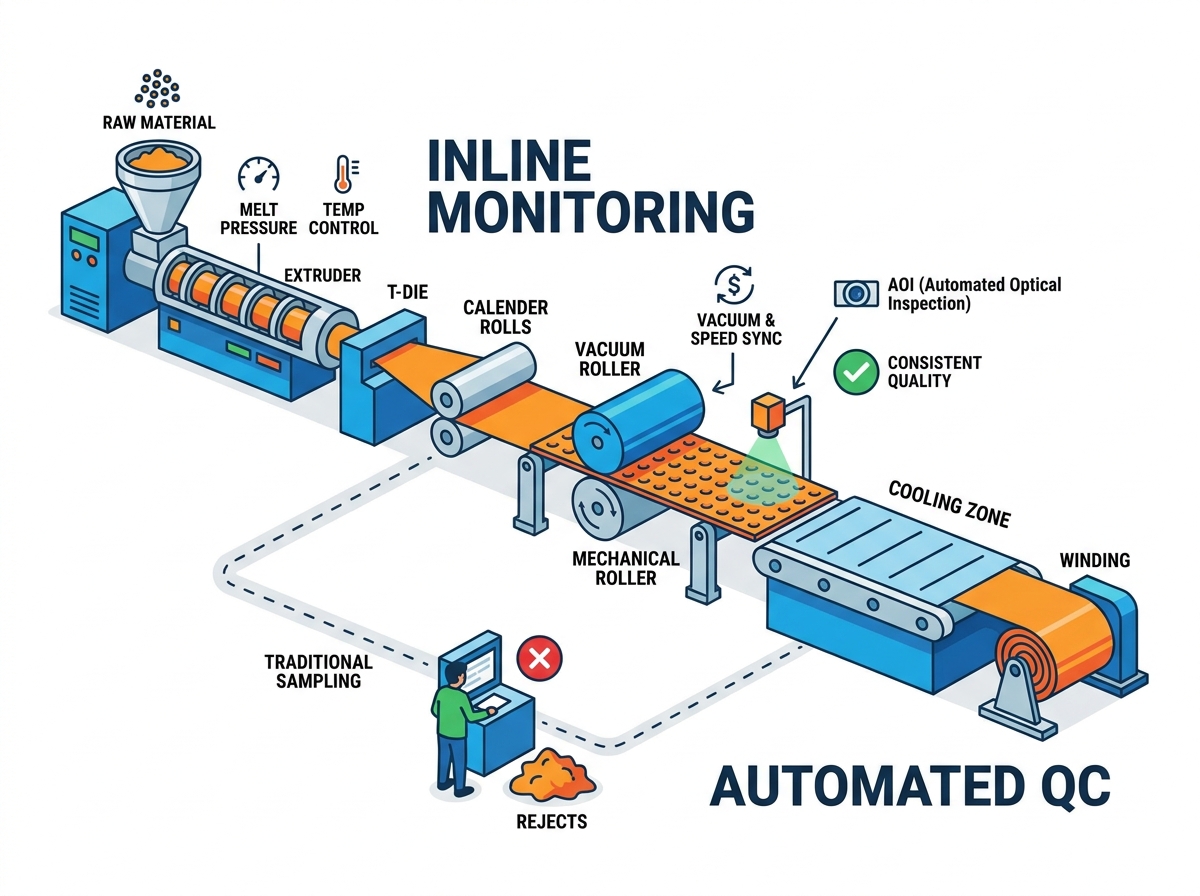

Inline Monitoring for the Plastic Drainage Sheet Extrusion Machine

Moving the polymer melt through the die requires exceptional precision. Automated lip adjustments on the T-die provide a massive operational advantage. They ensure initial sheet thickness uniformity across the entire web width. This calibration happens before the plastic ever enters the dimple forming section. Advanced systems scan the web and send immediate feedback to thermal die bolts. Operating a modern plastic drainage sheet extrusion machine streamlines this entire thickness control process.

Vacuum & Mechanical Forming Sync

Dimple forming quality checks define the final product performance metrics. You must synchronize the vacuum systems and mechanical forming tools perfectly. There is a critical alignment between sheet temperature, vacuum pressure, and forming roller speed. If the roller spins too fast, the polymer dimples tear. If vacuum pressure drops, the dimples fail to reach their full required depth. Operators must balance these three variables continuously to maintain total board volume.

Automated Optical Inspection (AOI)

We highly recommend integrating Automated Optical Inspection (AOI) into your production line. Vision systems scan the fast-moving web for microscopic material flaws. They detect micro-perforations, collapsed dimples, or completely unformed sections. AOI systems process this visual data during high-speed continuous manufacturing runs. They flag physical defects faster than any human eye could ever process them.

Cooling rate verification completes the vital inline monitoring phase. Controlled cooling zones slowly bring the hot polymer temperature down. This gradual reduction prevents residual stress buildup within the plastic matrix. It completely eliminates the risk of post-production edge warping. Proper cooling ensures the drainage board lies completely flat during field site deployment.

Post-Extrusion Testing: Validating Durability and Compression Resistance

We must move from inline checks to physical laboratory testing. Inline sensors confirm process stability, but physical tests prove actual product efficacy. You need empirical data to assure the end-user of long-term performance. Validating these metrics builds immense trust in your manufacturing brand. Every reliable drainage board production line should pair alongside a robust testing laboratory.

Compressive Strength Testing

Core testing dimensions start primarily with compressive strength evaluations. You must verify dimple structures can withstand specific kPA loads. Drainage boards face intense pressure from deep soil backfill and heavy machinery traffic. Technicians place sample boards in compression presses to simulate this exact field stress. The dimples must resist collapsing under extreme vertical loads, often exceeding 300 kPA. Meeting standard kPA thresholds proves the board will function correctly underground.

Impact Resistance & Tensile Elongation

Impact resistance and tensile elongation form the next testing phase. You must test the board's flexibility and overall durability profiles. Installers routinely bend and stretch these rigid sheets around concrete foundation corners. Boards must endure these physical stresses without cracking or snapping. This durability is especially critical during cold-weather site installations. Cold temperatures naturally make HDPE compounds much more brittle. Rigorous elongation tests ensure the polymer blend remains flexible in harsh climates.

Documenting these physical checks ensures full compliance and batch traceability. You must meet stringent ISO standards for geosynthetic materials, like ISO 25619. Adhering to local municipal construction codes is equally important. Maintaining detailed QA logs demonstrates your vendor trustworthiness to major buyers. It proves you consistently deliver specification-grade materials to active construction sites.

Evaluating a Customizable Drainage Board Production Line for Your Facility

Upgrading your manufacturing capabilities requires careful shortlisting logic. Do not assess equipment manufacturers solely based on their maximum output capacity. Instead, evaluate them on their built-in quality control architectures. A high-speed line producing defective boards only accelerates your financial losses. You must prioritize smart machinery over simply fast machinery. Look for a customizable drainage board production line capable of adapting to specific material feeds.

Map available machine features directly to your desired QA outcomes. Here is a numbered list of automation features to prioritize during procurement:

1. Closed-Loop Control Systems: Look for lines where sensor data automatically adjusts extruder RPM or haul-off speeds. This setup completely eliminates manual guesswork.
2. Predictive Maintenance Sensors: Assess the integration of vibration and heat sensors on forming rollers. They flag mechanical wear before it causes large defect clusters.
3. Modular Die Configurations: Ensure the die block allows rapid lip adjustments. This accommodates different polymer viscosities easily.
4. Integrated Data Dashboards: Choose systems capable of logging temperature and pressure data into a centralized network. This feature guarantees easy batch traceability.

Acknowledge the implementation considerations before finalizing your equipment purchase. Upgrading to a highly automated system presents a definite learning curve. Your floor staff cannot rely on outdated, manual operation habits anymore. You must invest in comprehensive operator upskilling programs. Technicians need specialized training to interpret digital QA dashboards effectively. They must understand exactly how sensor data correlates to physical mechanical adjustments. Proper training maximizes your return on this major equipment investment.

Conclusion

Verifiable quality in continuous extrusion is never achieved through post-production sorting. It demands integrated, sensor-driven oversight from the initial resin feed to the final winding station. Relying on outdated manual inspections guarantees high scrap rates and inconsistent field performance. Modern extrusion lines utilize real-time data to prevent defects from forming entirely. You must adopt this proactive philosophy to remain competitive in the global geosynthetics market.

Plant engineers and procurement teams should take immediate diagnostic action. Audit your current scrap rates and identify exactly where variations occur. Request real-world QA demonstration runs from potential equipment suppliers before issuing any RFP. Demand capability studies proving the machinery holds tight tolerances at maximum operating speeds. Prioritizing these stringent quality checks ensures your facility produces durable, reliable, and highly profitable drainage boards.

FAQ

Q: What is the standard thickness tolerance for continuous drainage board extrusion?

A: The industry expectation typically ranges from ±5% to ±10% depending on the specific construction application. Top-tier machinery utilizes closed-loop automated T-die adjustments to achieve tolerances closer to ±0.1mm. Maintaining these tighter margins ensures uniform compressive strength across the entire sheet.

Q: How does recycled HDPE impact the extrusion quality control process?

A: Recycled batches introduce varying melt flow indices and potential contaminants. This requires enhanced melt filtration via automated screen changers. Operators must enforce stricter temperature monitoring to prevent the degradation of blended polymers. Proper calibration ensures the recycled material performs similarly to virgin resin.

Q: Can inline optical sensors detect dimple collapse at high line speeds?

A: Yes, modern Automated Optical Inspection (AOI) systems utilize high-speed cameras and machine learning algorithms. They easily detect micro-perforations and collapsed dimples during continuous runs. However, operational limits exist regarding severe dust accumulation on lenses, requiring regular sensor maintenance.

Q: How frequently should forming rollers be inspected on a plastic drainage sheet extrusion machine?

A: You should conduct basic visual inspections every shift. Perform deep mechanical audits every 500 operating hours. If processing highly abrasive recycled materials, increase this frequency to every 300 hours. Predictive maintenance sensors can also alert you to abnormal vibration, signaling immediate wear.
