Ⅱ. Overview

PVC pipes are highly regarded in the industry for their excellent plasticization capability, which ensures uniform material flow, consistent wall thickness, and smooth inner surfaces during extrusion. This superior processability translates into high production efficiency and output value, making them one of the most cost-effective and widely manufactured piping solutions globally.

1. Basic Info

2. Product Parameters

Ⅲ. Function

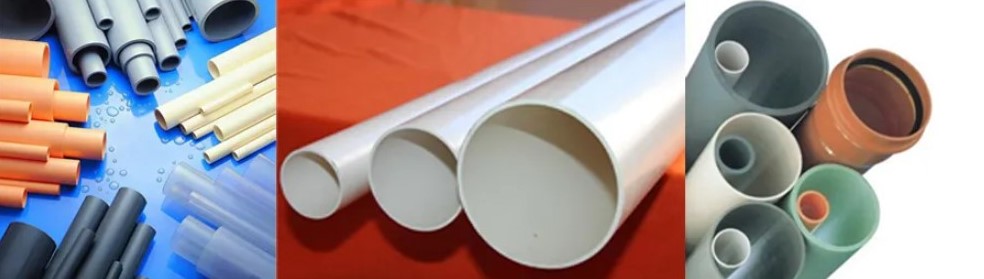

Primarily, PVC pipes serve critical functions across multiple key sectors:

• Agricultural Infrastructure: They are extensively used in water supply and irrigation systems, as well as drainage and rainwater harvesting projects. Their resistance to corrosion, chemicals, and soil acids makes them ideal for long-term underground use, helping to improve water conservation and farm productivity.

• Construction and Civil Engineering: In buildings, PVC pipes form the backbone of potable water supply networks, sanitary drainage and sewer systems, and ventilation ducts. Their lightweight nature, ease of installation with solvent cement, and long service life significantly reduce construction time and maintenance costs.

• Electrical and Telecommunications: As electrical conduit pipes and cable protection sleeves, PVC pipes provide essential mechanical protection against impact, crushing, and environmental moisture for wiring and fiber optic cables in residential, commercial, and industrial applications. Their insulating properties enhance electrical safety.

• Industrial Applications: Beyond these core areas, specific formulations of PVC pipes are also employed in industrial processing lines, land drainage schemes, and environmental protection projects such as wastewater management.

The combination of functional versatility, durability, and economic advantages solidifies the position of PVC pipes as an indispensable material in modern infrastructure development, supporting everything from daily utilities to large-scale agricultural and industrial operations.How to Measure PVC Pipe for Production Line Efficiency?

Ⅳ. Feature

1) Main machine uses PVC high efficiency screw, and notch feeder with powerful water Cover cooler, which has greatly improved transmitting capability and ensured Extruding. DC running electric machine with high-quality speed adjuster
2) Applied for the basket-shaped composite electric head for processing polythene, which not only ensures the stability of high efficiency extruding, but also achieves.The minimum stress and highest pipe quality brought by low melting temperature

3) Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint Cooler gullet, which improve the finished product passing rate, and meet the requirements of high speed manufacturing. Vacuum calibrating platform and cooler.gullet are all made of stainless steel
4) Adopting multi-track traction, through the central motor to run all the tracks to reach same height, and ensure roundness of pipes
5) Adopting fully automatic control system with high precision, reliable operation,easy and convenient handling
6) Suitable pipe diameter: 16 - 630mm

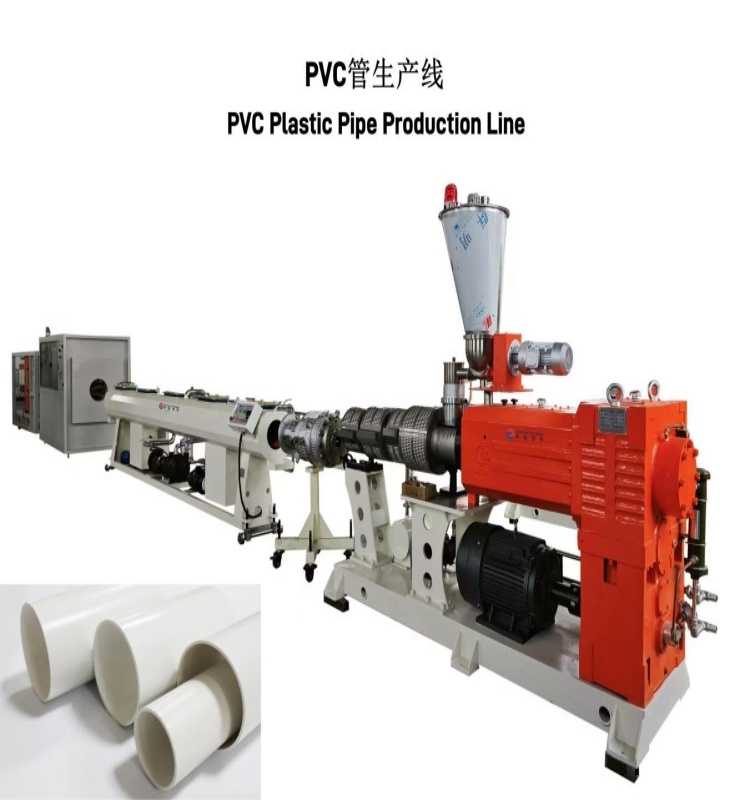

Ⅴ. Production Processes

The PVC downspout production line is an efficient and continuous automated process. Firstly, the PVC resin and additives are mixed and cooled at high speed to form a uniform dry mixture. Subsequently, the material enters the twin-screw extruder and is fully plasticized into a melt under high-temperature shearing. The melt is extruded into a tube through a ring-shaped die and immediately enters the vacuum sizing box. Under negative pressure and spray cooling, it is rapidly shaped to achieve precise dimensions and a smooth surface. The shaped pipes are pulled out at a constant speed by the traction machine and finally precisely cut to the set length by the cutting machine, completing the fully automatic production from raw materials to finished products.

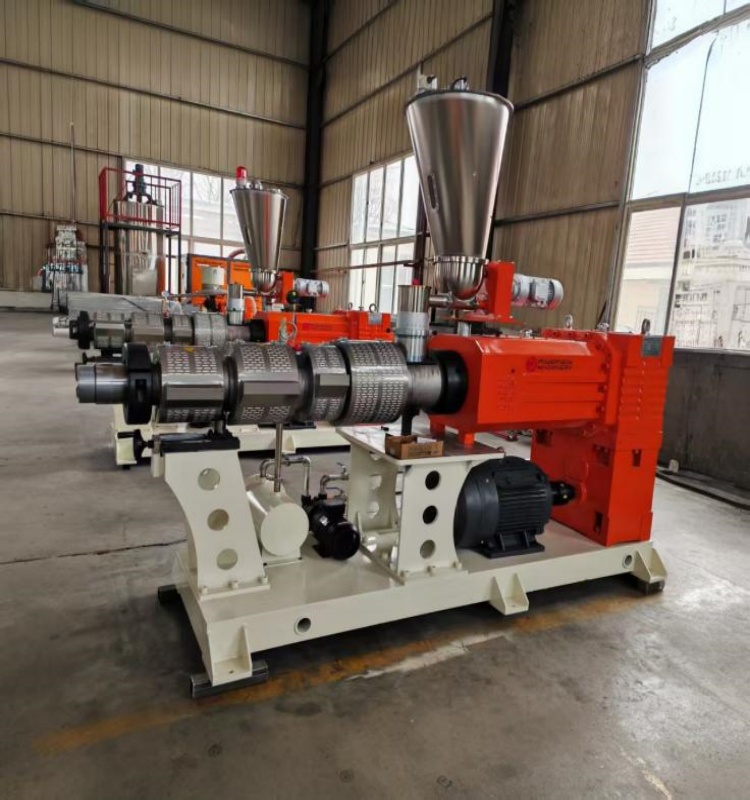

Plastic extruder machine

1.World famous brand electrical component such as Siemens,  ABB etc .
2.High torque gearbox with adopts NSK bearing;
3.Bimetallic screw and barrel;
4.Intelligent PLC controlling system with human-friendly interface.

Mold

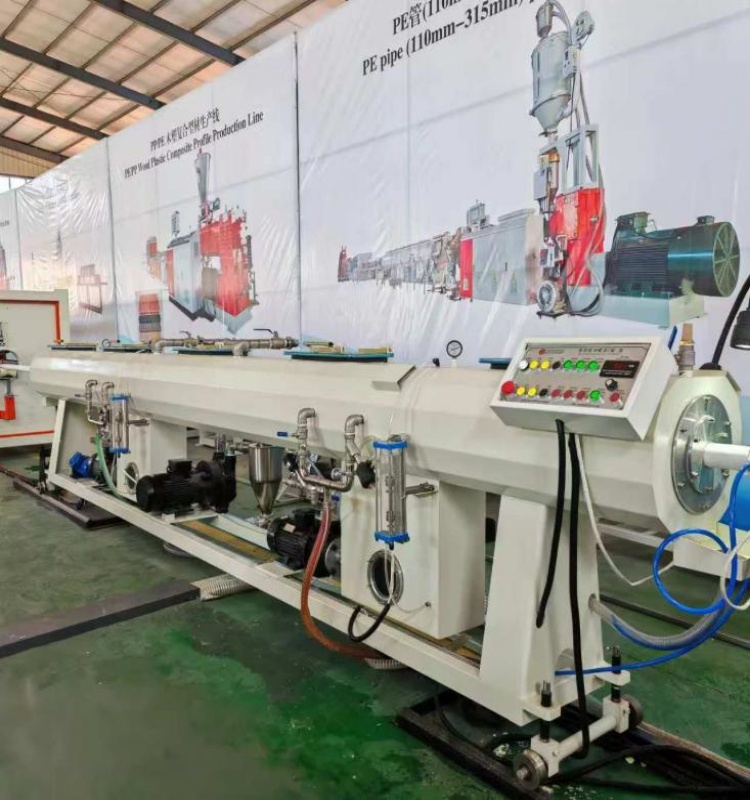

Vaccum calibration water tank

2.The material of water tank is stainless steel 304.

Hauling off machine

1.Function :haul off PVC pipe stably and synchronal with extruder speed.
2.Clamping mode is pneumatically.
3.speed adjusting mode is frequency conversion.

Ⅵ. FAQ

Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.

Q2:What about the payment way?
A2:T/T,L/C at sight or Made in China trade assurance.

Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.

Q4:If you have CE, SGS, ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.

Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

Q6:What is the voltage?
A6 380V 50hz 3 phase or any other voltage according to client's requirement.
