PVC Pipe Production Line Safety and Maintenance Tips

Unplanned downtime and workplace safety incidents represent the most significant hidden costs in plastic extrusion manufacturing, directly eroding profit margins. Operating a high-yield extrusion setup requires constantly balancing maximum throughput with the realities of component degradation, thermal hazards, and operator risk. Establishing rigorous, standardized maintenance and safety frameworks is non-negotiable for protecting capital investments, ensuring regulatory compliance, and maintaining consistent product quality. When running a PVC pipe production line, equipment failure triggers a cascade of material waste and labor inefficiencies. Relying on reactive repairs guarantees lost production hours and unpredictable output. Instead, facilities must adopt proactive, condition-based monitoring to keep machinery running at peak efficiency. This guide breaks down the exact maintenance schedules, safety protocols, and equipment evaluation criteria necessary to optimize your extrusion operations and protect your workforce.

• Proactive, component-level maintenance on extruder screws, barrels, and die heads directly correlates to dimensional stability and reduced scrap rates.

• Strict adherence to Lockout/Tagout (LOTO), machine guarding, and safe lifting protocols minimizes operator risk and limits facility liability.

• Implementing standardized daily, weekly, and monthly inspection checklists maximizes the lifecycle and ROI of any PVC pipe manufacturing line.

• When evaluating new extrusion equipment, procurement teams must assess vendor post-sale maintenance training, diagnostic software, and spare parts availability.

The Business Case for Proactive Maintenance in Extrusion

Framing the Problem: Impact on Overall Equipment Effectiveness (OEE)

Overall Equipment Effectiveness (OEE) serves as the standard metric for measuring manufacturing productivity. In PVC extrusion, OEE calculates the true efficiency of your operation by multiplying three factors: Availability, Performance, and Quality. Availability drops when machines sit idle during unexpected breakdowns or extended changeovers. Performance suffers when worn components force operators to run lines below optimal speeds to maintain melt stability. Quality degrades when inconsistent processing yields out-of-spec pipes that fail burst tests or dimensional checks.

Reactive maintenance artificially inflates operating costs. Waiting for a component to fail before replacing it leads to emergency parts shipping fees and extended line stoppages while technicians diagnose the root cause. Establishing a baseline success criterion requires targeting 85% or higher OEE. You reach this metric exclusively through scheduled preventative interventions, rigorous daily monitoring, and replacing wear parts before they compromise the extrusion process.

Mitigating Unplanned Downtime and Scrap Rates

There is a direct correlation between worn extrusion components and inconsistent melt pressure. As the clearance between the extruder screw and barrel increases due to abrasive wear from calcium carbonate fillers, the machine loses its pumping efficiency. This wear allows molten PVC to slip backward over the screw flights. The resulting pressure fluctuations destabilize the entire extrusion process, causing surging at the die head.

Inconsistent melt pressure leads directly to wall thickness variations. When the pipe wall falls below minimum thickness tolerances, the product fails quality control and must be scrapped. If the wall becomes too thick, you give away expensive raw material for free, destroying your profit margin per meter. Proactive barrel and screw measurements prevent these variations. Replacing worn parts before they fail keeps your product strictly within dimensional specifications and minimizes material waste.

Core Component Maintenance for a PVC Pipe Production Line

Extruder Screw and Barrel Monitoring

Measuring wear tolerances between the screw and barrel requires precision instruments. Maintenance teams must pull the screw periodically to measure flight outer diameters and barrel inner diameters using inside micrometers. Compare these measurements against original OEM specifications. Excessive clearance dictates immediate replacement or rebuilding to restore optimal shear and melt flow. For rigid PVC, even a few tenths of a millimeter of excess clearance can destroy melt homogeneity.

Strict lubrication schedules protect the drive system. Gearboxes and thrust bearings endure immense continuous loads pushing against the die pressure. Technicians must perform regular fluid quality checks. Look for metal shavings or fluid discoloration, which indicate premature bearing wear. Additionally, implement strict purging procedures during shutdowns. Leaving stagnant PVC compound inside a hot barrel causes severe thermal degradation. Purging with stable transition resins prevents this burned material from contaminating future production runs and sticking to the screw root.

Die Head and Calibrator Cleaning

The die head shapes the molten plastic under high pressure. Removing resin buildup here maintains optimal flow channels. Carbonized PVC disrupts the melt flow, causing visible spider line defects and structural weaknesses in the finished pipe. Deep cleaning cycles require complete disassembly of the die tooling while it is still warm, typically around 160°C, to allow the residual polymer to peel away cleanly.

Operators must use safe, non-abrasive cleaning techniques. Polished die surfaces are highly sensitive. Using steel tools, wire brushes, or abrasive pads will score the metal. Scratches on the die surface transfer directly onto the extruded pipe, ruining its finish and creating drag points for material to hang up and burn. Always use brass scrapers, copper mesh, and specialized cleaning compounds. Utilize proper tooling and die carts to safely extract and transport these heavy components during maintenance.

Vacuum Calibration and Cooling Tank Upkeep

Maintaining water quality inside cooling tanks prevents catastrophic process failures. Hard water causes scaling on heat exchangers and internal pipe pathways. Biological growth clogs filters and reduces cooling efficiency. Treat the cooling water with appropriate biocides and anti-scaling agents to maintain rapid heat transfer. The water temperature must remain consistent to control the crystallinity and impact strength of the finished PVC pipe.

Routine cleaning targets water filters, spray nozzles, and vacuum pumps. A single clogged spray nozzle creates a hot spot on the extrudate. This uneven cooling warps the pipe and compromises its roundness. Inspect vacuum pump seals weekly to ensure consistent sizing pressure. When operating a high-output PVC drainage pipe extrusion line, specific flow-rate checks are mandatory. High-speed production demands aggressive, uninterrupted cooling to solidify the thick pipe walls before they reach the haul-off unit.

Haul-Off and Cutting Unit Calibration

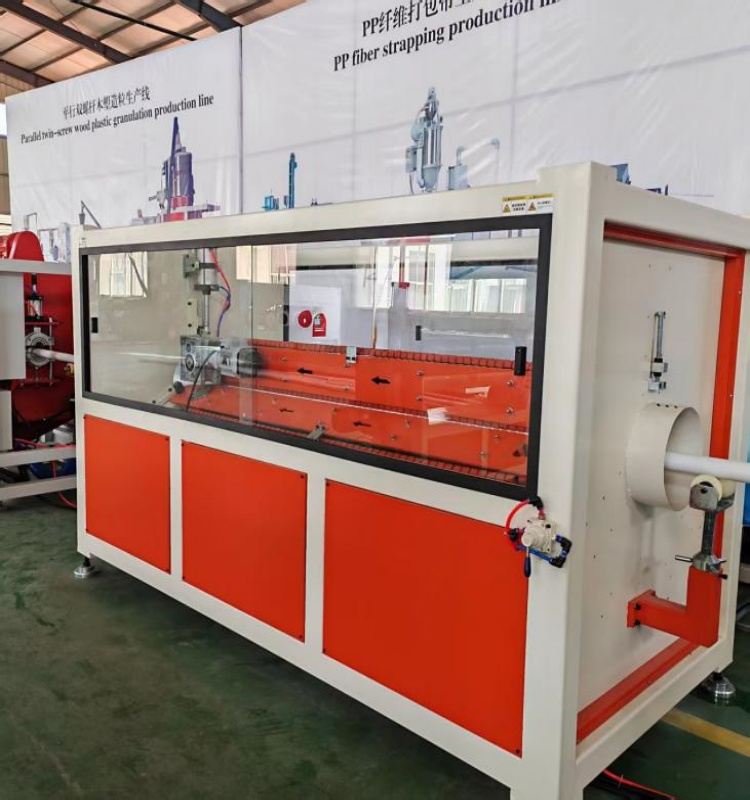

The haul-off unit controls the final line speed and dictates the pipe's final dimensions. Technicians must execute strict inspection routines for caterpillar traction belts. Check for uneven wear, proper tension, and exact synchronization with the extruder speed. If the belts slip, the pipe will stall, causing a catastrophic jam at the die head. Too much pneumatic tension crushes the pipe profile, causing ovality issues.

Cutting units require equally rigorous attention. Outline strict blade sharpening schedules for planetary or saw cutters. Dull blades chip the pipe ends, create excessive dust, and put undue stress on the haul-off motors. Check pneumatic clamps daily. The clamps must secure the pipe firmly during the cut to ensure clean, chamfered edges without cracking the rigid PVC material.

Establishing a Standardized Maintenance Schedule

Standardized Extrusion Maintenance Schedule

Daily Pre-Shift Visual Inspections

A successful production day begins before the machine heats up. Operators must execute critical daily checks. Identify oil or water leaks around the gearbox and cooling tanks immediately. Verify temperature controller accuracy against external pyrometers to ensure the barrel zones are heating evenly. Test all emergency stop buttons to confirm they break the control circuits instantly.

Document a mandatory visual audit. Walking the entire length of the line catches obvious faults. Look for loose guards, frayed wires, or tools left on the machinery from the previous shift. Check the hopper throat for any bridging of the PVC powder. This visual inspection prevents minor oversights from escalating into major mechanical failures once the line is running at full speed.

Weekly and Monthly Deep Diagnostics

Weekly tasks dive deeper into mechanical integrity. Maintenance staff must grease all moving parts according to OEM specifications, paying special attention to the haul-off drive shafts and cutter carriage rails. Check drive belt tension on the main motor and haul-off units. Inspect vacuum tank seals for dry rot or tearing, which compromises the vacuum pressure needed for accurate pipe sizing.

Monthly tasks focus on electrical and sensor calibration. Vibrations naturally loosen electrical connections over time. Tightening electrical terminals prevents arcing and localized overheating in the main control cabinet. Calibrate melt pressure sensors to ensure accurate readings at the die head. Inspect heater bands for continuity. A single failed heater band forces adjacent bands to overwork, leading to uneven melt temperatures and degraded PVC.

Annual Preventative Overhauls

Annual shutdowns represent an investment in machine longevity. Outline a comprehensive scope for these overhauls. Perform complete gearbox oil changes and flush the lubrication lines to remove microscopic metal contaminants. Replace main motor bearings and thrust bearings proactively, regardless of apparent wear, to prevent mid-year failures.

Conduct a comprehensive electrical system audit. Use thermal imaging cameras to detect hot spots in the main control cabinet, contactors, and solid-state relays. Inspect the extruder screw for wear and send it out for flight rebuilding if it falls outside acceptable tolerances. Realign the entire extrusion line from the barrel through the cooling tanks to the haul-off to ensure the pipe travels perfectly straight.

Critical Safety Protocols for PVC Pipe Manufacturing Lines

Lockout/Tagout (LOTO) and Energy Isolation Procedures

Extrusion lines harbor massive amounts of stored energy. Define strict LOTO procedures for mechanical, electrical, pneumatic, and thermal energy sources. Isolate all power before any maintenance begins. Simply turning off a switch is never sufficient. Residual pneumatic pressure can actuate a cutting saw unexpectedly, and a hot barrel remains a severe burn hazard even with the power disconnected.

Require physical locks and isolation tags. Every technician working on the machine must apply their own personal lock to the main energy isolation point. Documented verification steps are mandatory. After applying locks, technicians must attempt to start the machine to verify a true zero energy state. Bleed off all compressed air lines and allow thermal zones to cool before removing guards and beginning work.

Machine Guarding and Emergency Systems

Physical barriers are the first line of defense against severe injury. Identify critical guarding areas immediately. Rotating screws, haul-off belts, and high-speed cutting saws must remain completely enclosed during operation. Never operate a machine with missing, modified, or bypassed safety panels. Interlock switches must drop power to the specific component if a guard is opened.

Integrate and test emergency systems regularly. Pull-cords must run along the entire length of the extrusion line, particularly across the cooling tanks and haul-off units. If an operator gets caught in the traction belts, they must be able to reach a pull-cord instantly. Test these emergency stop relays weekly. Ensure they halt all mechanical motion and drop power to the heater bands simultaneously.

Personal Protective Equipment (PPE) and Hazard Handling

Standardized PPE protects operators from inherent process hazards. Specify required gear clearly. Heat-resistant gloves and Kevlar sleeves are mandatory for die adjustments and handling hot polymer purges. Cut-resistant gloves protect hands when handling sharp edges on newly cut pipes or changing saw blades. Safety glasses and hearing protection are non-negotiable near planetary cutting units and vacuum blowers.

Address the safe handling of hazardous materials. PVC resin dust poses respiratory risks, requiring proper dust masks during hopper loading. Chemical additives and industrial cleaning solvents require proper storage in fire-proof cabinets. Hot polymer purges can cause severe burns and stick to the skin. Emphasize proper facility ventilation to extract dust and volatile organic compounds (VOCs) away from the operator's breathing zone.

Ergonomics and Safe Lifting Procedures

Extrusion components are incredibly heavy and awkward to handle. Address the physical risks associated with maneuvering extrusion dies, calibrators, and bulk resin bags. Manual lifting of these components leads directly to severe musculoskeletal injuries. A dropped die head destroys expensive tooling and endangers feet and hands.

Require overhead hoists and mechanical lifts. Install dedicated jib cranes over the die head and cooling tanks. Enforce proper team-lifting protocols for awkward components. Tooling changeovers must rely on mechanical advantage, not human brute force. Provide specialized die carts that match the height of the extruder center line to allow operators to slide the tooling into place safely.

Fire Safety, Thermal Hazards, and Emergency Planning

PVC processing carries unique thermal risks. Outline the hazards associated with PVC degradation. If PVC overheats or remains in the barrel too long, it degrades and releases Hydrogen Chloride (HCl) gas. This gas is highly corrosive, toxic, and will rust surrounding machinery. Localized overheating inside the barrel can cause sudden, violent pressure releases at the die head.

Install required ventilation systems to extract hazardous fumes directly above the die. Place appropriate fire suppression equipment near the extruder and electrical cabinets. Utilize thermal runaway alarms to alert operators if temperature controllers fail and zones begin to overheat. Establish documented emergency response plans. These plans must include clear evacuation routes, chemical spill containment protocols, and specific instructions for handling toxic gas releases.

Evaluating Equipment Based on Maintainability

Accessibility of Wear Parts

When purchasing equipment, evaluate the machine's design for maintenance access. Engineers should design machinery to be serviced easily. Look for swing-away die heads that allow rapid screw extraction without dismantling the entire front end. Ensure water manifolds, vacuum controls, and pneumatic valves sit at ergonomic heights, clearly labeled and easily accessible.

Highlight specific access requirements when evaluating specialized equipment. For example, a PVC downpipe production line often requires frequent tooling changes to accommodate different architectural profiles. If the die head takes four hours to disassemble due to poor engineering, your OEE plummets. Fast, tool-less adjustments and accessible calibration sleeves are critical procurement criteria.

OEM Support and Spare Parts Availability

A machine is only as reliable as the support network behind it. Define criteria for vendor selection based on spare parts inventory. The vendor must maintain a robust domestic inventory of critical wear parts, including heater bands, contactors, and specialized bearings. Demand guaranteed response times for technical support and field service dispatches.

Evaluate the documentation provided with the machine. Comprehensive, accurately translated maintenance manuals are essential. Wiring schematics must match the actual machine build exactly. Without accurate documentation, your internal maintenance team operates blind, turning simple electrical repairs into multi-day diagnostic nightmares.

Integrated Diagnostic Software and Predictive Maintenance

Modern extrusion lines leverage data to prevent failures. Assess the value of PLC-integrated predictive maintenance alerts. Look for systems that offer vibration analysis on gearboxes and amp-draw monitoring on main motors. These data points reveal mechanical stress, such as a failing bearing or a clogged screen pack, long before a component physically breaks.

Smart sensors transition maintenance from a schedule-based to a condition-based model. Instead of replacing a bearing every 12 months, the system alerts you when the bearing's vibration signature changes. This technology maximizes component lifespan while virtually eliminating unexpected catastrophic failures on your PVC pipe manufacturing line.

Implementation Risks and Mitigation Strategies

Overcoming Operator Resistance to Safety Protocols

Implementing strict safety rules often meets resistance on the factory floor. Address the common risk of operators bypassing safety guards to clear jams faster. Production pressure sometimes incentivizes dangerous shortcuts. If a guard makes threading the machine difficult during startup, operators will find a way to remove it or bypass the interlock switch.

Provide robust mitigation strategies. Conduct continuous safety training that explains the mechanics of the hazards. Install tamper-proof, safety-interlocked guards that physically prevent the machine from running if opened. Tie safety compliance directly to performance metrics and compensation. Safety must carry the same weight as production output in performance reviews.

Managing the Trade-off Between Maintenance Downtime and Production Quotas

A natural tension exists in manufacturing. Production managers want to run the line continuously to hit quotas. Maintenance teams need downtime to perform critical services. Ignoring maintenance requests guarantees a larger, uncontrolled breakdown later, usually during a critical production run.

Provide a framework for scheduling maintenance intelligently. Perform deep diagnostics and part replacements during planned tooling changeovers. If the line is already down to swap a die head for a different pipe diameter, utilize that window to grease bearings, clean water filters, and calibrate sensors. Cross-functional communication minimizes lost production hours while keeping the machinery in peak condition.

Conclusion

1. Conduct an immediate audit of current machine guarding and replace any missing or damaged safety interlocks on all haul-off and cutting units.

2. Update all Lockout/Tagout (LOTO) procedures to ensure they cover every specific mechanical, electrical, and pneumatic energy source on your extrusion lines.

3. Establish a baseline OEE metric today to accurately measure the financial impact of your newly implemented preventative maintenance schedule.

4. Schedule a comprehensive training session with operators to review emergency stop locations, proper purging procedures, and safe lifting protocols for heavy tooling.

FAQ

Q: How often should the extruder screw be cleaned on a PVC pipe production line?

A: Purge the screw with a stable transition resin during every shutdown to prevent material degradation. A full mechanical cleaning requires pulling the screw entirely. Perform this deep cleaning every three to six months, depending on your production volume and the abrasiveness of your specific PVC compound.

Q: What are the most common safety hazards in PVC pipe extrusion?

A: The most common hazards include thermal burns from hot polymer purges, pinch points in the haul-off caterpillar belts, lacerations from cutting saws, and musculoskeletal injuries from lifting heavy die heads. Exposure to toxic HCl gas during thermal degradation is also a severe respiratory risk.

Q: How can I prevent resin degradation and burning in the die head?

A: Prevent degradation by strictly monitoring temperature controllers and ensuring heater bands function correctly. Avoid prolonged line stoppages while the machine is hot. Always use a stable transition resin to purge the PVC compound out of the barrel and die head before powering down the heaters.

Q: What routine maintenance is required for vacuum cooling tanks?

A: Routine maintenance includes cleaning water filters and spray nozzles weekly to ensure uniform cooling. Inspect and replace damaged rubber vacuum seals to maintain sizing pressure. Treat the cooling water with anti-scaling agents and biocides to prevent buildup inside the heat exchangers and pipe pathways.

Q: Why is Lockout/Tagout (LOTO) critical for extrusion machinery?

A: LOTO is critical because extrusion lines utilize multiple hazardous energy sources, including high-voltage electricity, compressed air, and extreme heat. LOTO ensures all energy is physically isolated, locked, and verified as safe before technicians place their hands near moving parts or electrical terminals.

Q: What PPE is required when operating a plastic pipe making machine?

A: Operators must wear heat-resistant gloves and Kevlar sleeves when adjusting dies or handling hot purges. Cut-resistant gloves are required for handling saw blades or sharp pipe edges. Safety glasses, steel-toed boots, and hearing protection are mandatory, especially near the cutting and haul-off units.
