PVC Profile Line Configuration for Window and Door Systems

Window and door manufacturing operates on tight margins and strict thermal efficiency standards. Material waste from dimensional instability directly impacts profitability on the factory floor. Off-the-shelf machinery often struggles with complex multi-chamber designs. It also fails to process heavy dry blend formulations efficiently without causing thermal degradation. Dual rigid and flexible material requirements further complicate daily production schedules. These limitations cause high scrap rates, profile warping, and excessive energy use across the plant. Configuring a high-yield PVC profile production line requires rigorous technical evaluation. You must assess extruder torque, screw geometry, and tooling precision. Downstream calibration systems and vendor testing protocols demand equal scrutiny before installation. Proper configuration ensures consistent output quality and strong operational returns. We will examine the exact mechanical specifications and layout requirements needed to build a reliable, high-capacity extrusion setup.

• Extruder Selection Dictates Material Efficiency: Conical and parallel twin-screw configurations offer distinct advantages in processing heavy dry blend PVC powders at lower screw speeds and higher torque.
• Tooling and Calibration are Critical for Multi-Chamber Profiles: Dimensional accuracy relies entirely on the precision of the die head and the efficiency of the vacuum calibration and cooling tables.
• Co-Extrusion is Now an Industry Standard: Integrating a PVC sealing strip production line directly into the main profile extrusion process reduces secondary assembly costs and improves weatherproofing.

Defining Success Criteria for PVC Profile Manufacturing

Dimensional Stability and Tolerances

Modern fenestration systems require exact hardware fitting. Wall thickness and chamber geometry must meet strict tolerances measured in fractions of a millimeter. Variations lead to structural failures, poor welding at the corners, or drafty windows. Outer walls typically require a minimum thickness of 2.8mm to 3.0mm for Class A profiles. Internal webs must maintain consistent thickness to support steel reinforcements. You must control melt flow precisely to achieve this stability. Uneven flow causes internal stress inside the polymer matrix. This stress releases during the cooling phase, resulting in warped profiles that fail quality control. Operators must monitor die pressure and temperature zones continuously using digital gauges. Consistent dimensional stability prevents downstream assembly issues and reduces customer rejections.

Surface Finish and Aesthetics

Architects and builders demand flawless exterior finishes. The profile surface must appear glossy, uniform, and free of defects. Flow marks, thermal degradation lines, or pitting are unacceptable on the finished product. Achieving a high-quality finish requires precise temperature control in the die head. Excessive heat degrades the PVC compound, causing yellowing or dark burn streaks. Insufficient heat prevents proper fusion of the powder blend, resulting in a dull or rough surface texture. Tooling metallurgy also plays a massive role in surface quality. Highly polished internal die surfaces reduce friction and prevent material hang-up. This minimizes the risk of surface defects known as plate-out. You must also manage cooling rates in the calibration tank. Rapid cooling can shock the material and ruin the surface gloss, while slow cooling leads to dimensional sagging.

Mechanical and Thermal Performance

Building codes dictate strict impact resistance and thermal insulation standards. A PVC profile must withstand extreme weather conditions without cracking or fading. Multi-chamber designs trap dead air to improve U-values and meet energy efficiency regulations. The extrusion process must preserve the polymer's mechanical properties from hopper to saw. Excessive shear in the extruder degrades the PVC molecular structure. This lowers the impact strength of the final frame. Manufacturers test profiles using drop-weight impact tests at freezing temperatures to verify structural integrity. Compliance with international standards like EN 12608 or AAMA is mandatory for commercial viability. Your machinery configuration directly influences these test results. Proper plasticization ensures the material retains its engineered strength and flexibility.

Production Yield vs. Scrap Rate

Scrap directly consumes profit margins and wastes expensive raw materials. You must establish baseline metrics for acceptable waste on the factory floor. Startup waste occurs while the line reaches thermal equilibrium and operators pull the profile through the calibration tables. Steady-state scrap happens during continuous operation due to minor fluctuations. High-performance lines minimize both types of waste through automated controls.

To keep scrap rates low, operators should follow strict standard operating procedures. Implement the following practices to maximize yield:

1. Pre-heat die heads for at least two hours before starting the main drive motor.
2. Verify vacuum pump oil levels and water filter cleanliness daily.
3. Use automated gravimetric feeders to prevent formulation drift.
4. Inspect caterpillar haul-off pads for uneven wear every week.

Core Components of a PVC Profile Extrusion Line

Extruder Dynamics: Twin-Screw vs. Single-Screw

Rigid PVC (UPVC) requires twin-screw extruders. Single-screw machines cannot process dry powder blends effectively due to poor conveying and mixing characteristics. Twin-screw designs provide superior mixing, shearing, and conveying capabilities necessary for dry blends. Conical twin-screw extruders offer high pressure at the die head. They work well for mid-range output capacities and provide excellent melt homogeneity. Parallel twin-screw extruders handle higher capacities and offer longer barrel life due to lower thrust bearing loads. Length to Diameter (L/D) ratios matter greatly when specifying a machine. A higher L/D ratio increases residence time inside the barrel. This allows for gentler plasticization at lower temperatures, preventing burning. High torque capacity prevents thermal degradation while maximizing output. Single-screw extruders still play a role in modern setups. They function as co-extruders for flexible components or colored acrylic outer layers.

Die Head and Tooling Design

Multi-chamber die heads require complex engineering and precise machining. They must balance melt flow across intricate cross-sections with varying wall thicknesses. Uneven pressure distribution causes the profile to exit the die at different speeds. This leads to immediate warping and internal stress. Engineers use flow simulation software to design internal channels that equalize velocity. Metallurgy impacts die lifespan significantly. PVC formulations contain abrasive fillers like calcium carbonate and titanium dioxide. These fillers wear down internal metal surfaces quickly during continuous extrusion. High-grade stainless steel with hard chrome plating resists this abrasion. The chrome layer must be thick enough to withstand years of production. Regular inspection of the die lip prevents dimensional drift. Precision tooling ensures the profile matches the CAD design exactly, allowing for perfect corner welding later.

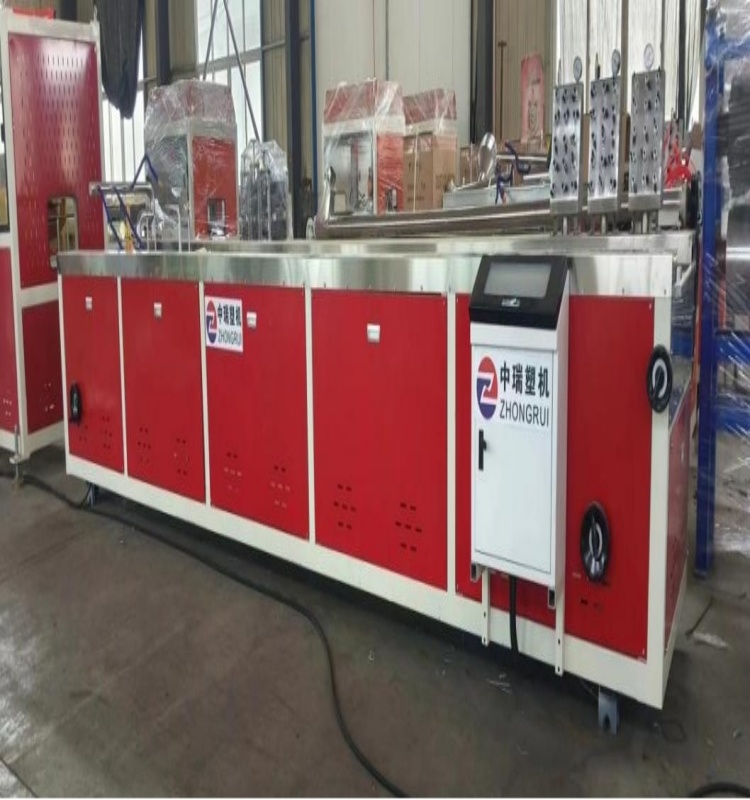

Vacuum Calibration and Cooling Systems

The profile exits the die in a molten, fragile state. Vacuum calibration sets its final shape before the plastic hardens. Dry calibration blocks use vacuum slots to pull the profile against chilled metal surfaces. This freezes the outer skin instantly and locks in the external dimensions. Wet calibration tanks follow the dry blocks to remove the remaining heat. They submerge the profile in turbulent chilled water. Independent vacuum and water temperature controls across multiple zones are critical for success. If one side of the profile cools faster than the other, internal stress builds up rapidly. The profile will warp immediately after passing through the cutting saw. Operators must balance vacuum pressure to hold the shape without causing excessive drag friction against the calibration blocks.

Haul-off and Cutting Units

The haul-off unit pulls the profile through the calibration tables at a constant speed. Caterpillar haul-off mechanisms provide consistent pulling force without crushing the hollow chambers. They use continuous rubber or silicone pads shaped to match the profile. The pulling speed must synchronize perfectly with the extruder output using encoder feedback. Too fast, and the profile stretches, thinning out the walls. Too slow, and material backs up at the die, causing a blowout. Cutting units slice the continuous profile into standard lengths for shipping. Saw cutters work for heavy profiles but generate massive amounts of PVC dust. Planetary cutters offer cleaner cuts for specific tubular shapes. Robust dust extraction systems prevent contamination of the factory floor. Precise length measurement systems ensure every piece fits shipping pallets perfectly without manual trimming.

Evaluating Customizable PVC Profile Machinery Configurations

Output Capacity vs. Energy Consumption Trade-offs

Energy efficiency drives modern manufacturing decisions and directly impacts the bottom line. You must calculate specific energy consumption for every line on the floor. This metric measures kilowatt-hours per kilogram (kWh/kg) of extruded profile. High-output lines process more material but require massive cooling infrastructure. They draw significant power for heavy-duty chiller units and large liquid-ring vacuum pumps. Multiple mid-capacity lines offer operational flexibility instead of relying on one massive machine. If one line goes down for maintenance, production continues on the others. customizable PVC profile machinery utilizes AC servo motors and insulated barrels. These upgrades reduce energy draw significantly compared to older DC motor setups. You must balance the desire for maximum output against the reality of utility costs and available floor space.

Co-Extrusion and Sealing Strip Integration

Modern window systems integrate weather seals directly into the frame during extrusion. This eliminates manual insertion of rubber gaskets later, saving massive labor costs. Configuring a line for this requires simultaneous extrusion of two different polymers. You run rigid UPVC for the structural frame and flexible Soft PVC or TPE for the weather seal. A dedicated PVC sealing strip production line syncs with the main extruder. Melt temperature compatibility is a major technical hurdle. Rigid PVC processes at higher temperatures than flexible TPE. The co-extrusion die head must insulate the two melt streams until the exact point of convergence. Proper adhesion at the die interface prevents the seal from peeling off during window installation. Operators must monitor the speed of both extruders to prevent the seal from stretching or bunching.

Versatility for WPC and Custom Architectural Profiles

Market demands shift rapidly, and your machinery must adapt to new trends. Wood Plastic Composites (WPC) require different processing parameters than standard UPVC. WPC formulations contain organic wood fibers that hold residual moisture. The extruder needs specialized double-venting systems and strong vacuum pumps to remove steam before the die. Screw designs must accommodate higher torque loads due to the stiff, dry nature of wood flour. Customizable machinery allows for rapid tooling changeovers. You can switch from standard window frames to bespoke architectural moldings or decking boards. Future-proofing your capital investment means selecting equipment that handles diverse product lines without major mechanical overhauls. Look for modular calibration tables and quick-release die clamps to speed up changeovers.

Automation and Process Control (PLC Systems)

Manual adjustments lead to inconsistent quality and rely too heavily on operator experience. Closed-loop control systems monitor the entire extrusion process automatically. Programmable Logic Controllers (PLCs) track melt pressure, temperature zones, and haul-off speeds in real-time. If melt pressure spikes due to a screen pack clog, the PLC automatically adjusts the screw speed to prevent damage. Automated gravimetric dosing systems maintain consistent formulation ratios. They weigh raw materials continuously before feeding them into the extruder throat. This prevents additive segregation and reduces expensive material waste. Advanced PLCs store recipes for different profiles. Operators can load a profile recipe from the touchscreen, and the machine sets the baseline temperatures and speeds automatically.

Implementation Realities and Risk Mitigation

Managing Compound Formulations and Material Handling

Handling dry blend PVC presents specific risks that ruin production runs. The powder absorbs ambient moisture easily if left exposed. Moisture causes bubbles, surface defects, and internal voids in the finished profile. Additives like stabilizers, impact modifiers, and lubricants can segregate during transport if handled roughly. You must implement automated mixing and feeding systems. High-speed hot mixers blend the PVC resin and additives perfectly through friction heat. Cooling mixers then stabilize the compound before discharging it into storage silos. Pneumatic conveying systems move the blend from silos directly to the extruder hopper. This closed-loop handling mitigates human error and prevents contamination. It ensures a consistent bulk density enters the extruder. Consistent feed density guarantees stable melt pressure and uniform profile dimensions.

Tooling Wear and Maintenance Schedules

Highly filled PVC formulations destroy metal surfaces over time. Calcium carbonate acts like fine sandpaper inside the barrel and die head. Screw flights and barrel liners wear down during continuous operation. As clearance between the screw and barrel increases, shear rates drop, and output decreases. You must implement predictive maintenance strategies to catch wear early. Measure screw wear with micrometers during scheduled holiday shutdowns. A reliable plastic profile production line requires a robust spare parts inventory on site. Stock critical items like ceramic heater bands, thermocouples, vacuum pump rebuild kits, and calibration blocks. Do not wait for a catastrophic failure to order parts from overseas. Unplanned downtime costs significantly more than holding spare inventory in your maintenance cage.

Facility Footprint and Utility Requirements

Extrusion lines require significant floor space and clear access aisles. A standard line spans 20 to 30 meters from the extruder gearbox to the cutting saw discharge table. You also need space for raw material staging, mixing towers, and finished goods packing racks. Utility requirements are heavy and often underestimated. Chilled water capacity dictates your maximum line speed. If water temperatures rise above 15°C, profiles warp and stick to the calibration blocks. Compressed air systems must deliver stable, dry pressure for pneumatic cutters and haul-off cylinders. Electrical infrastructure must handle massive startup loads when heating the barrel and die. Assess your facility's utility limits before ordering high-output machinery. Upgrading factory power grids or installing new cooling towers delays installation schedules by months.

Vendor Validation: FAT, SAT, and After-Sales Service

Never accept machinery without rigorous, documented testing. Factory Acceptance Testing (FAT) occurs at the vendor's facility before shipping. You must run your exact material compositions through the machine during this test. Do not use the vendor's generic, easy-to-run test powder. Measure scrap rates, dimensional tolerances, and actual energy draw during the FAT. Site Acceptance Testing (SAT) happens after installation at your plant. The machine must replicate the FAT results in your environment using your utilities. Evaluate the vendor's ability to provide on-site operator training during the SAT phase. Check their localized spare parts availability and response times. Long-term service agreements ensure your equipment reaches optimal Overall Equipment Effectiveness (OEE) quickly and stays there.

Conclusion

To ensure a successful deployment and long-term profitability, follow these immediate next steps:

1. Request detailed energy consumption data (kWh/kg) from equipment manufacturers before shortlisting vendors.
2. Demand a physical material trial using your specific dry blend formulation on the vendor's test line.
3. Audit your facility's chilled water and electrical capacity to ensure it supports the new extrusion line.
4. Stock critical spare parts, including heater bands and thermocouples, prior to the initial machine startup.
5. Establish a strict predictive maintenance schedule to monitor screw and barrel wear every quarter.

FAQ

Q: What is the average lifespan of a PVC profile production line?

A: The core machinery, including the extruder frame and downstream tables, typically lasts 15 to 20 years with proper maintenance. Consumable parts like screws, barrels, and die heads have shorter lifespans. Their longevity depends heavily on the filler content of your PVC formulation and total operating hours.

Q: How do conical and parallel twin-screw extruders differ for PVC profiles?

A: Conical twin-screw extruders build high pressure at the die head and are highly cost-effective for lower to medium output ranges. Parallel twin-screw extruders provide superior mixing capabilities, gentler shear, and longer barrel longevity, making them ideal for high-capacity, continuous production environments.

Q: Can one plastic profile production line manufacture both window frames and door panels?

A: Yes, the primary extruder and downstream haul-off equipment can handle both products. However, switching between them requires significant downtime for tooling changeovers. You must physically swap the die heads and recalibrate the vacuum cooling tables to match the new profile dimensions.

Q: What causes warping in extruded PVC profiles?

A: Warping stems from internal stress during cooling. Root causes include uneven water temperatures in the calibration table, unbalanced melt flow inside the die head, or excessive pulling tension from the haul-off unit. Failing to meet standard thermal cooling requirements also guarantees profile deformation.

Q: How much energy does a standard PVC profile extrusion line consume?

A: Specific energy consumption generally ranges from 0.25 to 0.35 kWh per kilogram of extruded profile. Modern customizable machinery equipped with AC servo drives, optimized screw designs, and heavy barrel insulation can significantly reduce this metric, lowering overall factory utility costs.

Q: What is required to add a PVC sealing strip production line to an existing setup?

A: You must install a secondary single-screw co-extruder adjacent to the main line. The existing die head requires modification or replacement to accommodate a new flow channel for the flexible material. Finally, you must synchronize the PLC controls to match the output speeds of both extruders.
