Plastic Pipe Production Line Quality Control Testing Methods

Extrusion defects carry a compounding financial impact that extends far beyond the factory floor. Minor dimensional deviations or internal flaws in a Plastic Pipe Production Line often lead to catastrophic field failures, expensive product recalls, and excessive scrap rates. When pipes fail under pressure or crack during installation, the liability and reputational damage can cripple a manufacturing operation. The core challenge lies in maintaining strict dimensional tolerances and structural integrity at high extrusion speeds without causing production bottlenecks.

Solving this requires a comprehensive approach to quality control. Relying solely on end-of-line visual inspections is no longer sufficient. Manufacturers must integrate incoming material verification, inline non-destructive testing (NDT), and rigorous offline destructive testing protocols. These layers of validation confirm machinery capability, ensure compliance with international standards like ASTM, ISO, and NSF, and ultimately protect manufacturer margins by catching deviations before they result in wasted resin or compromised products.

Key Takeaways

• Inline vs. Offline Synergy: Effective quality assurance requires a hybrid approach, pairing real-time inline NDT (like ultrasonic scanning) with standardized offline destructive tests (like hydrostatic burst testing).

• Pre-Extrusion Gatekeeping: Quality control begins before extrusion; testing raw material ingredients and compounding batches ensures consistent melt behavior and mechanical properties.

• Material-Specific Protocols: Testing frameworks must adapt to the polymer; a PVC Pipe Production Line requires different gelation and thermal stability tests compared to the melt index and density verifications needed for a PE/PPR Pipe Production Line or a flexible pu pipe production line.

• System-Wide Compliance: Certification (such as NSF/ANSI standards) evaluates not just individual pipes, but the complete system—including joints, fittings, and material ingredients.

• Automation Drives Yield: Modern extrusion lines utilize automated feedback loops from QC testing equipment to adjust haul-off speeds and extruder RPM, directly reducing material waste.

The Financial and Operational Impact of Extrusion Quality Control

A successful quality control integration is defined by strict operational metrics. The primary goals are achieving a scrap rate well below industry baselines, ensuring zero field failure liabilities, and maintaining uninterrupted high-speed throughput. When testing protocols are embedded directly into the production workflow, operators can identify and correct process drifts before out-of-spec pipe is spooled or cut. We measure success by the reduction of material giveaway and the elimination of downstream rejections.

Foundational Gatekeeping: Incoming Raw Material and Ingredient Verification

Quality control starts long before the polymer reaches the extruder hopper. Testing raw polymer ingredients, stabilizers, and masterbatches is a mandatory first step. Variations in moisture content, bulk density, or additive dispersion will drastically alter melt behavior, leading to surging, poor surface finish, or compromised mechanical strength. You cannot extrude a premium pipe from substandard or inconsistent resin.

Establishing strict lot-sampling protocols is necessary to verify density and base chemical properties. By testing incoming batches, manufacturers prevent contaminated or out-of-spec resin from ruining entire production runs. This pre-extrusion gatekeeping ensures that the extruder receives a consistent, predictable feed, which is essential for maintaining steady output and uniform pipe dimensions. We recommend the following incoming material checks:

1. Moisture content analysis using a halogen moisture analyzer to prevent steam bubbles in the melt.

2. Bulk density measurement to ensure consistent feeding through the hopper and throat.

3. Melt flow index (MFI) testing to verify the viscosity matches the extruder screw design.

4. Visual inspection of masterbatch pellets for uniform size and color dispersion.

Cost of Poor Quality

The hidden costs of poor quality control manifest in two primary ways: over-extruding and under-extruding. Over-extruding occurs when operators intentionally run the line with a thicker wall than necessary to guarantee minimum thickness requirements. This practice gives away free resin, eroding profit margins with every meter produced. Conversely, under-extruding risks failing pressure tests and structural requirements, leading to scrapped batches or catastrophic field failures. Precision testing eliminates the need for these costly safety margins.

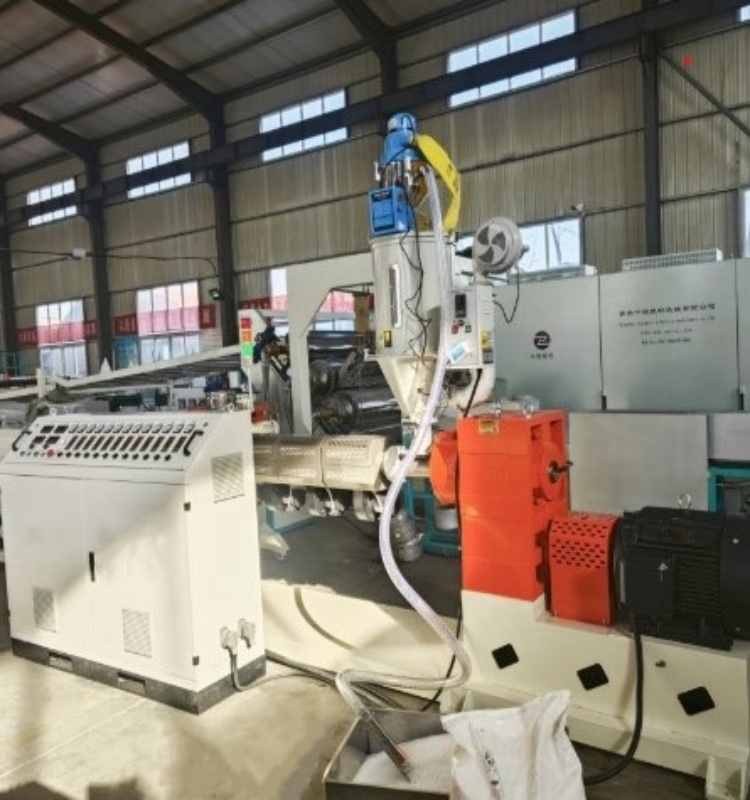

The Role of the Equipment Manufacturer

The burden of quality control begins with the inherent stability of the chosen extrusion machinery. No amount of downstream testing can fix a fundamentally unstable melt. Screw design, barrel heating accuracy, and cooling tank efficiency dictate the baseline quality of the pipe. High-quality machinery provides a stable foundation, allowing QC instruments to monitor minor deviations rather than constantly fighting severe process fluctuations.

Essential Inline Non-Destructive Testing (NDT) Methods

Inline testing technologies monitor product quality directly on the extrusion line without halting production or sacrificing throughput. These systems provide continuous, real-time data, allowing operators to make immediate adjustments. Implementing these systems transforms a reactive production line into a proactive one.

Ultrasonic Wall Thickness and Flaw Detection

Multi-axis ultrasonic scanners are typically placed immediately after the primary cooling tanks. These devices emit high-frequency sound waves that travel through the pipe wall and reflect back from the inner surface. By measuring the time it takes for the echo to return, the system calculates the exact wall thickness. We rely on these scanners to catch concentricity issues before they compound.

This technology detects internal voids, concentricity errors, and wall thickness variations in real-time. If the pipe begins to drift off-center, causing one side to thin out, the ultrasonic scanner detects it instantly. This allows operators to adjust the die centering bolts before the pipe falls out of specification. The data is often displayed on a radar-style monitor for quick visual reference.

Laser Dimensional and Ovality Inspection

Laser micrometers provide continuous measurement of the pipe's outer diameter (OD) and ovality. Positioned along the cooling line, these sensors project laser beams across the pipe profile, capturing thousands of measurements per second. They are highly sensitive to changes in haul-off speed or vacuum pressure.

These sensors trigger automated alarms if the pipe drifts out of specified tolerance zones. Maintaining strict OD and ovality is critical for ensuring the pipe will fit properly into standard fittings and joints during installation. Continuous laser monitoring eliminates the need for manual caliper checks, which are slow and prone to human error.

Optical Surface Defect Inspection

High-speed 360-degree camera systems are integrated into the line to detect surface abnormalities. These optical inspection units use advanced lighting and image processing algorithms to scan the pipe exterior for defects such as die lines, blistering, pitting, or discoloration. They catch what the human eye misses at high line speeds.

Surface defects often indicate underlying process issues, such as degraded material in the die, improper cooling, or moisture in the raw material. Catching these visual flaws early prevents the production of aesthetically unacceptable or structurally compromised pipe. We categorize these defects to trace them back to specific machine zones.

Critical Offline Destructive and Physical Testing Protocols

While inline NDT provides real-time process control, offline destructive testing in a laboratory setting is mandatory for validating the physical properties and long-term performance of the pipe. These tests map specific laboratory results to the real-world performance outcomes they guarantee for end-users. We run these tests on samples taken at the beginning, middle, and end of every production run.

Hydrostatic Pressure and Burst Testing

Hydrostatic testing subjects pipe samples to sustained internal water pressure at specific temperatures over extended periods. This evaluates the long-term hydrostatic strength of the polymer matrix. A separate burst test rapidly increases pressure until the pipe ruptures, determining its ultimate tensile strength under fluid load. We use specialized end-caps to seal the samples securely.

This test is absolutely critical for municipal water, gas distribution, and high-pressure industrial applications. It ensures the pipe can handle continuous operational pressures as well as sudden pressure spikes or water hammer events without catastrophic failure. The failure mode (ductile vs. brittle) provides valuable insight into the extrusion quality.

Tensile Strength and Elongation Analysis

Universal testing machines (UTM) are used to pull machined dog-bone samples to failure. This test measures yield strength, elasticity, and ductility. By analyzing how the material deforms and eventually breaks under tension, engineers can verify that the extrusion process has not degraded the polymer's inherent mechanical properties. We look for a clean, ductile yield rather than a sudden snap.

Impact Resistance

The falling mass impact test evaluates the brittleness, fracture toughness, and cold-weather performance of the extruded pipe. A weighted tup is dropped from a specified height onto a chilled pipe sample. The test determines the energy required to cause a visible crack or failure. High impact resistance is vital for pipes that will be subjected to rough handling during transport or installation in freezing conditions.

Thermal Reversion and Heat Shrinkage Testing

Heating pipe segments in an oven or liquid bath reveals residual extrusion stresses. During the extrusion and rapid cooling process, internal stresses can become locked into the polymer chains. When exposed to heat, the pipe will attempt to revert to its unstressed state, causing longitudinal shrinkage. This test ensures the pipe maintains dimensional stability under thermal load, preventing it from pulling out of fittings when exposed to hot fluids or high ambient temperatures.

Material-Specific QC Requirements Across Production Lines

Testing priorities must be differentiated based on the specific polymer, structural profile, and intended application of the extrusion equipment. A one-size-fits-all approach to quality control will miss critical material-specific vulnerabilities. We tailor our lab procedures to the exact resin being processed.

PVC/CPVC Pipe Production Line: Extrusion Quality and Gelation

Operating a PVC Pipe Production Line requires specific tests to verify the fusion of the PVC compound. The methylene chloride immersion test is standard for evaluating the gelation level of PVC and CPVC pipes. If the material is under-gelled, it will flake or disintegrate in the chemical bath, indicating a brittle pipe prone to cracking. We monitor the extrusion temperature profile closely to maintain optimal gelation.

For CPVC applications handling hot-and-cold water distribution, chemical resistance and high-temperature pressure testing are critical. The pipe must maintain structural integrity while carrying fluids at elevated temperatures without degrading over its service life. We conduct sustained pressure tests at 82°C (180°F) to validate CPVC performance.

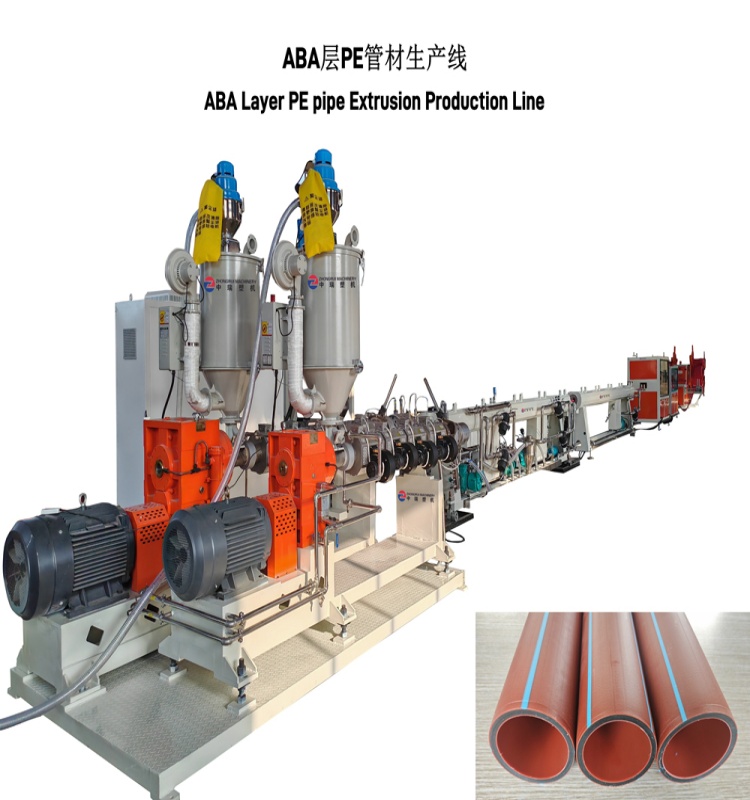

PE/PPR Pipe Production Line: Melt Index and Density Verification

A PE/PPR Pipe Production Line relies heavily on the thermal stability and molecular weight distribution of polyolefins. Testing raw material density (ASTM D 1505) and Melt Flow Rate (MFR / Melt Index via ASTM D 1238) is mandatory. These metrics dictate the pressure rating and environmental stress crack resistance (ESCR) of the final pipe. Deviations in melt index will cause severe variations in wall thickness and overall pipe strength.

Bellows Production Line: Ring Stiffness and Flexibility

Corrugated and structured wall pipes produced on a Bellows Production Line require specialized testing. Ring stiffness (ISO 9969) and ring flexibility tests ensure the pipe can withstand underground soil loads and structural deflection without cracking or collapsing. The corrugated profile provides high strength with less material, but the peak and valley dimensions must be strictly controlled to maintain load-bearing capacity. We use parallel plate compression testers to verify these metrics.

Specialty Lines: PU Pipe and Composite Infiltration Irrigation Pipe Production Line

Specialty polymers demand unique validation methods. For a pu pipe production line, testing focuses on abrasion resistance, micro-pathogen exposure, and extreme flexibility. Polyurethane tubing used in pneumatic or medical applications must endure millions of flexing cycles without fatigue failure. We set up automated flex-testing rigs to simulate real-world usage.

Operating a Composite Infiltration Irrigation Pipe Production Line involves testing flow-rate consistency, emitter clogging resistance, and composite layer adhesion. The pipe must resist delamination under cyclic agricultural pressures while delivering precise water volumes across varied terrain. We conduct peel tests to ensure the co-extruded layers are permanently bonded.

Evaluating QC Integration: Scalability, Traceability, and Compliance

Modern manufacturing requires moving beyond basic manual testing to fully integrated, automated QC systems. The conceptual trade-offs between manual checks and automated integration heavily favor automation when scaling production and ensuring consistent compliance. We see a direct correlation between automation levels and reduced scrap rates.

Automated Feedback Loops

Advanced extrusion lines use closed-loop control systems. When inline dimensional scanners detect a deviation, the system automatically adjusts parameters to correct it instantly. If the wall thickness drops, the control unit might decrease the haul-off speed or increase extruder RPM. If the outer diameter fluctuates, it can adjust the vacuum tank pressure. This automated feedback loop minimizes human intervention, reduces scrap, and maintains tight tolerances continuously.

System Integrity: Joint, Fitting, and Material Compatibility

Physical pipes must seamlessly interface with fittings. Quality control extends to the complete assembly. Pull-out testing, joint leak testing under pressure, and thermal cycling of complete pipe-and-fitting assemblies are necessary to validate system integrity. A pipe that passes all standalone tests is useless if it fails at the connection points. We test the entire system as a single unit.

Traceability and SCADA Systems

Regulatory bodies and third-party inspectors require verifiable audit trails. Supervisory Control and Data Acquisition (SCADA) systems record batch-specific data, linking extrusion parameters, raw material lot numbers, and inline inspection results to every meter of pipe produced. This traceability is essential for maintaining ASTM, ISO, and NSF certifications and provides critical data for root-cause analysis if a defect is discovered. We barcode every coil or bundle with this embedded data.

Implementation Risks and Mitigation Strategies

Upgrading or operating sophisticated QC systems presents practical challenges that manufacturers must address to maintain reliability. We encounter these issues frequently during line commissioning.

Calibration Drift and Maintenance Overheads

Inline sensors, laser micrometers, and laboratory transducers lose accuracy over time due to environmental factors and continuous use. Relying on drifting sensors leads to false confidence and out-of-spec production. The mitigation strategy is establishing strict, documented calibration schedules using certified reference standards. Regular maintenance and verification against known physical gauges ensure the digital readouts remain accurate.

1. Daily verification of laser micrometers using precision ground steel pins.

2. Weekly calibration of ultrasonic couplant water temperature sensors.

3. Monthly load-cell calibration on universal testing machines.

4. Annual third-party certification of all laboratory pressure transducers.

Operator Training and Data Management

Misinterpreting NDT data or improperly executing destructive tests leads to false passes or failures. Advanced equipment is only as effective as the personnel operating it. Investing in intuitive Human-Machine Interface (HMI) systems simplifies data interpretation. Furthermore, rigorous, standardized operator training protocols ensure that laboratory tests are conducted precisely according to ASTM or ISO methodologies, eliminating variable human error from the QC process.

Conclusion

A high-performance extrusion operation is only as reliable as the quality control testing methods integrated into its workflow. From raw material arrival to final assembly validation, rigorous testing protects margins and prevents catastrophic field failures. We have seen firsthand how robust QC protocols transform struggling plants into industry leaders.

When upgrading equipment, prioritize machinery vendors who offer native integration with top-tier NDT equipment, support closed-loop automation, and provide comprehensive guidance for setting up offline testing labs.

To optimize your current operations, take the following steps:

• Audit your existing scrap rates to identify specific dimensional or structural failure trends.

• Review your target market's specific compliance requirements, such as ISO, ASTM, or NSF standards, and update your lab equipment accordingly.

• Consult with an extrusion engineer to specify a line equipped with appropriate closed-loop QC capabilities tailored to your specific polymer.

• Implement a strict, documented calibration schedule for all inline sensors and offline laboratory equipment.

FAQ

Q: What is the most critical quality control test for a PVC Pipe Production Line?

A: The most critical tests are dimensional inspection and the methylene chloride immersion test. Dimensional checks ensure proper fitting compatibility, while the methylene chloride test verifies adequate gelation, preventing brittle failure under stress during installation or operation.

Q: How does inline ultrasonic testing reduce material waste in extrusion?

A: Inline ultrasonic scanners provide real-time wall thickness monitoring. By integrating this data with a closed-loop control system, the line automatically adjusts haul-off speeds or extruder RPM to maintain exact tolerances, preventing operators from intentionally over-extruding and giving away excess resin.

Q: What testing standards apply to a PE/PPR Pipe Production Line?

A: Key standards include ASTM D 1505 for raw material density and ASTM D 1238 for Melt Flow Rate. Additionally, hydrostatic pressure testing and environmental stress crack resistance (ESCR) evaluations are mandatory to ensure long-term stability and pressure ratings.

Q: Why is ring stiffness testing essential for corrugated pipes?

A: Ring stiffness testing ensures that corrugated or bellows pipes can withstand external soil loads and structural deflection when buried underground. It verifies that the pipe profile provides adequate structural integrity without collapsing under pressure.

Q: How often should inline measurement sensors be calibrated?

A: Inline sensors should follow a strict calibration schedule. A quick verification against a known physical standard should occur at the start of every shift, with comprehensive calibration performed annually or bi-annually by certified technicians.
