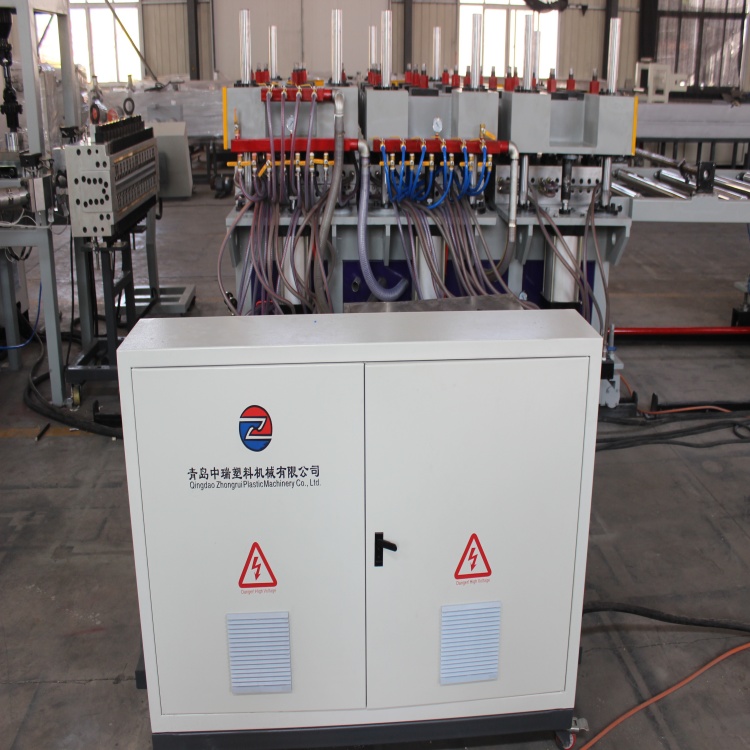

Plastic Sheet Production Line Twin Screw Extruder Benefits

Polymer manufacturing faces tight margin pressures globally. Facilities demand strict gauge control, high throughput, and broad material compatibility in sheet extrusion. Legacy single-screw systems create operational bottlenecks. They struggle with distributive mixing, handle powder and regrind poorly, and produce inconsistent melt temperatures that drive up scrap rates. These limitations force operators to compromise on speed or quality.

The twin-screw extruder solves these mechanical bottlenecks directly. By utilizing positive displacement and modular screw profiles, it transforms raw material processing. This article evaluates the mechanical advantages and application-specific benefits of integrating a twin-screw system into a modern Plastic Sheet Production Line. You will learn how this technology maximizes output, improves melt homogeneity, and handles challenging formulations.

• Superior Melt Homogeneity: Co-rotating and counter-rotating twin-screw configurations provide unmatched dispersive and distributive mixing, essential for high-filler and multi-additive formulations.

• Process Versatility: Advanced venting and feeding characteristics allow direct processing of powders, hygroscopic resins, and up to 100% recycled materials without pre-drying.

• Operational Efficiency: Self-cleaning screw profiles and modular designs significantly reduce downtime during material or color changeovers.

• Strategic ROI: While initial CapEx is higher than single-screw alternatives, the ability to utilize lower-cost raw materials (regrind, high calcium carbonate loads) accelerates the payback period.

The Role of Twin Screw Extruders in a Modern Production Environment

Single-screw extruders rely on friction-drag mechanics. Material moves forward based on friction against the barrel wall. This limits their ability to process slippery or highly filled materials. Twin-screw systems operate on positive displacement. The intermeshing flights physically push the polymer forward. This mechanism ensures consistent throughput regardless of material friction coefficients. When you run a line with varying regrind bulk densities, positive displacement keeps the die pressure stable.

Evaluating extrusion success requires strict baseline metrics. Melt uniformity dictates the entire downstream process. Pressure stability at the die ensures consistent sheet thickness and prevents gauge bands. Optical clarity matters for transparent packaging applications. Mechanical strength dictates the final product's performance in the field. Twin-screw systems maintain precise control over shear and temperature, hitting these metrics consistently even with difficult resin blends.

Configuration types dictate the specific application. Co-rotating extruders turn in the same direction. They offer aggressive compounding and mixing capabilities, making them the standard for highly filled polyolefins. Counter-rotating extruders turn in opposite directions. They provide low-shear plasticization and high pressure generation. This makes them the default choice for profile and rigid PVC processing where thermal degradation is a constant threat.

Core Technical Advantages and Process Efficiencies

Modular Screw Configuration: Segmented Elements and Process Zones

Twin-screw shafts feature segmented elements. Operators slide individual screw components onto a splined shaft. This modularity allows custom screw geometry for specific plastic sheet recipes. You can adjust shear intensity and residence time based on the formulation. If a specific filler requires more aggressive dispersion, you simply swap out conveying elements for wider kneading blocks.

The screw profile divides into distinct process zones. Each zone performs a specific function to transform solid feed into a homogeneous melt.

• Feeding and Transport Zone: Optimized for positive displacement. It conveys low-bulk-density materials efficiently from the hopper, preventing bridging.

• Melting/Plasticizing Zone: Utilizes specific kneading blocks. These control shear heating and ensure melt thermal uniformity before the material reaches the mixing section.

• Mixing Zone: Contains distributive and dispersive elements. These break down agglomerates of fillers and masterbatches, ensuring color consistency.

• Venting/Degassing Zone: Features specialized flights with deep channels. They expose maximum surface area for volatile extraction under high vacuum.

• Discharge/Metering Zone: Uses pressure-building elements. These deliver a stable, pulsation-free melt stream to the screen changer and sheet die.

Superior Distributive and Dispersive Mixing

Intermeshing screws apply precise shear forces. They break down agglomerates effectively. Dispersive mixing reduces particle size, which is necessary when running high loads of calcium carbonate or talc. Distributive mixing spreads these particles evenly throughout the polymer matrix. This combination prevents weak spots and stress concentrators in the final sheet.

Product quality improves significantly when using color masterbatches. UV stabilizers and flame retardants distribute evenly. Improved dispersion often reduces the required additive usage. You achieve target specifications with less material waste. For example, achieving a specific opacity might require 4% masterbatch on a single-screw, but only 2.5% on a well-configured twin-screw system.

Enhanced Feeding Characteristics and Direct Powder Processing

The positive displacement conveying mechanism prevents bridging. It stops surging in the feed throat. Material flows consistently into the barrel. This stability is vital for maintaining uniform sheet thickness. When running light fluff or edge trim, single-screw machines often starve. Twin-screws pull the material in forcefully.

Twin-screw systems handle difficult-to-feed materials easily. They process low-bulk-density powders without issues. Regrind flake and highly compressible polymers feed smoothly. You eliminate separate pre-compounding steps. This streamlines the entire manufacturing workflow and reduces the thermal history of the polymer, preserving its mechanical properties.

Advanced Degassing and Direct Venting Capabilities

Multi-stage vacuum venting extracts moisture directly from the melt. It removes monomers and volatile organic compounds. The intermeshing screws constantly renew the melt surface. This maximizes the extraction efficiency of the vacuum system. Operating at vacuum levels below 50 mbar ensures even stubborn volatiles are pulled from the matrix.

Direct venting eliminates energy-intensive pre-drying systems. This benefits hygroscopic materials immensely. PET, PA, and POM process smoothly without prior drying. Highly contaminated recycled plastics also benefit from this aggressive degassing. Removing moisture inline prevents hydrolysis and the resulting drop in intrinsic viscosity (IV) that ruins sheet impact strength.

Reactive Extrusion (REX) and Inline Polymer Modification

The twin-screw design acts as a continuous chemical reactor. This process is known as reactive extrusion. It allows manufacturers to upgrade low-grade raw materials inline. The precise temperature and mixing control facilitate complex chemical reactions that would otherwise require massive batch reactors.

Inline reactions include polymer chain extension. You can graft coupling agents directly into the matrix to improve filler adhesion. Controlled degradation is also possible for specific rheology adjustments. These modifications occur within the barrel before the melt reaches the sheet die. This capability expands the range of viable raw materials and allows custom compounding on the fly.

Self-Cleaning Mechanisms and Thermal Energy Management

Closely intermeshing co-rotating screw flights provide a self-wiping action. One screw wipes the root and flanks of the other. This prevents material stagnation. It eliminates thermal degradation caused by prolonged residence time. When changing colors, this self-cleaning feature reduces transition scrap from hundreds of kilograms down to a fraction of that amount.

The twin-screw configuration minimizes residual energy retention. It prevents excessive heat buildup in the melt matrix from over-shearing. This allows precise melt temperature control. It preserves the physical properties of shear-sensitive polymers during extrusion. You can run at higher RPMs without burning the material, directly increasing your output yield.

Application-Specific Benefits Across Specialized Lines

PP Hollow Grid Board Production

A PP Hollow Grid Board Production Line requires high melt strength. Precise temperature control maintains the structural integrity of the hollow flutes. Any viscosity fluctuation causes flute collapse or uneven wall thickness. The die requires a perfectly homogeneous melt to form the complex internal ribbing without tearing.

Twin-screw compounding allows efficient inline incorporation of additives. Impact modifiers blend seamlessly to improve cold-weather performance. Nucleating agents distribute evenly to control crystallization rates. You can add high levels of calcium carbonate fillers to increase stiffness. The board maintains its crush resistance and structural rigidity while lowering the overall resin cost.

Drainage Board Production

A Drainage Board Production Line relies heavily on post-consumer recycled plastics. Utilizing high volumes of PCR HDPE and PP is an economic necessity for civil engineering products. Mixed resins often contain varying levels of contamination, paper labels, and moisture. Processing these streams on standard equipment leads to severe surging and die drool.

Twin-screw systems homogenize variable regrind streams. Robust mixing blends different melt indexes effectively, creating a uniform viscosity. High-vacuum venting removes moisture and odors from the PCR content. Precise shear control processes highly contaminated materials into a stable, continuous sheet. The aggressive mixing also disperses carbon black evenly, ensuring long-term UV resistance for underground applications.

PVC Glazed Tile Production

A PVC Glazed Tile Production Line processes extremely thermal-sensitive materials. PVC risks hydrochloric acid release under excessive shear. Temperature control must be absolute to prevent degradation and equipment corrosion. The formulation often includes heavy doses of calcium carbonate, titanium dioxide, and impact modifiers that must be fused perfectly.

Conical or parallel counter-rotating twin-screw extruders provide gentle plasticization. They offer low-shear melting. This prevents localized overheating. The counter-rotating design ensures stable high-pressure generation. This is required for rigid PVC formulations and heavy mineral loadings. The positive pumping action pushes the stiff PVC melt through complex corrugated dies without relying on high RPMs that would burn the compound.

Evaluating ROI and Material Cost Optimization

Twin-screw systems change the financial dynamics of sheet extrusion. Energy consumption versus output yield heavily favors twin-screw technology when processing hygroscopic resins. Eliminating crystallizers and desiccant dryers removes massive energy draws from the plant floor. The specific energy input (kWh/kg) drops significantly when you remove the pre-drying phase.

Material cost optimization drives the fastest payback. Superior mixing allows operators to replace premium virgin resins with higher filler loadings. Pushing calcium carbonate levels from 20% to 40% slashes raw material costs. The advanced venting allows the use of unwashed, un-dried regrind. These material savings accumulate daily, offsetting the initial equipment investment rapidly.

Modularity provides long-term maintenance advantages. Segmented screw elements and modular barrels allow operators to replace only localized high-wear zones. The mixing and melting zones wear out faster than the conveying zones. Instead of replacing an entire solid screw, maintenance teams swap out a few kneading blocks. This targeted replacement strategy keeps maintenance budgets predictable and minimizes downtime.

Implementation Realities and Adoption Risks

Initial Capital Expenditure Justification

Twin-screw machinery requires a higher upfront investment. Multi-component gravimetric feeders and specialized high-torque gearboxes add to the initial cost. Facilities must evaluate this expenditure against production goals. High-volume operations justify the cost through increased throughput and reduced scrap rates. The ability to run wider dies at higher line speeds changes the production math.

Raw material savings provide the strongest justification. The ability to process un-dried regrind lowers operational costs immediately. High filler loadings replace expensive virgin resins. These material efficiencies offset the initial capital expenditure over the equipment's lifespan. When you calculate the cost difference between virgin PET and un-dried bottle flake, the machine pays for itself.

Operator Expertise and Control Complexity

Managing a twin-screw system involves a steeper learning curve. Operators must monitor multiple temperature zones simultaneously. Vacuum systems require constant attention to prevent filter blinding. Complex screw profiles demand a deep understanding of polymer rheology. Operators can no longer just turn a dial and walk away; they must understand the interaction between feed rate, screw speed, and melt pressure.

Advanced PLC controls mitigate some complexity. However, specialized operator training remains essential. Feeding rates must synchronize perfectly with screw speed to maintain the correct fill level in the barrel. Operators must understand how adjustments impact melt pressure and sheet quality. Training programs must focus on troubleshooting surging, venting issues, and die pressure fluctuations.

Maintenance of Precision Components

Intermeshing screws require strict manufacturing tolerances. Wear and tear alter these tolerances over time. Abrasive fillers accelerate screw and barrel wear. Regular inspections are mandatory to maintain mixing efficiency. If the gap between the screw flights and the barrel wall opens up, the positive displacement effect diminishes, leading to surging and poor dispersion.

Gearboxes face immense torque loads. Ignoring preventative maintenance schedules risks catastrophic gearbox failure. Facilities must implement strict wear-monitoring protocols. Oil analysis and vibration monitoring help predict component failures before they halt production. Thrust bearings require specific attention, as they absorb the massive backpressure generated by wide sheet dies.

Conclusion

To maximize the efficiency and output of your extrusion operations, take the following actionable steps:

1. Audit your current raw material streams to identify opportunities for incorporating higher percentages of regrind or mineral fillers.

2. Evaluate your existing scrap rates and downtime associated with material changeovers to determine if a modular screw design will improve uptime.

3. Implement a strict preventative maintenance schedule focusing on gearbox lubrication and screw wear measurement.

4. Train your extrusion operators specifically on multi-zone temperature management and vacuum venting protocols.

FAQ

Q: What makes a twin-screw extruder better for mixing than a single-screw extruder?

A: Twin-screw extruders feature intermeshing flights that apply precise shear forces. This positive displacement mechanism provides superior dispersive and distributive mixing. It breaks down agglomerates and spreads additives evenly, which single-screw systems struggle to achieve.

Q: Can I process recycled materials without pre-drying?

A: Yes. Twin-screw extruders utilize advanced multi-stage vacuum venting. This system extracts moisture and volatile compounds directly from the melt. It eliminates the need for energy-intensive pre-drying, even for hygroscopic materials like PET.

Q: Why is a counter-rotating twin-screw used for PVC?

A: PVC is highly sensitive to heat and shear. Counter-rotating twin-screw extruders provide gentle, low-shear plasticization. This prevents excessive heat buildup and thermal degradation, avoiding the release of corrosive hydrochloric acid during extrusion.

Q: How does a modular screw design benefit production?

A: A modular design uses segmented screw elements on a splined shaft. Operators can customize the screw profile for specific formulations. It also allows targeted replacement of high-wear zones, reducing maintenance costs compared to replacing a solid screw.

Q: What is reactive extrusion?

A: Reactive extrusion uses the twin-screw extruder as a continuous chemical reactor. It allows inline polymer modifications, such as chain extension or grafting. This process upgrades raw materials directly within the barrel before forming the sheet.

Q: How do twin-screw extruders handle low-bulk-density powders?

A: They use a positive displacement conveying mechanism. This prevents bridging and surging in the feed throat. It forces difficult-to-feed powders and light flakes consistently into the barrel without requiring separate pre-compounding steps.
