Process Controls for Consistent Plastic Profile Surface Finish

Surface defects in continuous extrusion directly drain manufacturing profitability. When you run a line, minor fluctuations in barrel temperature, melt pressure, or raw material bulk density immediately alter the final surface quality of a plastic profile. These variations cause high scrap rates, excessive resin waste, and rejected shipments due to aesthetic or dimensional non-compliance. Continuous extrusion remains inherently volatile. Plant floor operators constantly battle unpredictable raw material behavior and shifting ambient plant conditions. Advanced process controls, automated feedback loops, and precision calibration provide the necessary bridge to predictable, high-yield manufacturing. By replacing manual dial adjustments with real-time sensor data, extrusion plants stabilize the melt environment. This guarantees a consistent surface finish across every production run, locking in quality parameters and eliminating the guesswork from the factory floor.

Key Takeaways

• Consistent surface finish requires end-to-end, closed-loop process controls that synchronize upstream dosing, melt temperature, die pressure, and haul-off speeds in real-time.

• Material-specific lines, such as a WPC plastic profile production line, demand specialized moisture, venting, and thermal controls compared to standard polymer extrusion.

• Upgrading to customizable PVC profile machinery with inline inspection sensors and gravimetric feeding directly reduces scrap rates and accelerates ROI through automated defect detection.

• Successful implementation of advanced controls relies heavily on operator training, precise vacuum calibration, and the integration of machine data with existing plant execution systems.

The Impact of Surface Finish on Plastic Profile Quality and Yield

Common Surface Defects and Their Root Causes

Surface defects originate from specific mechanical or thermal imbalances during the extrusion process. "Sharkskin" and melt fracture appear as severe surface roughness, often resembling a matte or scaly texture. These defects occur when shear stress at the die wall exceeds the tensile strength of the polymer melt. Improper temperature profiles directly exacerbate this issue. If you run a high-viscosity polymer with a die temperature that is too low, the outer layer of the melt stretches and tears upon exit, ruining the finish.

Die lines present as continuous longitudinal scratches or grooves along the profile. They correlate directly with die lip contamination. Degraded material buildup, known on the floor as die drool, disrupts the smooth flow of the polymer. Operators often resort to scraping the die lips with brass tools, but this indicates the process is already out of control. Improper tooling design also creates dead spots where material stagnates, degrades, and eventually scores the passing melt.

Surface dullness, pitting, and blistering typically point to moisture or volatile gas issues. High moisture content in hygroscopic raw materials flashes into steam within the extruder barrel. If the vacuum venting system fails or clogs, that steam creates micro-craters on the surface. Suboptimal cooling bath temperatures also cause dullness. Shocking the polymer with water that is too cold causes uneven crystallization, stripping the profile of its intended gloss.

Flow marks and surging artifacts manifest as wavy or uneven surface textures. You can usually trace these back to the hopper. Inconsistent bulk density in the raw material causes uneven feeding into the feed throat. Poor additive dispersion creates localized viscosity changes, leading to surging at the die exit and a pulsing effect on the surface.

Success Criteria for High-Yield Extrusion

Evaluating surface finish requires objective, measurable baselines rather than visual estimates. Manufacturers rely on specific metrics to qualify production runs and ensure every batch meets client specifications.

• Gloss levels measured via reflectometers to ensure aesthetic consistency across different shifts.

• Surface roughness (Ra) measurements utilizing profilometers to quantify microscopic smoothness.

• Dimensional tolerances verified through inline laser scanning to prevent downstream assembly failures.

• Color uniformity checked with spectrophotometers to maintain brand standards across varying production batches.

Surface finish consistency directly dictates downstream processing success. Secondary operations demand strict surface parameters. Lamination processes fail entirely if the surface roughness prevents proper adhesive bonding, leading to delamination in the field. Foiling requires a perfectly smooth substrate to avoid telegraphing microscopic defects through the thin decorative film. Printing applications need consistent surface tension and gloss for proper ink adhesion. Any deviation in the extrusion phase multiplies failure rates during final assembly.

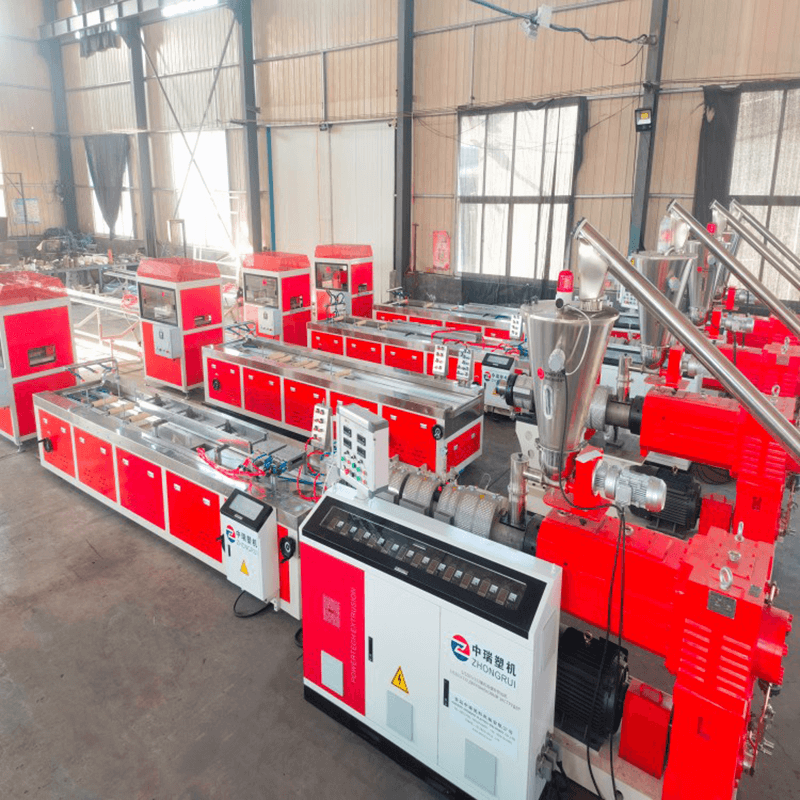

Core Process Controls in a Modern Plastic Profile Production Line

Upstream Material Handling and Gravimetric Dosing

Consistent output begins long before the material enters the extruder feed throat. Gravimetric feeders play a critical role in maintaining a constant mass throughput. Unlike older volumetric feeders that assume a constant material density, gravimetric systems continuously weigh the material. When you introduce regrind or change resin batches, the bulk density fluctuates. Gravimetric dosing automatically adjusts the auger speed to compensate for these variations. This ensures the extruder receives a precise, unchanging mass of polymer over time, preventing surging at the die.

Automated blending controls manage formulation accuracy. They ensure the uniform dispersion of lubricants, stabilizers, and colorants. Proper lubricant dispersion directly dictates the surface gloss and smoothness of the final product. If blending controls drift, localized concentrations of additives cause flow marks or accelerate die buildup, instantly degrading surface quality.

Thermal Management: Extruder Barrel and Die Temperatures

Thermal stability dictates melt homogeneity. Multi-zone temperature control across the extruder barrel is necessary to process polymers without thermal degradation. Each zone utilizes PID controllers to precisely manage the heat profile, melting the polymer gradually as it moves down the screw. Aggressive heating in the feed zone causes premature melting and bridging, while excessive heat in the metering zone breaks down polymer chains, leading to discoloration and brittleness.

Die temperature controllers manage the final stage of the melt flow. They maintain consistent polymer flow velocity at the die exit. If the die lips run too cold, the outer skin of the melt drags against the steel, causing surface tearing. Precise thermal management at the die prevents internal stresses and ensures a smooth, uniform surface finish as the profile enters the calibration stage.

Pressure Regulation and Melt Flow Consistency

Pressure fluctuations inside the barrel translate directly to dimensional and surface defects. Integrating melt pumps, commonly known as gear pumps, eliminates extruder surge. These pumps sit between the extruder and the die, building pressure independently of the screw. They isolate the die from upstream pressure variations, guaranteeing a constant volumetric output.

Closed-loop pressure transducers at the die head provide real-time data to the main drive. They automatically adjust the screw speed to maintain a stable melt pressure profile. If the pressure drops due to a slight change in material viscosity, the system accelerates the screw slightly to compensate. This continuous adjustment keeps the melt flow perfectly consistent, eliminating wavy surfaces and dimensional drift.

Vacuum Calibration and Cooling Bath Stability

The cooling phase locks in the surface finish generated by the die. Vacuum sizing tanks dictate the final dimensions and surface smoothness. The polymer exits the die in a soft, molten state. Precise vacuum pressure controls pull the soft polymer against the brass or stainless steel calibration tooling. If the vacuum is too high, it creates excessive friction against the calibrator, leading to chatter marks and surface drag. If it is too low, the profile shrinks away from the tooling, losing its shape and dimensional accuracy.

Automated water temperature regulation in the cooling bath is equally critical. The cooling rate controls polymer crystallization. You need turbulent water flow to break the thermal boundary layer and extract heat efficiently. Gradual, controlled cooling locks in surface gloss without inducing warp. Temperature fluctuations in the water bath cause uneven shrinkage, which manifests as surface dullness or physical bowing of the profile.

Haul-Off Speed and Tension Synchronization

The puller, or haul-off unit, must work in perfect harmony with the extruder. The critical relationship between extruder output rate and haul-off speed determines the final wall thickness and surface integrity. If the puller runs even slightly faster than the extrusion rate, it stretches the material, thinning the walls and creating internal stress.

Automated tension controls and servo-driven pullers maintain absolute synchronization. They prevent surface stretching, micro-cracking, and dimensional warping during the final cooling phase. Servo motors provide precise speed regulation, eliminating the microscopic speed variations common in older AC drives. This stability prevents the formation of transverse surface ripples and ensures a flawless finish.

Material-Specific Control Strategies

Optimizing the PVC Profile Production Line

Processing rigid and flexible PVC presents unique thermal challenges. PVC is highly shear-sensitive and prone to rapid thermal degradation. This risk increases significantly when incorporating regrind or recycled content into a PVC profile production line. Degraded PVC releases hydrochloric acid gas, which burns the material, ruins the surface finish, and severely pits the extrusion tooling.

Specific screw core cooling systems are required to manage shear heat. Precise barrel temperature tolerances prevent burning while maintaining a smooth, glossy finish. Operators utilize closed-loop oil or water cooling within the screw itself to extract excess frictional heat. This internal temperature management is non-negotiable for achieving high-quality PVC surface finishes without degrading the polymer backbone.

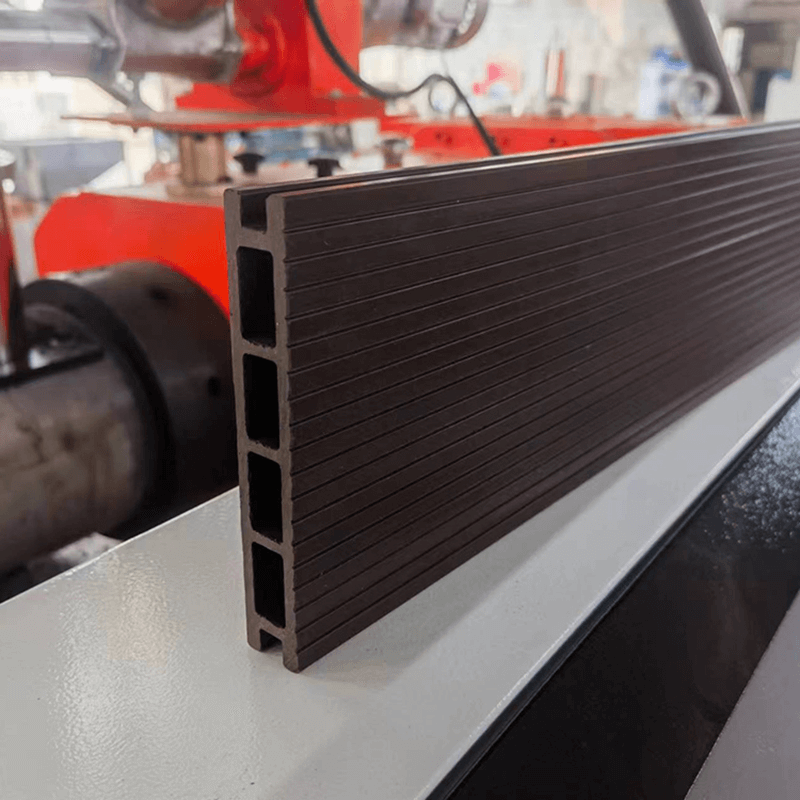

Challenges in the WPC Plastic Profile Production Line

Wood-plastic composites exhibit unique rheological behavior. The friction generated by natural wood fibers creates immense shear heat within the barrel. This introduces a high risk of fiber burn, which ruins the surface appearance, leaving dark streaks and compromising structural integrity. A WPC plastic profile production line must manage this friction carefully through optimized screw geometry and strict thermal controls.

Moisture acts as the primary enemy of WPC extrusion. Wood fibers absorb ambient moisture rapidly. Advanced venting and degassing controls on the extruder barrel remove steam before the melt reaches the die. Pre-drying automation is critical to prevent moisture-induced surface blistering and internal porosity. Without strict moisture control, the final profile features a rough, pitted surface that fails quality inspections.

Wood Plastic Profile Machine Calibration

Tooling calibration for wood-composite machinery requires specialized approaches. Standard polymer dies fail quickly when processing abrasive wood fibers. A dedicated wood plastic profile machine utilizes specialized die coatings to resist wear and maintain a smooth flow channel. Optimized land lengths reduce friction and prevent fiber buildup at the die exit, which would otherwise cause severe die lines.

Cooling dense WPC profiles requires segmented strategies. WPC retains heat much longer than unfilled polymers. Segmented cooling zones prevent differential shrinkage. If the outside skin cools too fast while the core remains hot, the profile suffers from surface cracking and severe bowing. Controlled, gradual cooling baths ensure dimensional stability and a smooth, unblemished surface.

Evaluating Customizable PVC Profile Machinery for Advanced Control

Closed-Loop Feedback Systems vs. Open-Loop

The shift from manual adjustments to automated control defines modern extrusion efficiency. Open-loop systems rely on operators to read analog gauges, manually adjust dials, and measure output with calipers. Closed-loop systems self-correct based on continuous sensor data without human intervention, locking in the process window.

Evaluating the long-term operational savings of closed-loop systems reveals clear advantages. They reduce operator intervention, speed up startup times, and lower scrap rates. By maintaining strict parameter tolerances, these systems ensure every meter of profile meets exact surface finish specifications.

Sensor Integration and Inline Inspection

Advanced machinery incorporates inline sensors for continuous quality verification. Inline laser micrometers measure the profile dimensions in real-time across multiple axes. If the dimensions drift due to a slight change in melt pressure, the system triggers automatic haul-off speed adjustments to correct the wall thickness instantly. This prevents out-of-spec material from being spooled or cut.

High-speed optical vision systems take quality control further. These cameras detect micro-surface defects like scratches, gels, black specks, discoloration, and pitting in real-time. When a defect is identified, the system triggers automated alarms or activates sorting mechanisms to reject the flawed section. This guarantees that only perfect profiles reach the packaging stage, protecting the manufacturer's reputation.

Scalability and Integration with Plant MES/ERP

Modern machinery controllers, such as advanced PLCs and HMIs, offer deep connectivity. Customizable PVC profile machinery exports process data via industrial protocols like OPC UA or MQTT. This connectivity allows the extrusion line to communicate directly with the wider factory network, moving away from isolated data silos.

Integrating machine data with Manufacturing Execution Systems (MES) enables powerful analytical capabilities. Plant managers utilize predictive maintenance to replace wear parts, like extruder screws or sizing calibrators, before they cause surface defects. Batch traceability links specific surface quality metrics to exact raw material lots. This data integration simplifies root-cause analysis for any surface defects that do occur on the floor.

Trade-Offs and Implementation Risks in Upgrading Controls

Capital Expenditure vs. Scrap Reduction ROI

Upgrading process controls requires significant capital expenditure. Calculating the return on investment involves factoring this initial cost against projected operational savings. Manufacturers quantify the expected reductions in resin waste, energy consumption, and quality hold-ups. A highly controlled line produces less scrap, which directly lowers raw material purchasing costs and boosts overall plant profitability.

Retrofitting legacy equipment with modern sensors carries hidden costs. Integration issues, software incompatibilities, and mechanical limitations often inflate retrofit budgets beyond initial estimates. Investing in a new, fully integrated plastic profile production line often yields a faster, more reliable return. New lines are built from the ground up to support closed-loop communication, servo drives, and advanced sensor arrays without the bottleneck of outdated mechanical components.

Operator Training and System Adoption Realities

Transitioning to advanced controls exposes a significant skills gap on the factory floor. Operators accustomed to running machines by "feel," listening to the extruder, and manually adjusting water valves must learn to manage data-driven, automated HMIs. This shift requires a fundamental change in how floor staff interact with the equipment.

Implementing necessary training protocols ensures successful system adoption. Plant floor staff must learn to effectively interpret sensor data, understand PID control loops, and respond to automated alarms. They also need to know how to override systems safely during abnormal conditions. Comprehensive training prevents operators from fighting the automated controls, which causes unnecessary downtime and material waste.

Mitigating Downtime During Machinery Upgrades

Installing new machinery disrupts current production schedules. Strategies for phased implementation minimize this downtime. Manufacturers run the new equipment alongside legacy lines during the initial setup phase. This allows for testing, calibration, and operator familiarization without halting overall plant output.

Executing structured commissioning protocols ensures a smooth transition. Follow these steps to mitigate risks:

1. Conduct a thorough Factory Acceptance Testing (FAT) at the vendor's facility to verify all closed-loop controls operate correctly under simulated loads.

2. Perform Site Acceptance Testing (SAT) upon installation to ensure surface finish guarantees are met using the plant's actual raw materials and chilled water supply.

3. Run a controlled pilot batch to establish baseline Ra and gloss metrics before switching to full-scale production.

4. Schedule daily review meetings during the first week of operation to address any HMI alarms or sensor misalignments immediately.

Conclusion

• Conduct a comprehensive audit of current scrap rates and defect logs to identify specific process variables requiring immediate control upgrades.

• Prioritize machinery vendors offering open architecture for sensor integration and robust closed-loop feedback capabilities.

• Develop a structured operator training program focused on HMI navigation and data interpretation before installing new equipment.

• Establish clear baseline metrics for surface finish evaluation, including gloss and roughness, to measure the success of new process controls.

FAQ

Q: What causes die lines on a plastic profile?

A: Die lines result from die lip contamination, degraded material buildup known as die drool, or improper tooling design. These obstructions score the polymer melt as it exits the die, leaving continuous longitudinal scratches on the surface. Regular tooling maintenance and optimized melt flow channels prevent this issue.

Q: How does melt temperature fluctuation affect surface finish in extrusion?

A: Temperature fluctuations disrupt melt homogeneity. If the melt runs too cold, excessive shear stress causes surface tearing and melt fracture. If it runs too hot, the polymer degrades, leading to discoloration, blistering, and a complete loss of surface gloss. Stable thermal management ensures a smooth, uniform outer skin.

Q: Why is vacuum calibration pressure critical for surface smoothness?

A: Vacuum pressure pulls the soft polymer against the sizing tooling to dictate final dimensions. Excessive vacuum creates high friction, causing surface drag and chatter marks. Insufficient vacuum allows the profile to shrink away from the calibrator, resulting in poor dimensional accuracy and uneven, wavy surfaces.

Q: What is the ideal cooling calibration for a PVC profile production line?

A: The ideal calibration involves gradual, segmented cooling zones. Shocking PVC with water that is too cold causes uneven crystallization, leading to surface dullness and internal stress. Controlled water temperature regulation locks in the intended gloss and prevents physical warping or bowing as the profile solidifies.

Q: How do process controls differ between standard polymer and WPC plastic profile production lines?

A: WPC lines require aggressive moisture management, including pre-drying and advanced barrel venting, to prevent steam blisters. They also demand specialized screw cooling and wear-resistant die coatings to manage the high friction and severe shear heat generated by natural wood fibers, which standard polymers do not require.

Q: How does haul-off speed synchronization prevent surface chatter marks?

A: Haul-off speed must perfectly match the extruder output rate. Servo-driven pullers provide precise tension control. This exact synchronization prevents the material from stretching or micro-cracking, eliminating the transverse surface ripples and chatter marks typically caused by the speed variations found in older AC drive systems.
