What Controls Thickness Uniformity in PP Strapping?

High-speed automated packaging environments demand absolute precision. Inconsistent strap dimensions create severe operational and financial bottlenecks on the plant floor. Machine jams halt production lines, forcing operators to manually clear tangled plastic from strapping heads. Compromised load integrity damages goods during transit, leading to rejected shipments. Material waste inflates operational expenses as out-of-spec coils get scrapped. Manufacturers easily control strap width using standard cutting tools and edge guides. However, achieving thickness uniformity remains a complex metallurgical and mechanical challenge. Variations in gauge lead to unpredictable elongation and uneven tension distribution during application. Irregular thickness causes the strap to fail standard duty specifications. To solve this problem, plant managers must evaluate specific mechanical controls, thermal processes, and automation technologies within modern manufacturing setups. These systems guarantee dimensional stability and reliable finished-product performance.

• Extrusion Precision is Foundational: Baseline thickness is dictated by the melt pressure stability and die head calibration of the extrusion machinery.
• Thermal Management Dictates Stability: Synchronized quenching, stretching, and heat setting are required to lock polymer chains and prevent post-production shrinkage or expansion.
• Embossing Alters Functional Thickness: The depth and pattern of embossing create a variance between actual material thickness and functional machine-grade thickness.
• Automation Drives Consistency: Modern computerized production lines utilize closed-loop feedback systems to monitor and adjust gauge variations in real-time.

Why Thickness Uniformity Matters in PP Strapping Applications

Impact on Automated Strapping Machine Performance

Hand-grade and machine-grade qualities serve completely different operational needs. Hand-grade strapping tolerates minor dimensional variations because human operators manually apply tension using manual ratchets or battery-operated hand tools. Machine-grade strapping requires strict, unforgiving tolerance limits. High-speed automated strapping machines operate at rapid cycles, often exceeding 50 straps per minute. They feed, tension, seal, and cut in fractions of a second. Any deviation in strap geometry disrupts this precise mechanical timing.

Gauge variations directly cause mechanical failures in automated strapping heads. When thickness fluctuates outside the acceptable tolerance window, several specific failures occur on the packaging line:

1. Feed Track Binding: If the strap is too thick, it binds inside the narrow aluminum feed tracks of the arch. The feed wheels slip against the jammed strap, grinding the plastic and creating polymer dust that clogs the sensor optics.
2. Tension Wheel Slippage: If the strap is too thin, the knurled tensioning gears fail to grip the material securely. The strap slips backward during the tensioning cycle, resulting in a loose package that shifts during transport.
3. Friction Weld Failure: The friction weld anvil applies a specific amount of high-frequency vibration based on a presumed material mass. Thin sections melt completely and snap under pressure. Thick sections fail to melt adequately, resulting in weak, brittle joints that pop open.
4. Cutter Blade Wear: Overly thick sections force the cutter blade to work harder, dulling the steel prematurely and causing jagged cuts that fray the strap ends.

Acceptable tolerance ranges define success for high-speed equipment compatibility. Machine-grade PP strapping typically requires a thickness tolerance of ±0.001 inches (±0.025 mm). Maintaining this tight window ensures continuous operation, eliminates track jams, and guarantees consistent weld strength across thousands of cycles.

Load Stabilization and Tension Consistency

Strap thickness directly dictates tensile strength and elongation characteristics. Standard duty strapping typically offers 14–20% elongation, while high elongation variants provide up to 40% stretch for loads that settle over time. The cross-sectional area of the strap determines how much load it can bear before reaching its yield point. A thicker profile provides higher break strength but sacrifices flexibility. A thinner profile stretches more easily but snaps under heavy dynamic loads.

Manufacturers strategically pair thickness and width to meet specific packaging requirements. The maximum tension capacity relies entirely on the consistency of these dimensions. Below is a standard reference for how thickness impacts break strength in a typical 1/2-inch (12mm) wide strap:

Localized thinning acts as a weak point. When a pallet shifts during transit, the strap absorbs the kinetic energy. If the strap contains a thin section due to poor extrusion control, the stress concentrates at that exact point. The strap snaps prematurely. Consistent thickness ensures uniform tension distribution across the entire length of the band, preventing catastrophic load failures during shipping and handling.

Core Variables Controlling Thickness in a PP Strapping Production Line

Raw Material Melt Flow Index (MFI) and Blending

Consistent resin quality forms the foundation of dimensionally stable strapping. Manufacturers blend virgin polypropylene with recycled flakes to balance material properties. Virgin resin provides predictable molecular chain lengths. Recycled flakes introduce variability depending on their source. The ratio between these two materials must remain exact. Gravimetric dosing systems weigh and mix these components, along with colorants and UV stabilizers, before they enter the extruder hopper.

Fluctuations in the Melt Flow Index (MFI) directly cause gauge variation. MFI measures how easily the molten plastic flows at a specific temperature and pressure. If a batch of recycled flakes has a higher MFI than the virgin resin, the melt viscosity drops. The plastic flows too quickly through the die head, causing surging. Surging creates alternating thick and thin sections along the strap. Maintaining a consistent MFI ensures a steady, predictable flow rate. This stabilizes the baseline thickness before the plastic even leaves the extruder.

The Role of the PP Packing Strap Extrusion Machine

The extrusion process melts and pressurizes the polymer blend. The screw design within a PP packing strap extrusion machine dictates melt homogeneity. Engineers specify the Length to Diameter (L/D) ratio to optimize this process. A higher L/D ratio, such as 30:1 or 33:1, provides a longer residence time for the plastic inside the heated barrel. Barrier screw designs separate the melted polymer from the unmelted pellets, preventing solid particles from reaching the die. Many modern lines also incorporate a melt pump between the extruder and the die head. The melt pump eliminates pressure pulsations from the extruder screw, delivering a perfectly constant volume of polymer to the die.

Die head precision shapes the molten polymer into its initial profile. Manufacturers use either a T-die or a strand die. The die lips determine the cross-sectional shape of the un-stretched strap. Operators use manual or automatic lip adjustments to control this profile. Automatic systems use thermal expansion bolts. These bolts heat up or cool down to push or pull the die lip by mere microns. This micro-adjustment capability corrects thickness variations instantly, ensuring the extruded strand maintains a perfect rectangular geometry before entering the water bath.

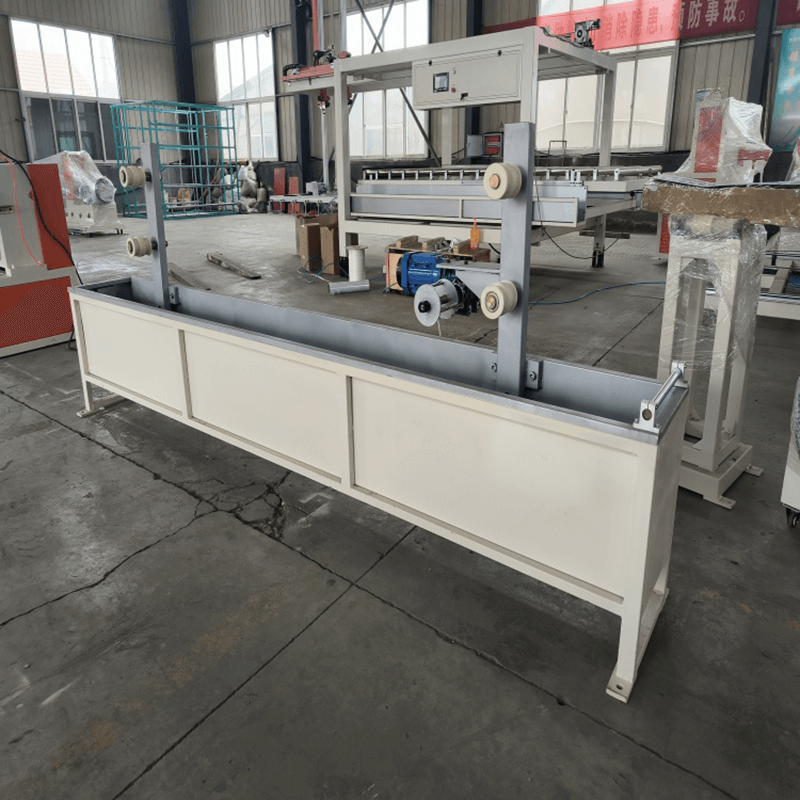

Quenching and Cooling Bath Dynamics

The molten polymer exits the die head at temperatures exceeding 230°C. It must transition rapidly to a solid state. The quenching process involves submerging the hot strand into a stainless steel water cooling bath. This step freezes the molecular structure and locks in the initial dimensions.

Water temperature, flow rate, and immersion distance dictate the success of this phase. If the water is too warm, the plastic remains soft. Gravity causes the strand to sag, which thins the material before it reaches the first set of rollers. If the water is too cold, the outer surface freezes instantly while the core remains molten, creating internal voids and surface stress. Optimal flow rates prevent localized hot spots around the submerged strap. Precise control over the cooling bath dynamics prevents unwanted sagging or stretching, establishing a stable foundation for the subsequent mechanical stretching phase.

Mechanical Stretching and Heat Setting Protocols

Drawing Ratios in a Packaging Belt Production Line

Extrusion only creates a thick, brittle plastic strand. Mechanical stretching transforms this strand into a high-tensile strap. A standard packaging belt production line utilizes a series of heated godet rollers to perform this orientation process. The strap passes over a slow-moving set of rollers, then travels through a hot air oven or over a heated plate, and finally wraps around a fast-moving set of rollers.

The speed differential between these roller sets defines the draw ratio. A typical draw ratio ranges from 5:1 to 7:1. This means the second set of rollers pulls the strap five to seven times faster than the first set. This intense pulling action reduces the initial extruded thickness down to the final target gauge. More importantly, it aligns the random polymer chains longitudinally. This molecular alignment generates the massive tensile strength required for heavy-duty packaging. Precise synchronization of these roller speeds ensures the thickness reduction remains uniform across miles of continuous production.

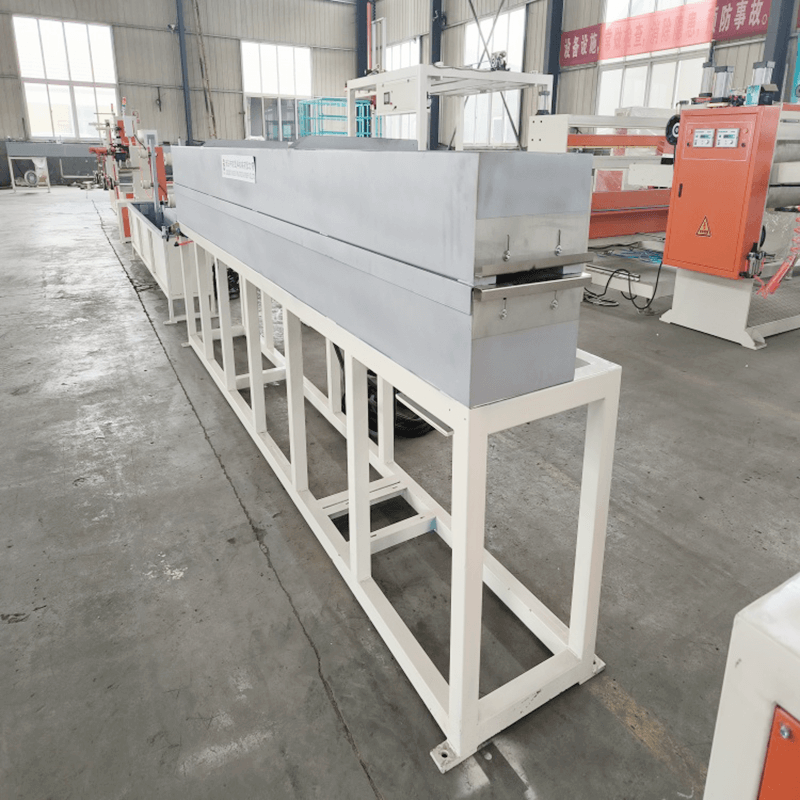

Heat Setting for Dimensional Stability

Stretching creates immense internal stress within the polymer chains. The molecules naturally want to revert to their original, un-stretched state. The annealing oven provides heat setting immediately following the stretching phase. The strap passes through a forced-air oven heated just below the polymer's melting point, typically around 150°C to 160°C. This controlled heat relaxes the internal stress.

Without proper heat setting, the PP strap suffers from a severe memory effect. The polymer chains contract over time. The strap shrinks in length and thickens in gauge after it is spooled onto the cardboard core. This post-production thickening ruins the dimensional tolerance, causing the strap to jam in automated packaging machines weeks after it leaves the factory. Secondary cooling rollers follow the annealing oven. They rapidly drop the temperature, permanently locking the relaxed polymer chains into their final, stable dimensions.

The Impact of Embossing on Structural Thickness

Actual Thickness vs. Embossed Profile

Thickness measurements in strapping involve two distinct metrics: core polymer thickness and overall embossed thickness. The core thickness represents the solid plastic material. It provides the tensile strength and elongation properties. The embossed thickness represents the peak-to-valley measurement of the textured surface. For example, a standard 1/2-inch strap might have a core thickness of 0.014 inches but an overall embossed thickness of 0.030 inches.

Embossing depth significantly alters the physical performance of the strap. A deep embossing pattern increases the overall stiffness of the material. This stiffness helps the strap feed smoothly through the long chutes of an automated arch machine without buckling. Embossing also improves split resistance. The textured pattern interrupts linear tear paths, preventing the strap from splitting down the middle during tensioning. The textured surface increases friction at the seal joint, improving joint efficiency and ensuring the friction weld holds under maximum load.

Managing Embossing Roller Pressure

The embossing process utilizes heavy steel rollers engraved with a knurled diamond or cross-hatch pattern. The hot strap passes between these rollers immediately after the initial stretching phase. Mechanical calibration of these rollers dictates the final functional thickness of the product. Operators must adjust the pneumatic or hydraulic pressure applied to the nip point.

Balancing this pressure requires exact calibration steps to avoid damaging the strap:

1. Verify Roller Temperature: Ensure the embossing rollers are heated to the correct setpoint so the polymer accepts the pattern without tearing.
2. Set Baseline Pressure: Apply the minimum pneumatic pressure required to make contact with the strap.
3. Measure Embossed Gauge: Run a sample and measure the peak-to-valley thickness using a specialized micrometer with flat anvils.
4. Adjust Nip Gap: Increase pressure incrementally. Excessive roller pressure crushes the internal polymer structure, damaging the longitudinally aligned molecules and severely compromising the tensile strength. It also squeezes the material outward, altering the width.
5. Test Feedability: Insufficient pressure fails to imprint a deep enough pattern, causing the strap to slip in the machine feed wheels. Run the sample through a strapping head to confirm grip.

Evaluating Automation in Modern PP Fibre Packing Strapping Tape Production Lines

Implementing a Computerized PP Strapping Strap Band Belt Machine

Legacy production lines relied on manual mechanical adjustments. Operators turned dials to adjust extruder speeds, roller tensions, and oven temperatures. This manual approach resulted in slow reaction times and frequent gauge variations. Modern facilities have shifted entirely to PLC (Programmable Logic Controller) driven systems. A computerized PP strapping strap band belt machine centralizes all operational controls into a single digital interface.

This automation directly prevents thickness inconsistencies. The PLC synchronizes the drive motors across the entire line. The extruder, melt pump, haul-off rollers, stretching godets, and final winders all communicate in real-time via industrial ethernet. If the winder pulls slightly faster than the haul-off rollers, it creates a tension spike. This spike causes necking, where the strap stretches and thins out uncontrollably. Synchronized drive motors eliminate these tension spikes. They maintain exact speed ratios, ensuring the strap thickness remains uniform from the die head to the final spool.

Real-Time Thickness Monitoring and Feedback Loops

A high-performance PP fibre packing strapping tape production line integrates inline measurement technologies. Laser micrometers or ultrasonic thickness gauges scan the strap continuously as it moves at high speeds. These sensors measure the gauge down to the micron level, capturing data on both the core thickness and the embossed profile.

This data feeds into a closed-loop evaluation system. When the sensors detect micro-variations deviating from the set tolerance, the PLC reacts instantly. It automatically signals the extrusion die to adjust the thermal lip expansion. Alternatively, it slightly alters the haul-off speeds to correct the gauge. This closed-loop feedback occurs without stopping production. It removes human error from the quality control process and guarantees that every meter of strapping meets the strict dimensional requirements of automated packaging equipment.

Implementation Risks and Quality Control Frameworks

Common Causes of Gauge Variation

Even with advanced machinery, environmental and mechanical variables introduce risks. Extruder surging remains a primary cause of thickness fluctuation. This occurs when the melt pressure destabilizes due to inconsistent raw material feeding, bridging in the hopper, or degraded screw flights. Ambient temperature fluctuations in the factory also impact the cooling bath efficiency. A hot summer day raises the water temperature, altering the quenching process and causing the strap to thin out before it hits the first roller.

Worn die lips present another significant risk. Abrasive recycled materials, especially those containing trace amounts of dirt or metal dust, slowly erode the steel die lips over time. This wear alters the extrusion profile, making it impossible to maintain a uniform gauge. Inconsistent cooling water temperatures create internal stress, leading to post-production shrinkage.

Establishing In-House Testing Protocols

Quality control requires strict evaluation lenses. Manufacturers must establish rigorous in-house testing protocols to verify thickness uniformity across a full production spool. Relying solely on inline sensors is insufficient. Physical laboratory testing validates the automated data and ensures the sensors remain calibrated.

Operators must conduct micrometer checks at specific intervals. Testing the beginning, middle, and end of a production run ensures the gauge remains stable over time. Tensile testing using a universal testing machine verifies that the thickness translates into the required break strength. Camber evaluation is equally critical. Camber measures the straightness of the strap. Uneven thickness across the width of the strap causes it to curve like a banana. A curved strap will jam inside the arch of an automated machine. Routine camber tests ensure the strap remains perfectly straight and dimensionally sound.

• Conduct a technical audit of your current strapping tolerances to identify failure points in your packaging line.
• Request detailed SPC (Statistical Process Control) data from machinery vendors prior to any capital investment.
• Upgrade legacy extrusion lines with inline laser micrometers to establish closed-loop feedback.
• Implement strict gravimetric blending protocols to stabilize the MFI of your raw material mix.

FAQ

Q: What is the standard thickness tolerance for machine-grade PP strapping?

A: Machine-grade PP strapping requires a strict thickness tolerance, typically ±0.001 inches (±0.025 mm). This tight tolerance ensures the strap feeds smoothly through high-speed automated arch machines without jamming the tracks or slipping in the tensioning gears.

Q: What is the difference in thickness tolerance between hand-grade and machine-grade PP strapping?

A: Hand-grade strapping tolerates wider dimensional variations because human operators manually apply tension using hand tools. Machine-grade strapping requires exact tolerances. Automated strapping heads operate at high speeds and will jam or fail to weld if the thickness fluctuates.

Q: How do load weight and package dimensions dictate the required thickness of PP strapping?

A: Thickness determines the cross-sectional area, which directly dictates tensile strength. Heavier loads require thicker straps to prevent the material from yielding or snapping during transit. The specific combination of width and thickness provides the necessary break strength for a given package dimension.

Q: How does embossing depth affect the performance of PP strapping?

A: Embossing increases the overall functional thickness of the strap. A deeper pattern increases stiffness, which helps the strap feed through machine chutes. It also improves split resistance and provides the necessary surface friction for the machine's feed wheels and welding anvils to grip effectively.

Q: Why does inconsistent strap thickness cause jamming in automated strapping machines?

A: Automated machines rely on precise clearances in their feed tracks and tensioning gears. If a strap is too thick, it binds in the track and grinds against the feed wheels. If it is too thin, the gears fail to grip it, causing misfeeds and weak friction welds.

Q: What is the function of heat setting in a PP strapping production line?

A: Heat setting occurs in the annealing oven after the strap is stretched. It heats the polymer just below its melting point to relax internal molecular stress. This prevents the memory effect, ensuring the strap does not shrink in length and thicken in gauge after it is spooled.
