What Controls Wall Thickness in PVC Profile Extrusion?

Dimensional instability and material waste destroy margins in continuous extrusion manufacturing. When polymer melt exits the die, it rarely behaves exactly as intended. Maintaining uniform wall thickness in a PVC profile is notoriously difficult. This difficulty stems from the non-Newtonian flow behavior of polymer melts, differential cooling complexities, and the inherent challenges of complex internal geometries.

Operators cannot fix bad geometry with machine settings alone. Achieving tight tolerances requires a holistic approach. You must rely on the precise synchronization of initial profile design, die geometry, melt pressure, and cooling dynamics. The specific capabilities of your chosen extrusion machinery dictate your success rate. Mastering these variables transforms unpredictable extrusion runs into highly controlled, repeatable manufacturing processes.

• Profile design dictates manufacturability: A well-designed profile with uniform walls prevents material fluctuation and flow issues long before the polymer enters the die.

• Tooling establishes baseline flow: Die geometry, specifically land length and flow channel design, establishes the initial melt distribution before the plastic exits the extruder.

• Synchronization is critical: The exact ratio between extruder screw speed (output) and haul-off speed (draw-down) is the primary operational control for overall profile thickness.

• Cooling controls final dimensions: Vacuum calibration tanks freeze the profile's outer dimensions; uneven cooling leads to warping, sink marks, and localized thickness variations.

• Weight per meter is the ultimate metric: Consistent wall thickness directly stabilizes the weight per meter, ensuring predictable material costs and structural integrity.

• Equipment selection determines capability: Investing in a tightly synchronized, modern PVC profile production line mitigates the risks of surging and pressure fluctuations that cause longitudinal thickness variations.

The Physics of PVC Profile Wall Thickness (Success Criteria)

Understanding how polymer behaves under heat and pressure forms the foundation of extrusion control. Polyvinyl chloride is highly sensitive to shear and temperature. Its viscosity changes dynamically as it moves through the barrel and out of the die. Controlling wall thickness requires managing this behavior across two distinct stages of the extrusion process.

Why Uniformity Matters in Two Key Stages

The flow stage dictates initial material distribution. Uniform wall thickness in the initial CAD design prevents material from fluctuating unpredictably between thick and thin sections. Polymer melt naturally seeks the path of least resistance. If a profile features drastic transitions from thick structural walls to thin internal webs, the melt surges into the wider channels. This starves the narrower sections. Designing uniform walls balances the internal pressure of the die. It forces the melt to flow at a consistent velocity across the entire cross-section.

The cooling stage locks in the final dimensions. Thick sections retain heat significantly longer than thin sections. As PVC cools, it shrinks. When a profile has uneven walls, the thinner sections freeze and solidify quickly while the thicker sections remain molten. As those thick sections eventually cool and shrink, they pull on the already solidified thin walls. This differential shrinkage induces severe internal stress. The result is bowing, warping, and dimensional failure of the final product on the factory floor.

The Cost of Inconsistency and Weight Per Meter

Manufacturers often run profiles on the heavy side of the tolerance band to avoid structural failure. This practice is known as material giveaway. If the minimum wall thickness required for structural integrity is 2.0mm, operators might run the line at 2.2mm to compensate for longitudinal fluctuations. Over thousands of meters, this micro-variation drastically inflates raw material consumption.

Weight per meter serves as the primary quality assurance metric. It provides immediate feedback on longitudinal wall thickness. If the weight per meter increases while the line speed remains constant, the wall thickness has increased. Stabilizing this metric directly reduces raw material costs and minimizes scrap rates.

Longitudinal vs. Transverse Variations

Operators must distinguish between two types of dimensional variation to troubleshoot effectively. Longitudinal variation refers to fluctuations along the length of the profile. These issues are typically machine or process-driven. Causes include extruder surging, inconsistent haul-off speed, or unstable melt pressure. If the profile measures 2.0mm at one end and 2.3mm ten meters down the line, you are facing a longitudinal control issue.

Transverse variation refers to fluctuations across the cross-section of the profile. These defects are usually tooling-driven or caused by poor initial design. If the left wall measures 2.0mm while the right wall measures 1.5mm consistently along the entire length, the die is unbalanced. Transverse issues require physical adjustments to the die bolts, modifications to the die land, or changes to the calibration tooling.

Core Variables Controlling Thickness in a PVC Profile Production Line (Solution Categories)

Operating a plastic profile production line requires balancing multiple mechanical and thermal inputs. No single dial controls wall thickness. It is the synchronized output of tooling, pressure, cooling, and speed.

Profile Design and Tooling Geometry

Design for Manufacturability (DFM) establishes the baseline for extrusion success. Engineers must avoid abrupt transitions between thick and thin walls in the initial CAD model. Gradual transitions and uniform wall sizing ensure predictable flow outcomes. If complex geometries are necessary, designers incorporate hollow chambers to maintain consistent wall thickness throughout the cross-section.

The die land is the final straight section of the extrusion die. It balances flow velocity before the melt enters the atmosphere. Adjusting the land length controls the resistance applied to the polymer. Longer land lengths increase resistance, slowing the flow in specific areas. Tooling engineers cut flow channels to accommodate the specific rheology of the material. Rigid PVC requires highly streamlined channels to prevent stagnation and degradation, while flexible PVC tolerates different shear rates.

Extruder Output and Melt Pressure

The volume of melt pushed through the die dictates the total mass of the profile. Screw design and RPM stability control this output. Twin-screw extruders are standard for rigid PVC because they provide positive displacement and excellent mixing at lower shear rates. If the screw RPM fluctuates, the volume of plastic exiting the die pulses, causing longitudinal thickness variations.

Head pressure variations directly impact output consistency. Screen packs, breaker plates, and the die itself create backpressure. As screen packs blind with impurities, head pressure increases. This reduces the volumetric output of the extruder even if the screw RPM remains constant. Monitoring melt pressure transducers at the die head is mandatory for maintaining a stable flow rate.

Calibration and Vacuum Cooling

Once the plastic exits the die, it enters the calibration stage. Dry and wet vacuum sizing calibrators pull the extruded melt against the tooling walls. The vacuum forces the soft polymer to conform to the precise internal dimensions of the calibrator blocks. This process defines the outer geometry of the profile.

Vacuum pressure levels and water temperature freeze the polymer chains. Locking in the wall thickness requires rapid, controlled heat removal. If the vacuum is too weak, the profile pulls away from the calibrator walls, resulting in undersized dimensions and thicker walls. If the cooling water is too warm, the polymer remains pliable for too long, allowing the haul-off unit to stretch and thin the profile out of tolerance.

Haul-Off (Puller) Speed and Synchronization

The draw-down ratio defines the speed of the puller relative to the speed of the melt exiting the die. This is the most direct operational control for overall profile thickness. The haul-off unit grips the cooled profile and pulls it down the line.

Increasing the haul-off speed pulls the plastic faster than the extruder supplies it. This stretches the polymer and thins the overall profile wall. Decreasing the haul-off speed allows the plastic to bunch up slightly, thickening the profile wall. Precise synchronization between the extruder RPM and the haul-off speed is non-negotiable. Even a fractional percentage of drift between these two drives causes the weight per meter to fluctuate wildly.

To establish proper synchronization during startup, operators follow a strict sequence:

1. Bring the extruder up to the baseline RPM and allow the melt pressure to stabilize.

2. Thread the profile through the calibration table and into the haul-off belts.

3. Set the haul-off speed to match the natural exit velocity of the melt.

4. Gradually increase the haul-off speed in 0.1 m/min increments until the profile draws down to the target outer dimensions.

5. Lock the drive ratio in the PLC to maintain this exact speed relationship.

Evaluating a PVC Profile Extrusion Line for Precision Control (Evaluation Dimensions)

Upgrading or auditing a PVC profile production line requires evaluating the control systems that govern speed, temperature, and vacuum. Mechanical rigidity and software integration determine the line's ability to hold tight tolerances.

Drive and Motor Synchronization

Modern extrusion lines rely on advanced PLC and HMI integration to lock extruder RPM with haul-off speed. You must evaluate the resolution of these control systems. Analog drives often suffer from signal drift, leading to micro-surging. Digital drives with encoder feedback provide exact speed regulation.

Closed-loop feedback systems prevent longitudinal variations. These systems constantly monitor the actual speed of the haul-off belts and compare it to the setpoint. If slippage occurs, the drive automatically adjusts the motor torque to maintain the exact pulling speed. Without closed-loop control, operators constantly chase thickness variations manually.

Vacuum Calibration Tank Capabilities and Capacity

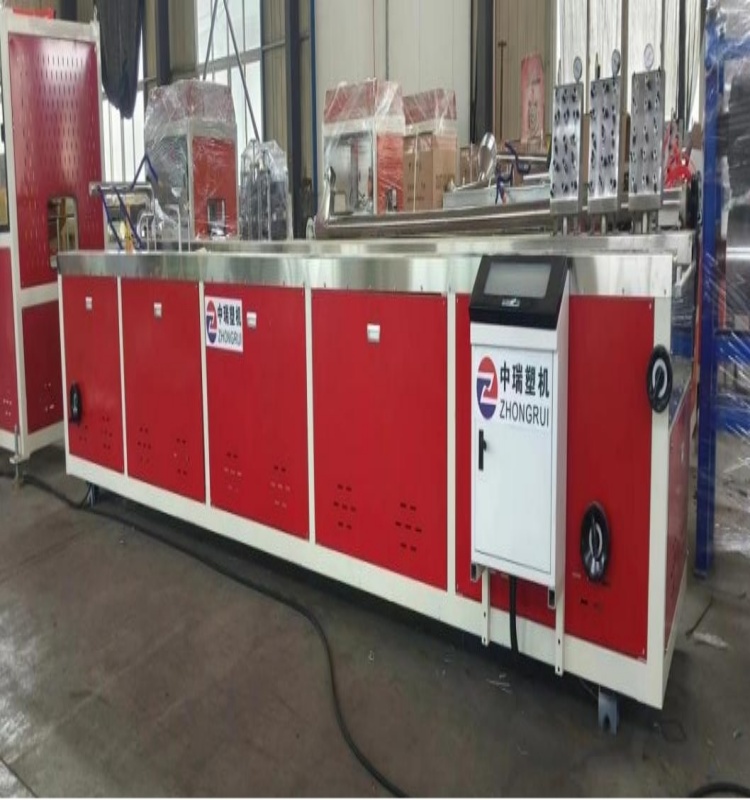

Calibration tanks require independent vacuum and water zones. Complex profiles need high vacuum pressure at the entry point to freeze the outer skin, followed by lower vacuum pressure downstream to prevent drag. Independent manifold design allows operators to fine-tune the vacuum applied to specific sections of the profile.

Pump sizing impacts the stability of the vacuum. If the pumps are undersized, a slight leak at the calibrator entrance causes a massive pressure drop across the entire tank. The maximum profile width and height dictate the required size and cooling capacity of the calibration table. Heavy, thick-walled profiles carry immense thermal mass. If the calibration table lacks sufficient length or water flow capacity, the profile exits the tank too hot. This leads to dimensional collapse and unpredictable shrinkage downstream.

Melt Temperature and Zone Heating Accuracy

Precise barrel and die temperature control prevents viscosity shifts. If the melt temperature fluctuates, the flow rate through the die changes, altering the wall thickness. Overheated PVC becomes highly fluid and flows too quickly through the center of the die. Under-heated PVC becomes stiff, increasing head pressure and reducing output.

Evaluate the requirement for PID (Proportional-Integral-Derivative) temperature controllers. PID algorithms anticipate temperature changes and pulse the heaters or cooling fans to maintain a flat temperature profile. Standard on/off thermostats create thermal waves in the barrel, which translate directly into surging and thickness variations at the die lip.

Upgrading to Customizable PVC Profile Machinery (Scalability & Overall Value)

Standard extrusion lines struggle with highly complex cross-sections. Investing in customizable PVC profile machinery provides the mechanical flexibility needed to tackle advanced geometries and multi-material applications.

Adapting to Complex Internal Geometries

Maintaining uniform thickness in profiles based on the number and geometry of internal chambers is a severe technical challenge. Multi-chamber window frames feature numerous internal webs that intersect with heavy outer walls. These internal webs are notoriously difficult to cool because they are isolated from the primary water bath.

Customizable machinery allows for specialized die tuning and adjustable flow restrictors. Operators mechanically restrict flow to the outer walls while opening channels to the internal webs. Furthermore, custom calibration setups utilize targeted cooling jets. These jets inject chilled air or water directly into the hollow chambers of the profile, freezing the internal webs at the same rate as the outer skin. This prevents the internal webs from sagging or tearing during the draw-down phase.

Specialized Applications and Co-Extrusion

Many modern profiles require multiple materials extruded simultaneously. A PVC sealing strip production line often requires the co-extrusion of a rigid structural backing and a flexible sealing lip. Controlling thickness in these applications is exponentially more complex.

Equipment must scale to handle different polymer behaviors simultaneously without compromising the primary profile wall. Co-extrusion requires independent extruders feeding a single complex die. The melt pressure and velocity of the flexible PVC must perfectly match the rigid PVC at the point of convergence. If the flexible extruder surges, it blows out the wall of the rigid profile. Customizable lines feature advanced synchronization software that links the output of the co-extruder directly to the master line speed, ensuring the flexible lip maintains a precise thickness regardless of overall line speed changes.

Implementation Risks and Process Troubleshooting (Risks & Mitigation)

Even with optimal design and high-end machinery, environmental factors and material variations introduce instability. Operators must diagnose and resolve these issues quickly to minimize scrap.

Surging and Pulsation

Surging manifests as a rhythmic thickening and thinning of the profile along its length. Root causes include inconsistent feeding in the hopper, worn screw flights, or improper temperature profiles. If the feed throat bridges, the screw starves, causing a sudden drop in output. Worn screws allow polymer to slip backward over the flights, destroying pressure stability.

Mitigation strategies start with the material. Audit the bulk density of the PVC blend. Significant changes in bulk density alter the feed rate. Check screw and barrel wear annually. Calibrate volumetric or gravimetric feeders to ensure a consistent mass of material enters the extruder. Adjust the rear barrel temperatures to optimize the friction and melting rate of the specific PVC formulation.

Uneven Cooling and Bowing

When a profile exits the line with a distinct curve or bow, uneven cooling is the culprit. Root causes include misaligned calibration tooling, blocked water ports in the sizing blocks, or excessive haul-off tension. If one side of the profile touches the calibrator wall while the other side floats, the cooling rates differ drastically.

Mitigation requires strict mechanical alignment. Verify tooling alignment using laser guides during setup. Ensure uniform water flow by inspecting and clearing all vacuum and water ports before every run. Adjust vacuum levels to ensure the profile maintains equal contact with all sides of the calibrator. Reduce haul-off tension to prevent stretching the profile while it is still warm and susceptible to deformation.

Material Formulation Impact

Variations in the PVC dry blend change the melt flow index. The ratio of virgin resin to regrind is a primary source of instability. Regrind has already been subjected to heat history, altering its viscosity compared to virgin material. If the regrind ratio fluctuates from 10% to 30% between batches, the extrusion flow dynamics change completely.

Operators adjust processing parameters to compensate for batch-to-batch material inconsistencies. If a high-regrind batch increases melt viscosity, operators slightly increase barrel temperatures or reduce line speed to maintain the target head pressure. Strict material handling protocols and consistent blending ratios are the best defense against formulation-driven thickness variations.

Conclusion

1. Conduct a capability audit of your existing extrusion lines to measure current tolerance capabilities and weight per meter variance.

2. Implement strict material handling protocols to stabilize the bulk density and regrind ratios of your PVC blends.

3. Standardize your tooling setup procedures using laser alignment to eliminate transverse thickness variations caused by mechanical misalignment.

4. Upgrade analog drive controls to digital, closed-loop systems to permanently eliminate speed drift between the extruder and haul-off units.

FAQ

Q: What is the standard wall thickness tolerance for a PVC profile?

A: Typical industry tolerances for rigid PVC profiles range from ±0.1mm to ±0.2mm. This depends heavily on the profile size, complexity, and end-use application. High-precision technical profiles require tolerances as tight as ±0.05mm, demanding advanced closed-loop extrusion control.

Q: How does the initial profile design impact extrusion wall thickness?

A: Designing profiles with uniform walls prevents material from fluctuating between thick and thin sections. Uniform geometry balances internal die pressure, ensuring consistent flow velocity. This prevents differential shrinkage during cooling, which causes warping and localized thickness variations.

Q: Why is "weight per meter" an important metric in PVC extrusion?

A: Weight per meter is the most direct indicator of longitudinal wall thickness consistency. If the weight fluctuates, the wall thickness is changing. Monitoring this metric prevents material giveaway, reduces raw material waste, and ensures the profile meets structural requirements.

Q: How does haul-off speed affect plastic extrusion thickness?

A: Haul-off speed has an inverse relationship with wall thickness. A faster puller speed stretches the polymer, resulting in thinner walls. A slower puller speed allows the melt to bunch up, resulting in thicker walls. Synchronization with extruder output is critical.

Q: Why is my extruded PVC profile thicker on one side?

A: This is transverse variation. It is typically caused by an unbalanced die, uneven die heating, or misaligned calibration tooling. You must adjust the die bolts to restrict flow on the thicker side or realign the downstream cooling equipment.

Q: Can cooling water temperature change profile dimensions?

A: Yes. Warmer water slows the cooling process. This keeps the polymer pliable for longer, potentially allowing the haul-off unit to draw the profile down further, altering the final thickness. It can also cause hollow sections to collapse.

Q: What causes surging in a PVC profile extrusion line?

A: Surging is usually caused by inconsistent material feeding, bridging in the hopper, worn screw flights, or unstable drive motors. Fluctuating head pressure due to blinded screen packs or improper temperature profiles also causes volumetric output to pulse.
